View store informationConsew 199R-1A-1 — Single Needle Zig-Zag Lockstitch Machine
Heavy-Duty Construction • Rope Tacking Capability • Ornamental & Reinforced Stitching

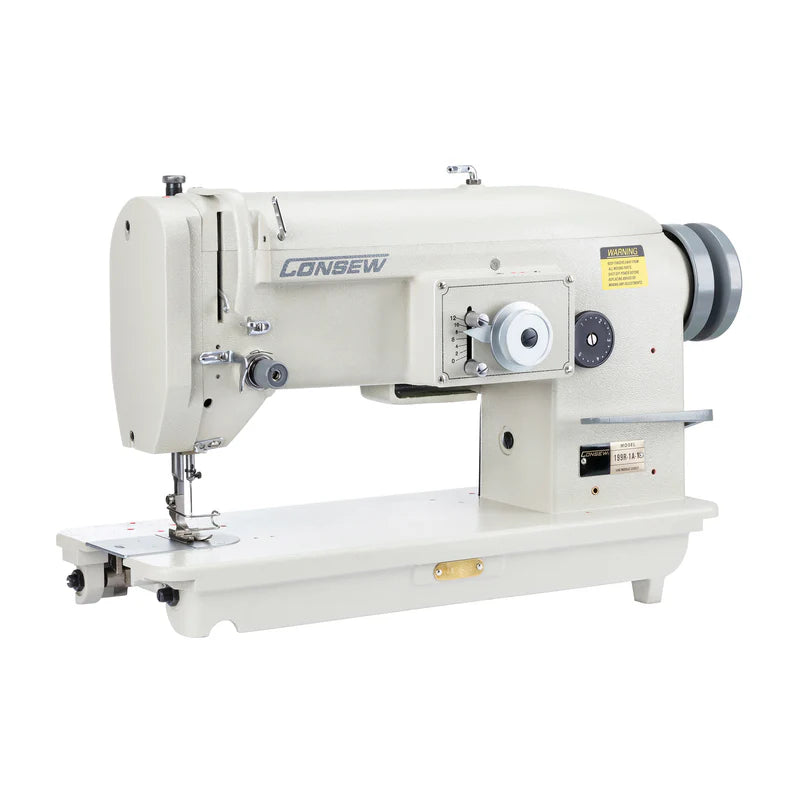

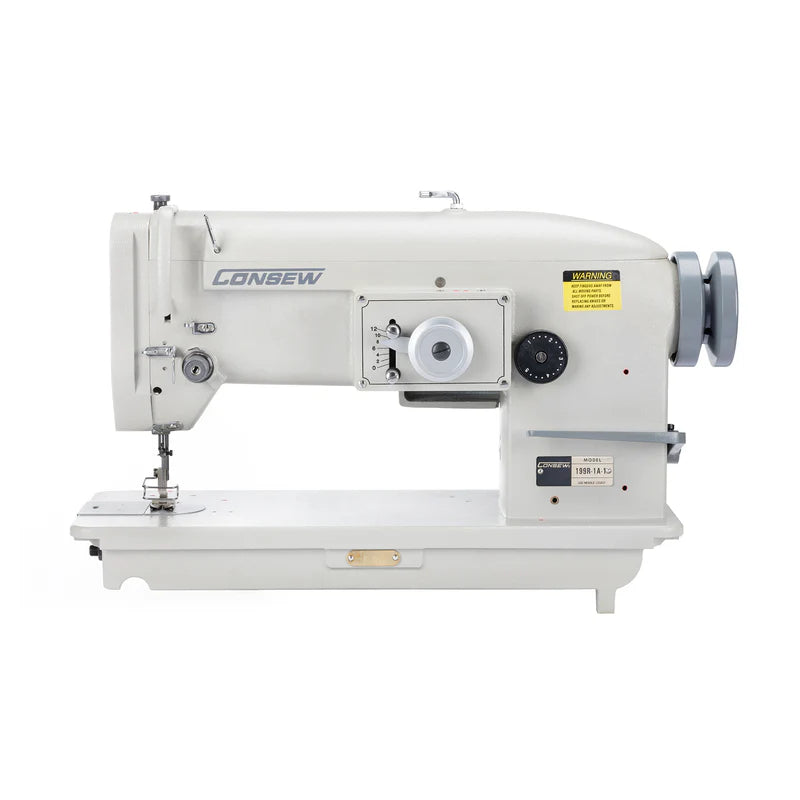

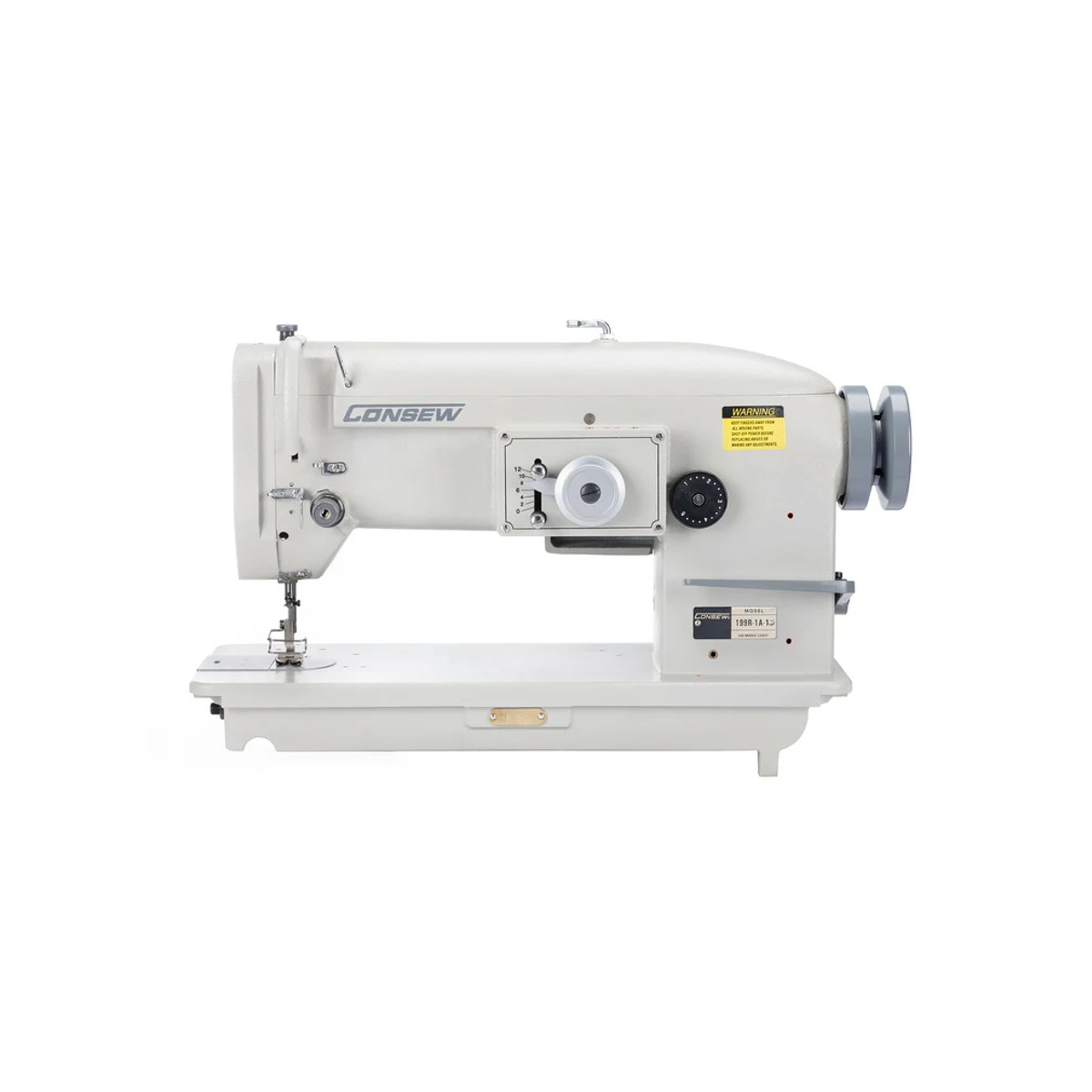

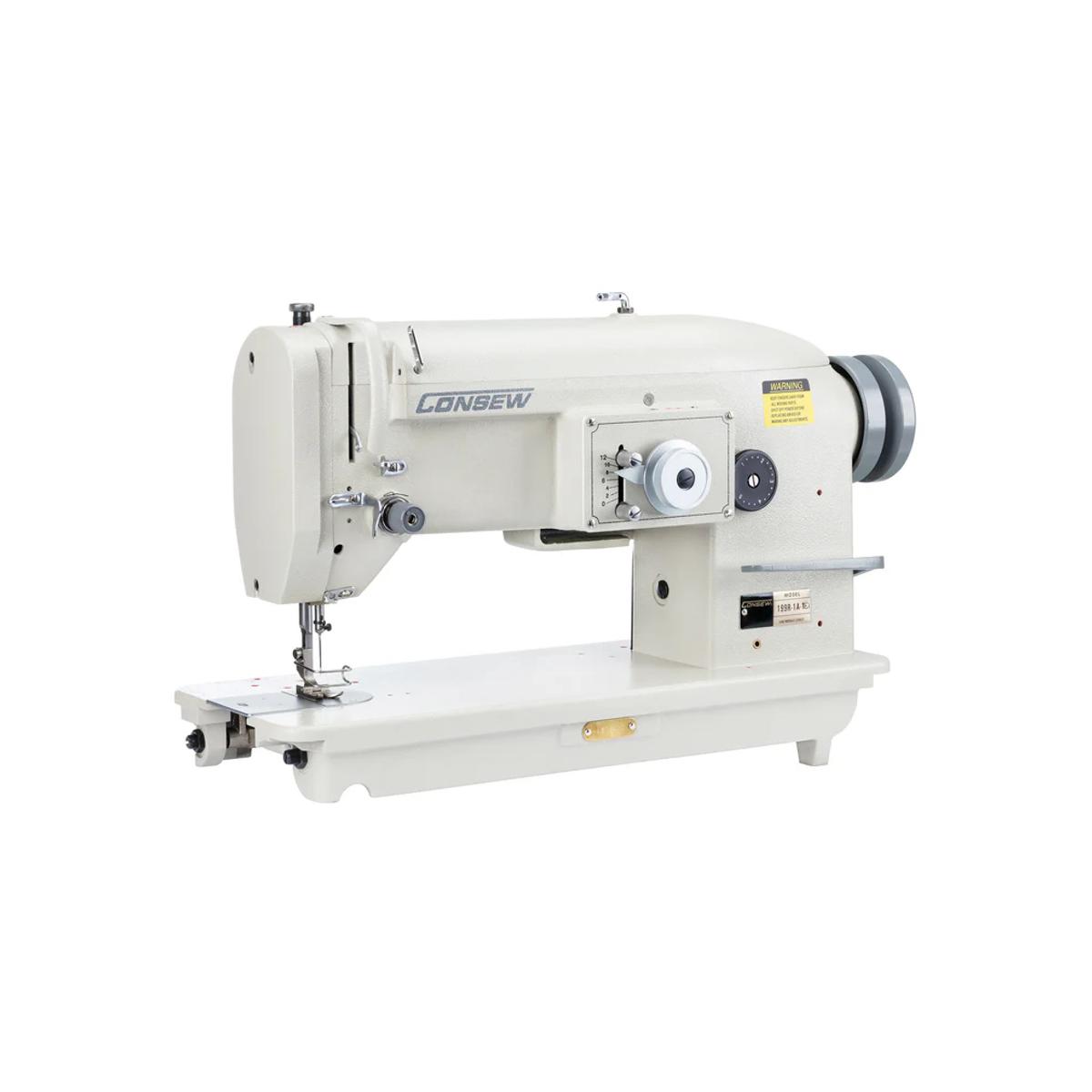

The Consew 199R-1A-1 is a professional-grade single-needle, drop-feed, zig-zag lockstitch machine designed for both ornamental and heavy-duty applications. With its horizontal axis rotary hook, reverse feed, and three-step/two-stitch zig-zag pattern (Federal Stitch Type 308), it provides consistent, reinforced seams across canvas, nylon, vinyl, leather, and synthetic materials.
Engineered for maximum versatility, this model handles everything from elastic and stretch fabrics to industrial textiles like tarpaulins, sails, tents, and military gear. Its optional rope-tacking attachments make it ideal for marine, outdoor, and heavy textile production.
Key Features
- Three-Step / Two-Stitch Zig-Zag (Type 308): Produces ornamental or reinforced seams for elastic and heavy materials.
- Horizontal Axis Rotary Hook: Smooth thread flow and precise stitch formation at high speed.
- Combination Zig-Zag & Straight Stitch: Switch easily between styles; straight stitch when set to “0 mm.”
- Reverse Stitching: Reinforces seams for extra durability.

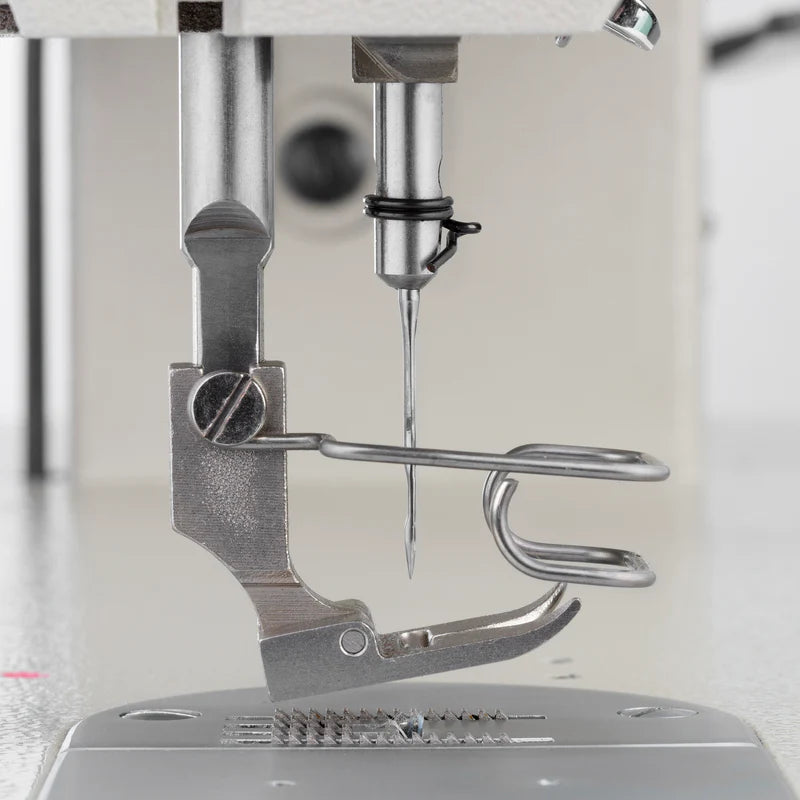

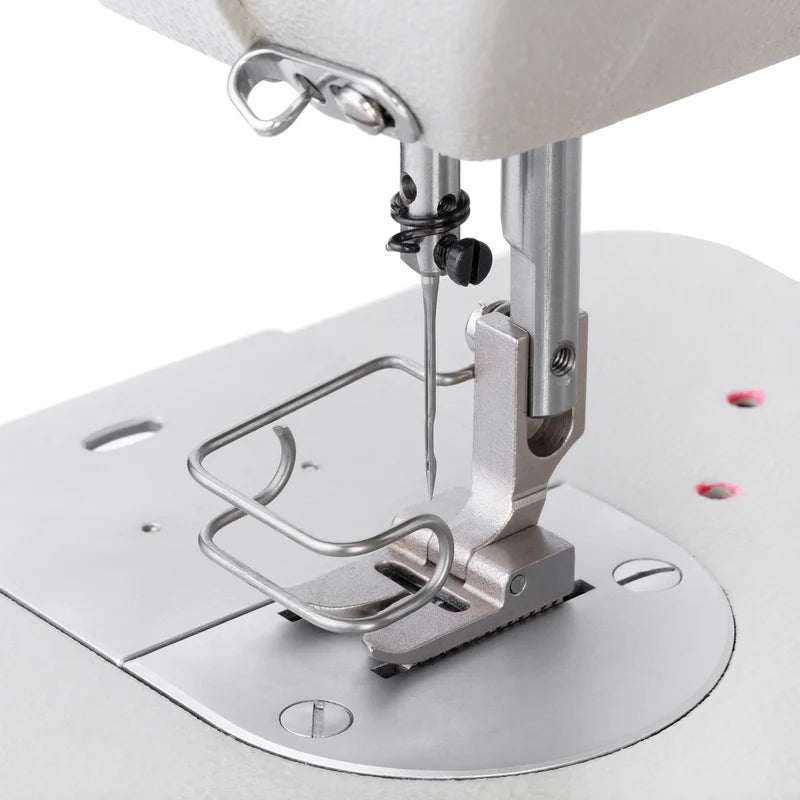

- Special Rope Tacking Fittings: Ideal for creating loops, ends, and rope attachments on industrial fabrics.

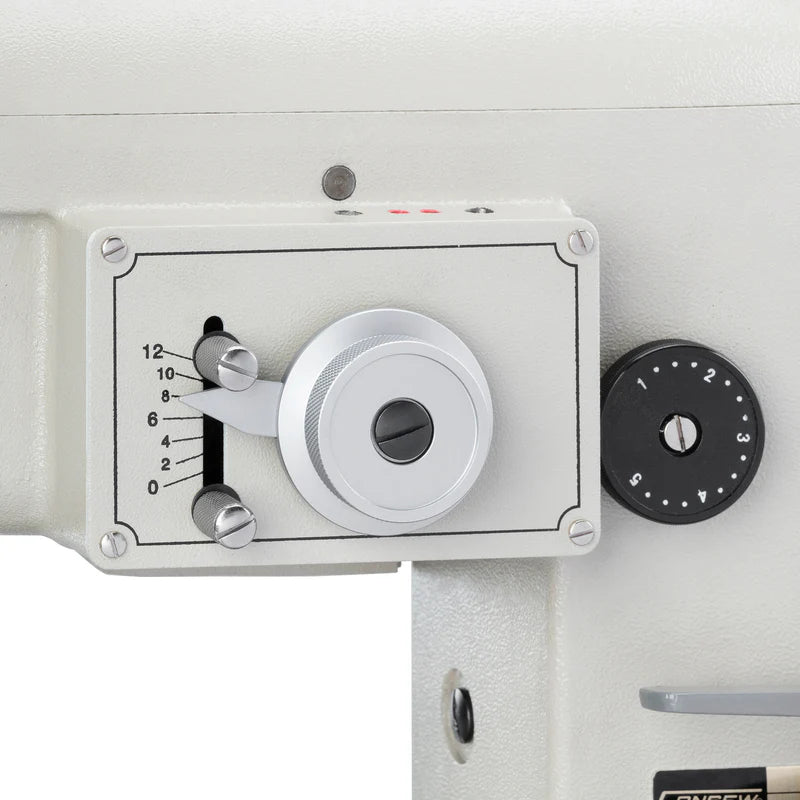

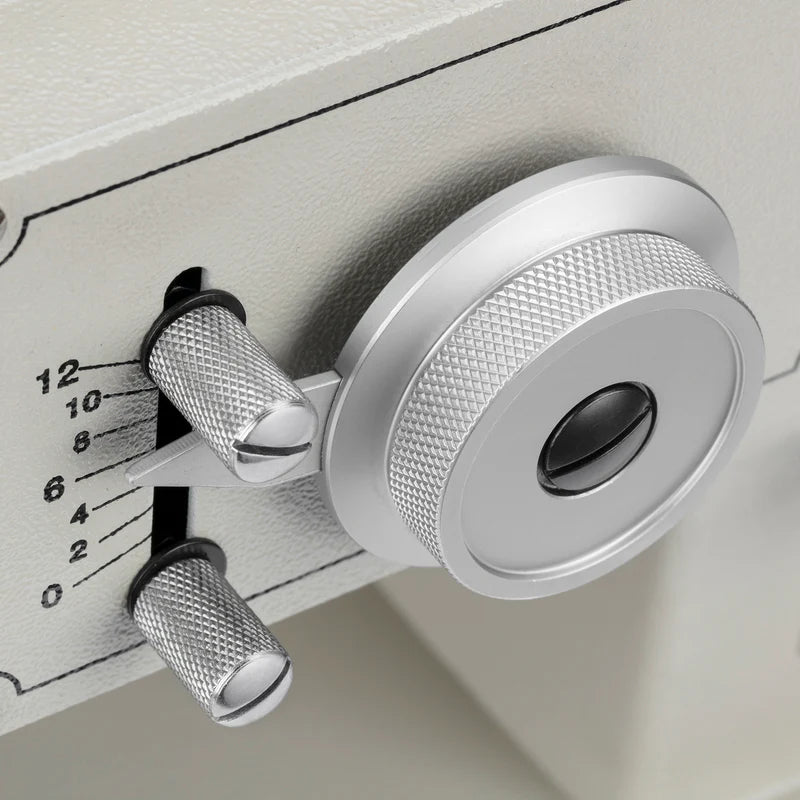

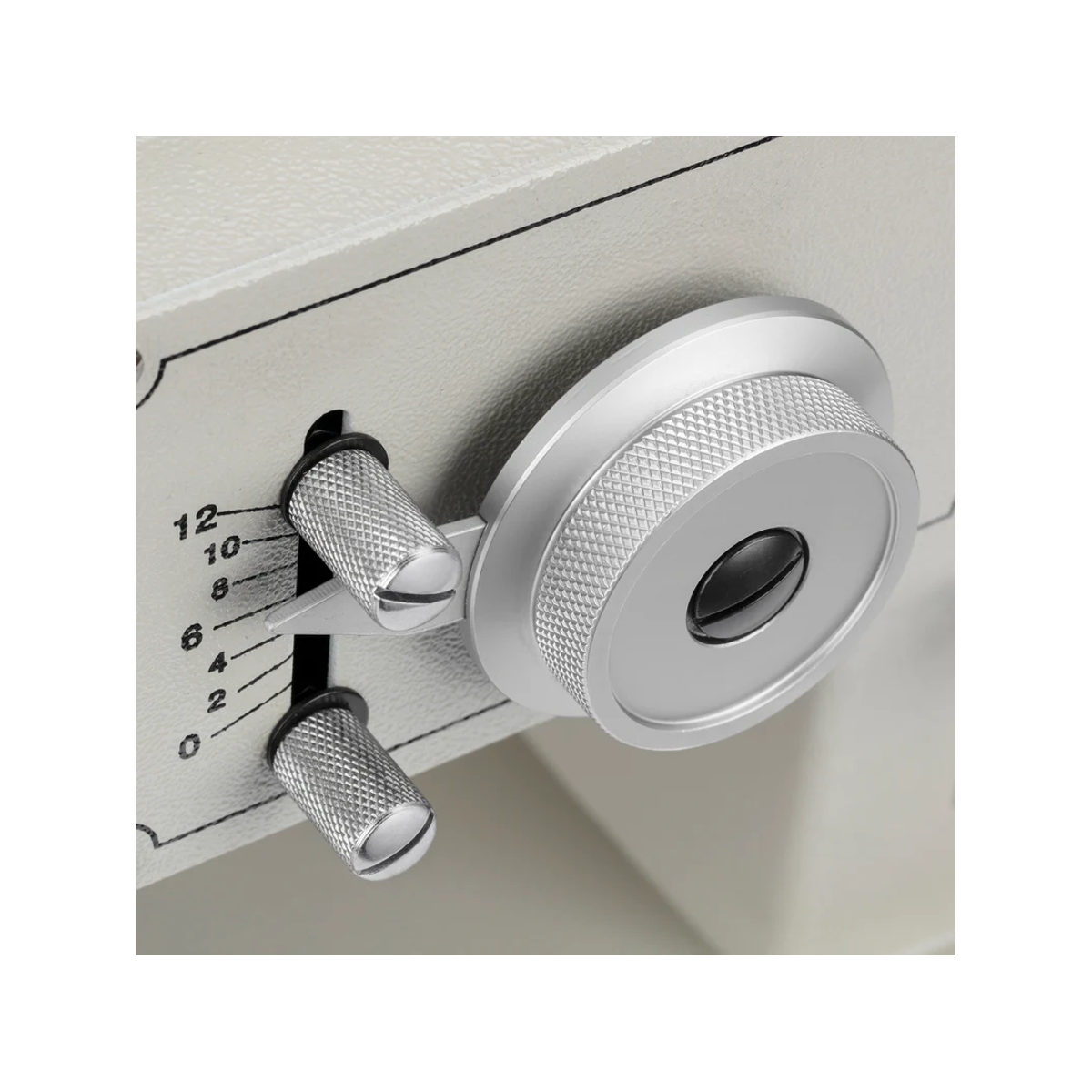

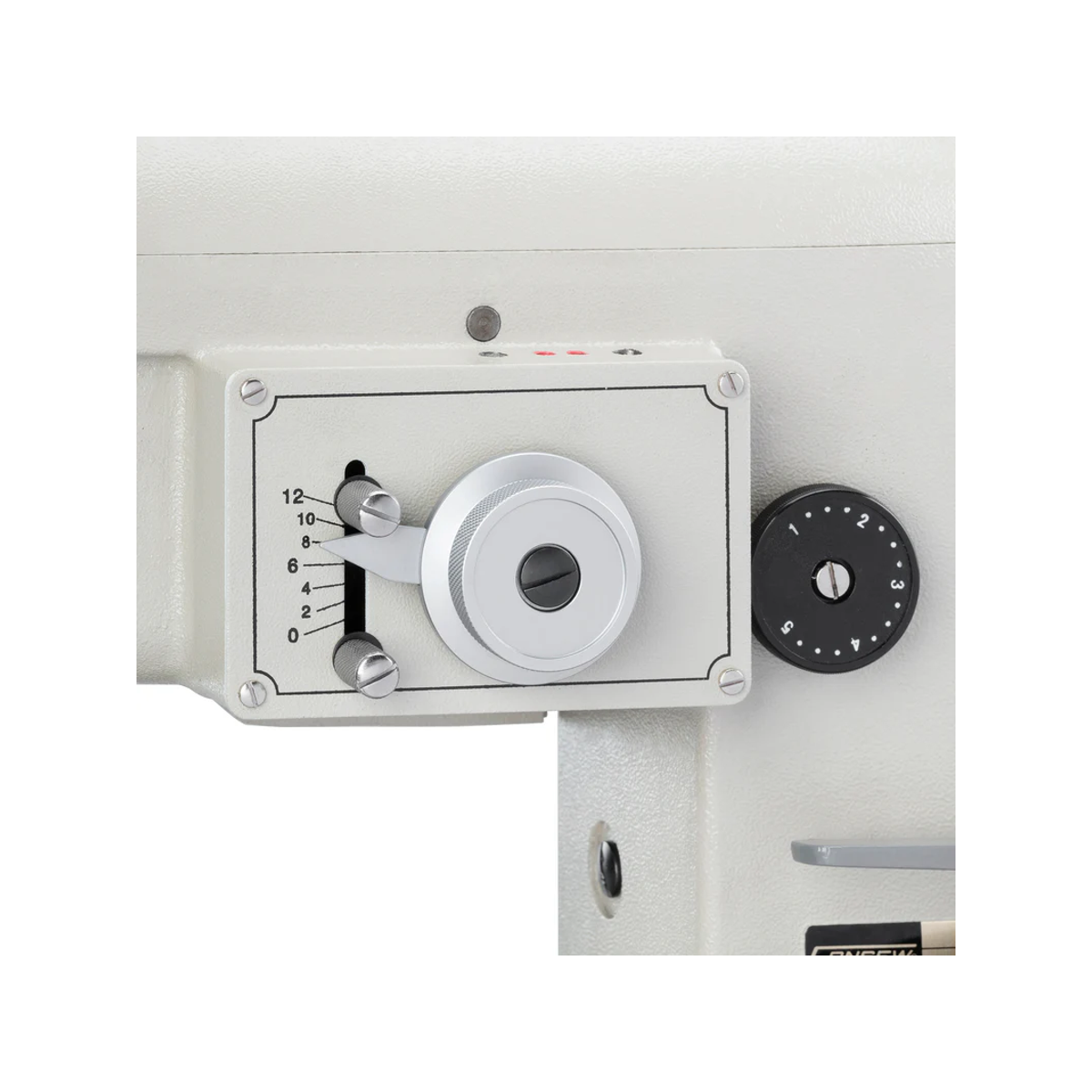

- Locking Zig-Zag Width Regulator: Maintains consistent stitch width for precision work.
- Long Arm Design: 10″ of workspace for handling large or bulky materials.
- Optional Stitch Variants: Interchangeable patterns (1A, 2A, 3A) available with additional parts.
Applications
- Boat and truck covers, sails, awnings, and tents
- Canvas, leather, nylon, vinyl, and synthetic fabrics
- Rope loops, ends, and tacking operations
- Parachutes, hammocks, tarpaulins, and military equipment
- Ornamental and reinforced stitching on heavy materials
Technical Specifications
| Model: | 199R-1A-1 |
| Needles: | 1 (Single) |
| Feeding Mechanism: | Needle Feed |
| Max Speed (S.P.M.): | Zig-Zag: 2700 | Straight: 3000 |
| Stitch Type: | 304 / 308 |
| Stitch Length: | 5 s.p.i. (5mm) |
| Zig-Zag Width (Max): | 3/8" (9.5mm) |
| Presser Foot Clearance: | 6mm (15/64") |
| Needle System: | 16 × 95 |
| Bobbin Type: | B75 (Pre-wound L) |
| Work Space: | 10" (258mm) |
| Needle Bar Stroke: | 1-11/32" (34mm) |
| Bed Size: | 7" × 18-7/8" (178mm × 480mm) |
| Hook: | B-70 (Horizontal Axis Transverse Rotary) |
The Consew 199R-1A-1 stands out as a reliable industrial workhorse — perfect for marine, military, and outdoor manufacturing where reinforced, flexible stitching and rope tacking performance are essential.
