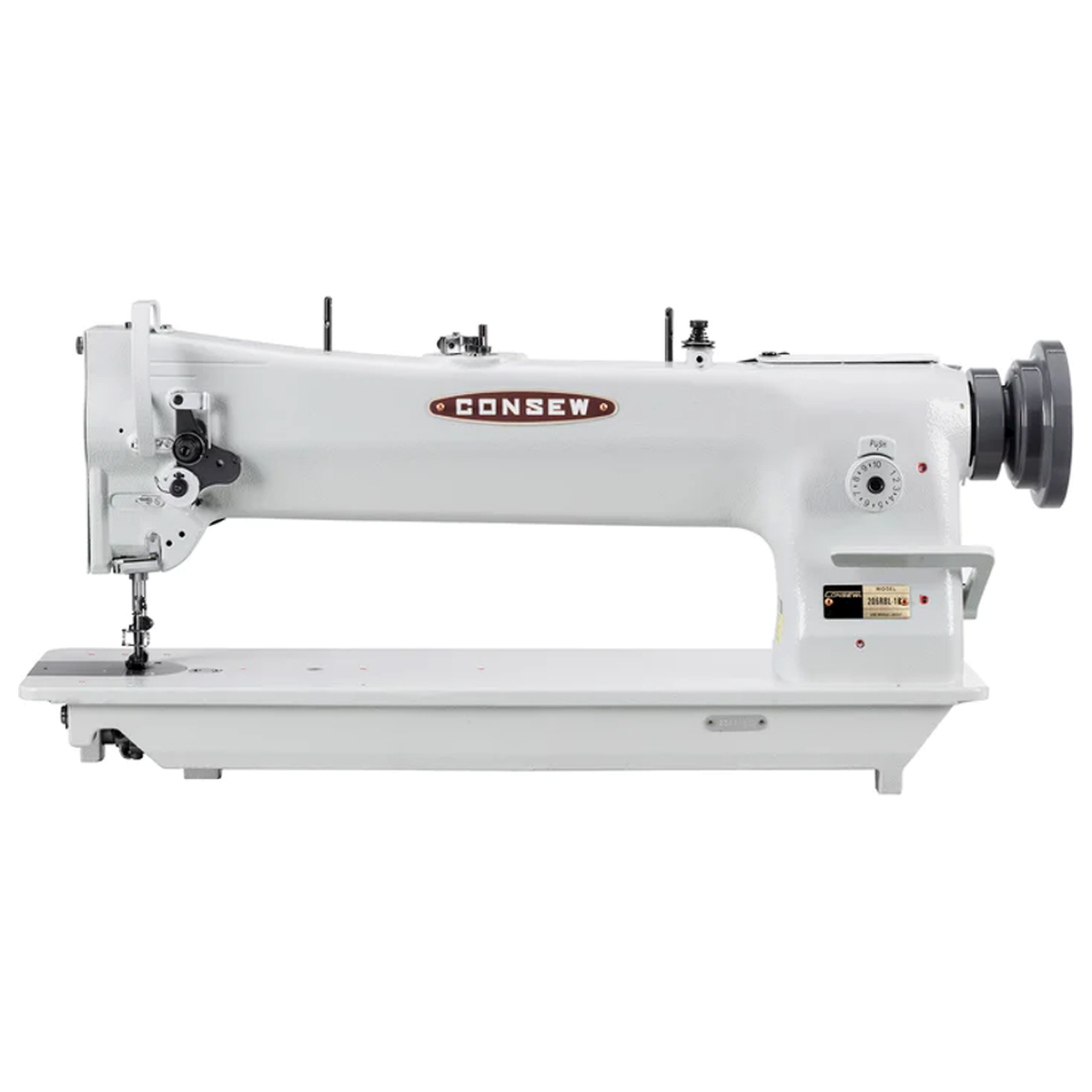

View store informationConsew 206RBL-18 — Long Arm Heavy-Duty Walking Foot Industrial Sewing Machine
Triple Feed • Compound Feed • Extra-Long Arm • Lockstitch System

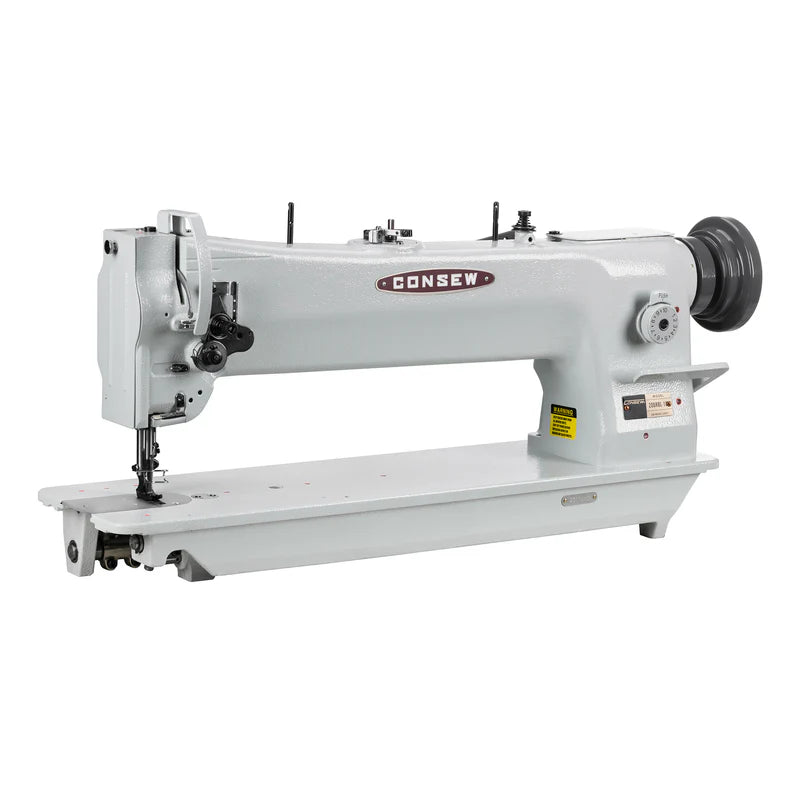

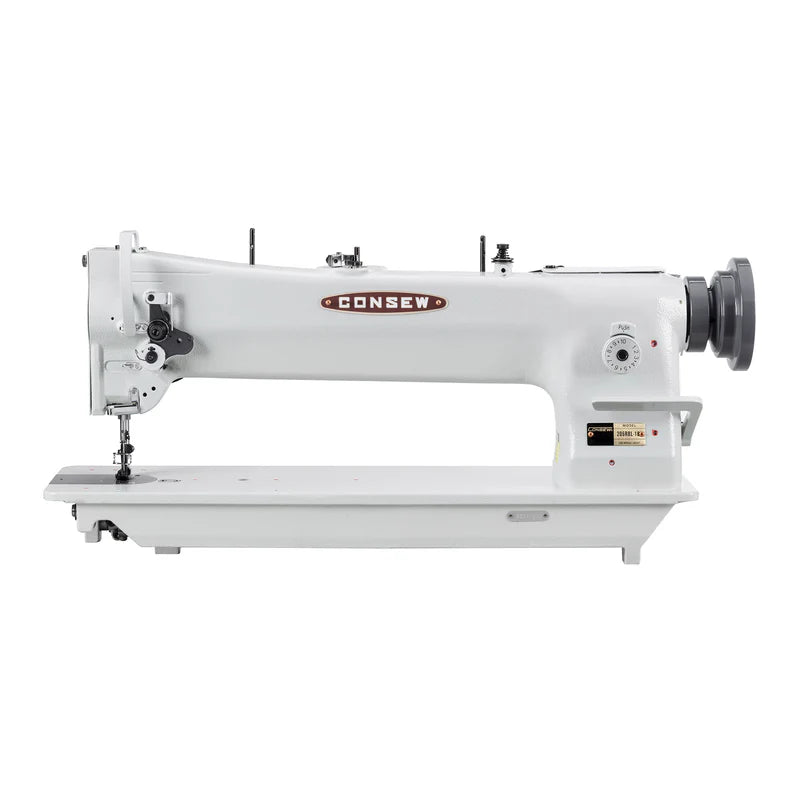

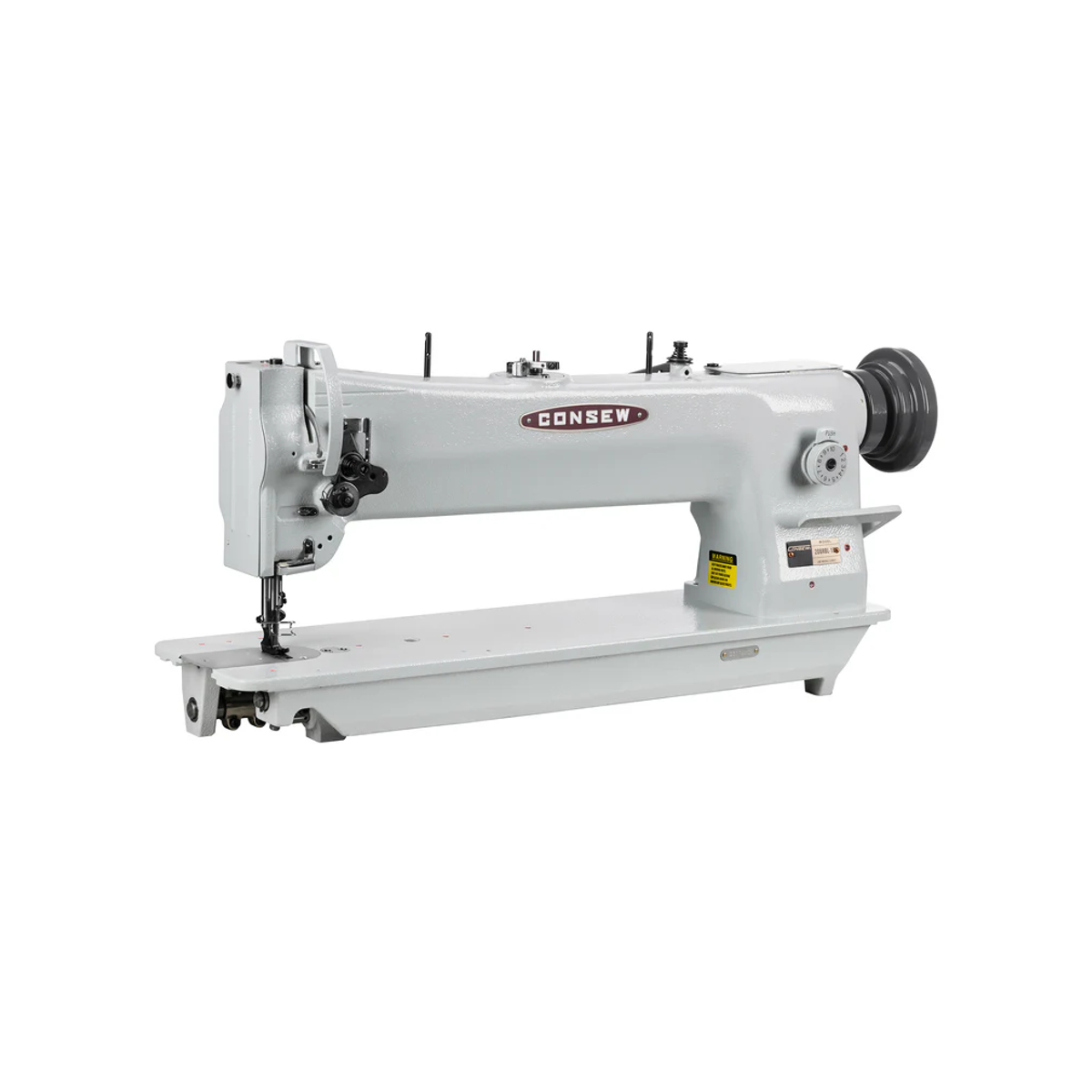

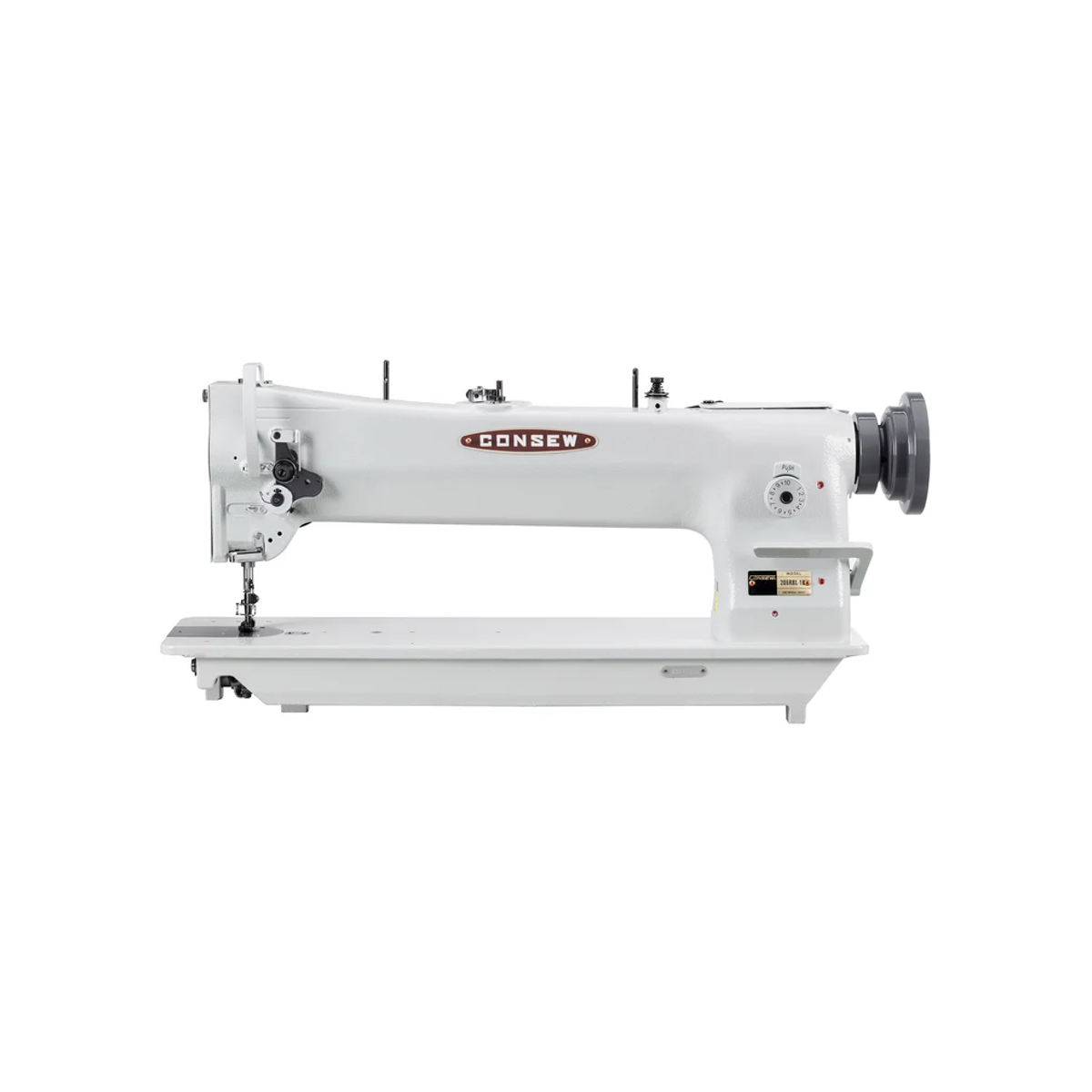

The Consew 206RBL-18 is a long-arm, single-needle, heavy-duty lockstitch machine featuring triple feed (drop feed, needle feed, and walking foot) for superior fabric control and precision. Engineered for durability and smooth operation, it is ideal for sewing a wide range of materials — from light synthetics to heavy leather, vinyl, and canvas — making it a top choice for upholstery, marine, and outdoor gear manufacturing.
This model includes centralized arm lubrication, a reservoir-oiled hook with micrometric valve, and a safety clutch system (exclusive to 18" and 25" models), ensuring long service life, easy maintenance, and operator safety. Its extra-long arm (18") provides ample workspace for large or bulky items.
Key Features

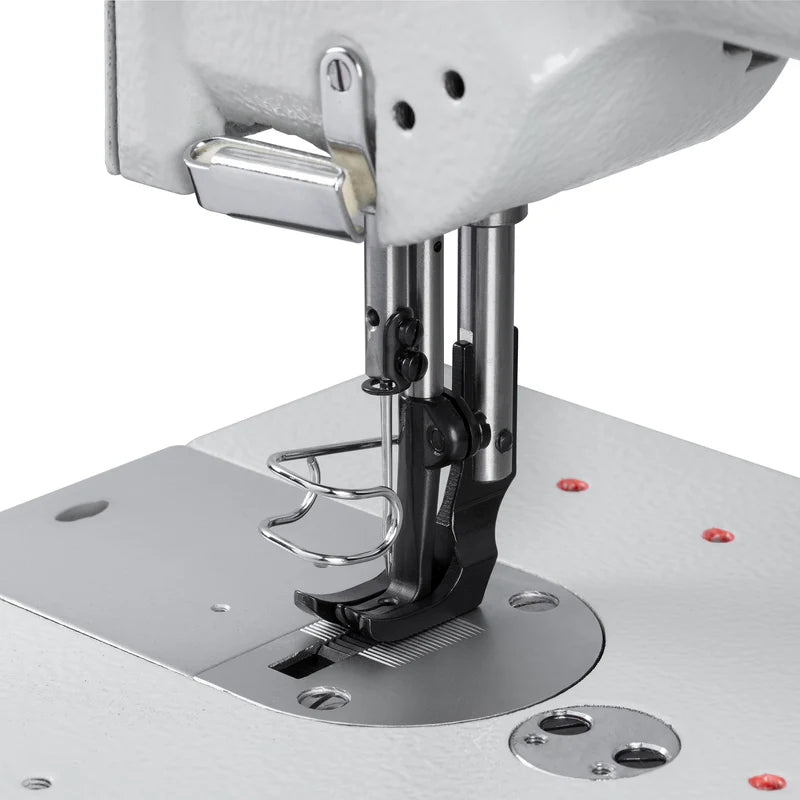

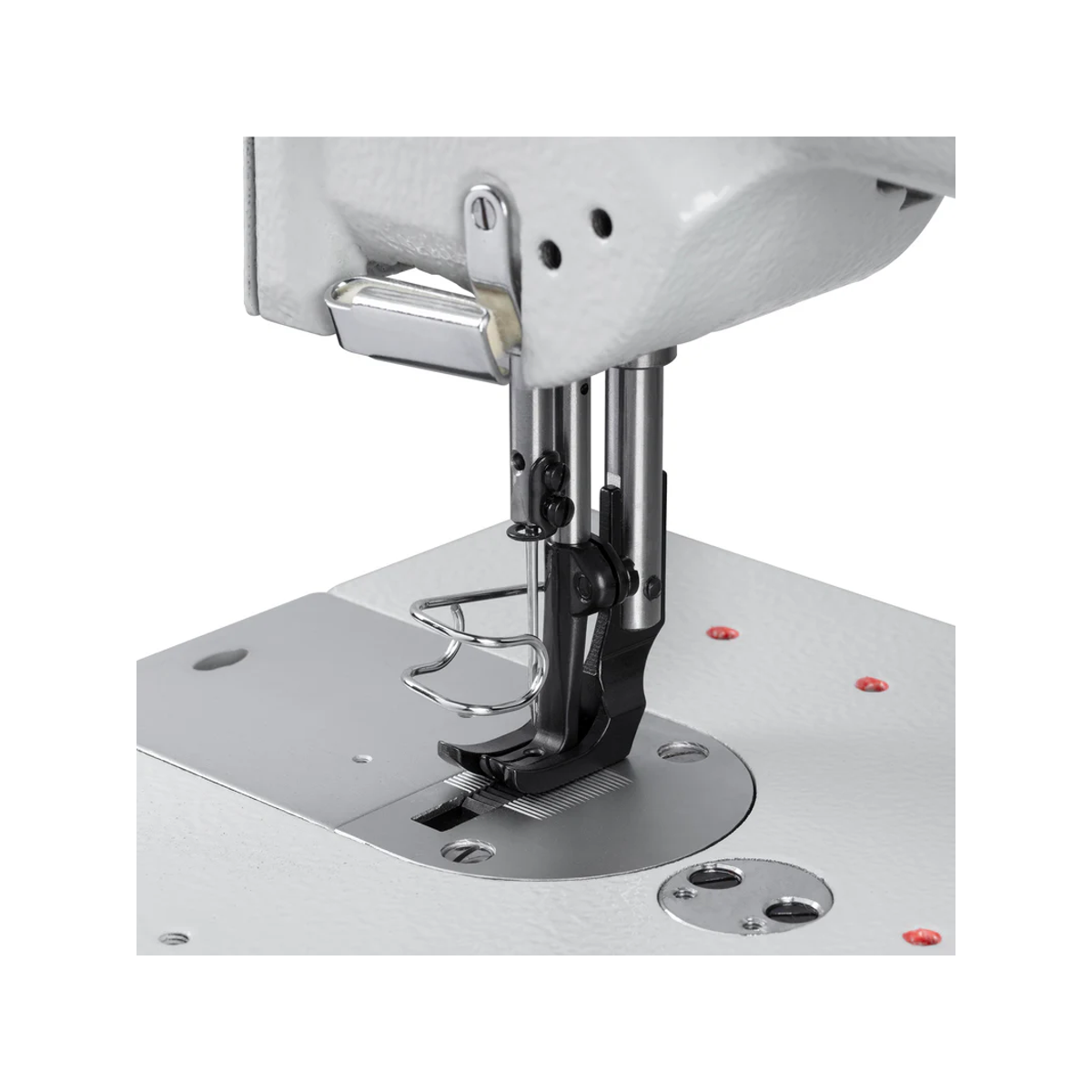

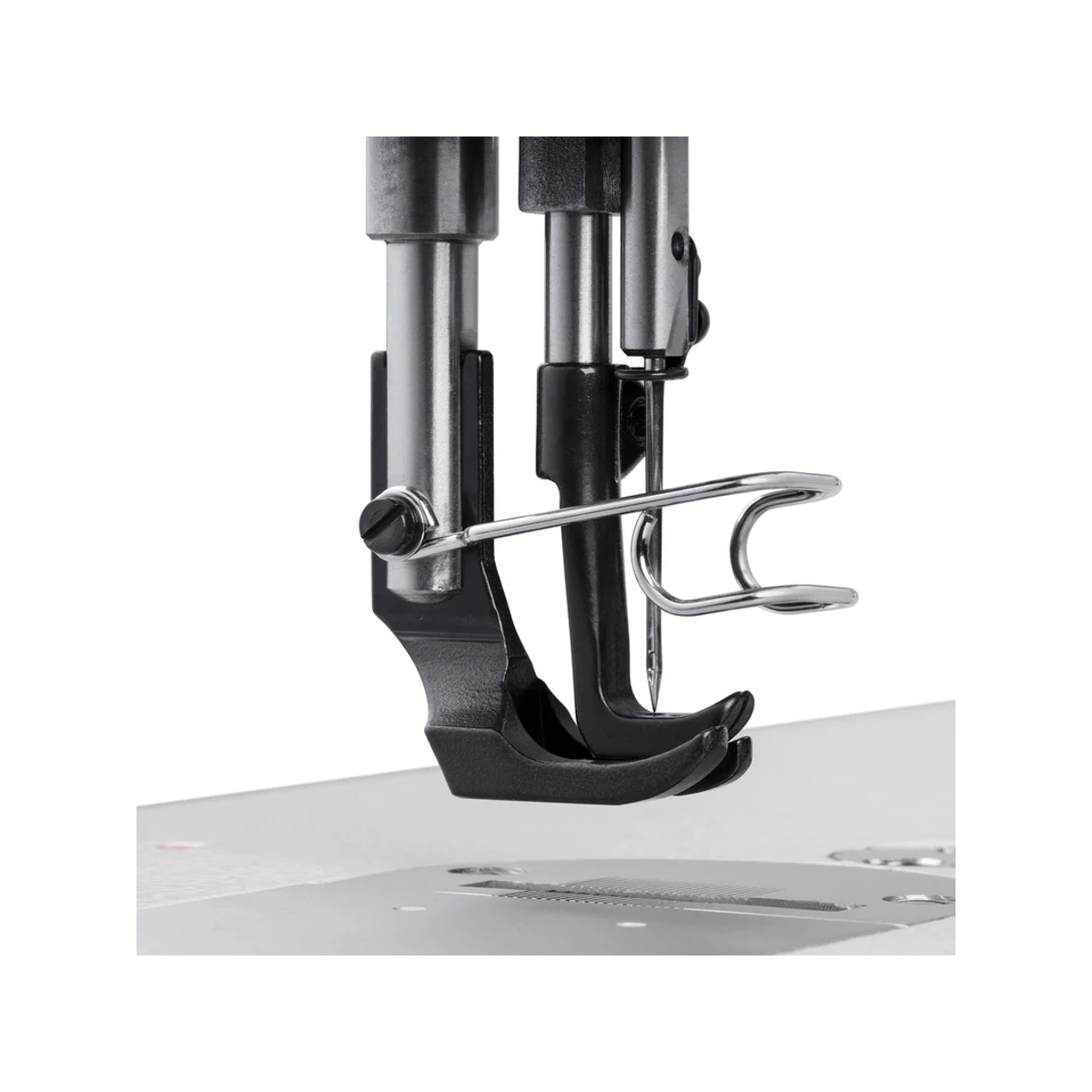

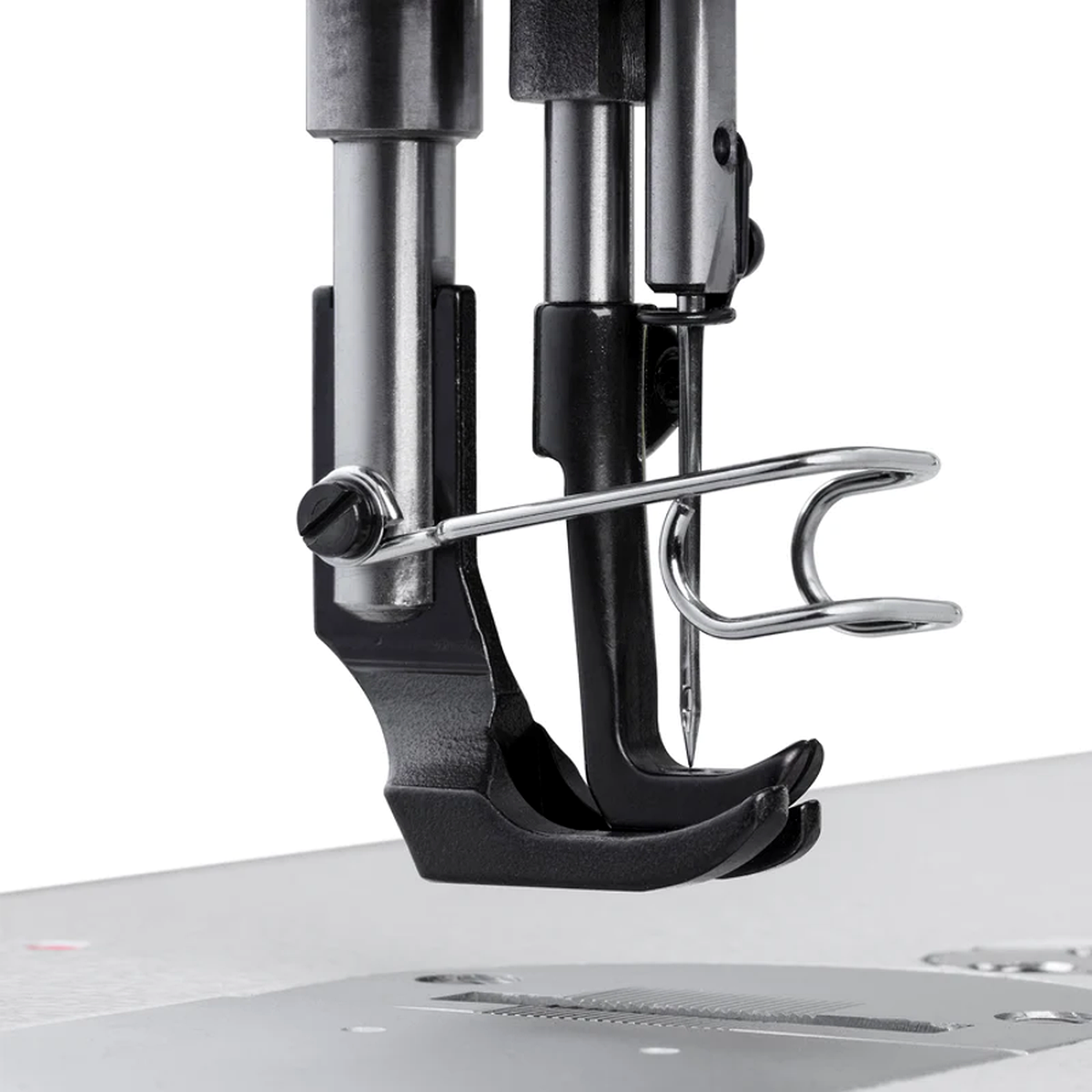

- Triple Feed System: Combines drop feed, needle feed, and walking foot for even, skip-free stitching.

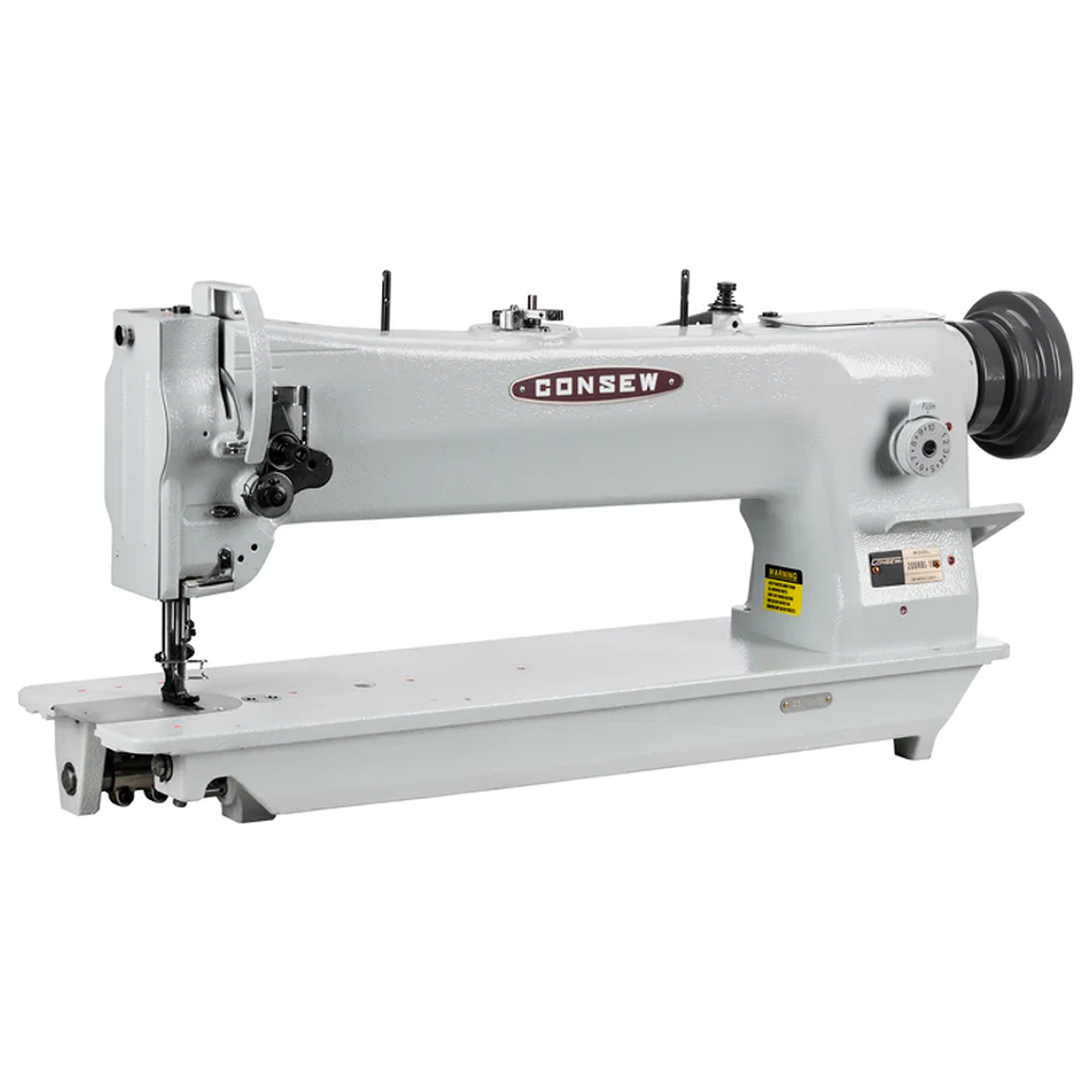

- Long Arm Design: 18" working space for large and heavy materials like tarps, sails, and upholstery panels.

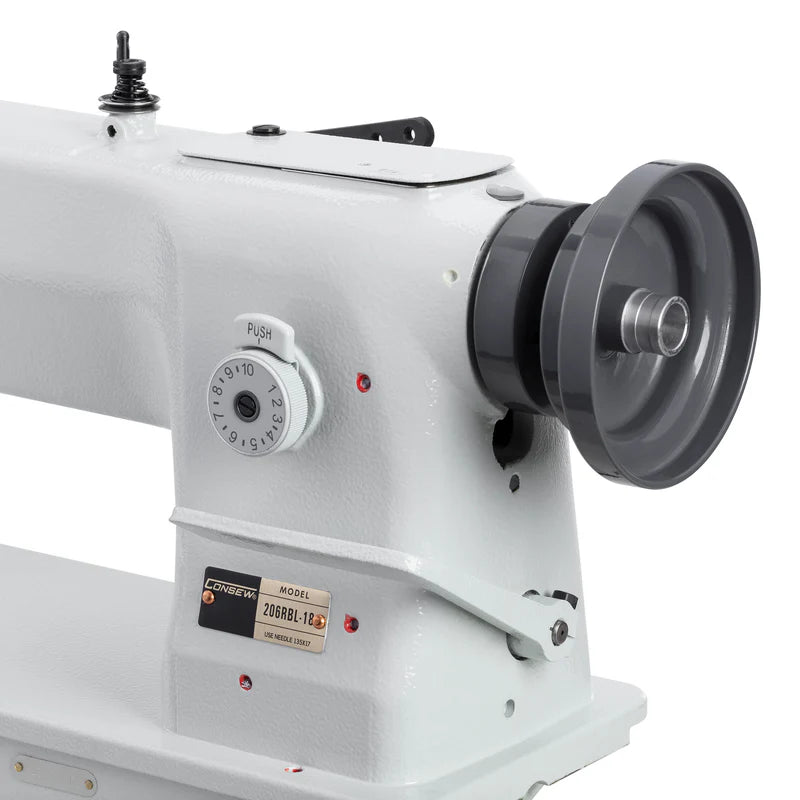

- Safety Clutch: Protects hook and gears; push-button re-engagement included on 18" and 25" models.
- Centralized Lubrication: Automatic arm lubrication with reservoir-oiled hook and micrometric control valve.
- High Presser Foot Lift: 9/16" (14mm) clearance for thick or multi-layer materials.
- Large Horizontal Hook: Gear-driven system ensures consistent thread handling and less downtime.
- Extra-Long Stitch: Up to 10mm (2½ S.P.I.) for heavy materials and decorative topstitching.
- Adjustable Reverse Stitching: Matches forward stitch length perfectly for reinforced seams.

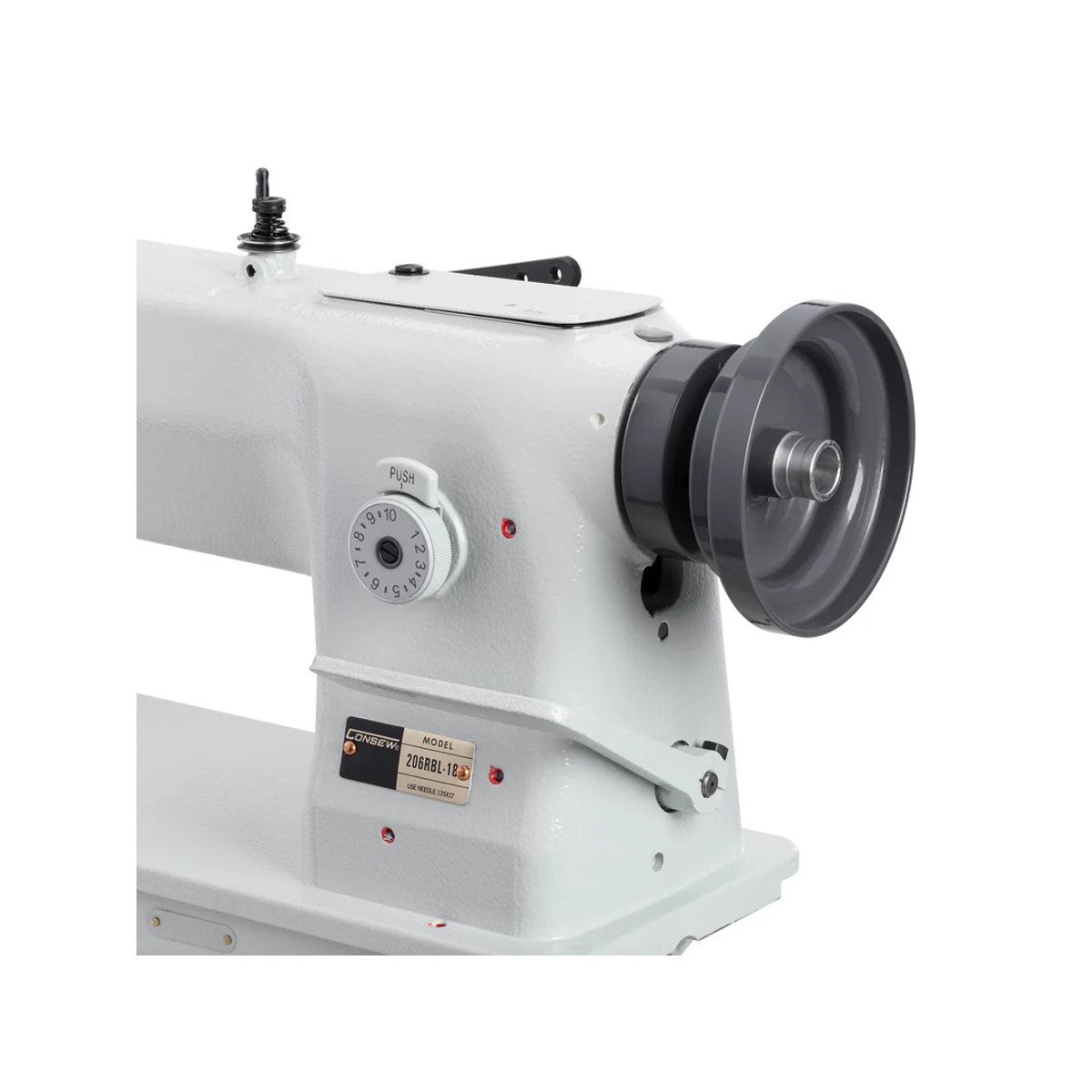

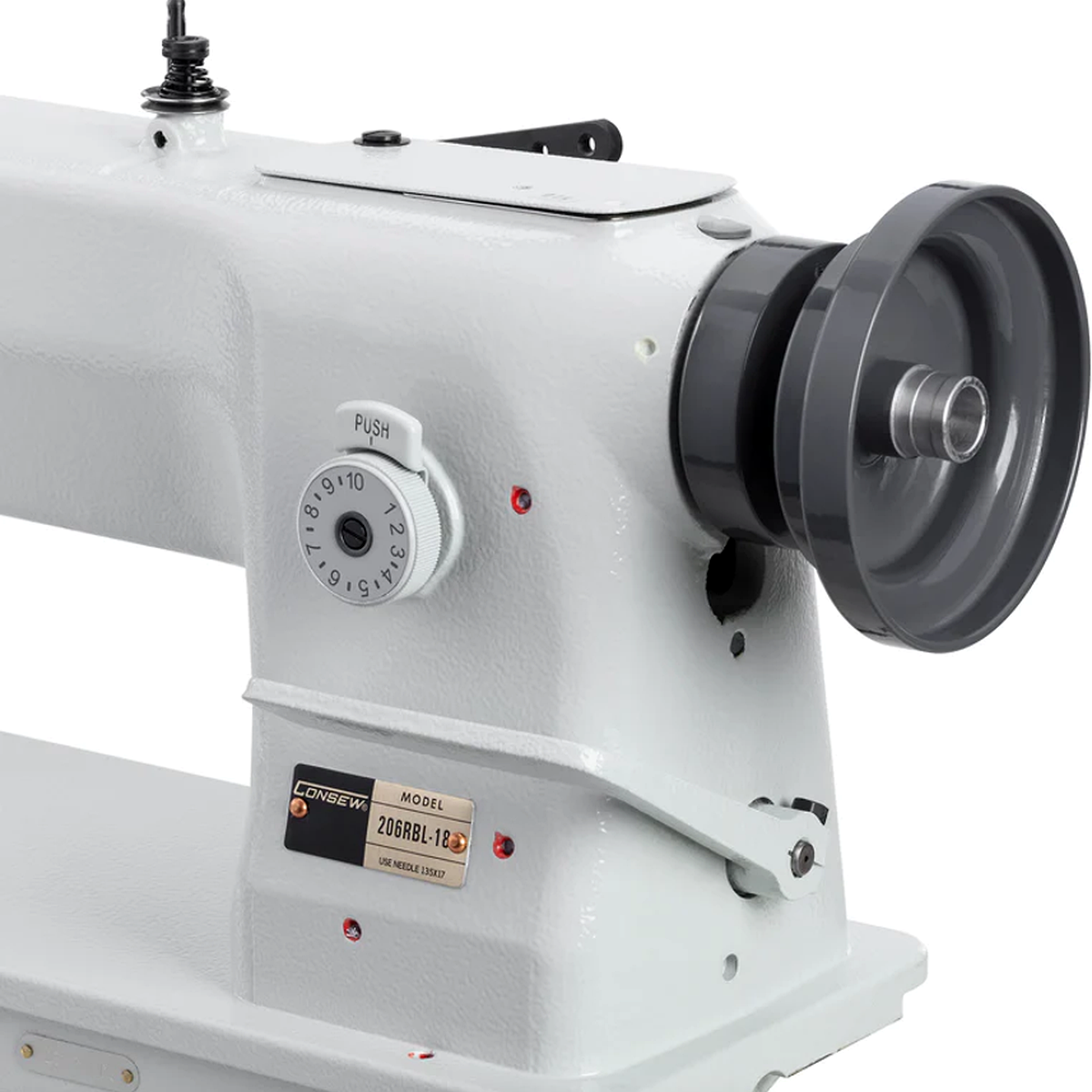

- Locking Stitch Regulator: Prevents stitch-length changes due to vibration.
- Interchangeable Parts: Compatible with Consew 226R-2 and 255RB-2 walking foot models.

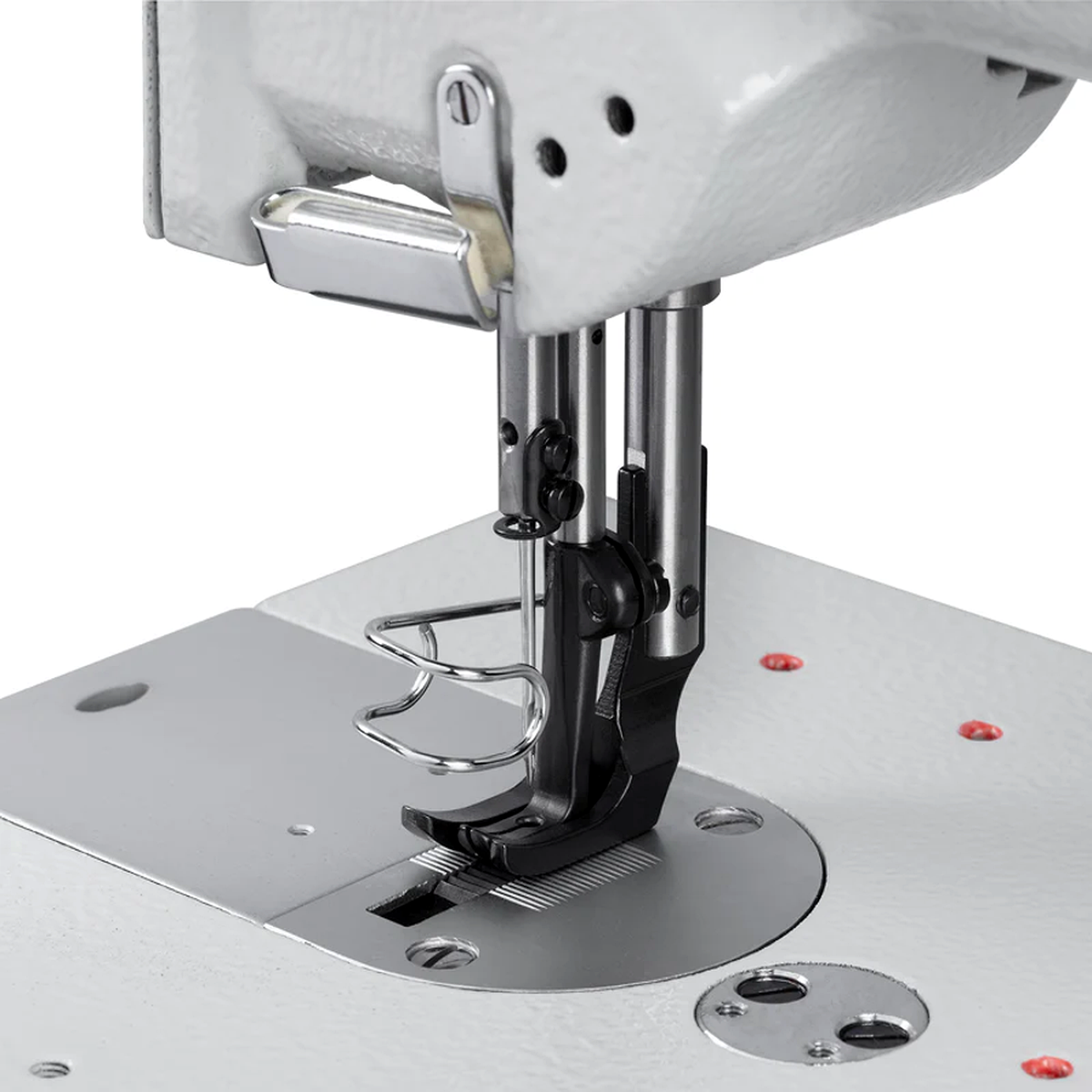

- Customizable Setup: Needle plate, foot, and feed dog easily swapped for specialized operations.
Applications
- Automotive, boat, and furniture upholstery
- Leather goods, handbags, and luggage manufacturing
- Tents, awnings, tarpaulins, and canvas covers
- Outdoor and camping gear production
- Shoes, boots, and orthopedic items
Technical Specifications
| Model: | 206RBL-18 |
| Feed Type: | Triple feed (drop feed, needle feed, walking foot) |
| Arm Type: | 18″ long arm |
| Max Sewing Speed: | 1,800 stitches per minute |
| Max Stitch Length: | 10 mm (2½ S.P.I.) |
| Presser Foot Lift: | 9/16″ (14 mm) |
| Needle System: | 135×17 |
| Hook Type: | Large horizontal-axis rotary hook (Model 18033) |
| Lubrication: | Centralized arm lubrication with reservoir-oiled hook |
| Needle Bar Stroke: | 33 mm (1 5/16″) |
| Work Space: | 18″ (460 mm) |
| Bed Size: | 7″ × 18 7/8″ (178 × 480 mm) |
| Weight: | 243 lbs (approx.) |
| Stitch Type: | 301 (lockstitch) |
The Consew 206RBL-18 delivers industrial strength, precision, and endurance — perfect for professionals who need reliable long-arm performance on tough materials like leather, canvas, and vinyl.
