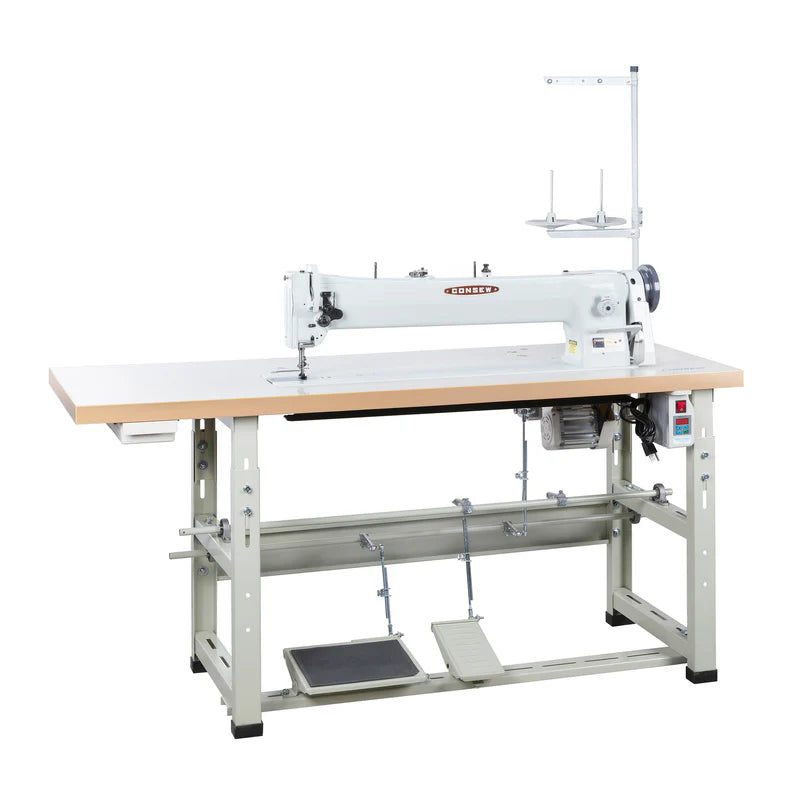

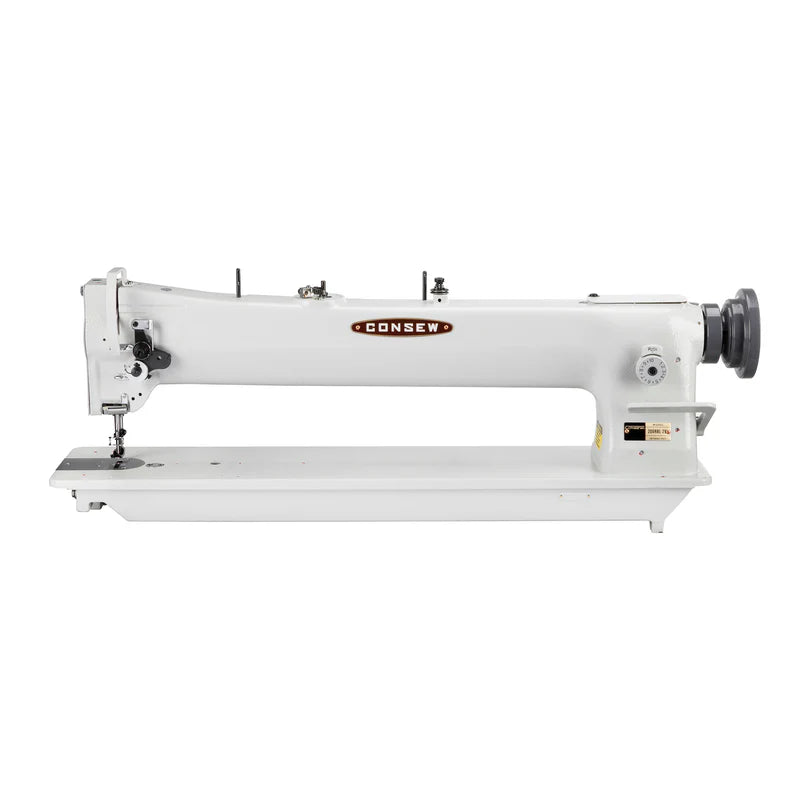

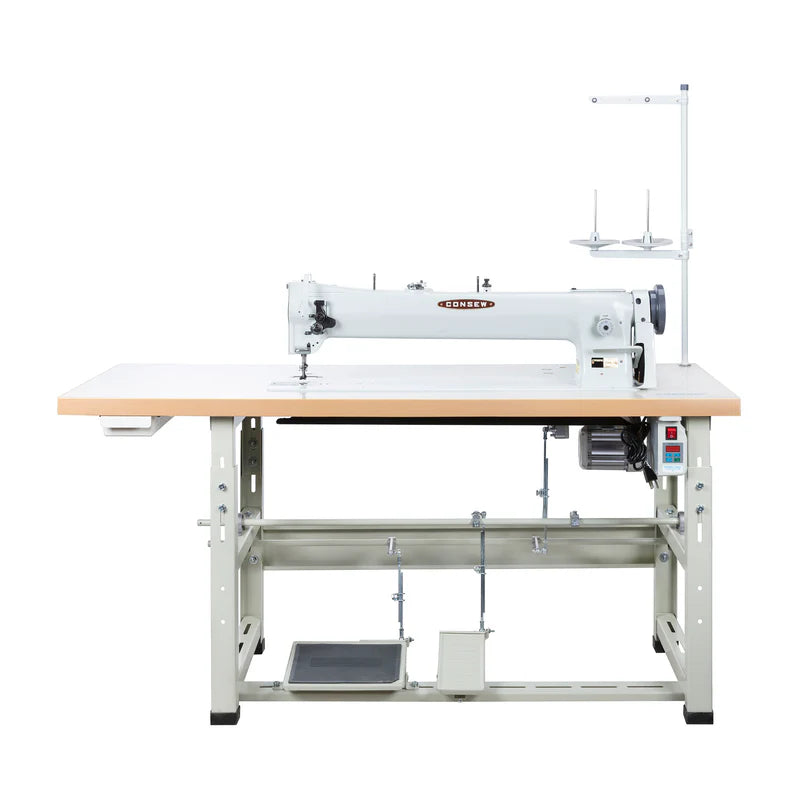

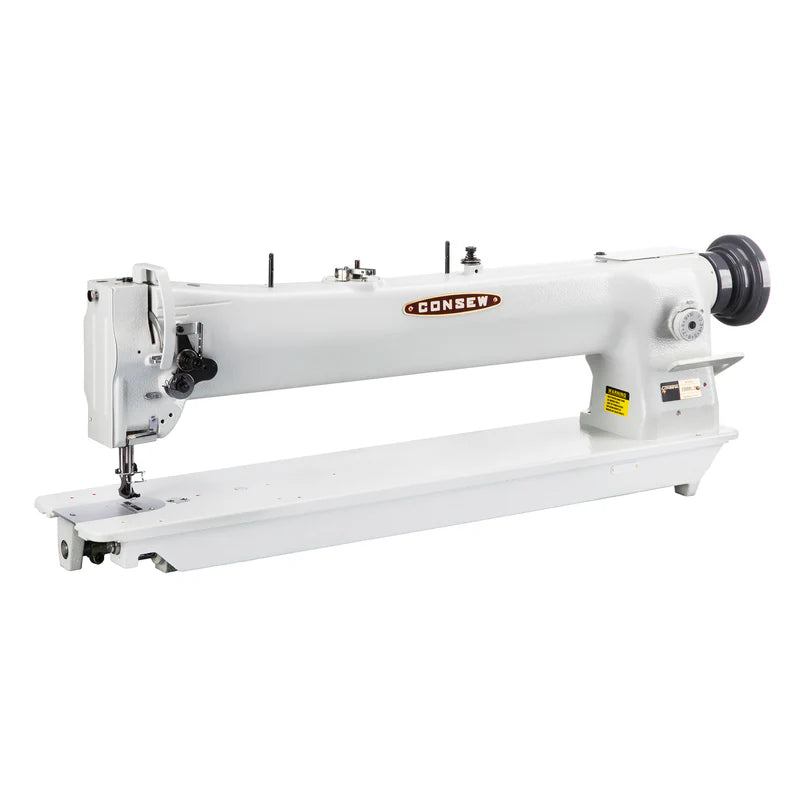

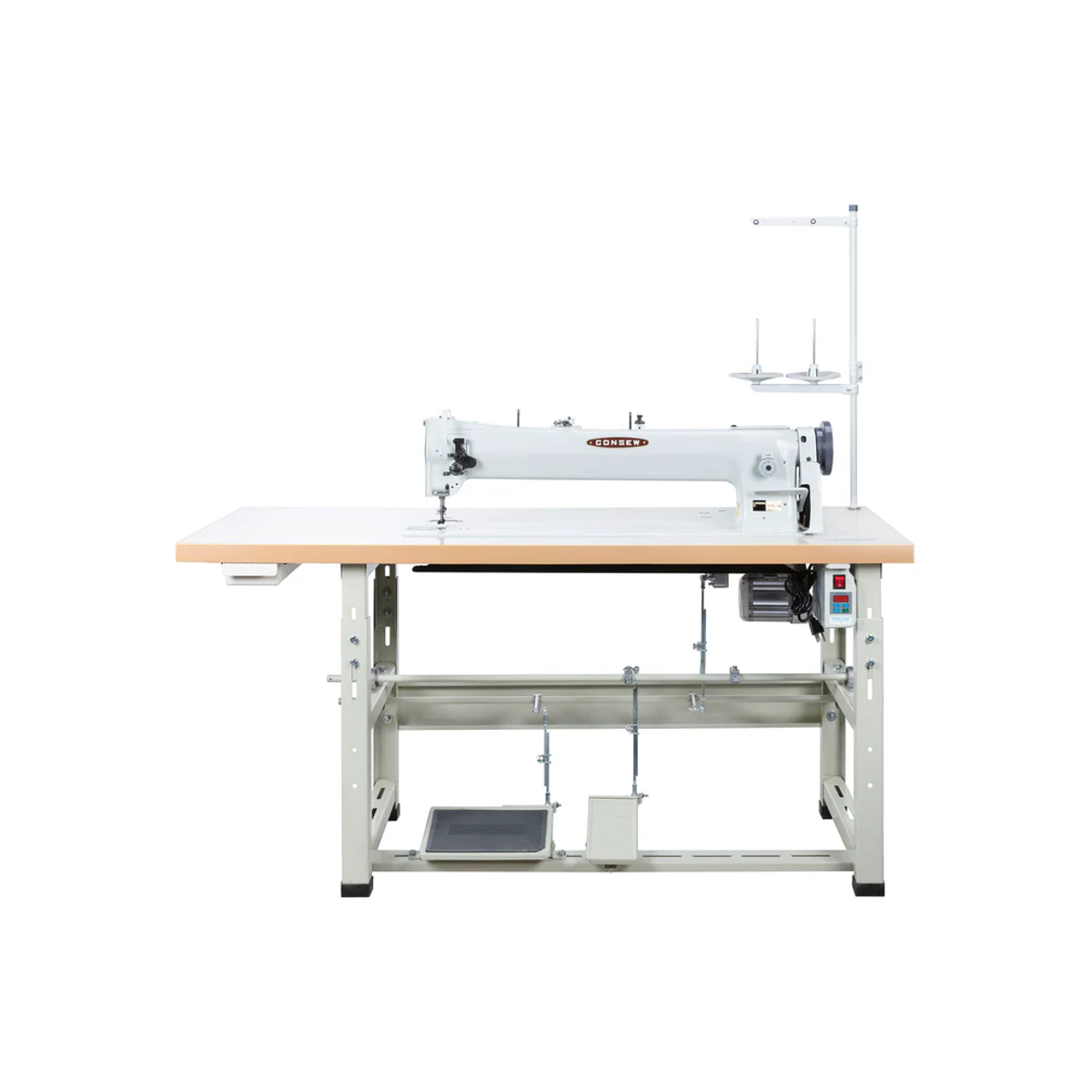

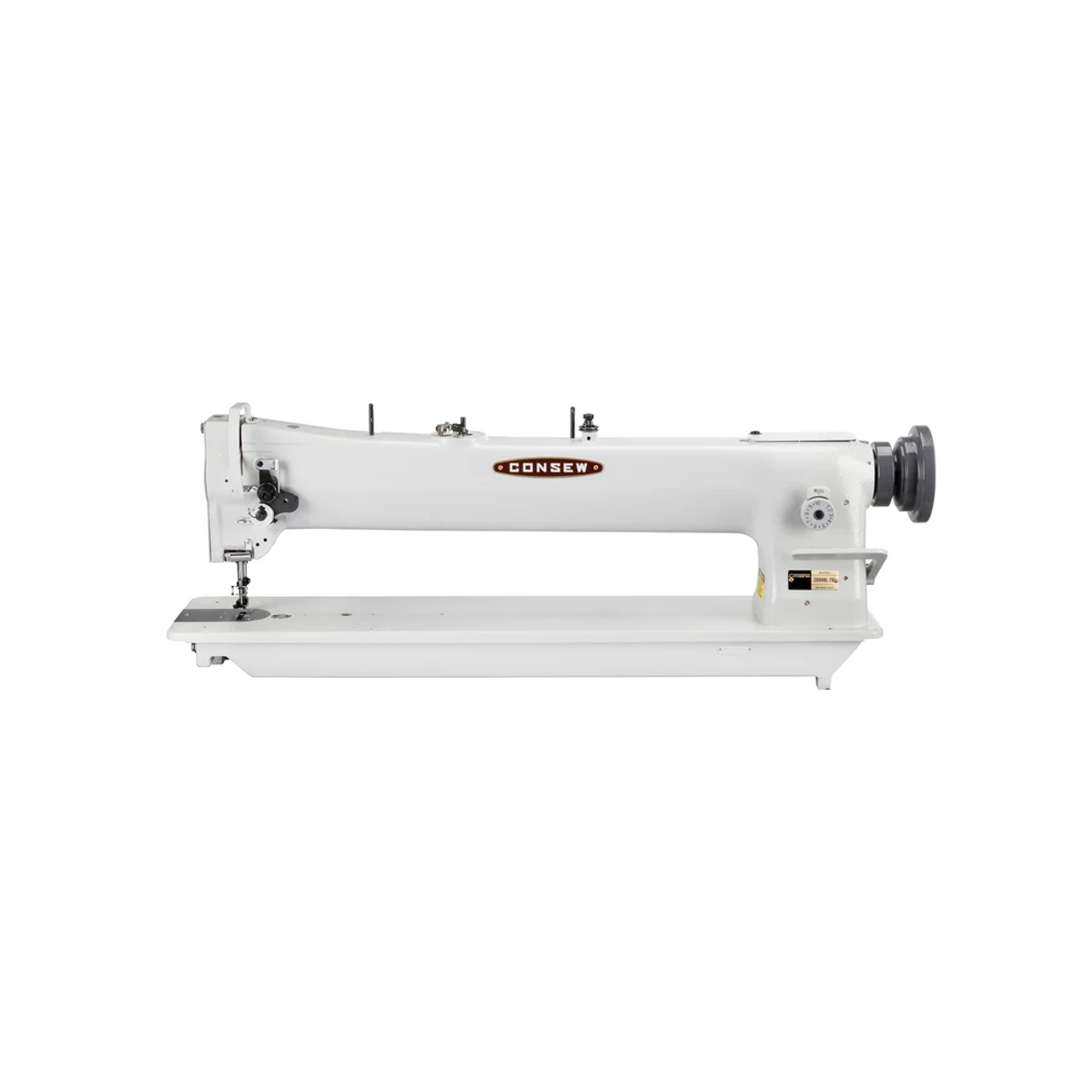

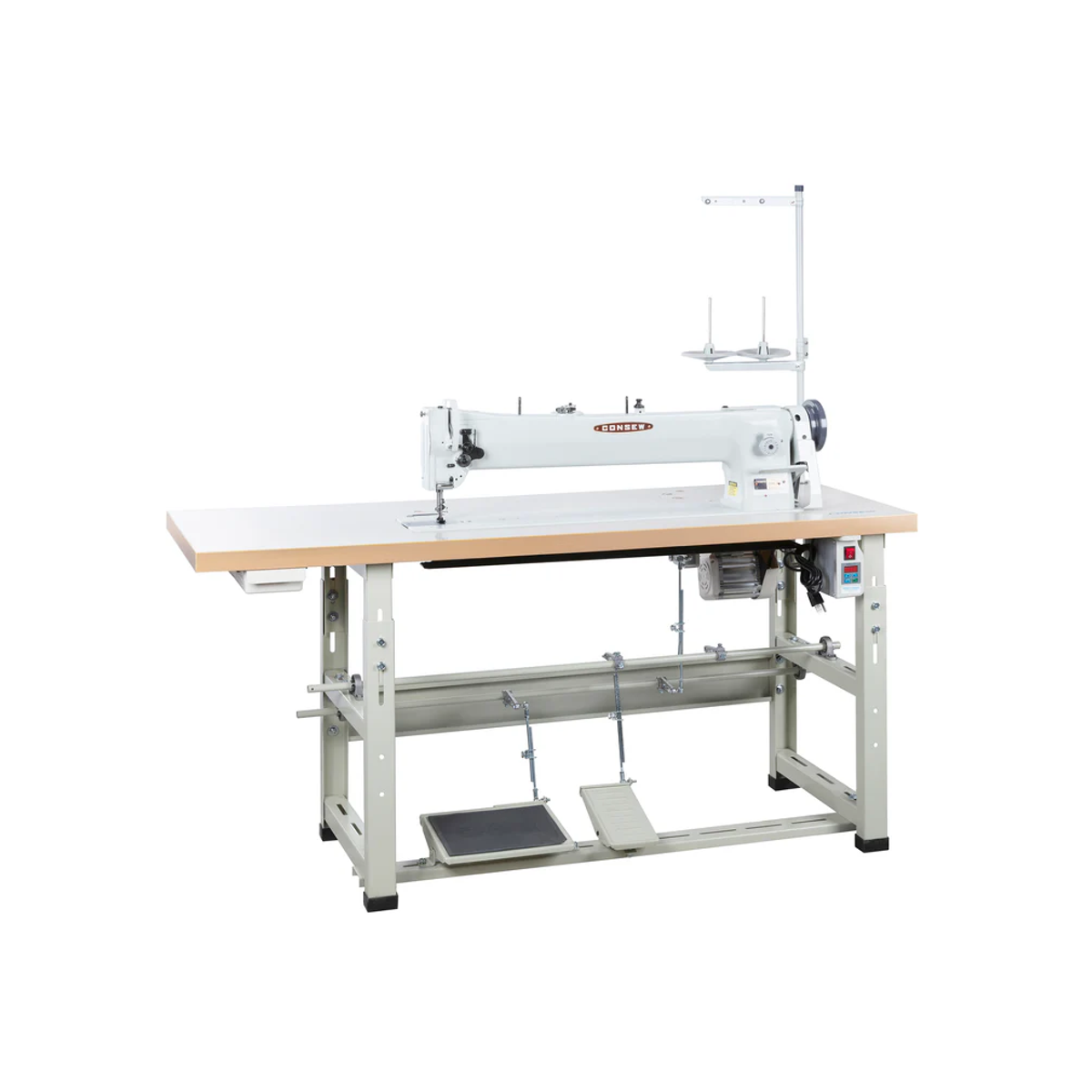

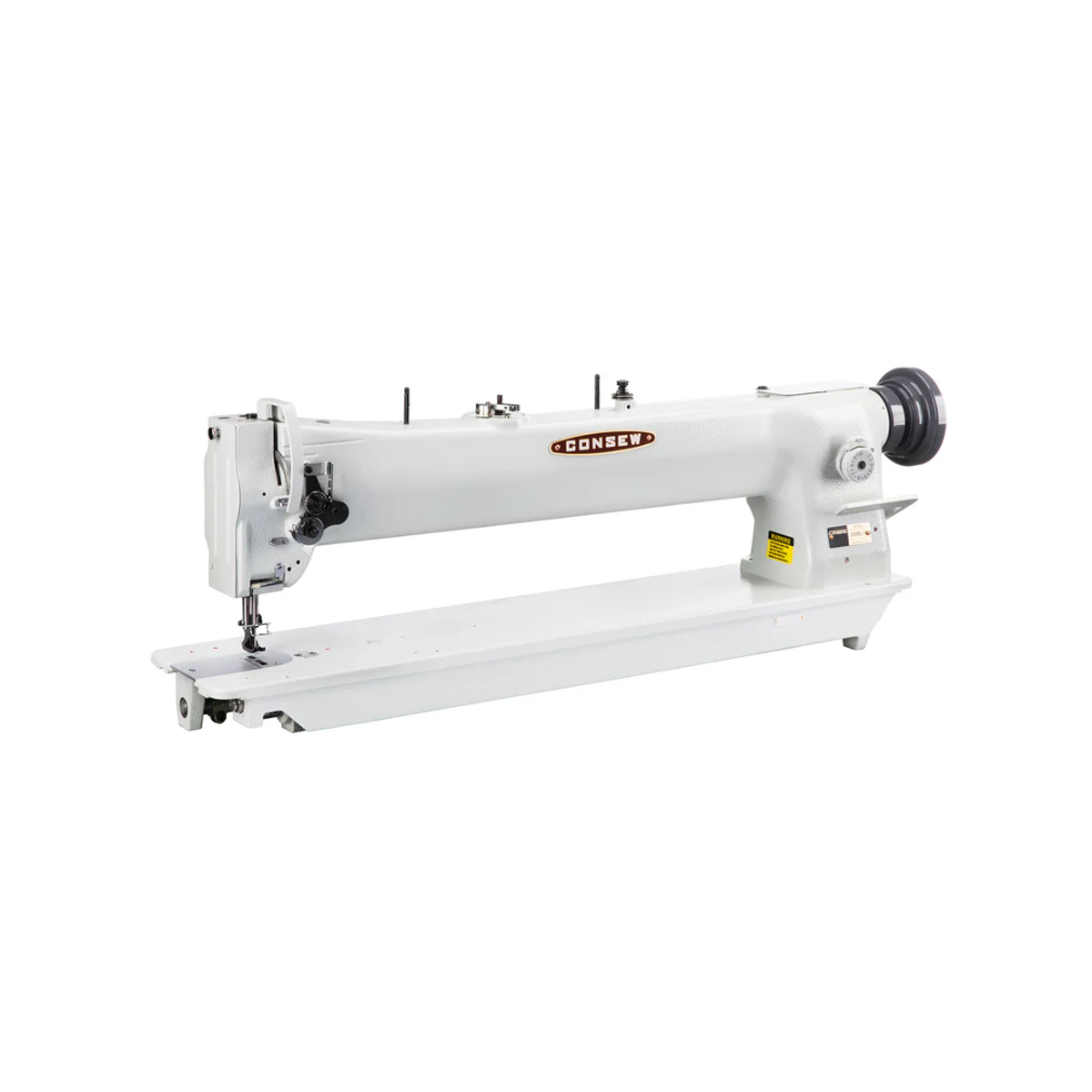

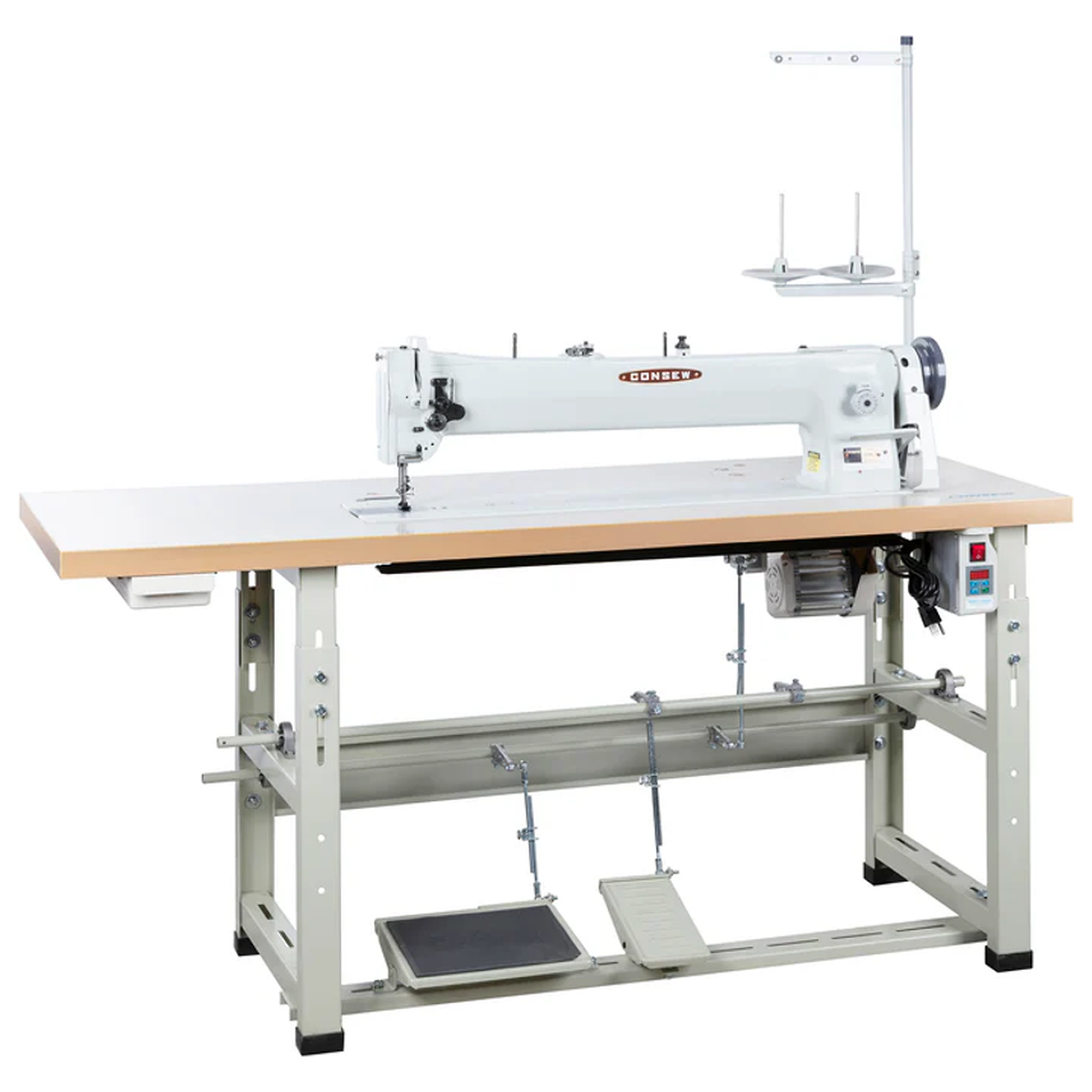

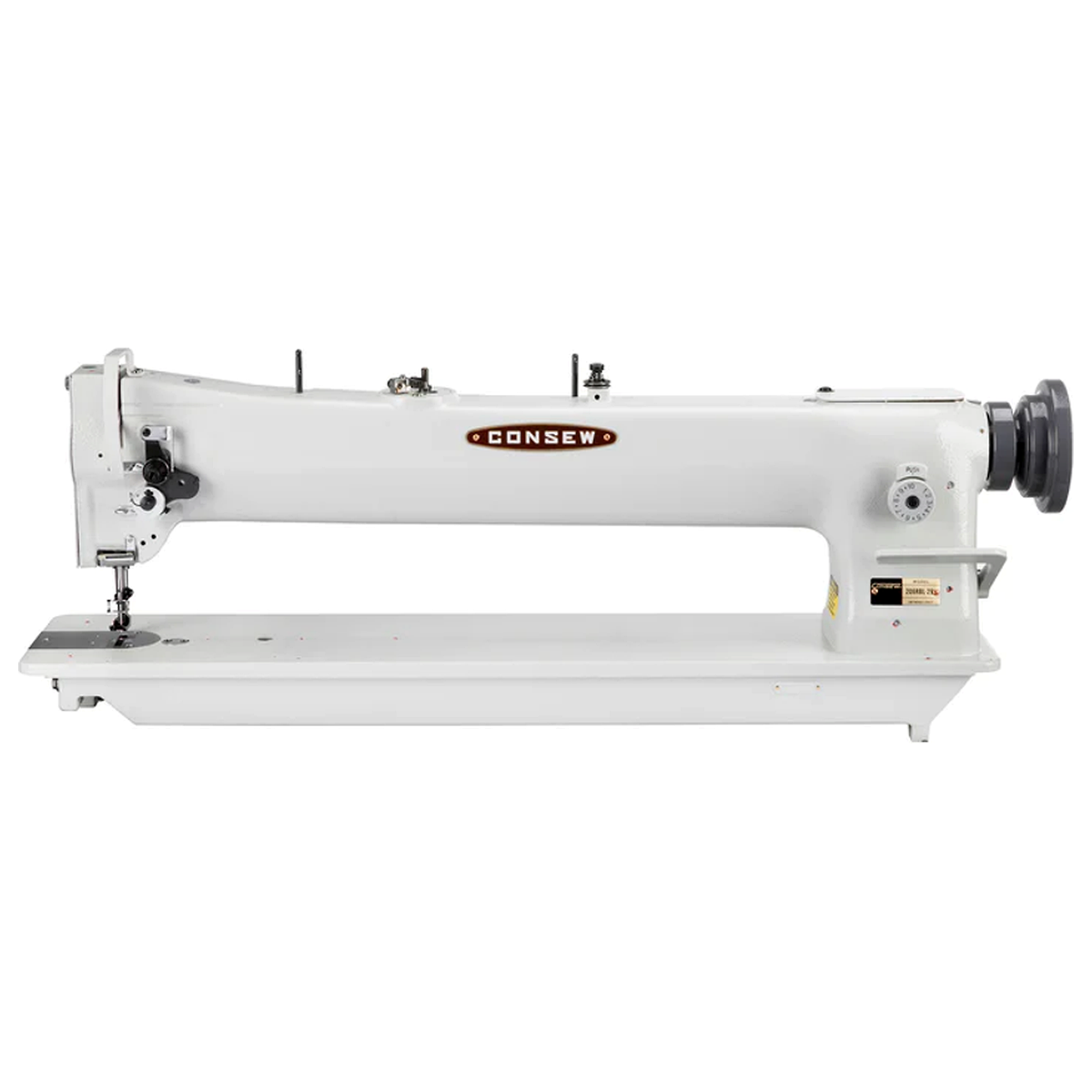

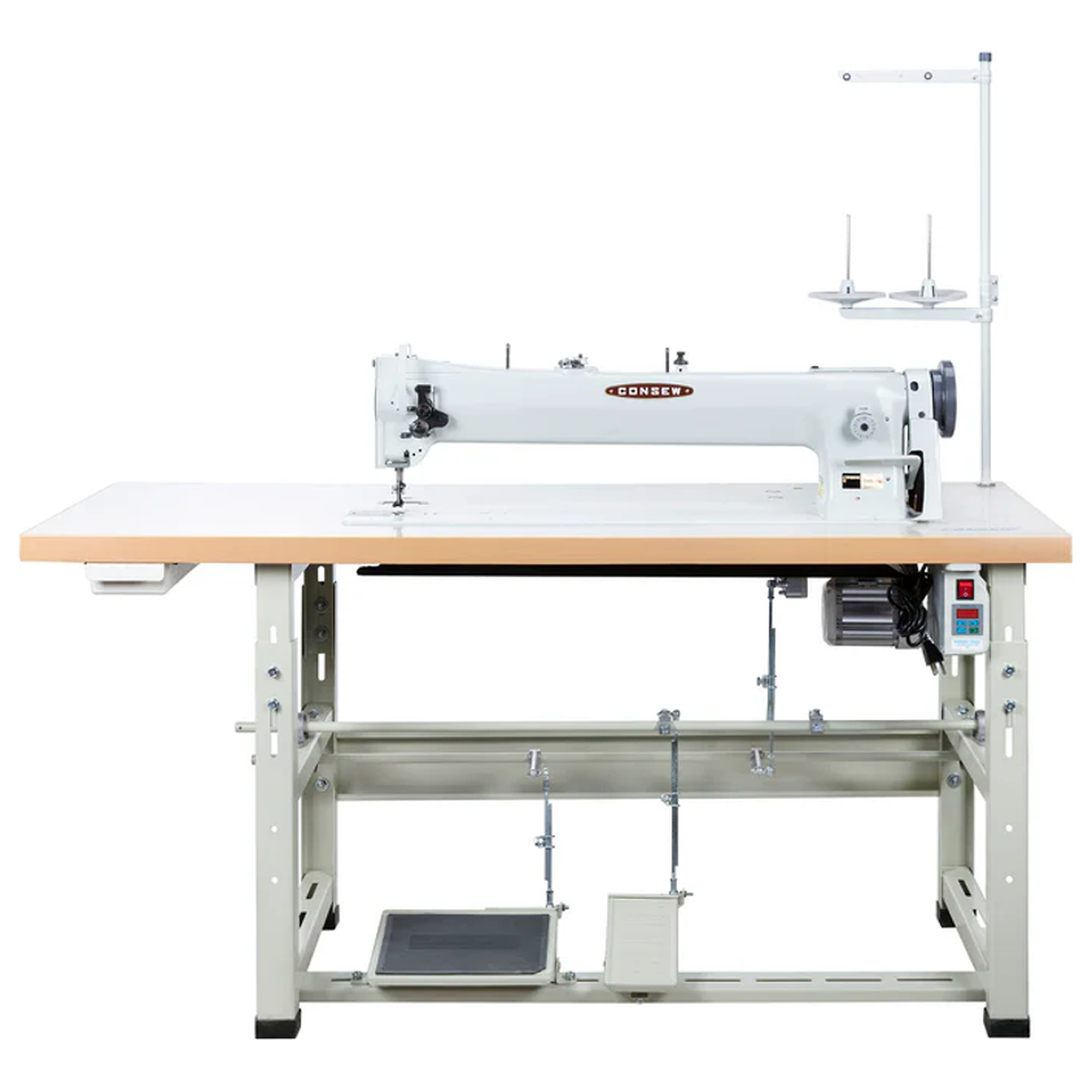

View store informationConsew 206RBL-25 — Extra Long Arm Heavy-Duty Walking Foot Industrial Sewing Machine
Triple Feed • Compound Feed • 25″ Long Arm • Lockstitch System
The Consew 206RBL-25 is a heavy-duty, single-needle lockstitch machine featuring triple feed (drop feed, needle feed, and walking foot) for superior material handling and precision. With its extra-long 25″ arm, this machine is purpose-built for large and bulky sewing projects — from marine and automotive upholstery to canvas, leather, and outdoor gear production.
It features centralized arm lubrication, a reservoir-oiled hook with micrometric control valve, and a safety clutch with push-button re-engagement, ensuring reliability, smooth performance, and operator protection. Ideal for high-demand industrial environments requiring consistent quality and extended reach.
Key Features

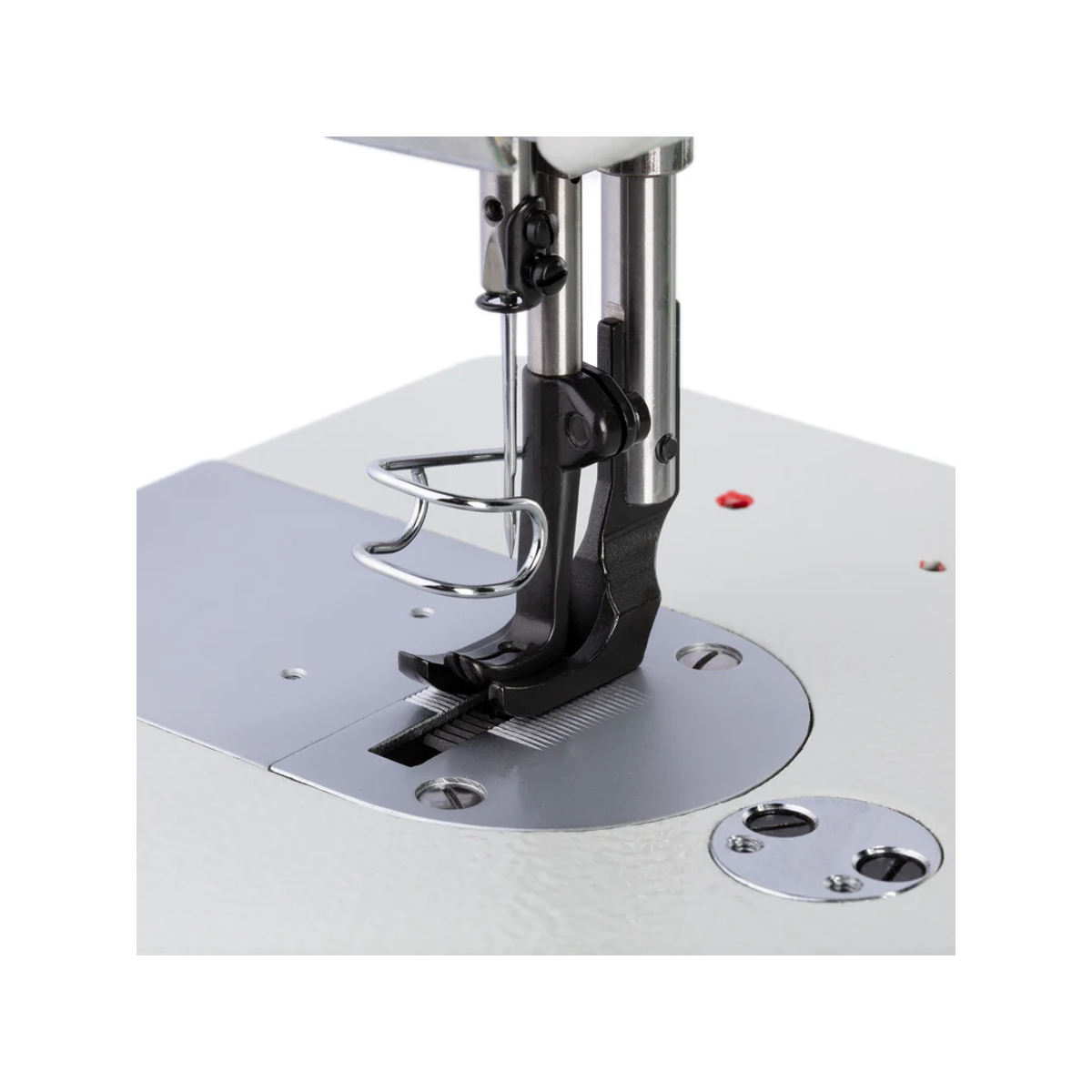

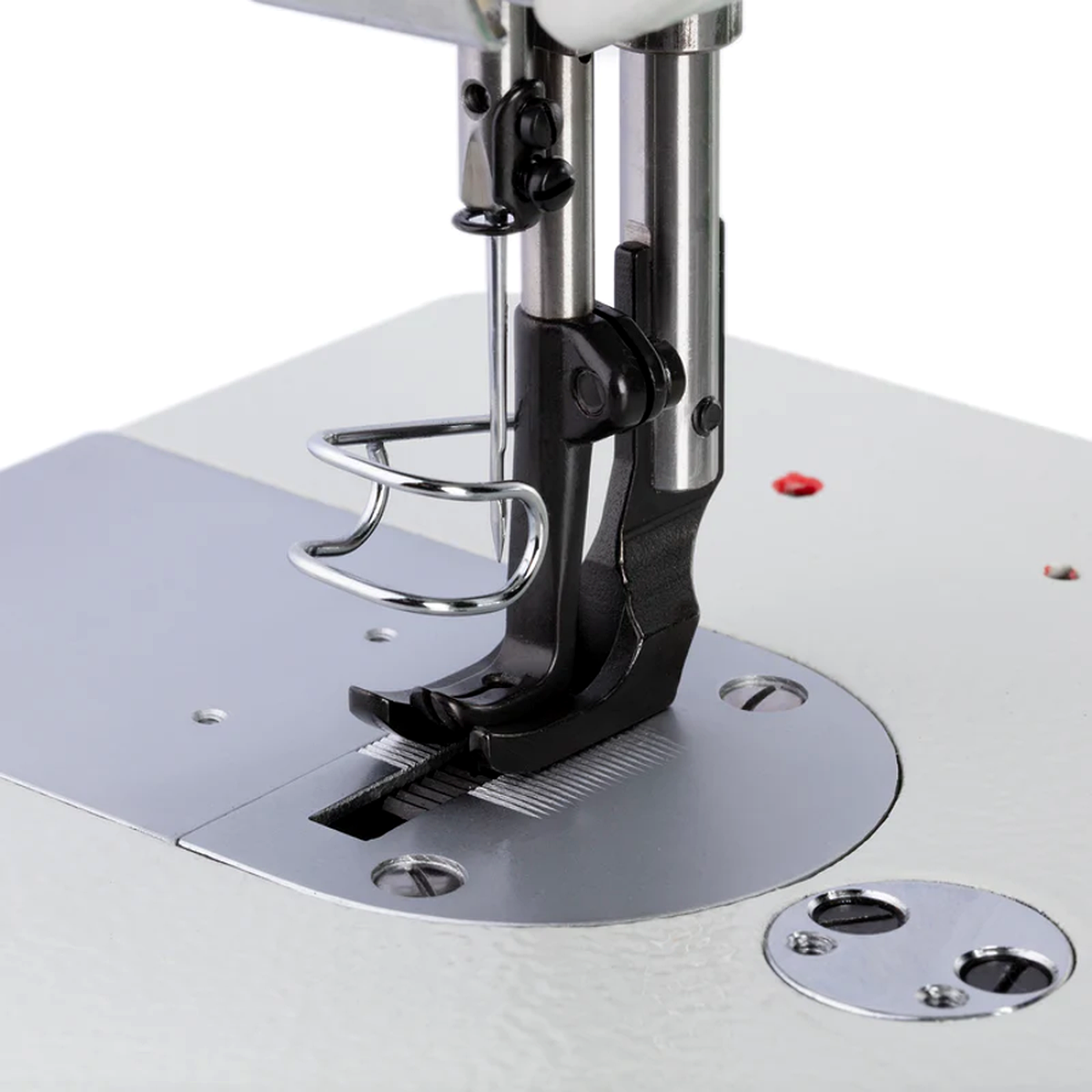

- Triple Feed Mechanism: Combines drop feed, needle feed, and walking foot for even feeding across multiple fabric layers.
- Extra-Long 25″ Arm: Provides expanded workspace for large upholstery panels, sails, covers, and heavy materials.
- Safety Clutch System: Protects hook and gears from overload damage; easily reset via push-button.
- High Presser Foot Lift: 9/16″ (14mm) clearance allows easy handling of thick or multi-layer materials.
- Large Bobbin: Can be changed without removing the workpiece; reduces downtime.
- Gear-Driven Hook System: Large horizontal-axis rotary hook for strong, stable performance.
- Micrometric Oiling Control: Maintains optimal hook lubrication and long service life.
- Adjustable Reverse Stitch: Reverse feed matches forward stitch length for reinforced seams.
- Locking Stitch Regulator: Prevents vibration-related stitch length changes during operation.
- Interchangeable Components: Feet, needles, and attachments compatible with Consew 226R-2 and 255RB-2.
- Customizable Operation: Needle plate, feed dog, and presser foot can be changed for specialized tasks.
Applications
- Automotive, boat, and furniture upholstery
- Leather, vinyl, and canvas goods manufacturing
- Sails, tarpaulins, tents, and awnings
- Outdoor gear and camping equipment
- Handbags, travelware, and heavy apparel
Technical Specifications
| Model: | 206RBL-25 |
| Feed Type: | Triple feed (drop feed, needle feed, walking foot) |
| Arm Type: | 25″ long arm |
| Max Sewing Speed: | 1,800 stitches per minute |
| Max Stitch Length: | 10 mm (2½ S.P.I.) |
| Presser Foot Lift: | 9/16″ (14 mm) |
| Needle System: | 135×17 |
| Hook Type: | Large horizontal-axis rotary hook (Model 18033) |
| Lubrication: | Centralized arm lubrication with reservoir-oiled hook |
| Needle Bar Stroke: | 33 mm (1 5/16″) |
| Work Space: | 25″ (635 mm) |
| Bed Size: | 7″ × 18 7/8″ (178 × 480 mm) |
| Stitch Type: | 301 (lockstitch) |
| Machine Weight: | 238 lbs (approx.) |
The Consew 206RBL-25 provides exceptional control, power, and workspace for heavy-duty sewing applications — a long-arm industrial standard trusted by upholstery, marine, and canvas professionals worldwide.
