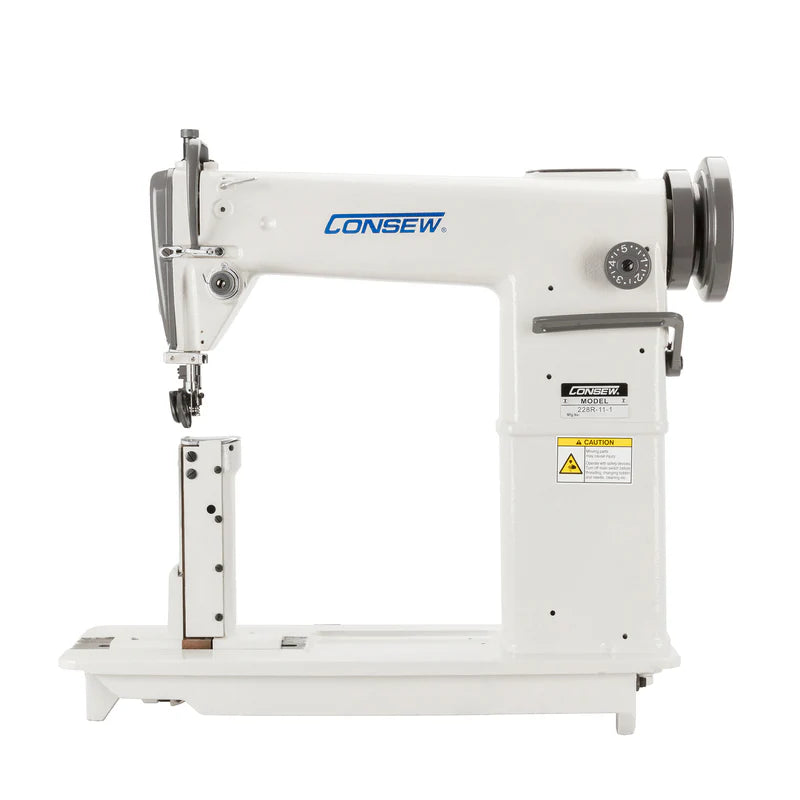

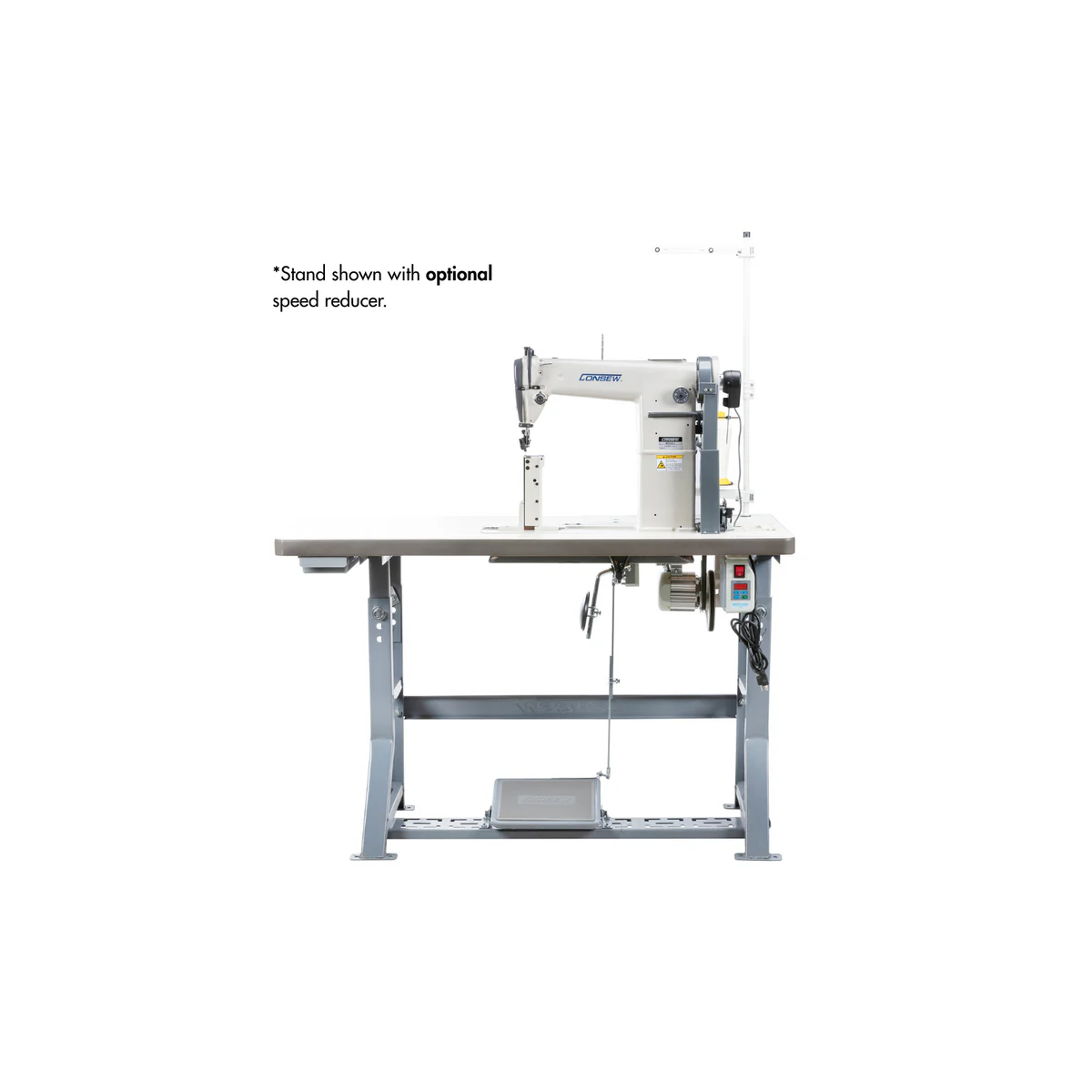

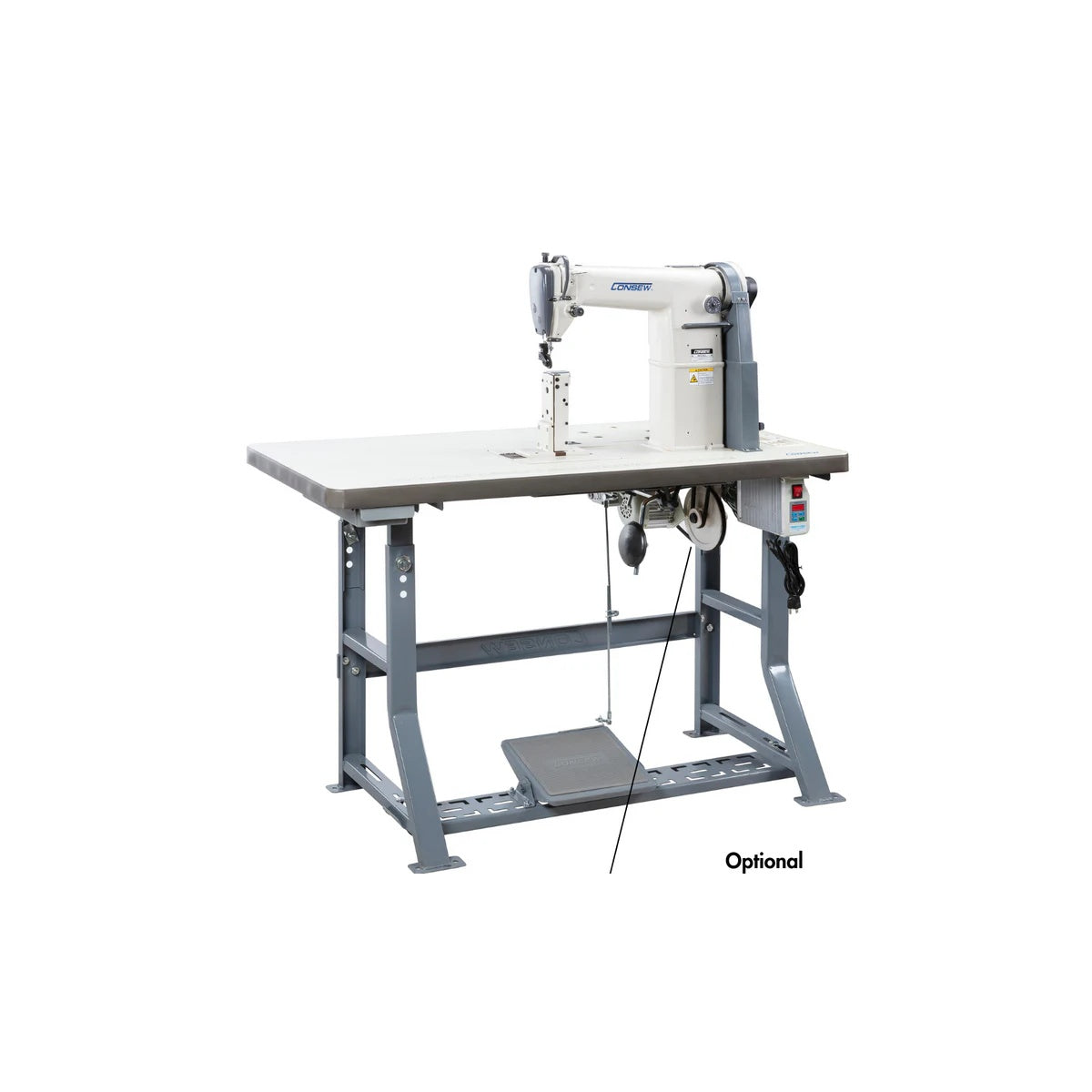

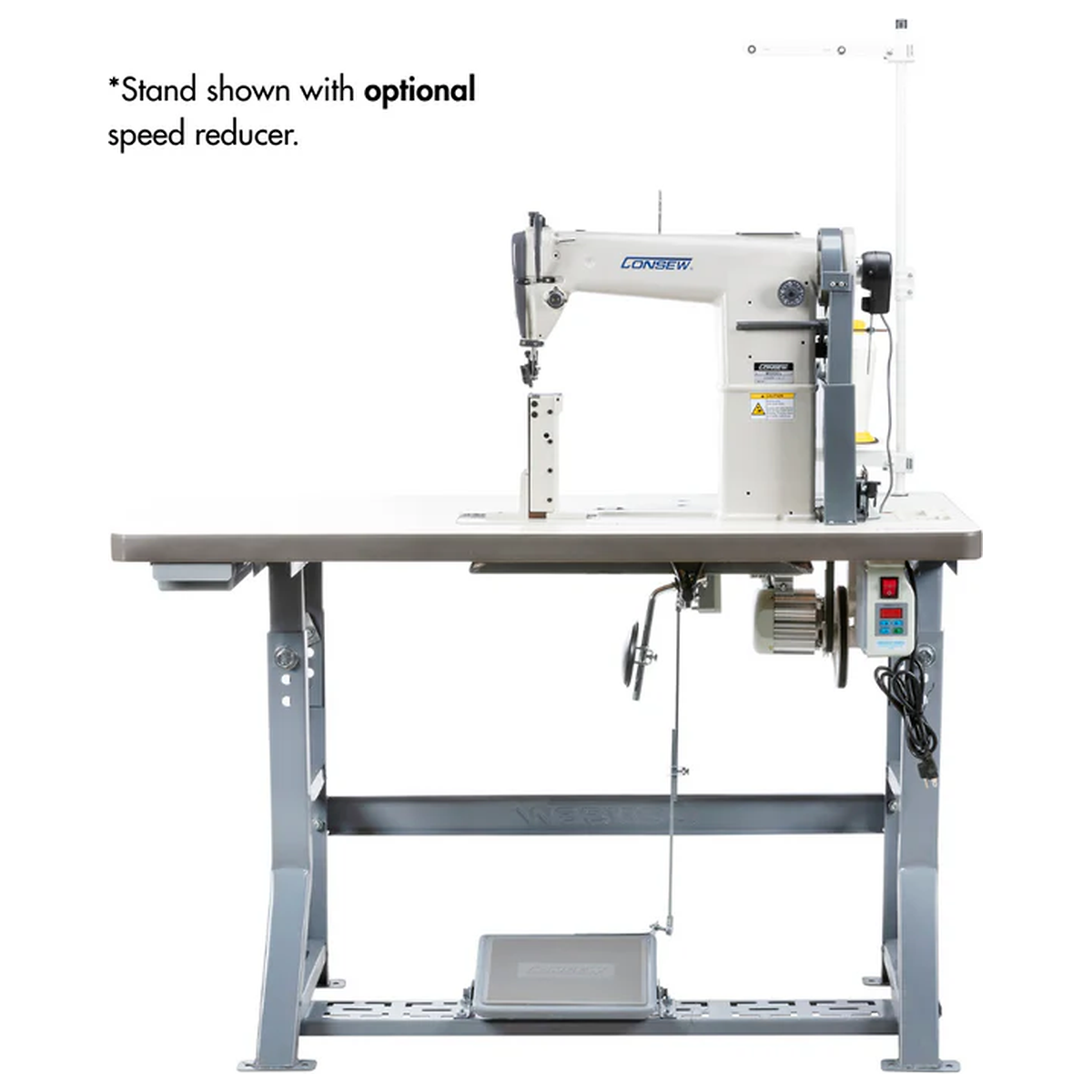

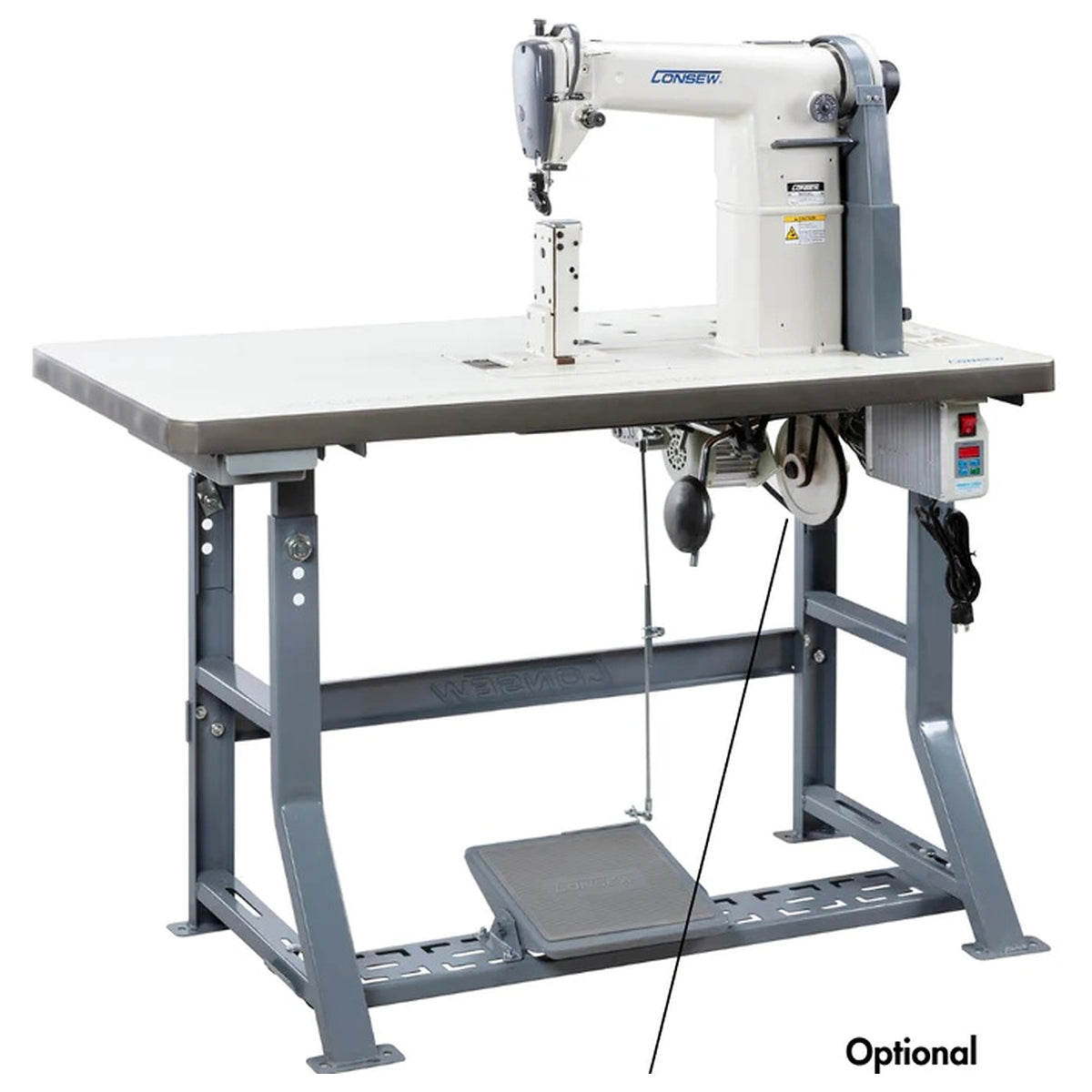

View store informationConsew 228R-11-1 — Single Needle Post Bed Lockstitch Industrial Sewing Machine
Precision Stitching • Superior Control • Industrial Durability
The Consew 228R-11-1 is a high-speed, single-needle post-bed lockstitch sewing machine designed for light to medium-weight fabrics, leather, vinyl, and coated materials. Equipped with a vertical-axis hook, roller presser foot, and reverse feed function, it provides precise control and exceptional stitch quality on garments and footwear requiring superior handling in curves and tight corners.
Key Features
- Post Bed Construction: Provides easy access to hard-to-reach areas — ideal for shoes, bags, and tubular products.

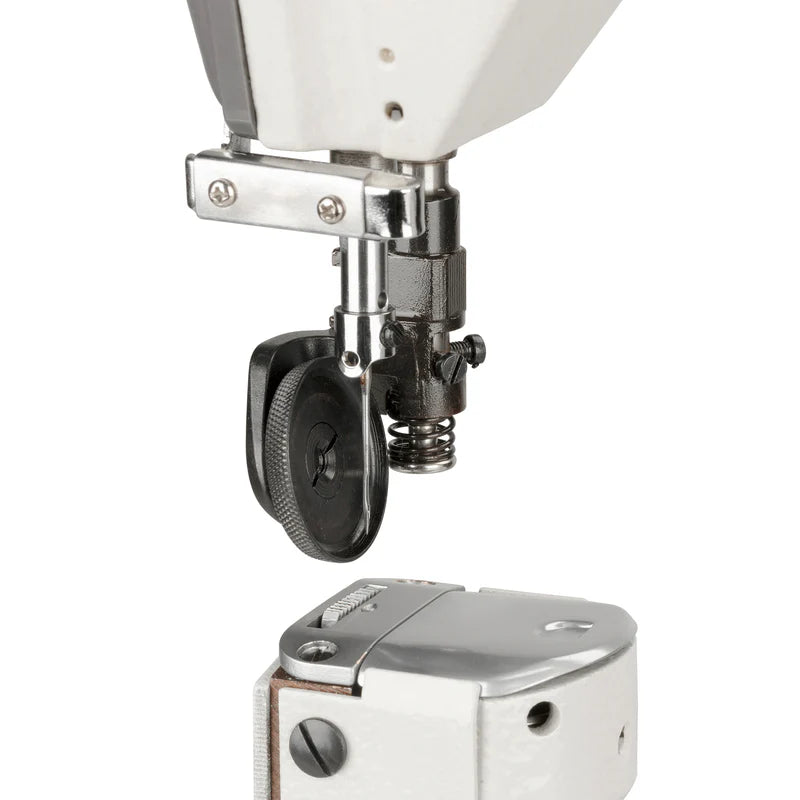

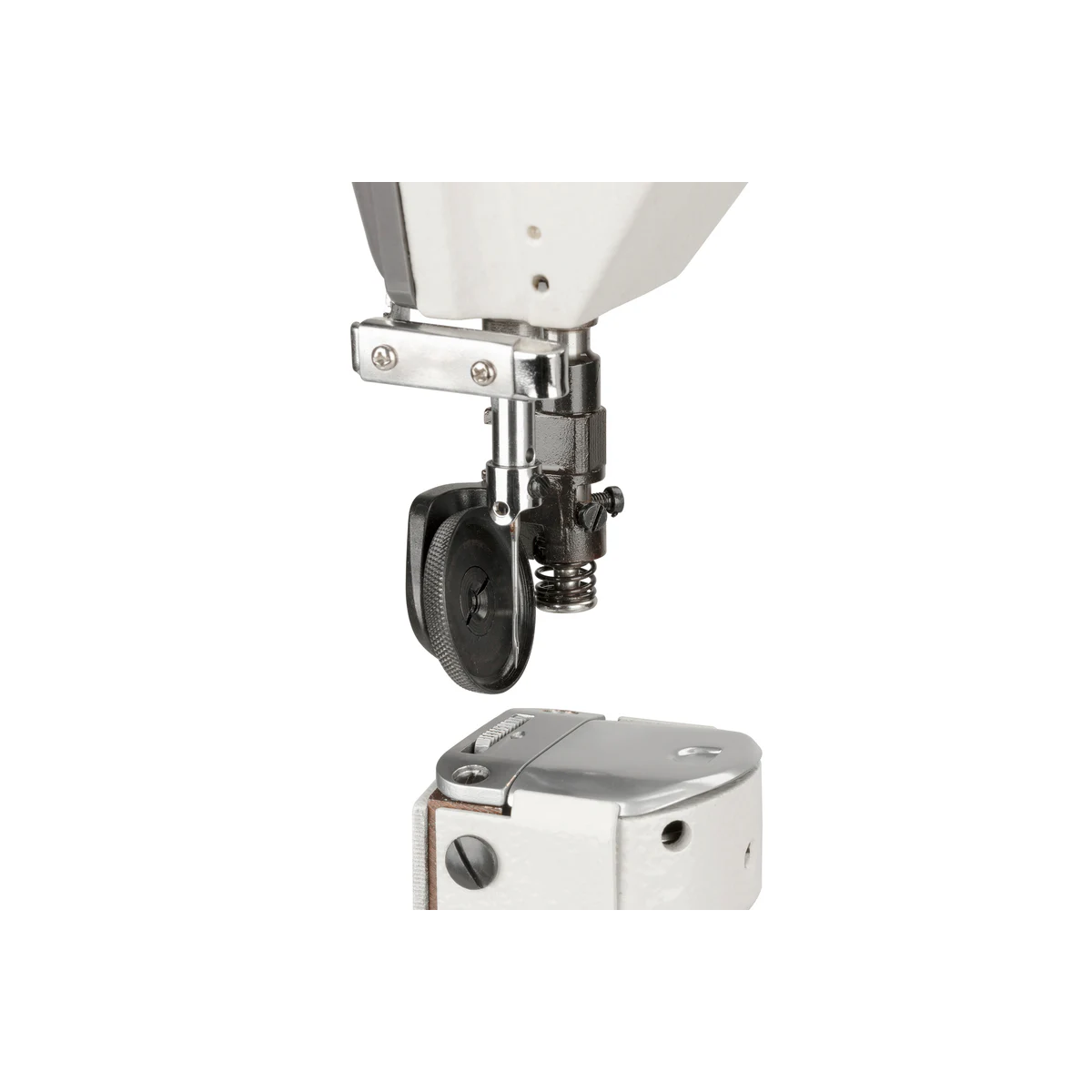

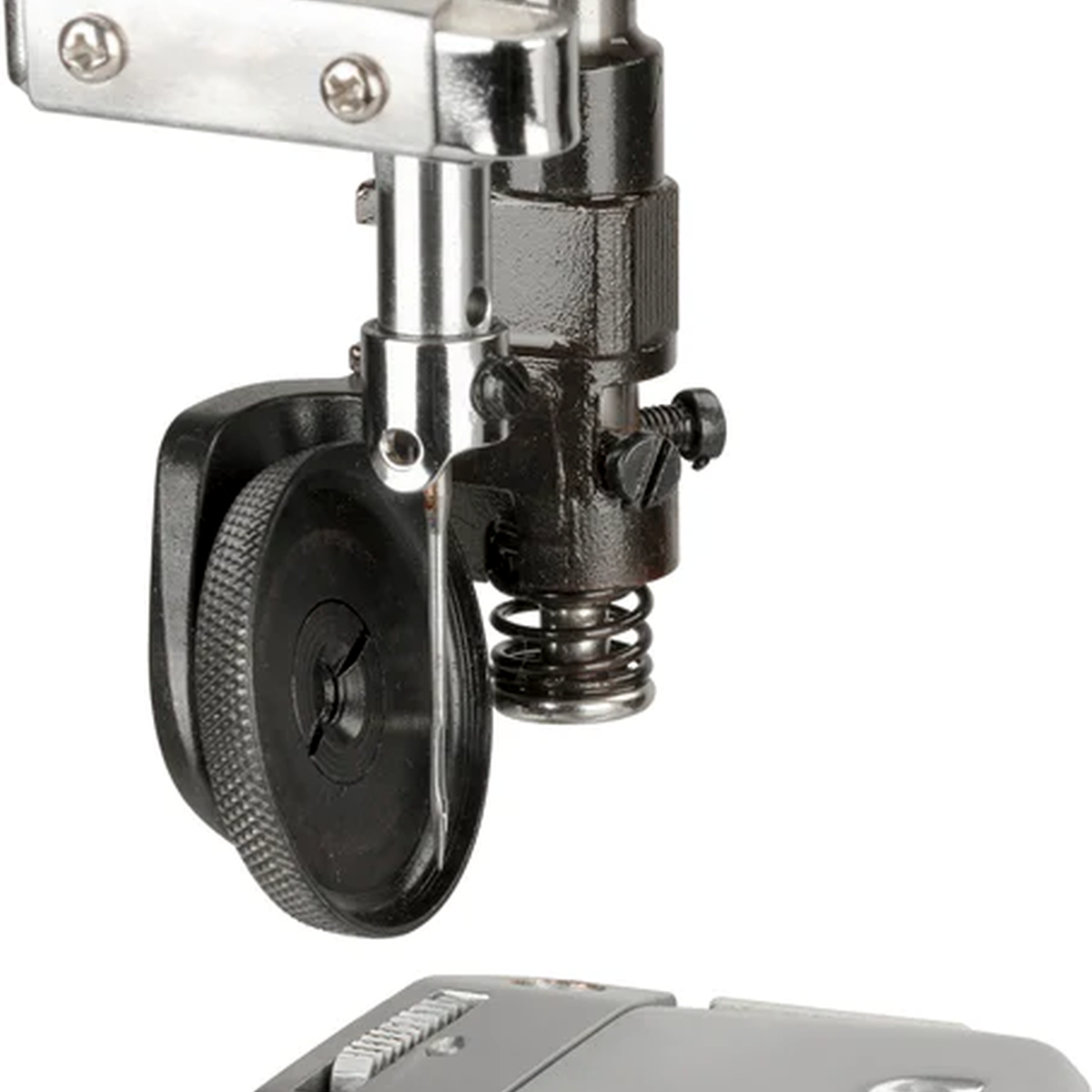

- Roller Presser Foot: Ensures smooth and accurate feeding, allowing effortless navigation through sharp corners and curved seams.
- Vertical-Axis Hook: Delivers consistent thread control and stable high-speed performance.
- Reverse Feed Function: Reinforces stitches for stronger, longer-lasting seams.
- Single Needle Lockstitch: Produces clean, precise stitches with minimal vibration.
- Compact Work Surface: Perfect for small and medium assemblies or detailed stitching operations.
Applications
- Rainwear, corsets, bras, and similar garments
- Shoe uppers, vamp seams, and binding work
- Light leather and vinyl products
- Laminated and coated fabrics
Technical Specifications
| Model: | 228R-11-1 |
| Number of Needles: | 1 (single) |
| Feeding Mechanism: | Drop feed |
| Working Space: | Standard |
| Maximum Speed: | 3,000 stitches per minute* |
| Clearance Under Presser Foot: | 6 mm (15/64") |
| Stitch Length: | 5 mm (5 stitches per inch) |
| Needle System: | 135×7 |
| Bobbin Type: | Pre-wound G |
| Stitch Type: | 301 (Lockstitch) |
| Needle Bar Stroke: | 32 mm (1-1/4") |
| Hook: | 81017910-00 (Vertical Axis) |
| Post Height: | 178 mm (7") |
| Work Area: | 48 × 75 mm (1-7/8" × 2") |
Advantages
- Excellent maneuverability for curves, corners, and small assemblies.
- Precise stitch quality for light to medium materials.
- Compact, space-efficient design ideal for leather and garment industries.
- Durable Consew engineering built for long-term industrial performance.
*Speed may vary depending on material, thread type, and sewing operation.
