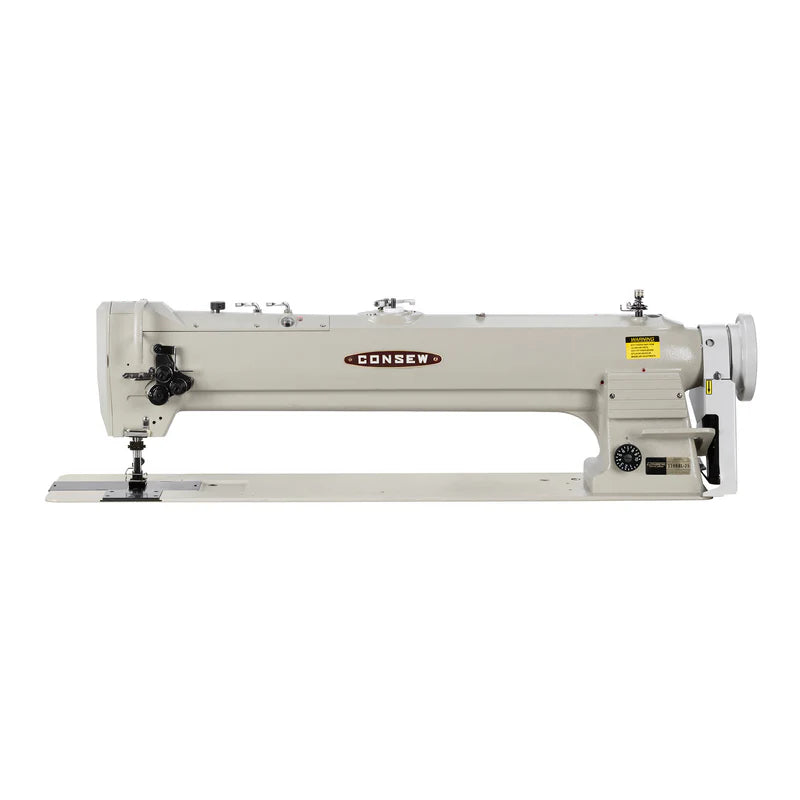

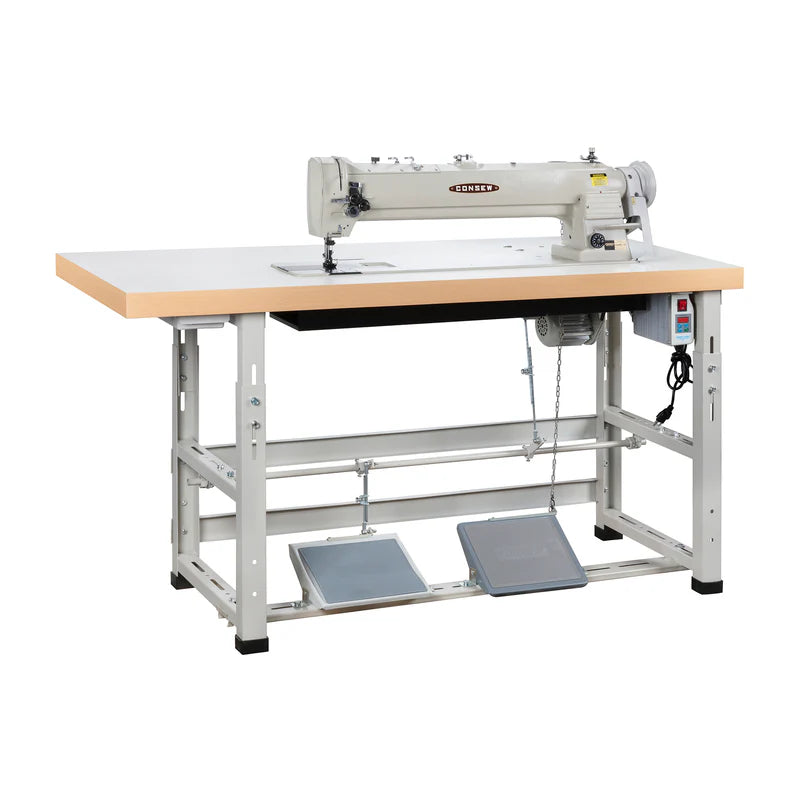

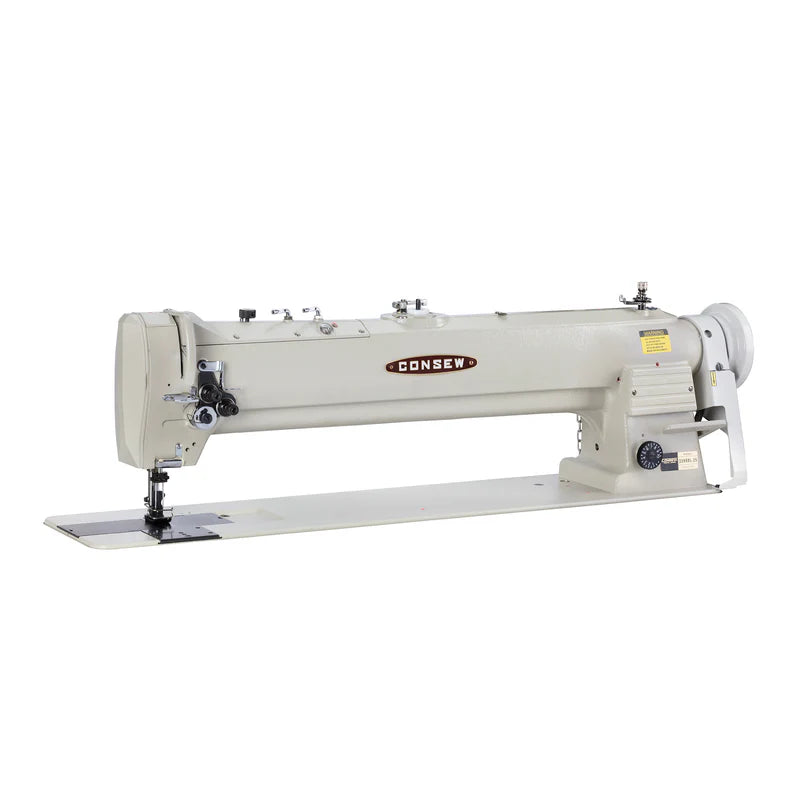

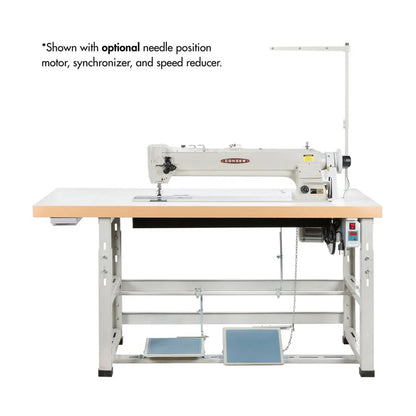

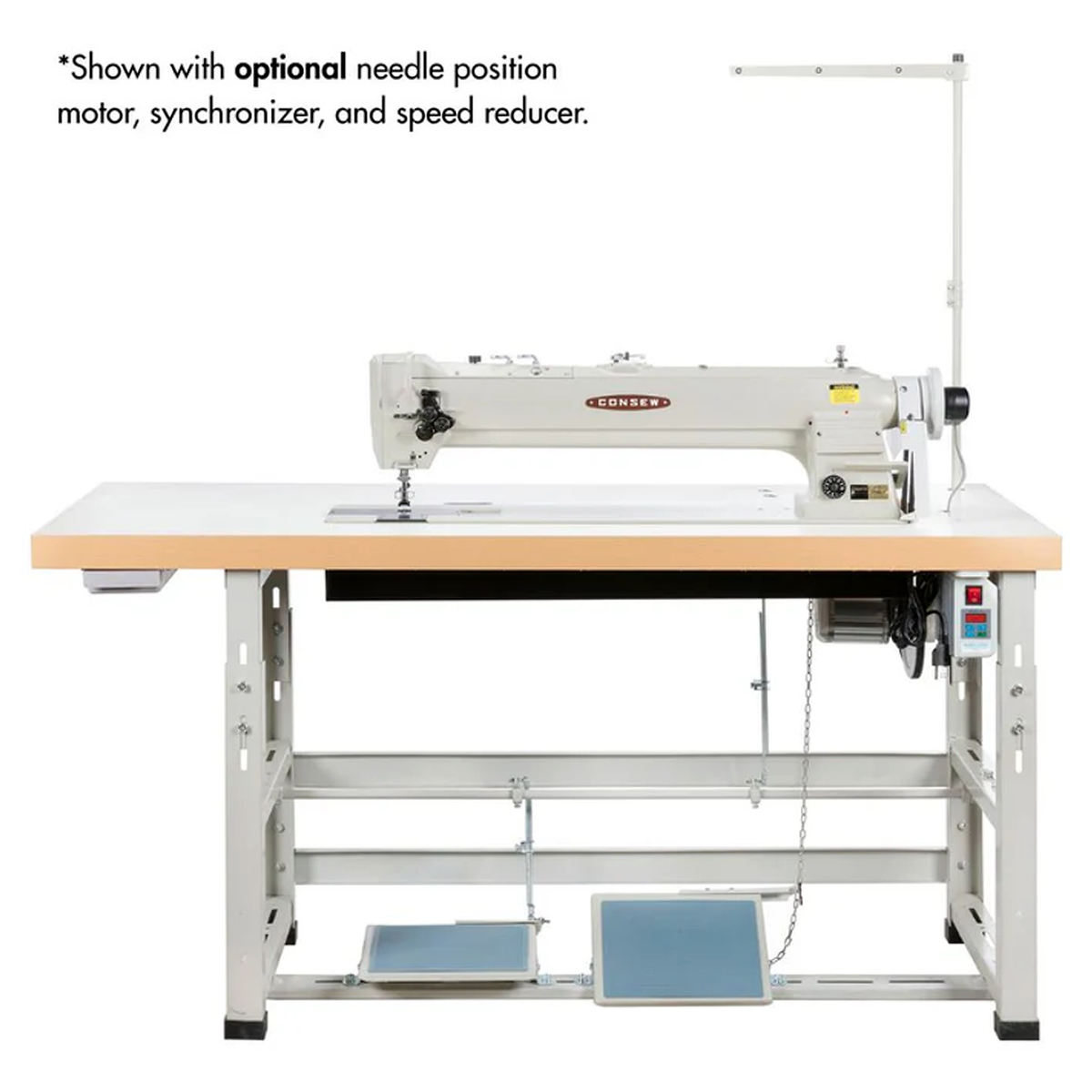

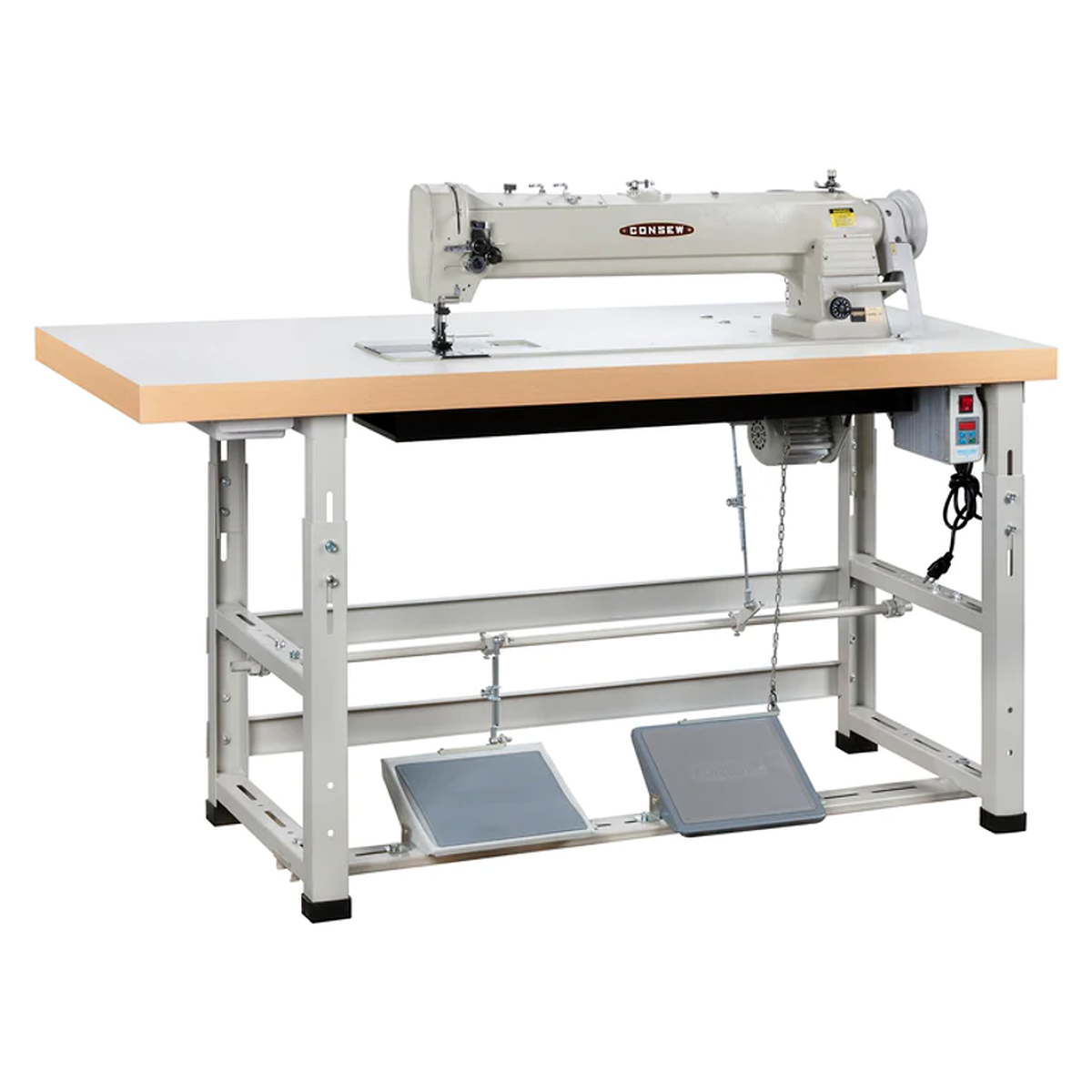

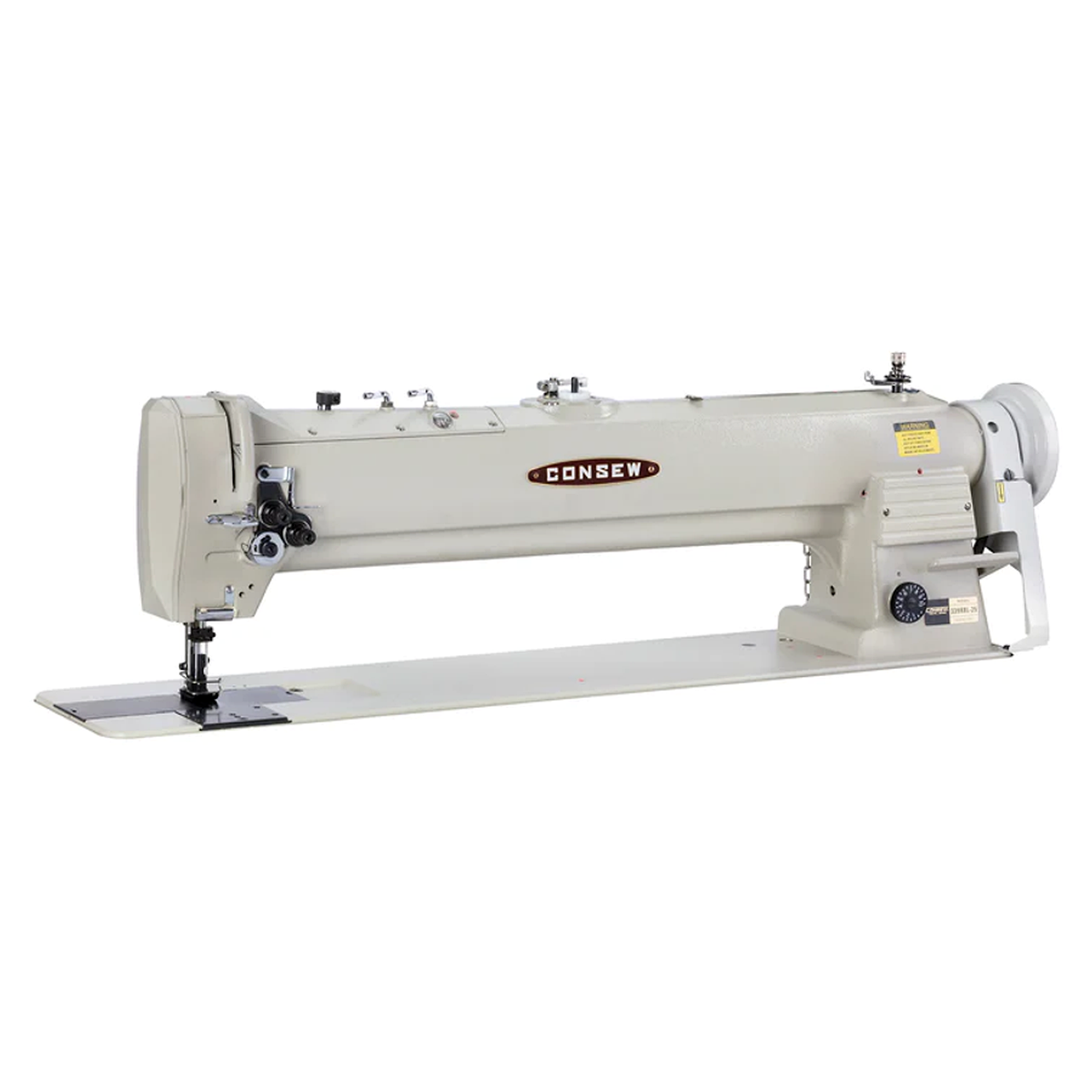

View store informationConsew 339RBL-25 — Extra Long Arm Double-Needle Walking Foot Industrial Sewing Machine
Heavy Duty • High Speed • Compound Feed (Drop + Needle + Walking Foot) • 25″ Long Arm
The Consew 339RBL-25 is a heavy-duty, two-needle lockstitch machine with a compound feed / walking foot mechanism engineered for precise, parallel seam construction on leather, vinyl, canvas, synthetics, and laminated fabrics. Its 25″ long arm provides generous workspace for large panels and bulky assemblies, while Centra-Lube® semi-automatic lubrication and large vertical-axis hooks ensure smooth, reliable performance in continuous production.
Key Features

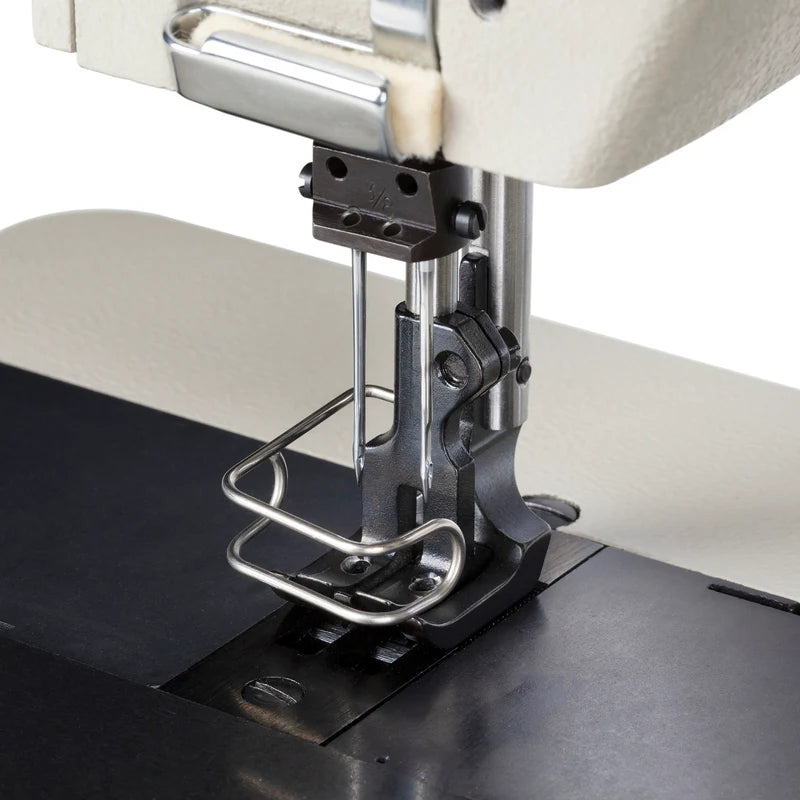

- Double-Needle Lockstitch: Produces parallel stitch lines for seaming, binding, taping, and piping.

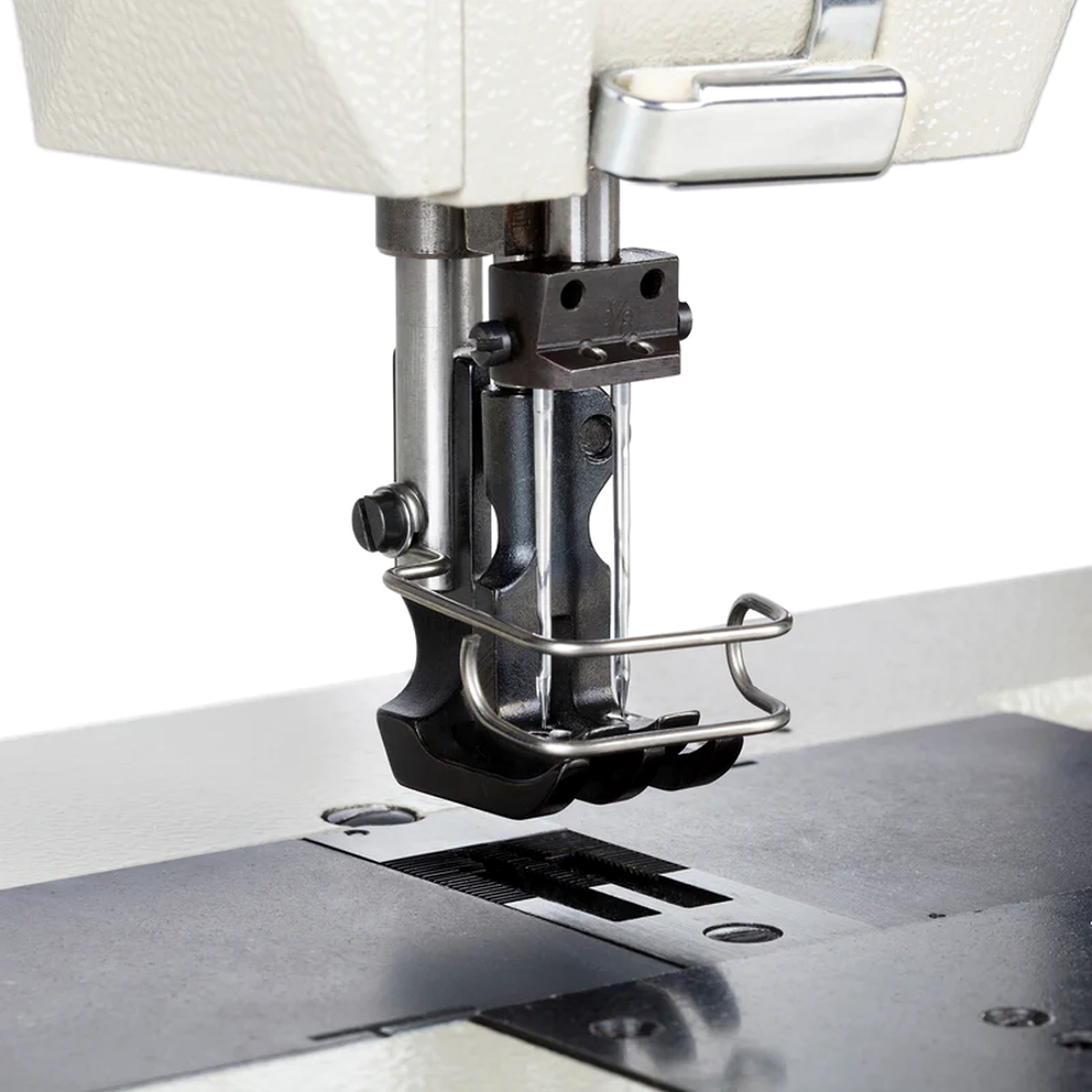

- Compound Feed / Walking Foot: Even material transport across thick, layered, or slippery fabrics.

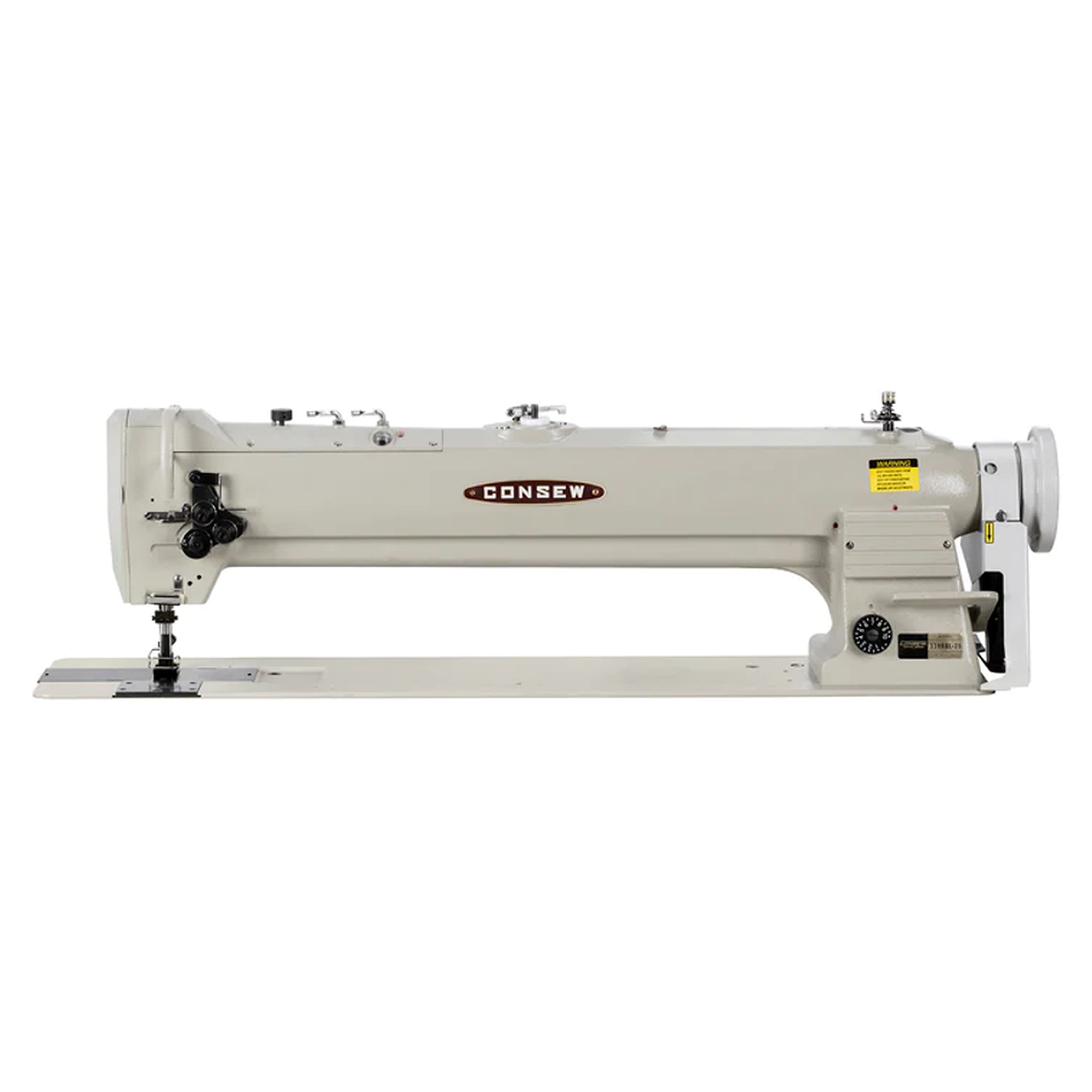

- 25″ Long Arm: Expanded throat space for tarps, sails, covers, upholstery, and oversized goods.

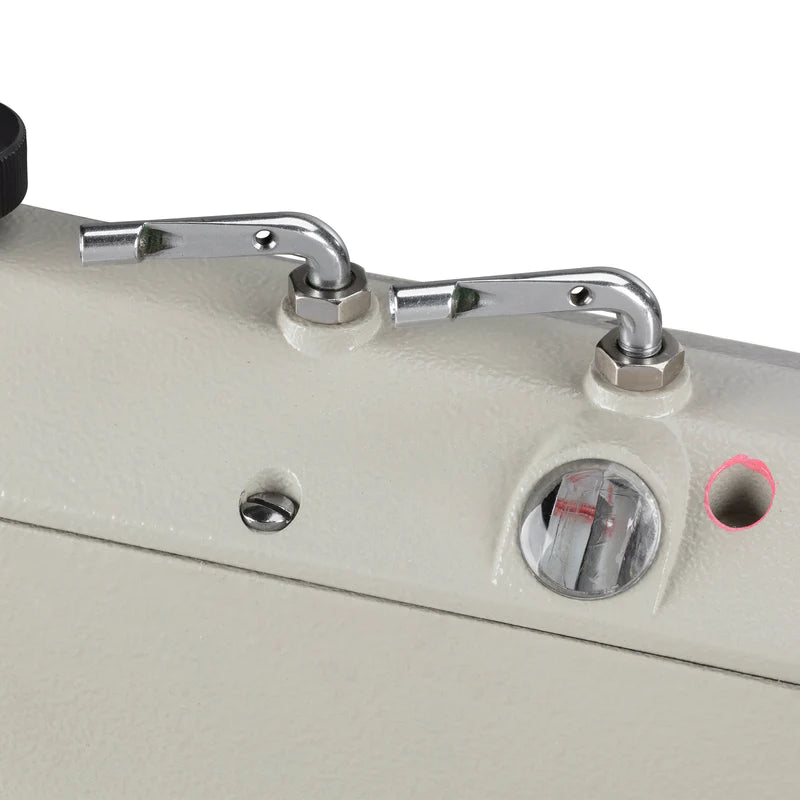

- Centra-Lube® System: Semi-automatic lubrication with automatic hook oiling and oil-fed take-up.
- Large Vertical-Axis Hooks & Bobbins: Longer runs between bobbin changes; stable high-speed operation.

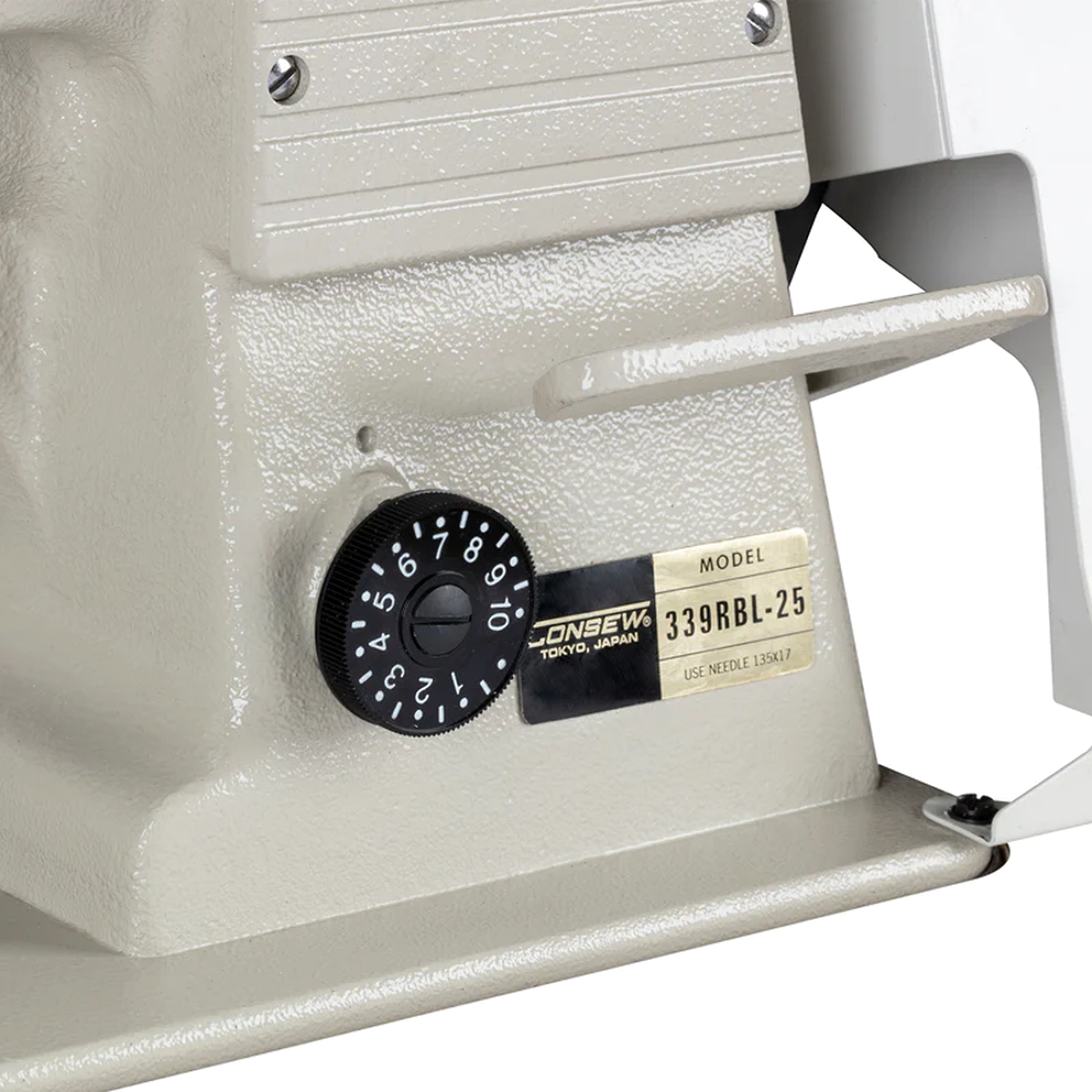

- Reverse Feed with Long Stitch: Up to 10 mm (2½ S.P.I.) for strong, reinforced seams.
- Adjustable Center Foot: Quick raise/lower to match varying material thickness.

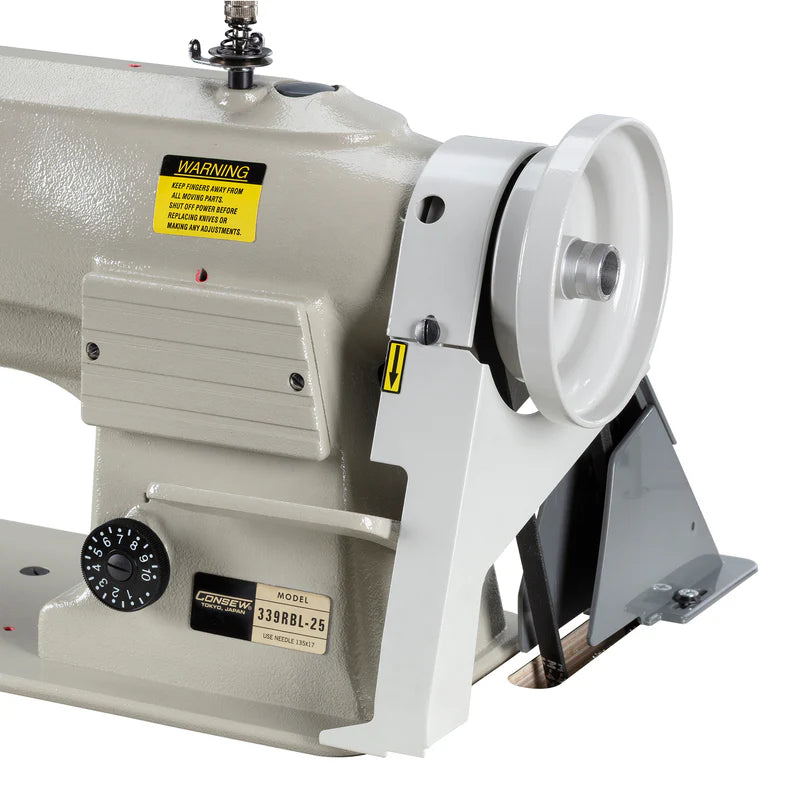

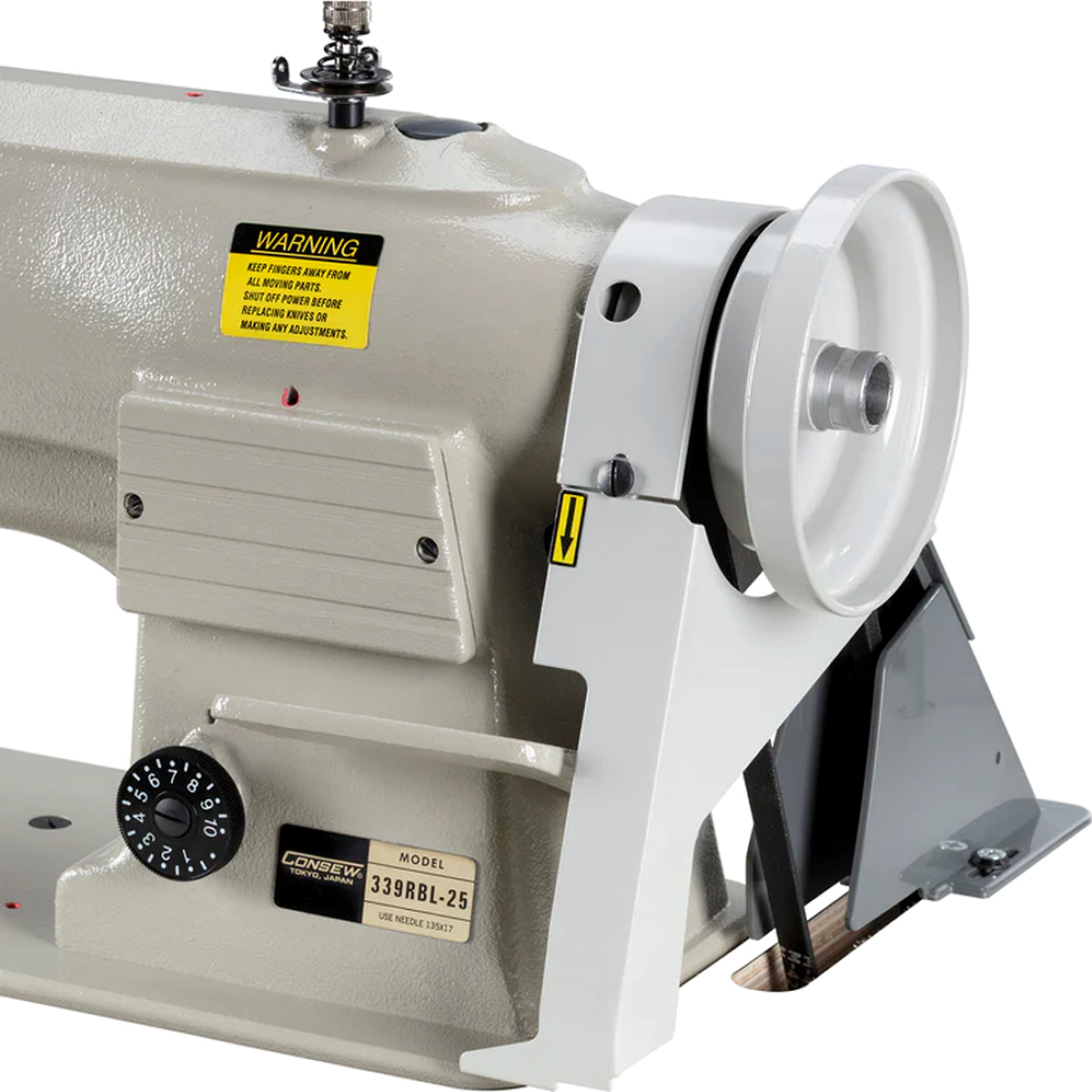

- Safety Clutch: Protects the hook set from overload; easy push-button re-engagement.
- Needle Gauges: Multiple spacings available; standard ¼″ (6.4 mm). Optional synchronized puller (suffix -P).
Applications
- Automotive, marine, and furniture upholstery
- Tarpaulins, tents, awnings, sails, and covers
- Bags, luggage, handbags, and travelware accessories
- Leather goods, outdoor apparel, canvas footwear, and orthopedics
- Binding, taping, and piping on medium to heavy materials
Technical Specifications
| Model: | 339RBL-25 |
| Needles: | 2 (Double) |
| Feed Type: | Compound feed (drop feed + needle feed + alternating walking feet) |
| Work Space (Arm): | 25″ (640 mm) |
| Max Speed: | 2,400 S.P.M. |
| Max Stitch Length: | 10 mm (2½ S.P.I.) |
| Presser Foot Lift: | 9/16″ (14 mm) |
| Needle System: | 135×17 |
| Hook Type: | Large vertical-axis hooks (Hook: 15502) |
| Bobbin: | Metal 15041; pre-wound S or U |
| Lubrication: | Centra-Lube® semi-automatic; automatic hook lubrication; oil-fed take-up |
| Needle Bar Stroke: | 33 mm (1 5/16″) |
| Available Needle Spacings: | 1/8″ (3.2 mm) to 1½″ (38.1 mm); standard ¼″ (6.4 mm) |
| Bed Size: | 7″ × 28¼″ (177 × 718 mm) |
| Stitch Type: | 301 (lockstitch) |
| Machine Weight: | 266 lbs (approx.) |

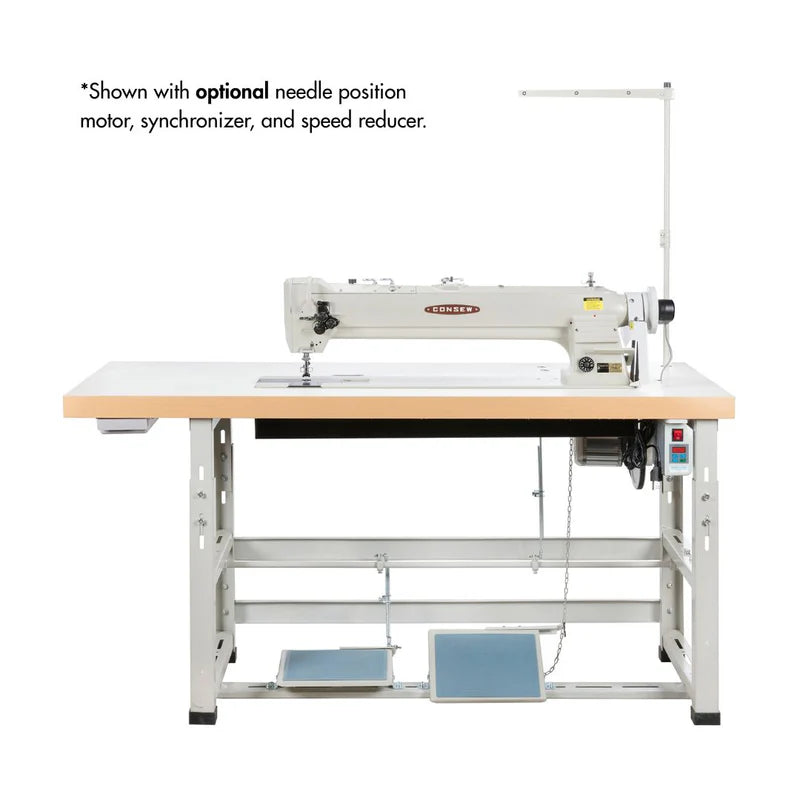

| Options: | Synchronized puller (add suffix -P) |
The Consew 339RBL-25 delivers rock-solid two-needle performance, extended reach, and industrial durability — the right choice for parallel seaming, binding, and decorative operations on heavy, technical, or oversized materials.
