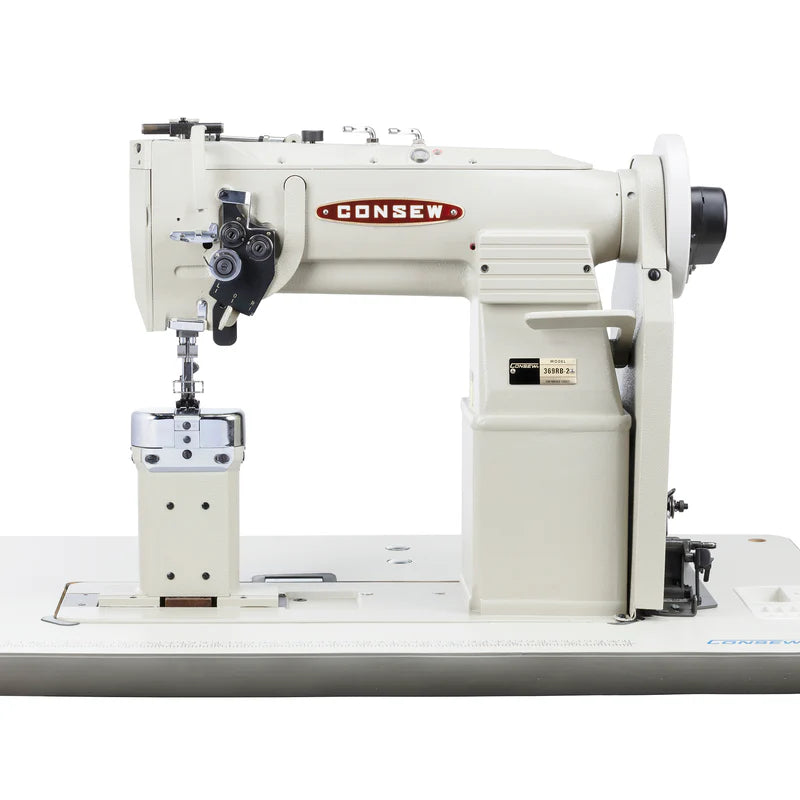

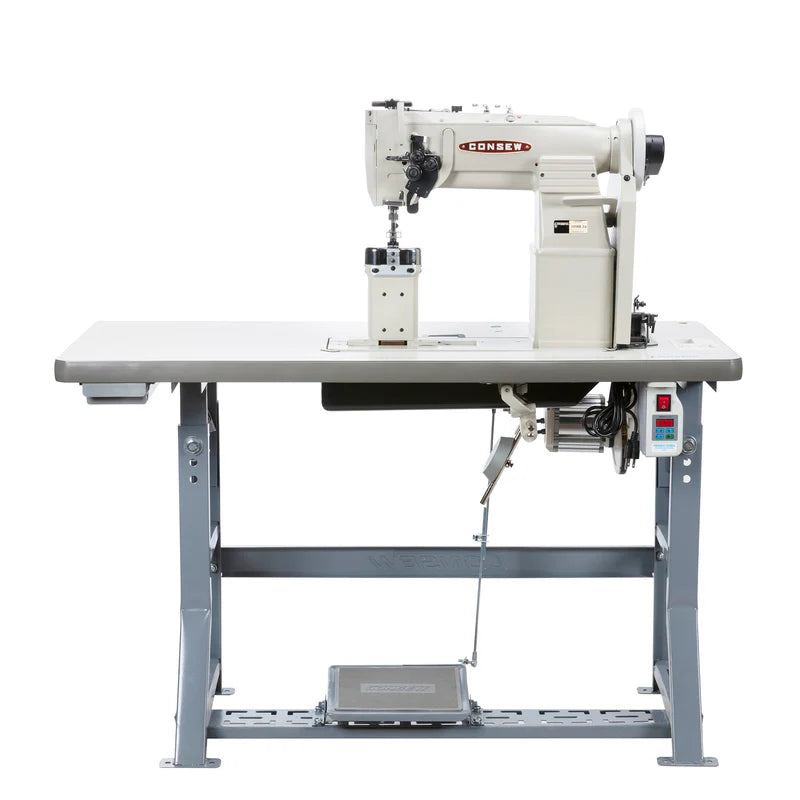

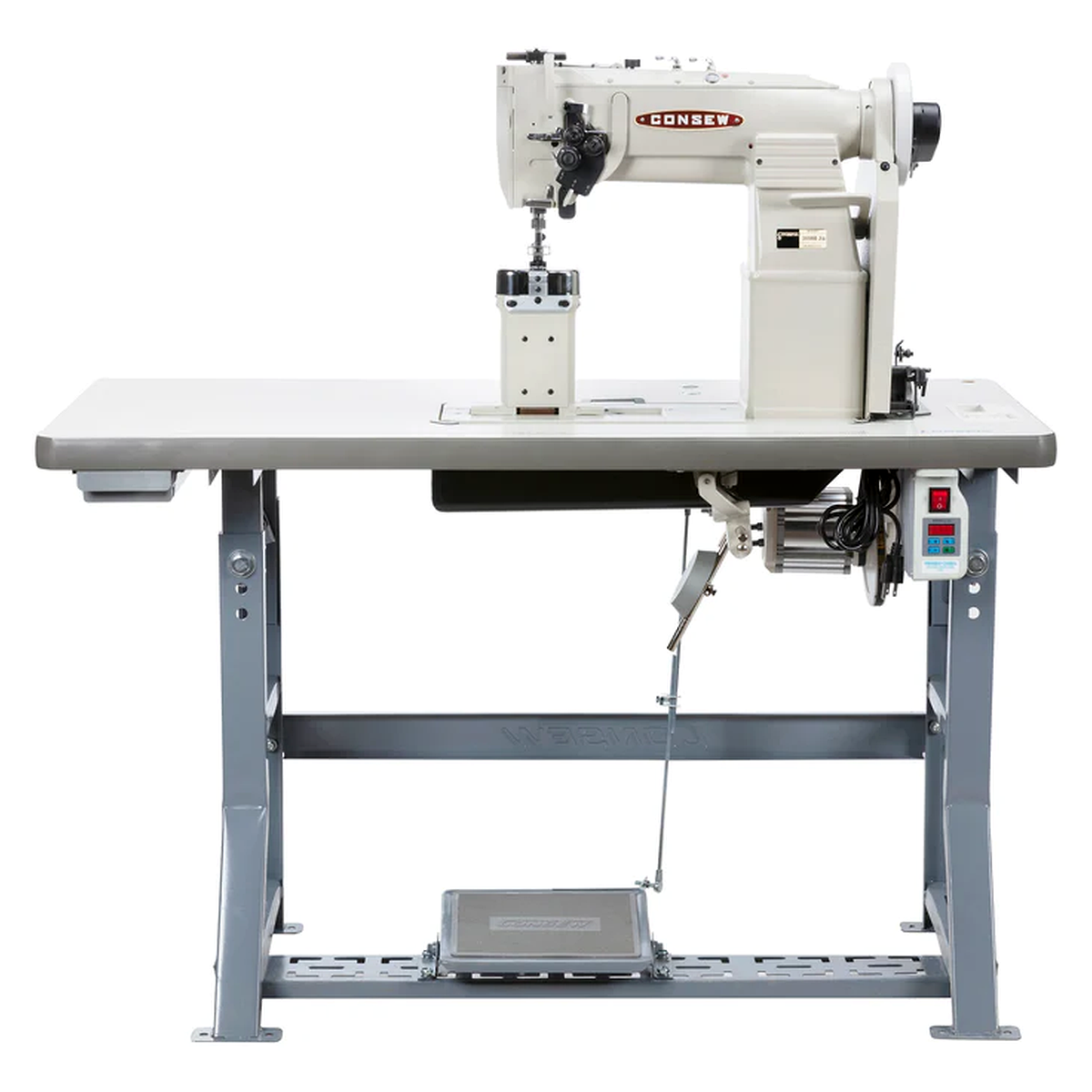

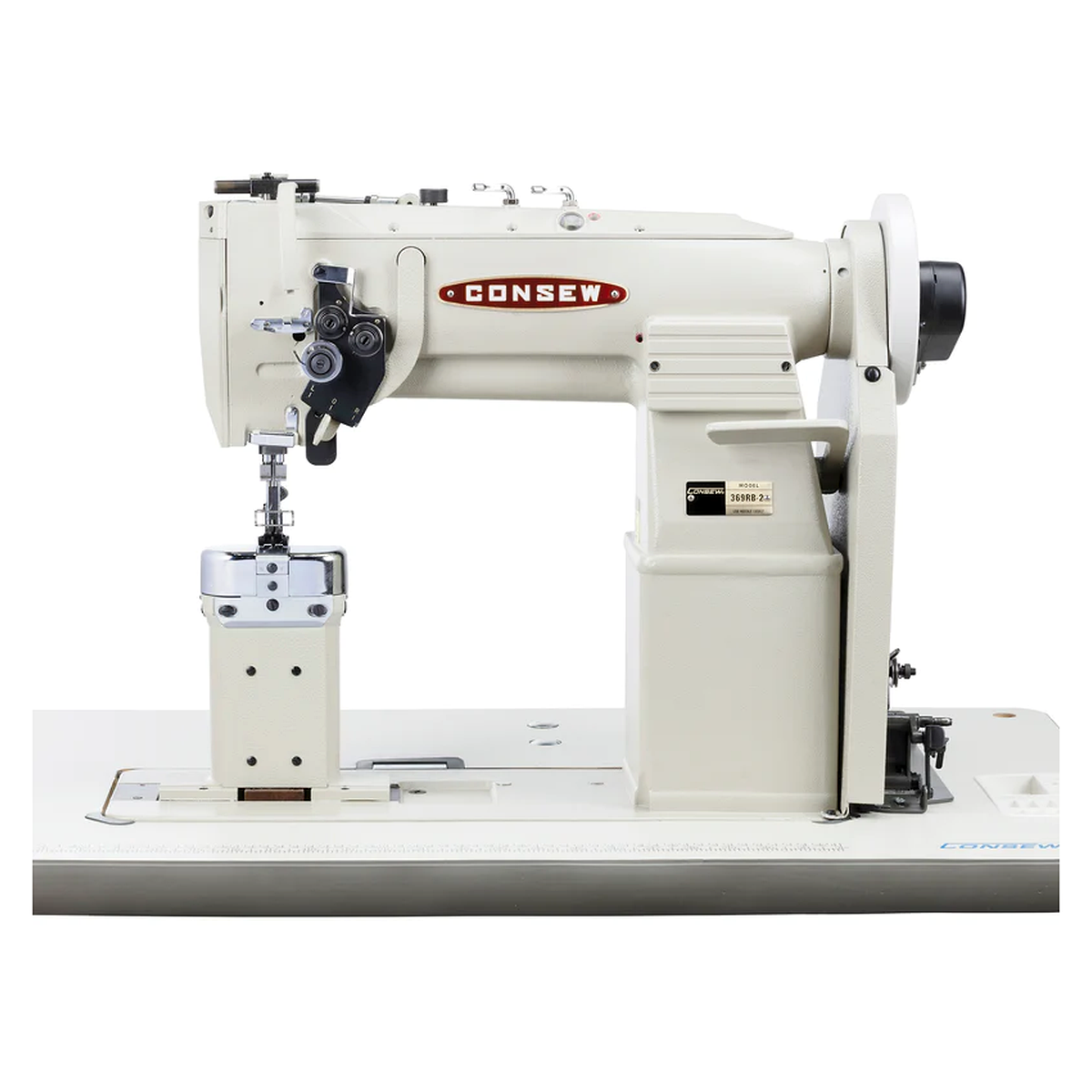

View store informationConsew 369RB-2 — Heavy Duty Post-Bed Double-Needle Walking Foot Industrial Sewing Machine
Two-Needle • Split Needle Bar • Compound Feed (Drop + Needle + Walking Foot) • Lockstitch • Angular Stitching
The Consew 369RB-2 is a high-speed, post-type double-needle lockstitch machine engineered for decorative and functional angular stitching on medium to heavy-weight materials such as leather, vinyl, canvas, and synthetics. Its split needle bar design allows one or both needles to disengage instantly for cornering or curved stitching — perfect for shoe uppers, upholstery, and detailed garment work.
Key Features

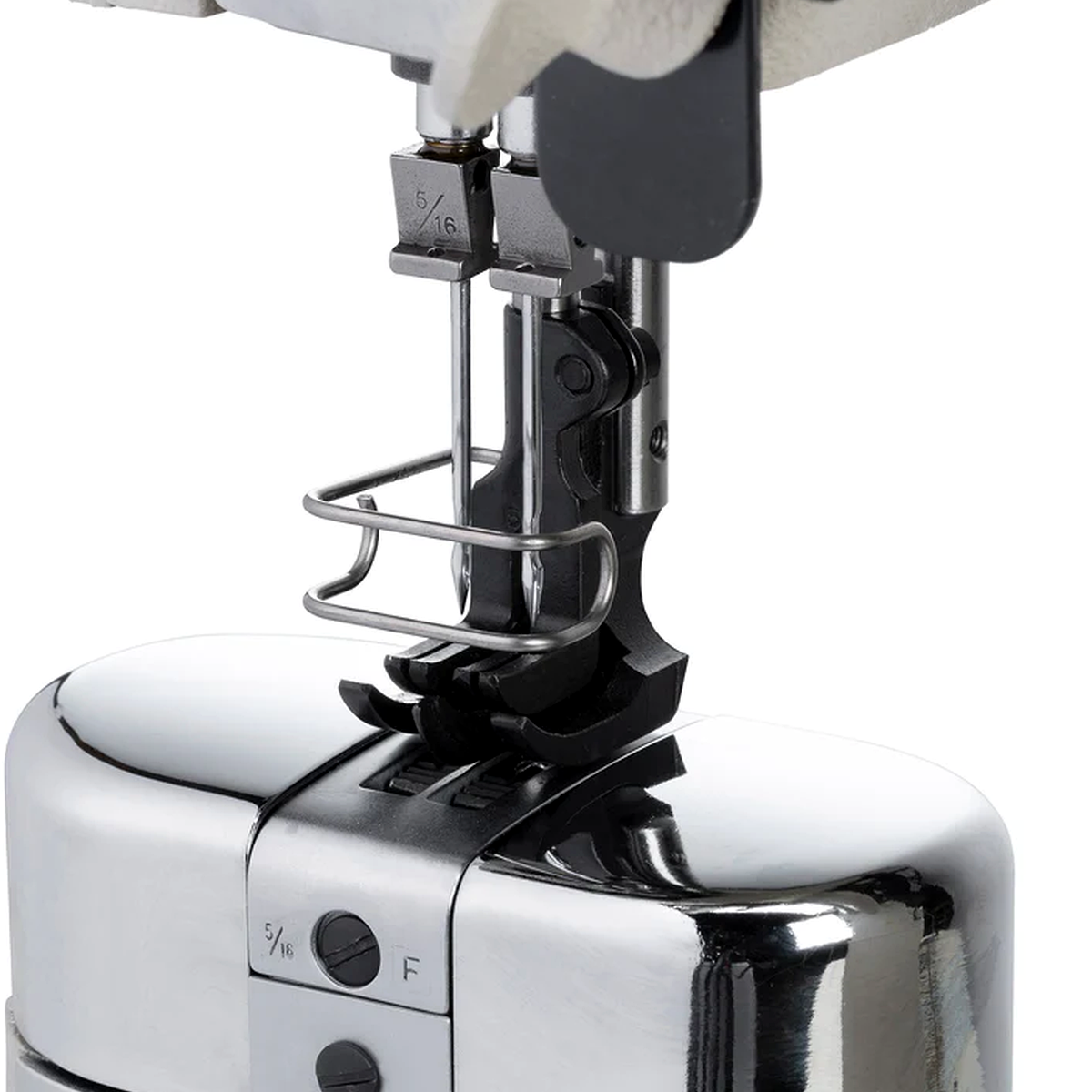

- Split Needle Bar Mechanism: Disengage right or left needle via fingertip lever for clean corner turns and angular stitching.
- Post-Bed Construction: Ideal for curved, hollow, and tubular items like shoes, bags, and upholstery corners.

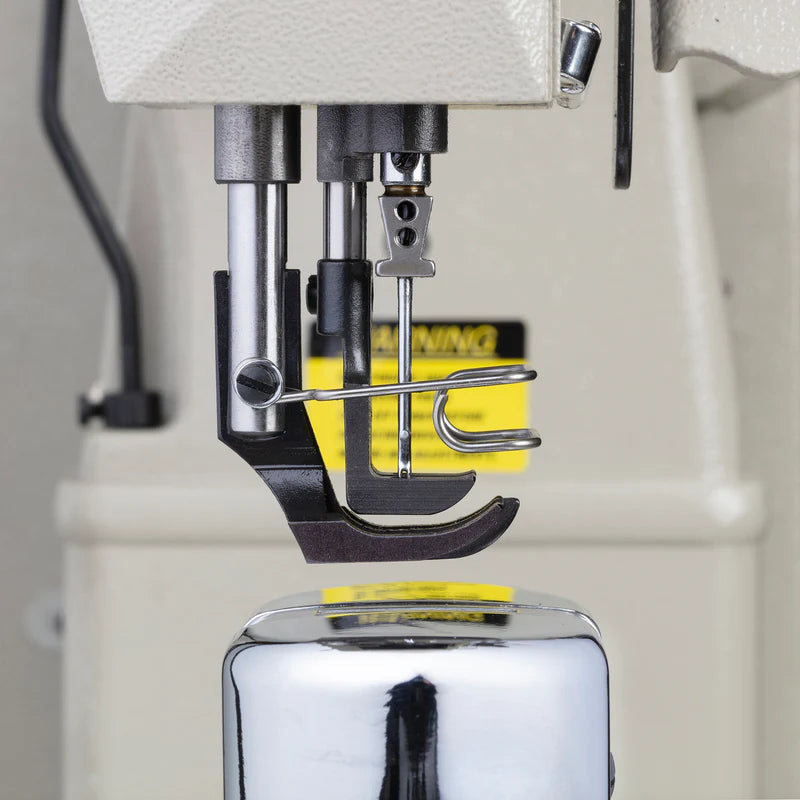

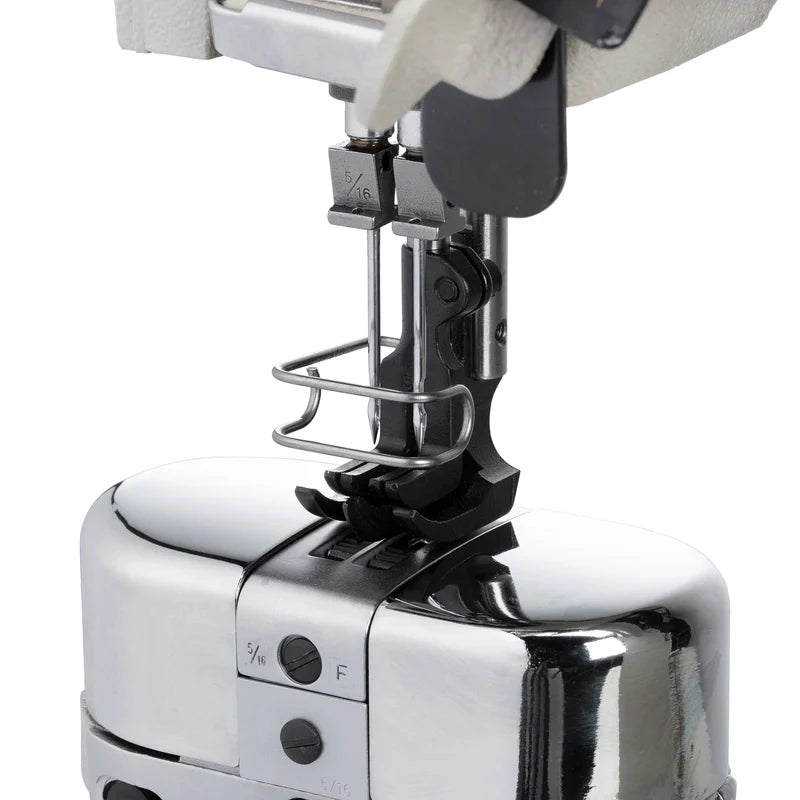

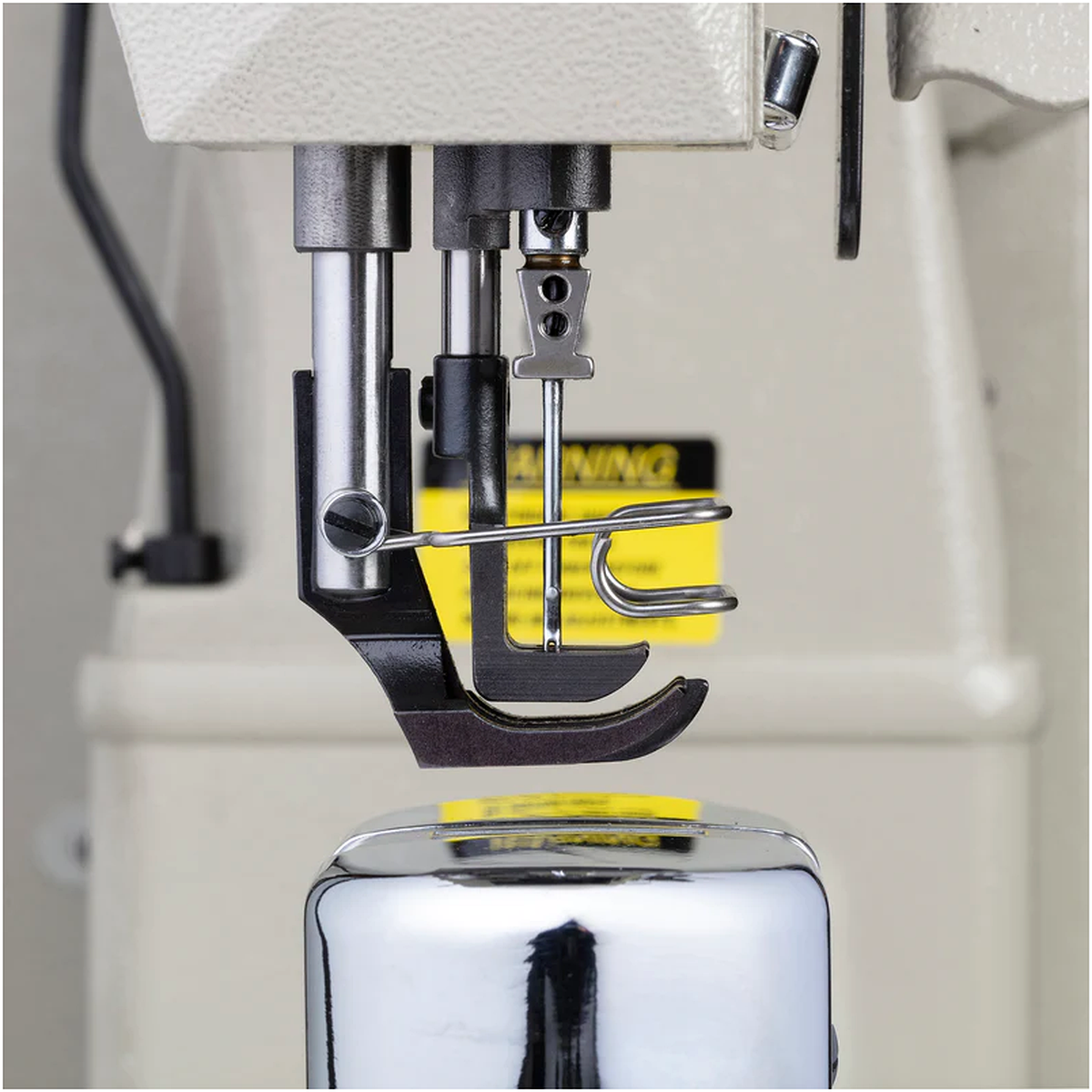

- Compound Feed / Walking Foot: Combines drop feed, needle feed, and alternating presser feet for smooth, consistent material control.
- Centra-Lube® System: Semi-automatic lubrication with oil-fed take-up for reduced maintenance and smoother operation.
- Large Vertical-Axis Hooks: Extended bobbin capacity for longer runs and consistent stitch formation.
- Reverse Stitching: Reinforces seams and improves durability.
- Safety Clutch: Protects hook assembly from thread jams or overloads.
- High-Speed Productivity: Delivers up to 2,200 stitches per minute with precision and stability.
- Various Gauge Sets: Available for different seam spacing and production needs.
Applications
- Collars, cuffs, pockets, and decorative stitching on garments
- Shoe uppers and leather goods
- Automotive, marine, and furniture upholstery
- Bags, luggage, tarpaulins, and awnings
- Canvas, vinyl, synthetics, and coated materials
Technical Specifications
| Model: | 369RB-2 |
| Needles: | 2 (Double, split needle bar) |
| Feed Type: | Compound feed (drop feed + needle feed + alternating walking feet) |
| Post Height: | 7″ (178 mm) |
| Max Speed: | 2,200 S.P.M. |
| Max Stitch Length: | 5 mm (5 S.P.I.) |
| Presser Foot Lift: | 11/32″ (8.5 mm) |
| Needle System: | 135×17 |
| Hook Type: | Large vertical-axis rotary hook (Hook: 14005) |
| Bed Size: | 7″ × 20 3/8″ (177 × 518 mm) |
| Work Surface: | 2 1/8″ × 4″ (54 × 101 mm) |
| Stitch Type: | 301 (lockstitch) |
| Machine Weight: | 196 lbs (89 kg) |
| Lubrication: | Centra-Lube® semi-automatic with oil-fed take-up |
| Reverse Stitching: | Yes |
The Consew 369RB-2 combines post-bed accessibility, split-needle versatility, and industrial reliability — the ideal solution for angular, curved, or decorative stitching on leather, canvas, and upholstery applications.
