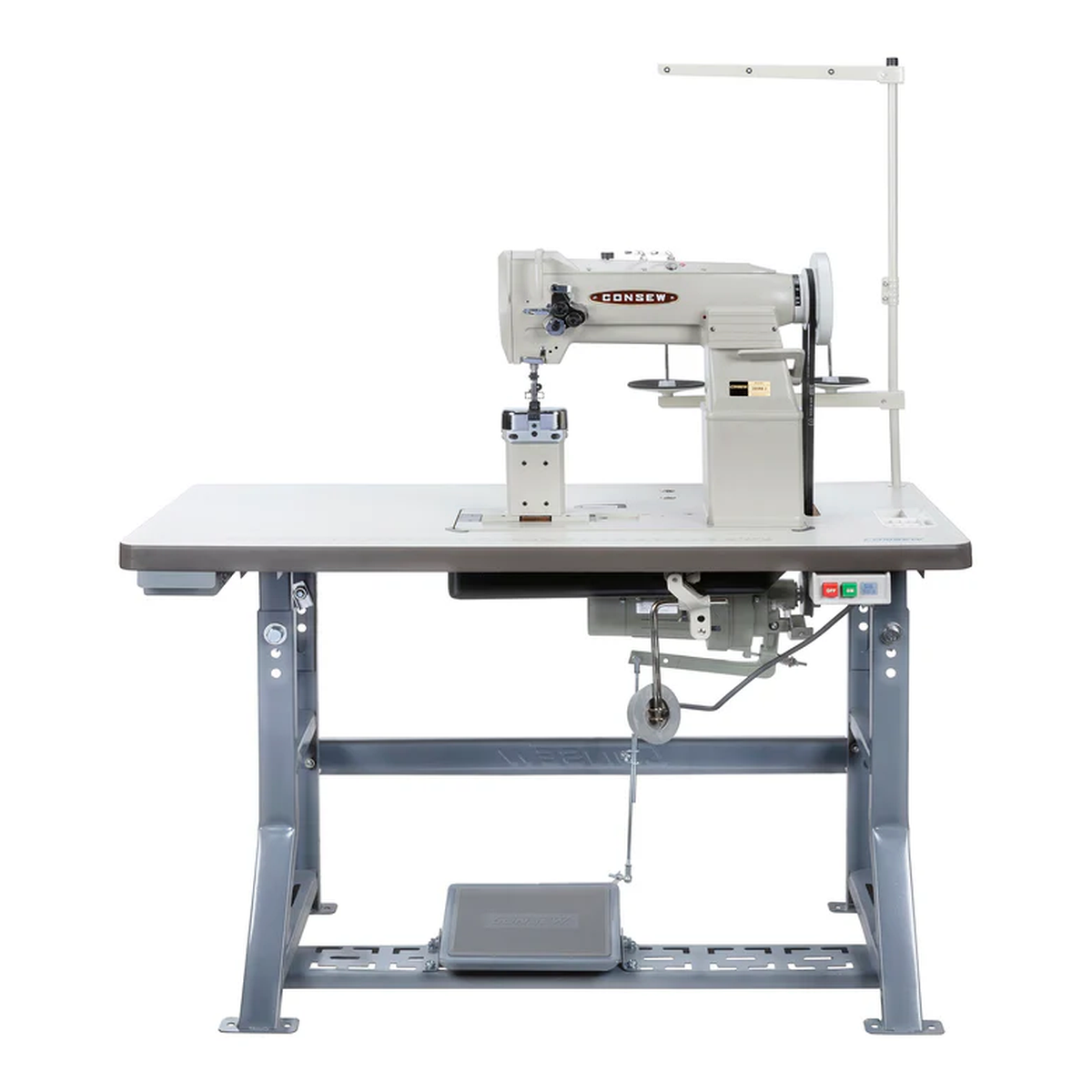

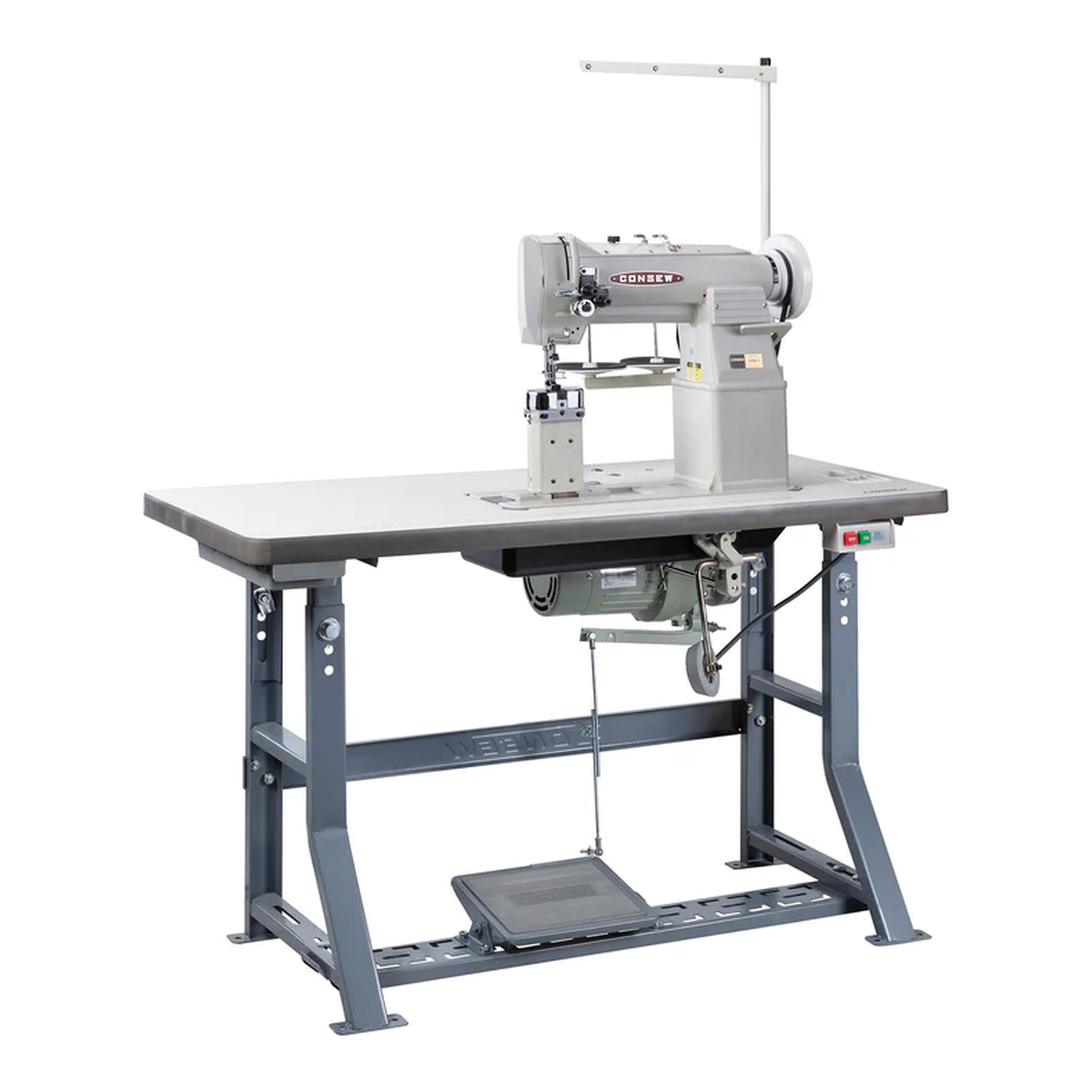

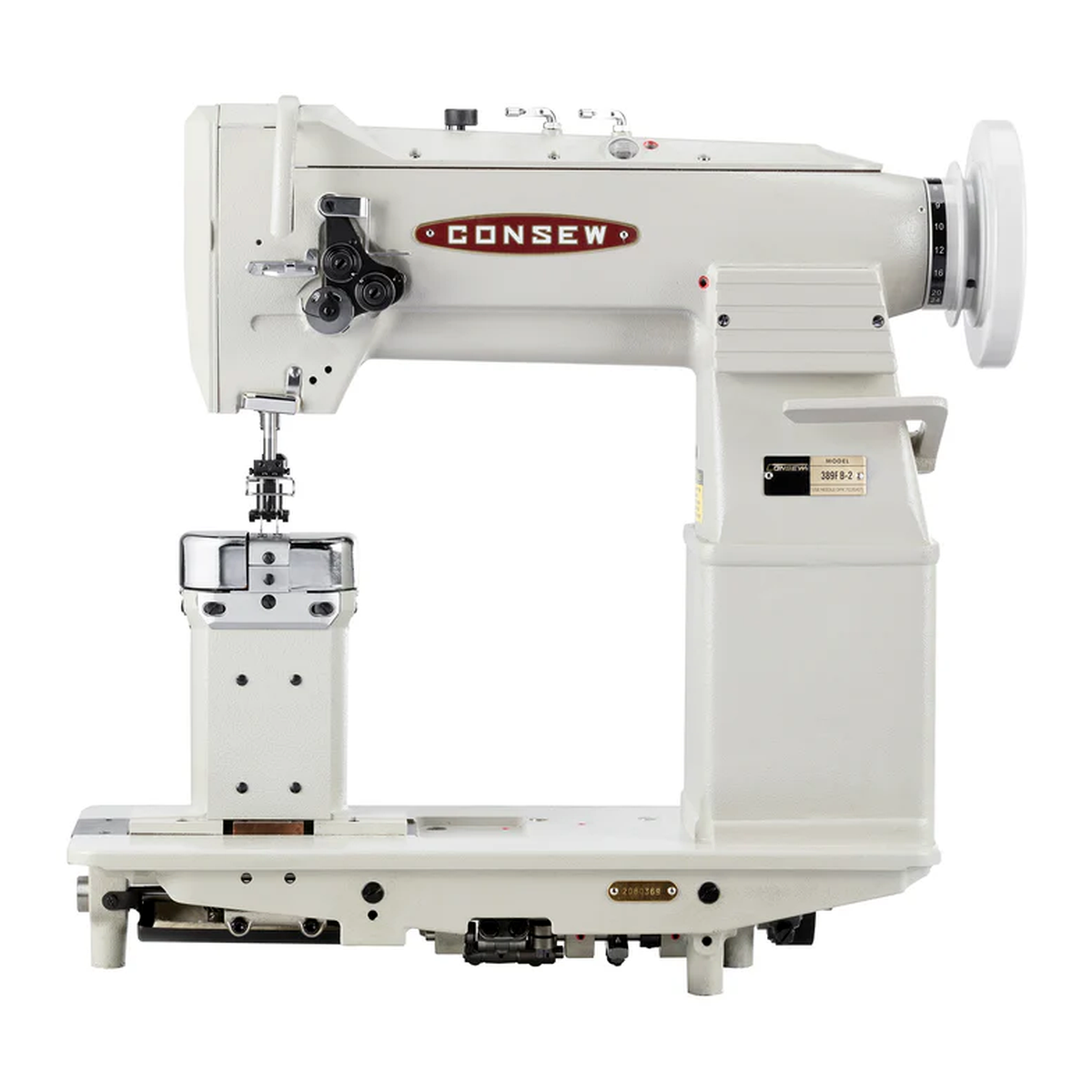

View store informationConsew 389RB-2 — Heavy Duty Two-Needle Post-Type Walking Foot Lockstitch Machine
Power • Precision • Industrial Performance

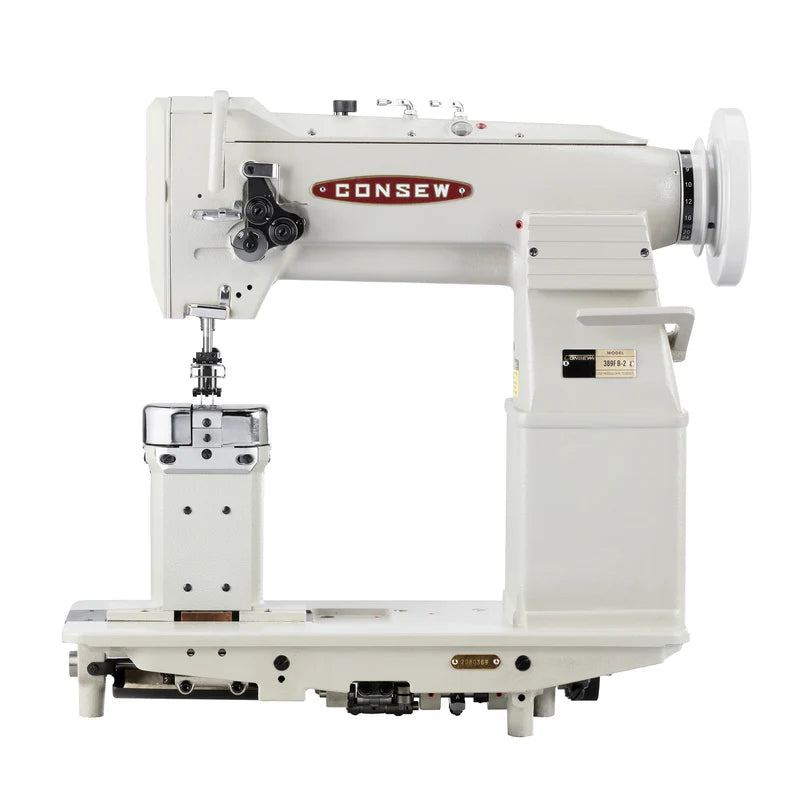

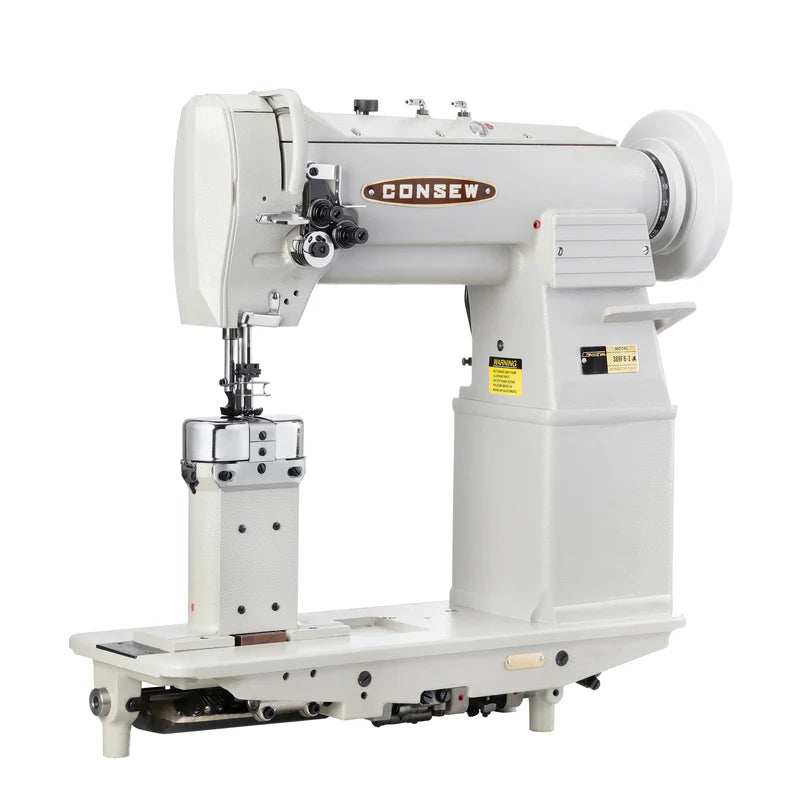

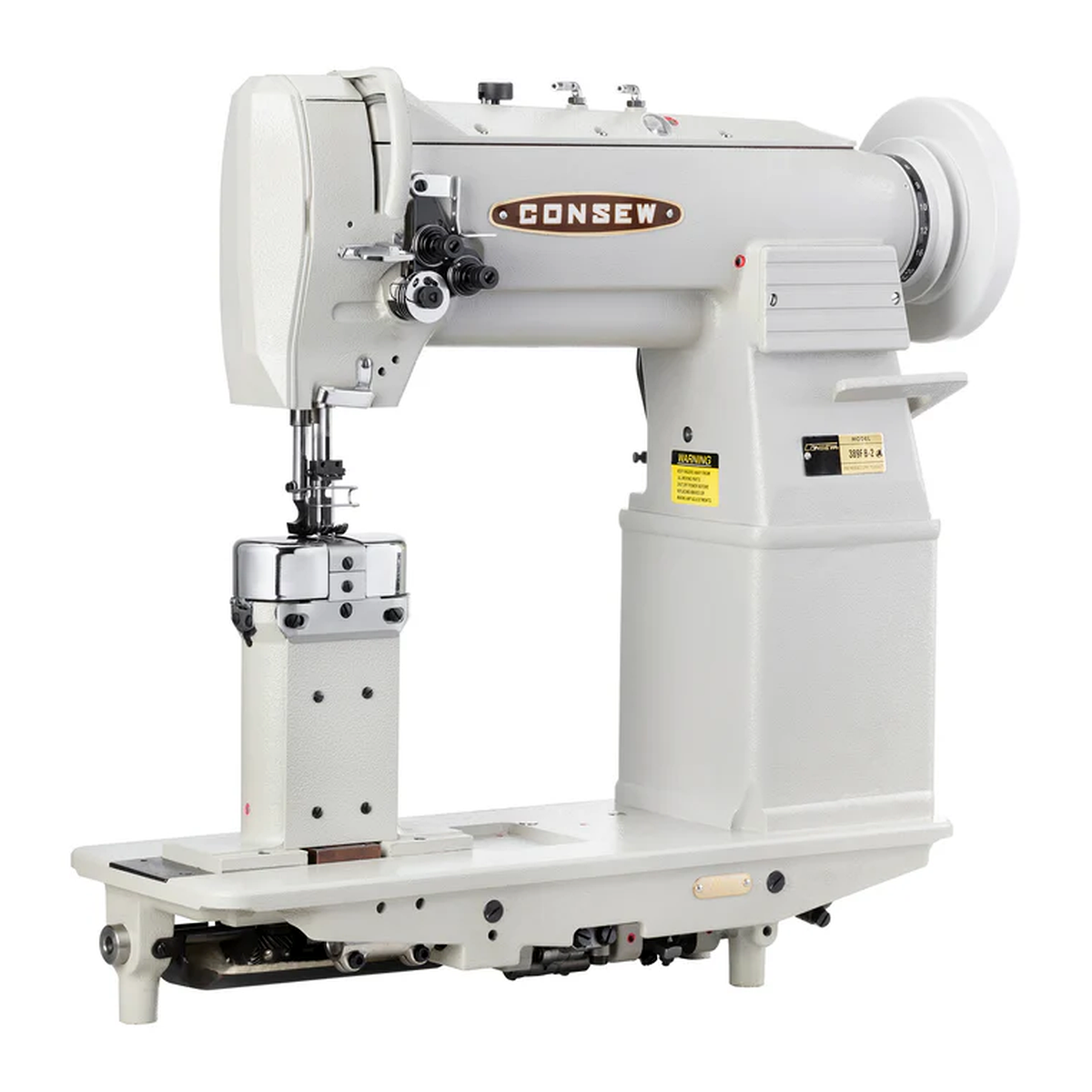

The Consew 389RB-2 is a heavy-duty, high-speed, two-needle post-bed lockstitch machine designed for precision sewing on medium to heavy materials. Featuring a compound feed walking foot mechanism, large vertical-axis rotary hooks, and the Centra-Lube® semi-automatic lubrication system, this model delivers consistent stitch quality, durability, and smooth operation — ideal for industrial production of leather goods, canvas, vinyl, and synthetics.
Key Features
- Heavy-Duty Post-Bed Design: Provides superior control when stitching curved, tubular, or irregularly shaped materials.

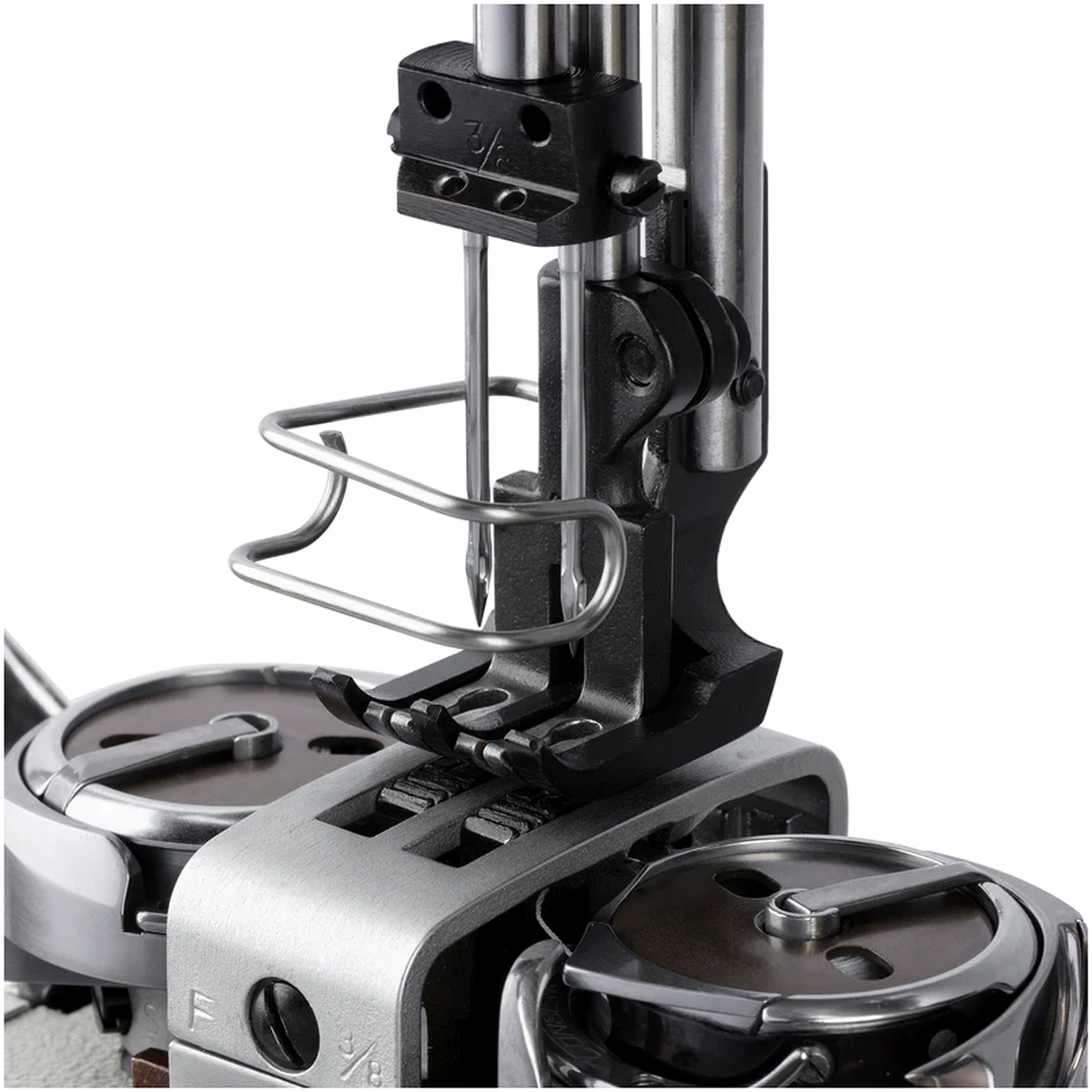

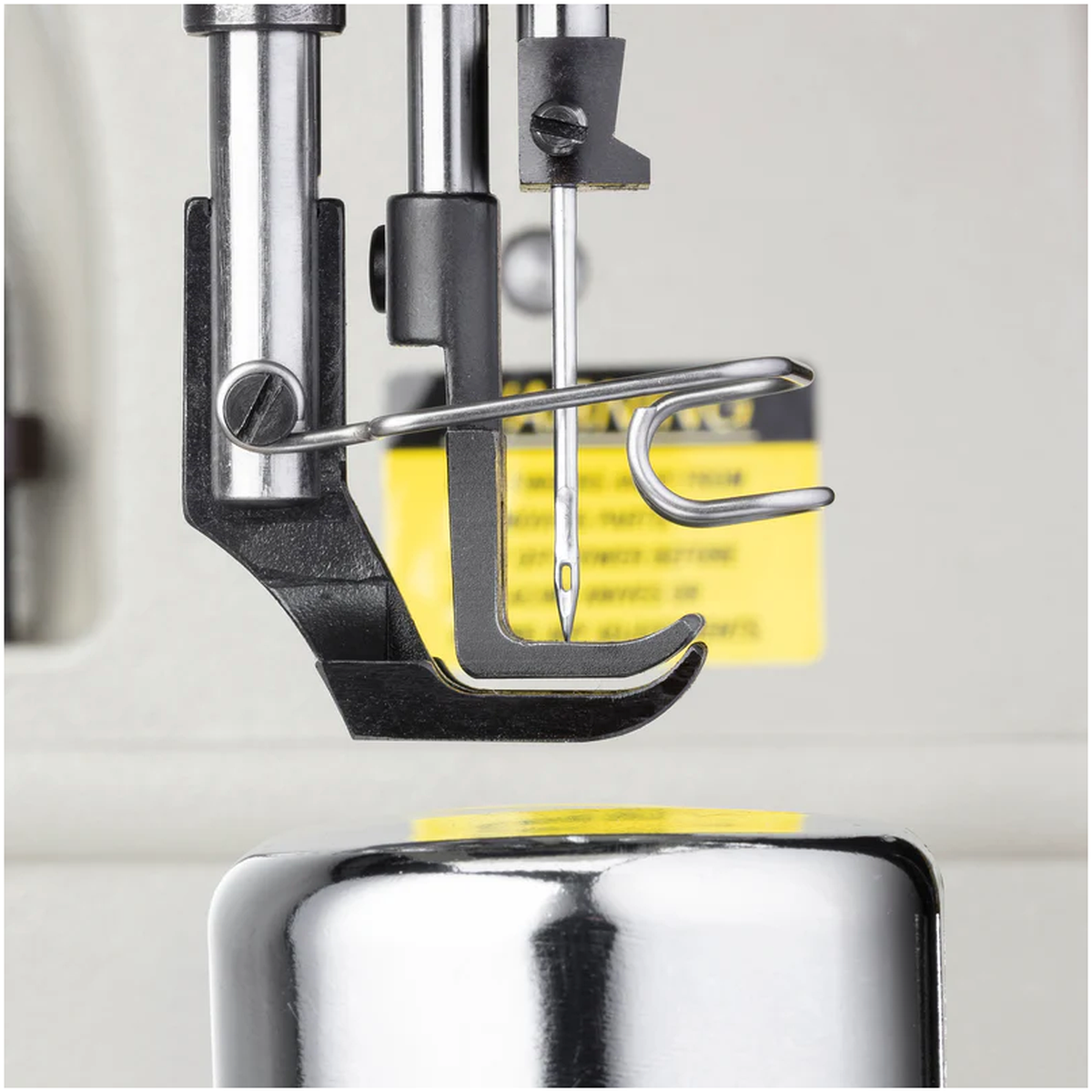

- Compound Feed (Walking Foot): Ensures even, slip-free feeding of multiple material layers for precise, uniform stitching.
- Centra-Lube® Semi-Automatic Lubrication: Keeps internal mechanisms optimally lubricated for smoother, longer-lasting performance.

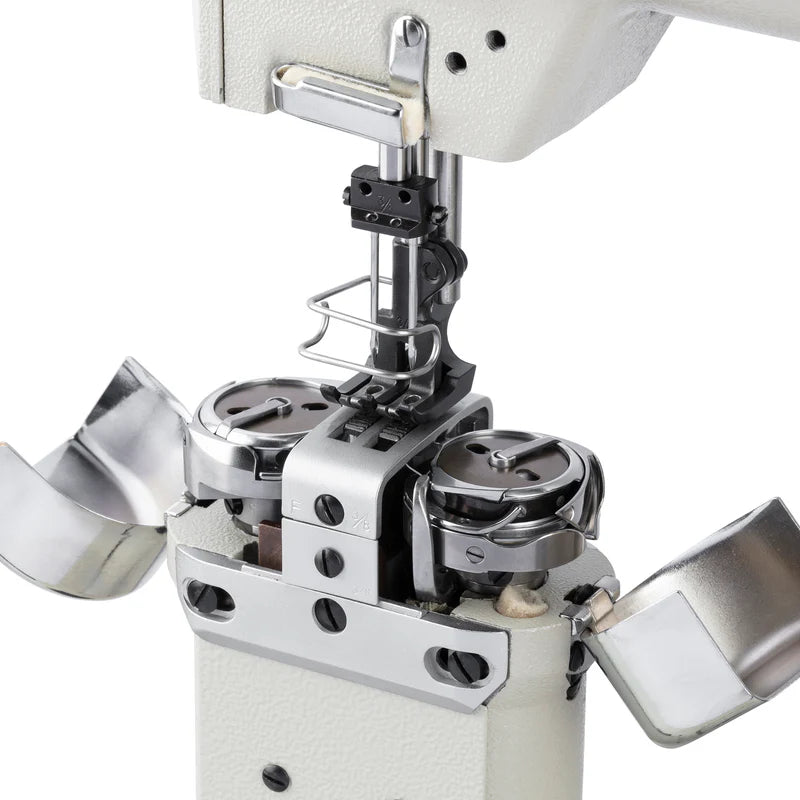

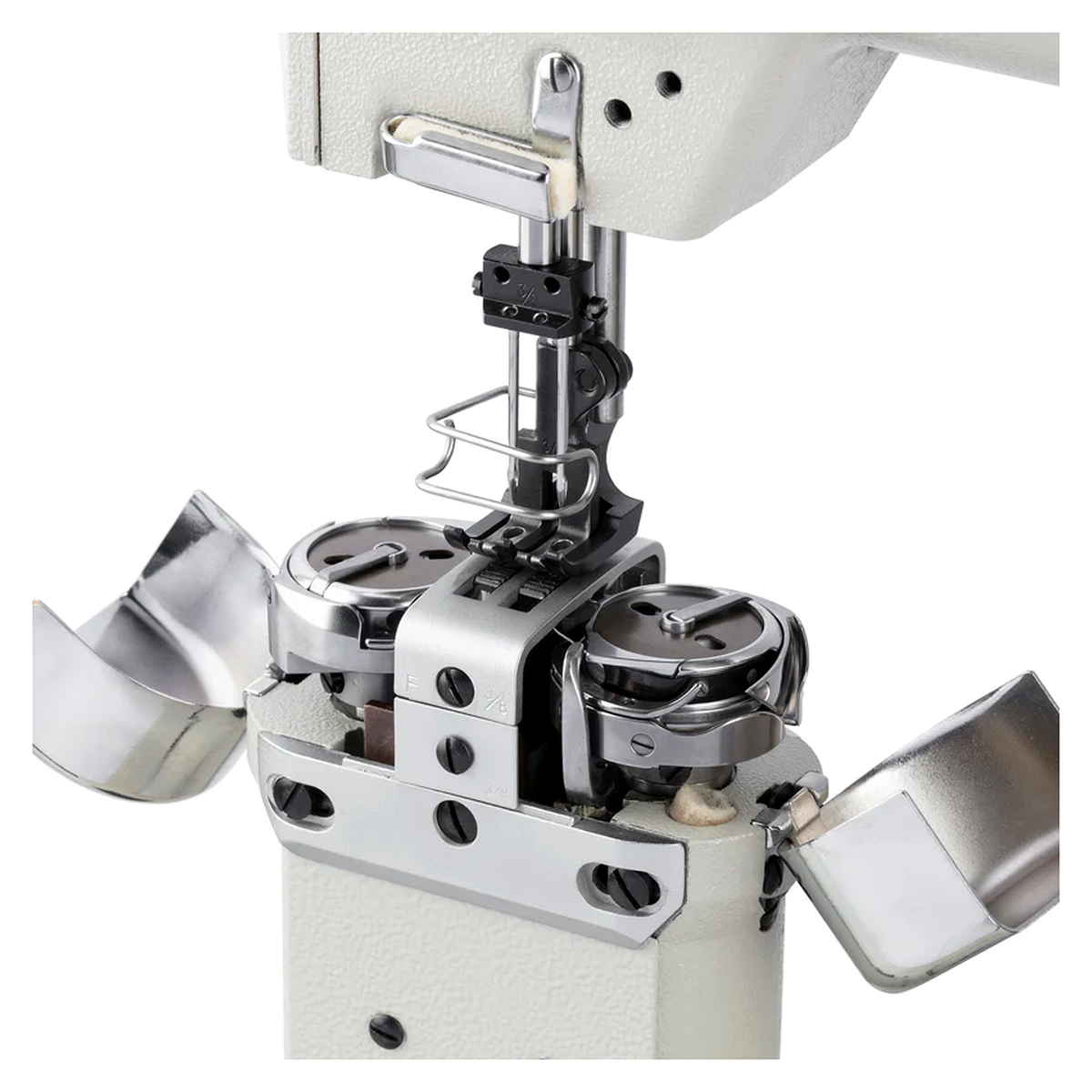

- Large Vertical Axis Rotary Hooks & Bobbins: Reduces downtime and maintains consistent thread tension during long production runs.
- Reverse Stitching Function: Reinforces seams and ensures durable back-tack finishes.
- Safety Clutch Mechanism: Protects hooks from damage due to thread jams or overloads.
- Optional Automatic Model (389RBATCL(N)): Available with automatic trimming and lifting functions.
- High Post Bed: Available upon request for specialized applications requiring greater clearance.
Applications
- Medium to heavy materials including leather, canvas, vinyl, synthetics, and coated fabrics.
- Ideal for overalls, raincoats, luggage, handbags, travel accessories, and outdoor gear.
- Perfect for tubular or curved items such as boots, bags, and upholstery details.
- Suited for operations like attaching braids, tapes, pockets, and secondary finishing work.
Technical Specifications
| Model: | 389RB-2 |
| Number of Needles: | 2 (Double) |
| Feeding Mechanism: | Walking Foot (Compound Feed) |
| Workspace: | Standard Post-Bed |
| Max Speed: | 2,400 stitches per minute* |
| Stitch Length (Max): | 6 mm (4.2 s.p.i.) |
| Presser Foot Lift: | 7/16" (11 mm) |
| Bed Size: | 7" × 20-3/8" (177 mm × 518 mm) |
| Stitch Type: | 301 (Lockstitch) |
| Needle System: | 135 × 17 |
| Hook Type: | 14505 — Large Vertical Axis Rotary Hook |
| Post Height: | 7" (178 mm) |
| Work Surface: | 2-1/8" × 4" (54 mm × 101 mm) |
| Machine Weight: | 196 lbs (89 kg) |
Advantages
- Exceptional feeding precision with the walking foot compound feed system.
- Consistent high-speed performance for industrial productivity.
- Durable all-metal construction with long service life.
- Versatile post-bed design for complex or tubular items.
- Reduced downtime thanks to large bobbins and automatic lubrication.
The Consew 389RB-2 combines industrial strength with superior control — a reliable solution for leatherwork, upholstery, and heavy-duty sewing applications requiring precision and endurance.
