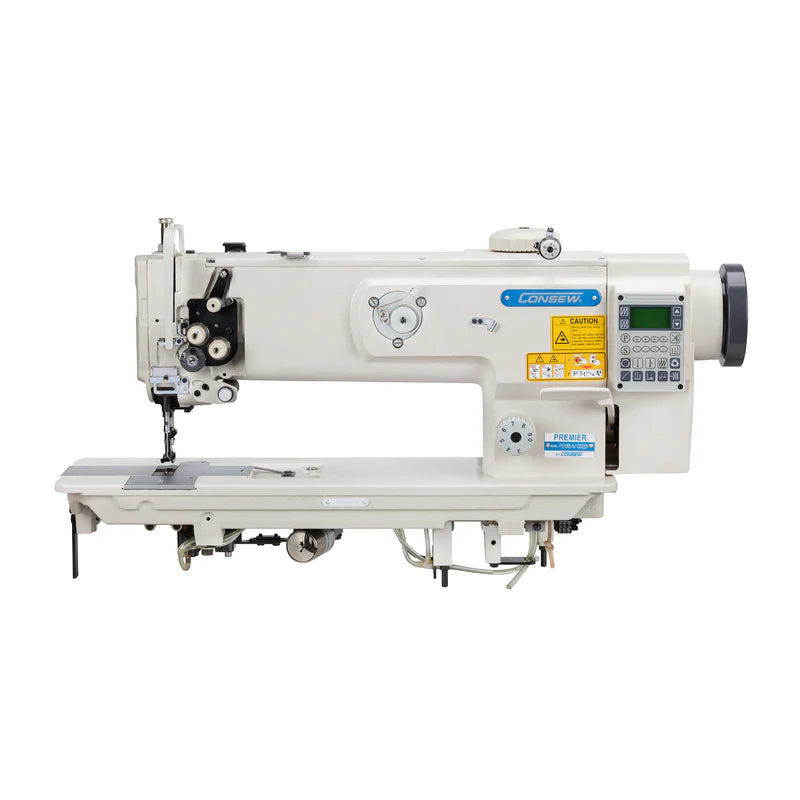

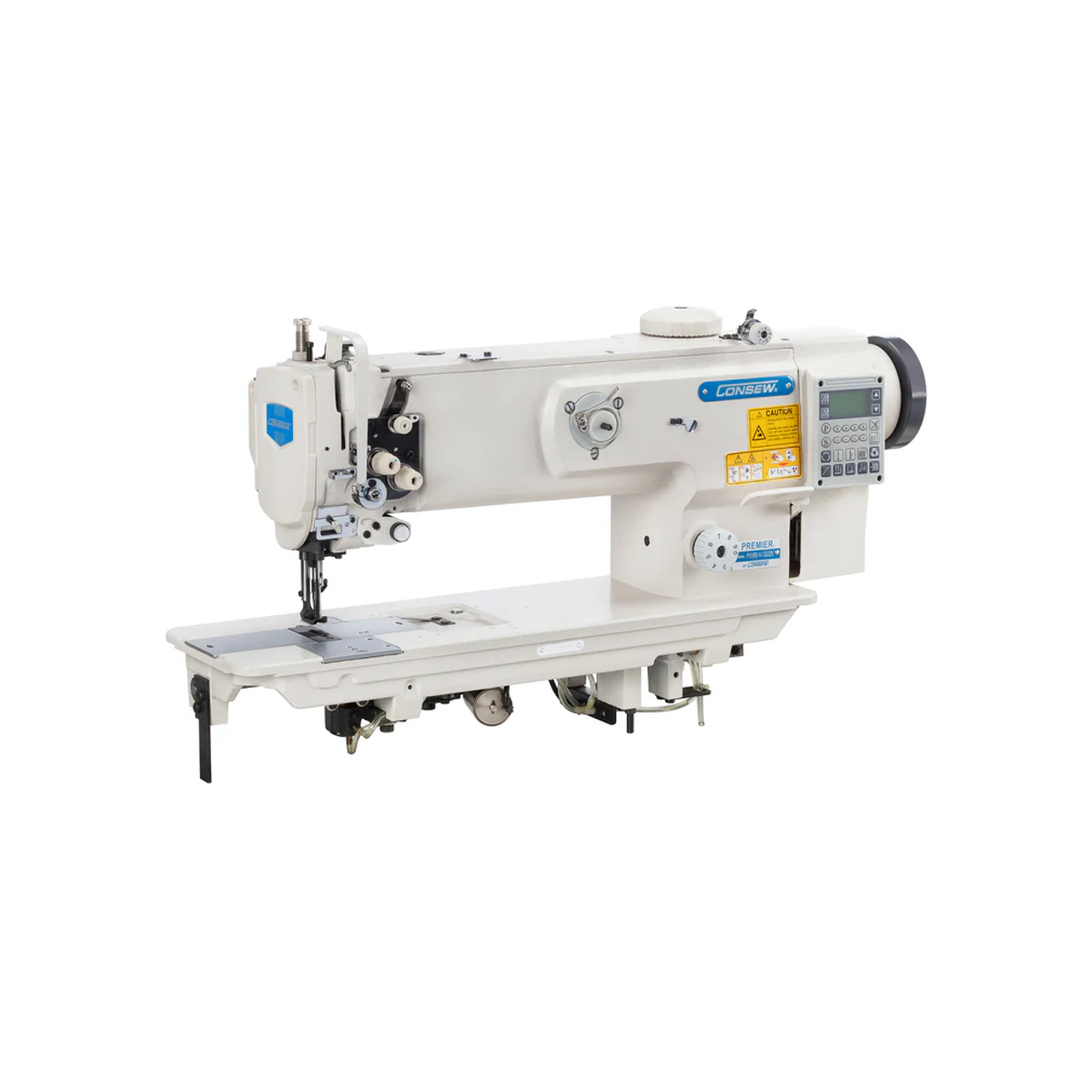

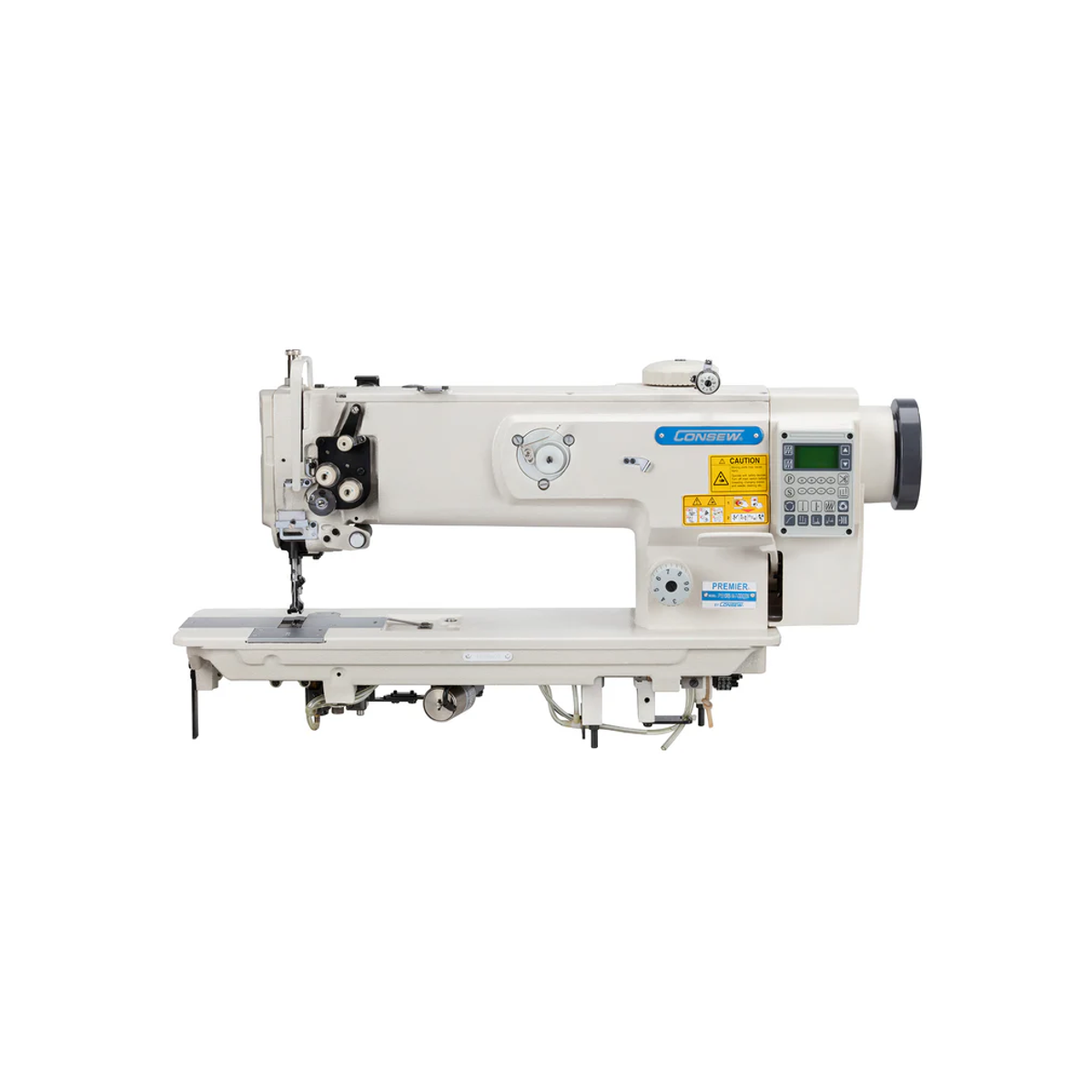

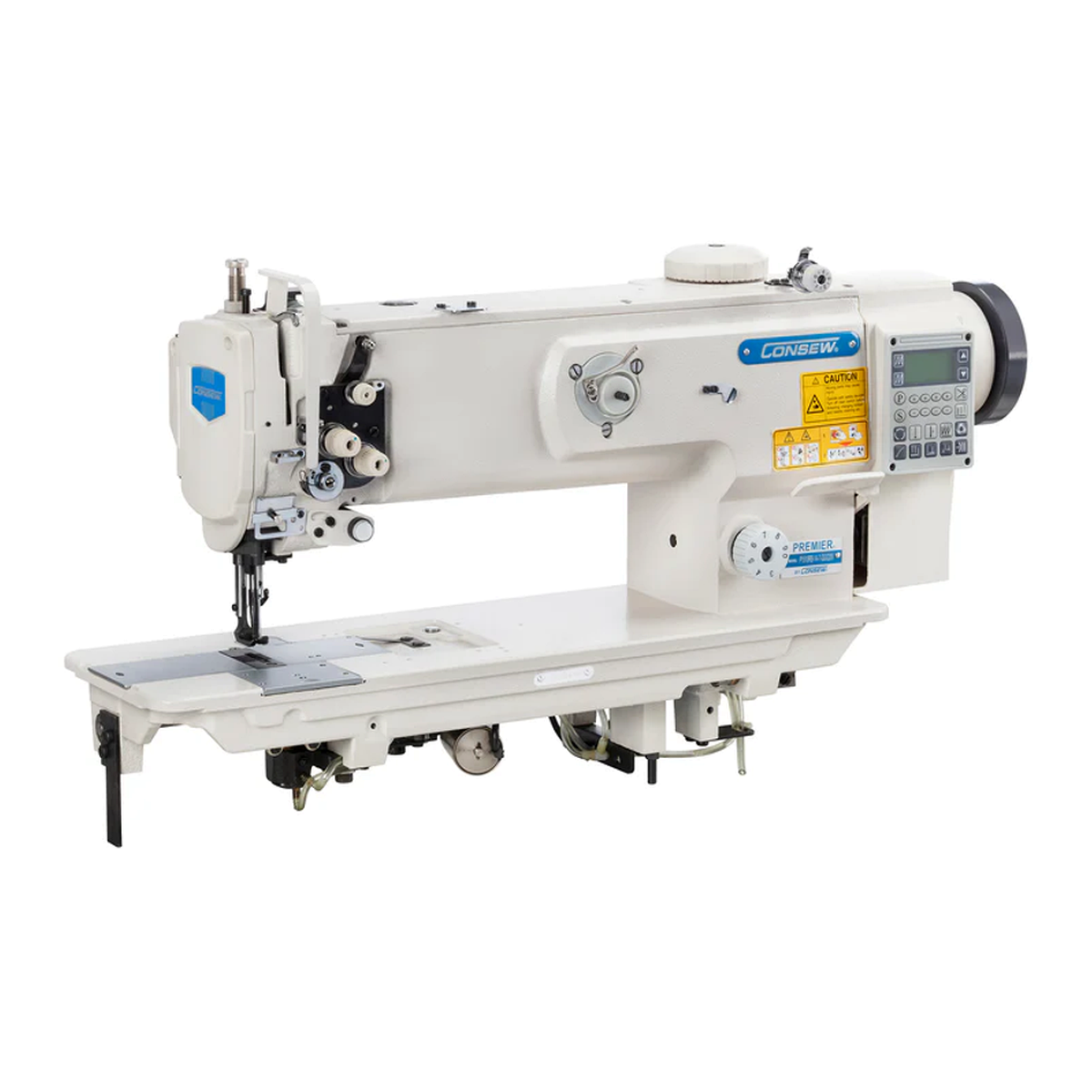

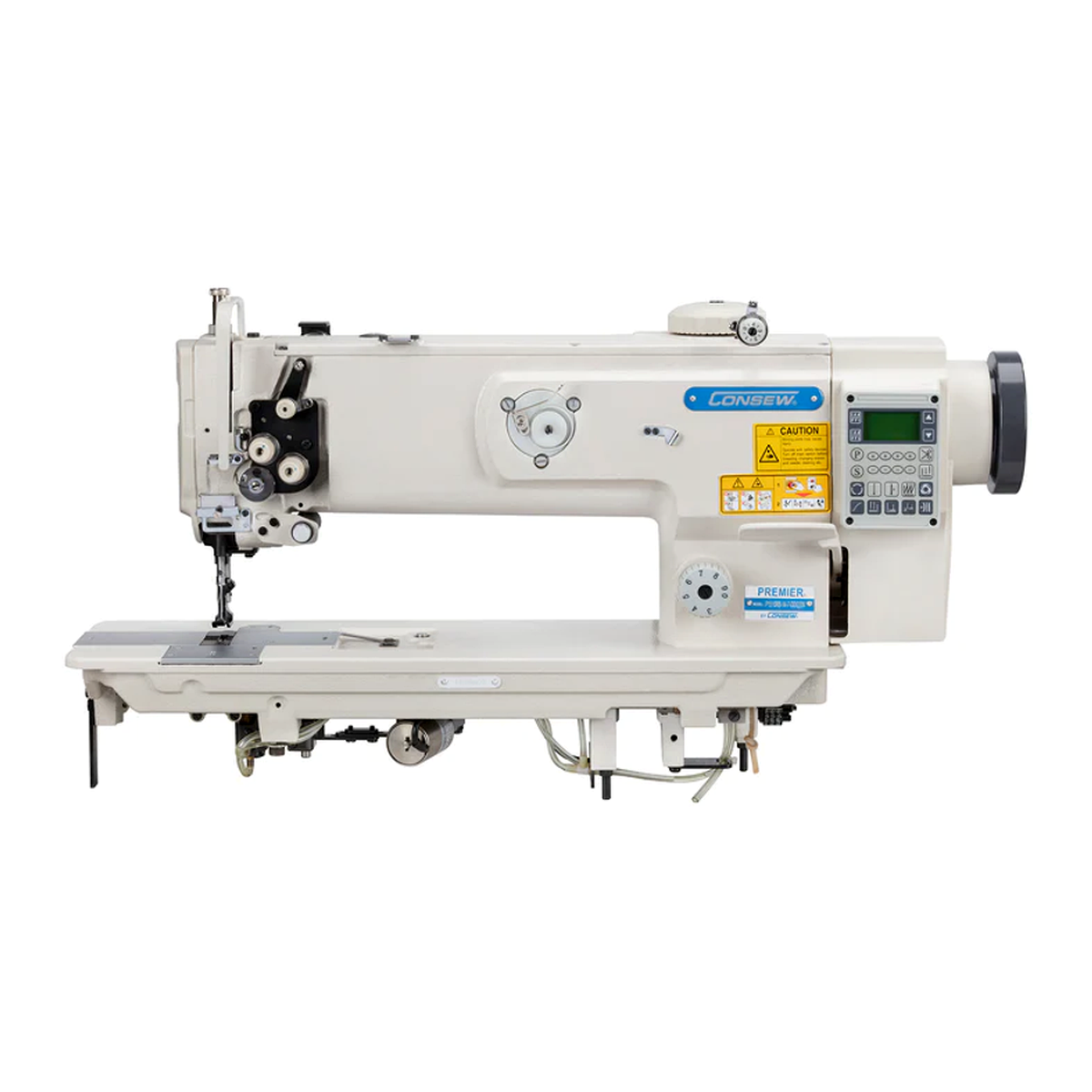

Consew P1510RB-14-7DD/220 — Single Needle, Walking Foot, Lockstitch Machine

Heavy-Duty Control • Direct Drive Precision • Full Automatic (-7DD)

The Consew P1510RB-14-7DD/220 is a heavy-duty, single-needle walking foot lockstitch machine engineered for automotive, marine, leather, canvas, and general upholstery applications. With a direct-drive servo motor on the top shaft, automatic thread trimming (-7DD), auto reverse, and automatic presser-foot lift, it delivers smooth feeding, clean finishes, and consistent industrial performance on light to heavy materials.

Key Features

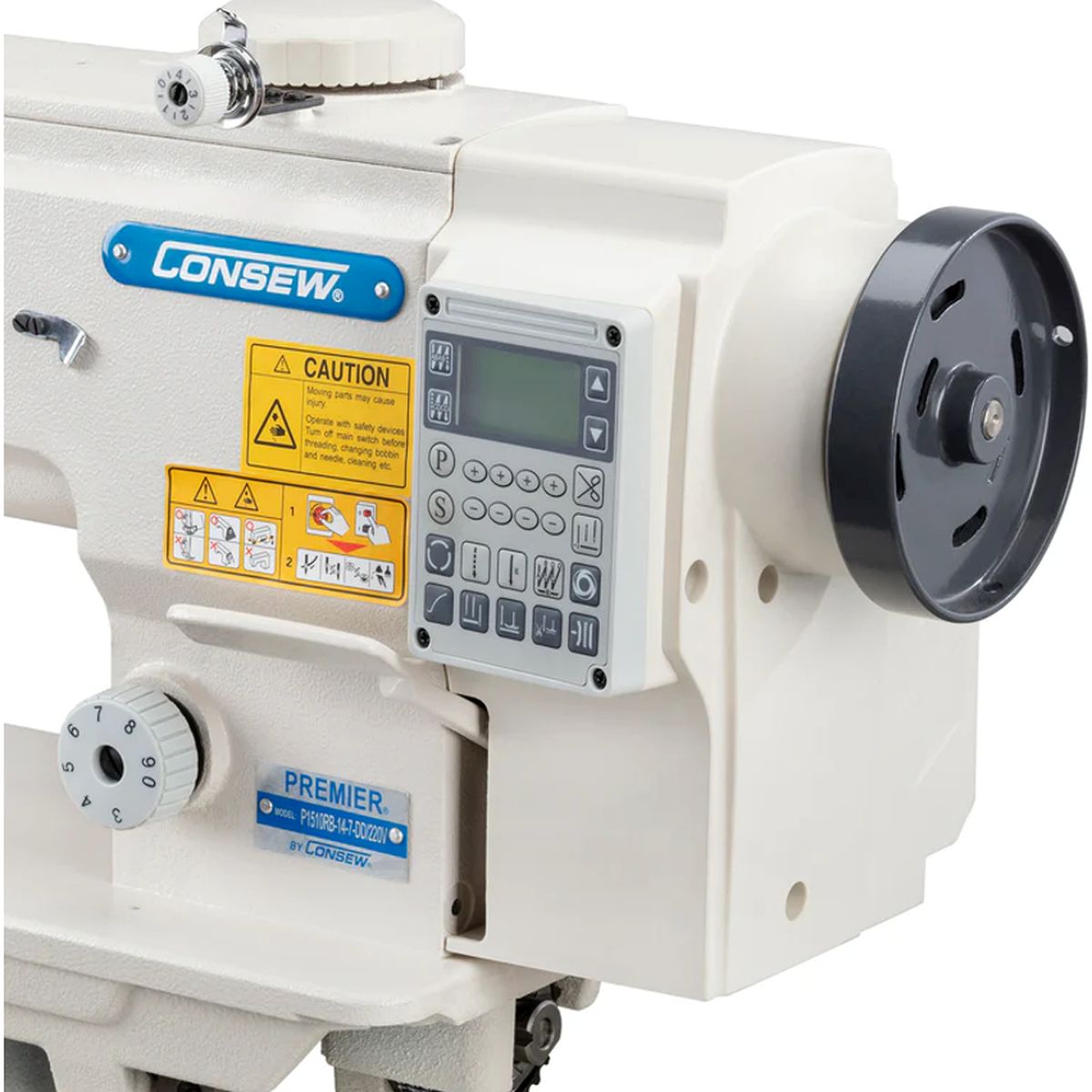

Direct Drive Servo (220 VAC): Motor coupled directly to the top shaft for high efficiency, low vibration, and precise speed control.

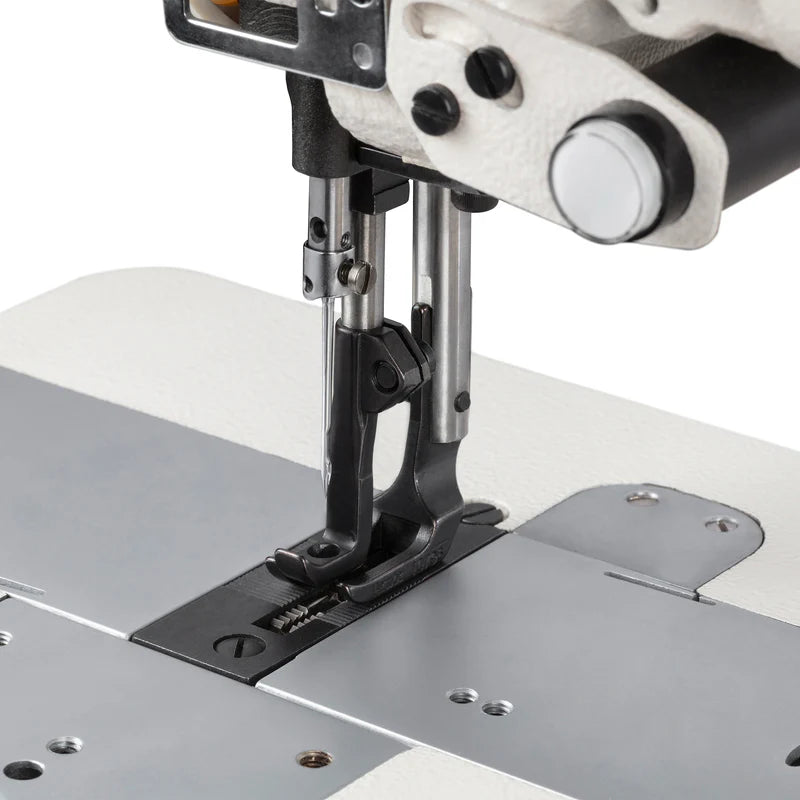

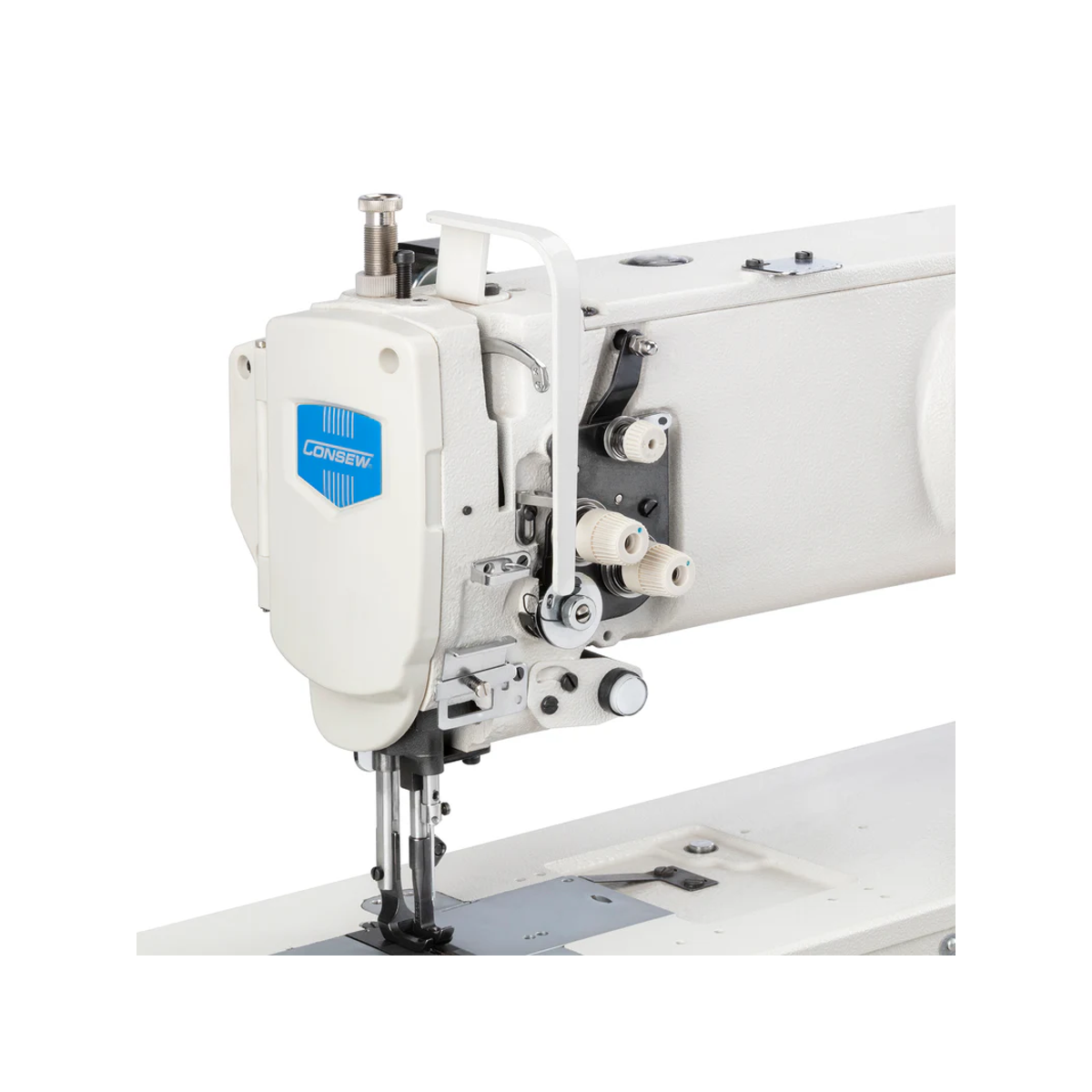

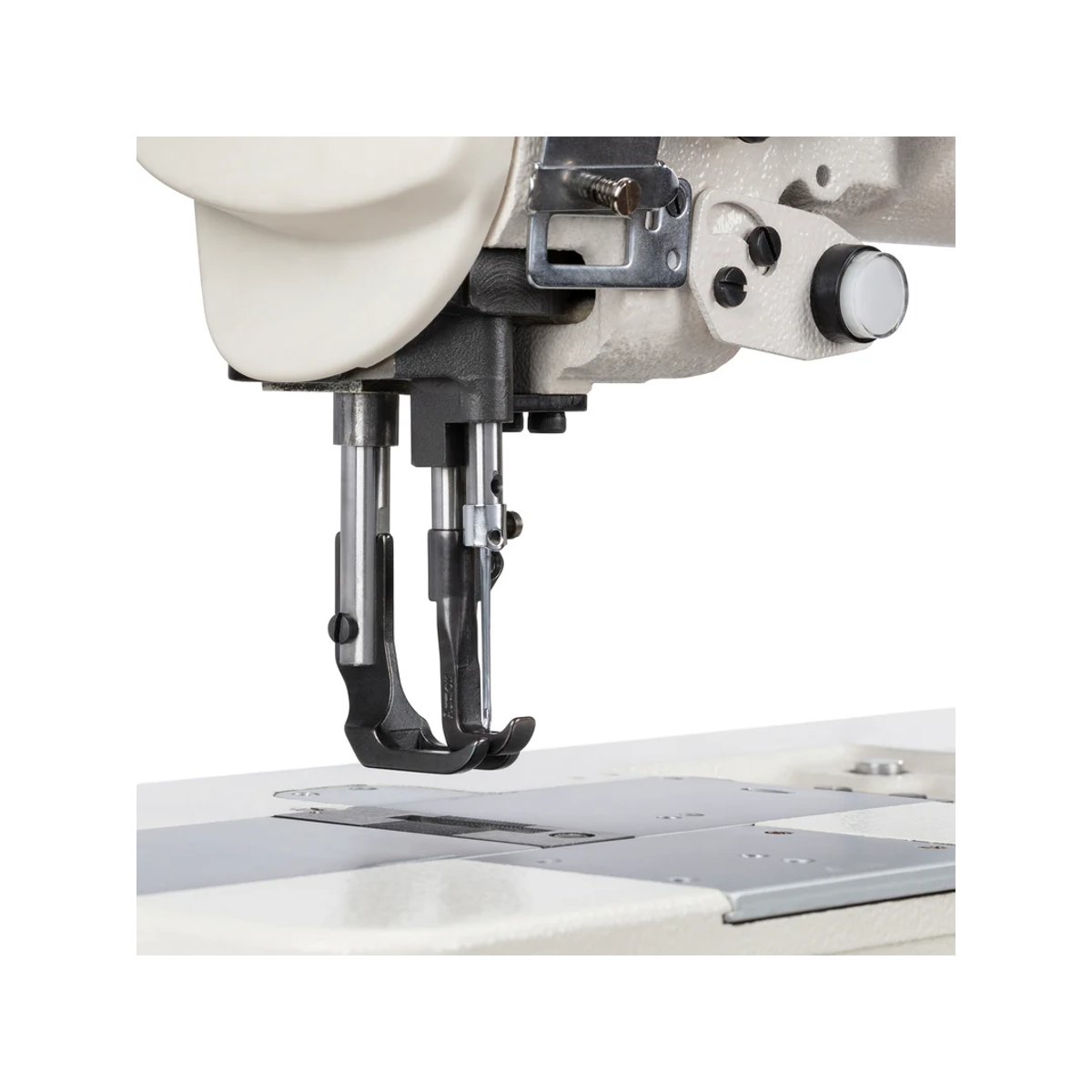

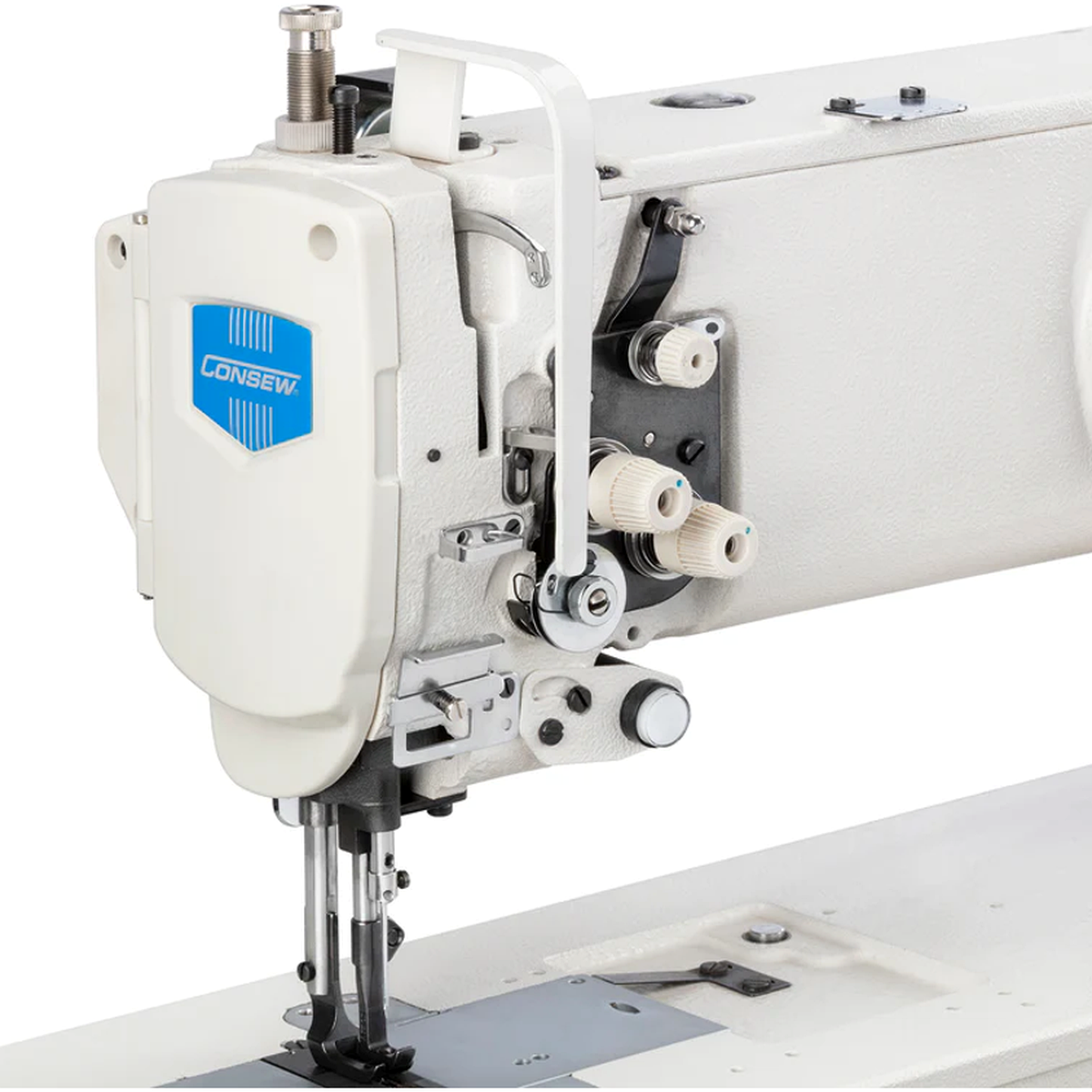

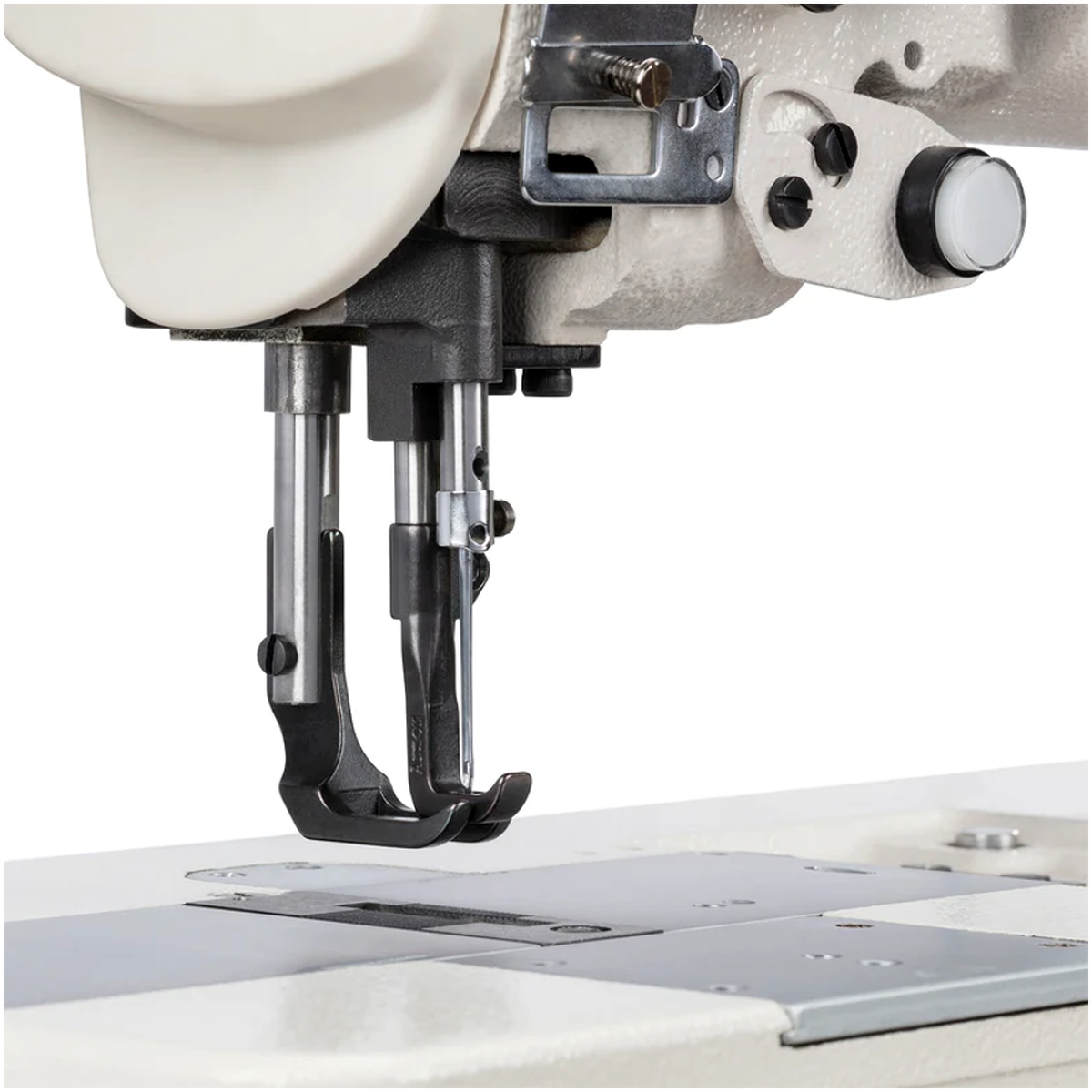

Walking Foot Mechanism: Positive feeding across thick, layered, or slippery materials for uniform stitch formation.
Automatic Thread Trim (-7DD only): Clean end-of-seam cut for faster cycles and professional results.
Automatic Presser-Foot Lift & Auto Reverse: Improves throughput and reinforces seams with consistent back-tacks.
“Roll-In” Start: Tucks the top thread under the fabric at start to reduce birds’ nests and rework.
Climbing Device: Assists over height transitions and thick spots for stable feeding.
Large Top-Load Bobbin & Built-in Winder: Fewer changeovers and convenient bobbin prep on the head.
Semi-Automatic Lubrication: Reliable oiling to key components for longer service life.

Applications

Automotive, boat, and furniture upholstery
Leather goods, vinyl, synthetics, laminated and coated fabrics
Tarpaulins, covers, awnings, tents, umbrellas
Handbags, luggage, travelware, outdoor gear, footwear
General apparel and heavy textile fabrication

Technical Specifications

Model:	P1510RB-14-7DD/220
Needles:	1 (Single)
Feeding Mechanism:	Walking Foot
Workspace (Throat):	14" (355 mm)
Stitch Length (Max):	9 mm
Speed (Max):	2,000–2,500 spm*
Presser Foot Lift:	Hand: 9 mm • Knee: 16 mm
Needle System:	135 × 17 (DPx17)
Motor Type:	Direct Drive Internal Servo
Functions (-7DD):	Auto Thread Trim, Auto Foot Lift, Auto Reverse
Lubrication:	Semi-Automatic
Electrical:	220 VAC
Machine Weight:	170 lbs (77 kg)

Advantages

Industrial-grade feeding and penetration on heavy or layered materials.
Faster workflow with auto trim, auto lift, and programmable reverse (-7DD).
Cleaner starts with “roll-in” thread control; fewer restarts and defects.
Energy-efficient, quiet operation with direct drive and speed modulation.

Model Lineup

Full Automatic (-7DD) with Auto Thread Trim
- P1510RB-14-7DD/220 — 14" workspace (355 mm)
- P1510RBL-18-7DD/220 — 18" workspace (457 mm)
- P1510RBL-25-7DD/220 — 25" workspace (635 mm)
Automatic (-DD) without Auto Thread Trim
- P1510RB-14-DD/220 — 14" workspace (355 mm)
- P1510RBL-18-DD/220 — 18" workspace (457 mm)
- P1510RBL-25-DD/220 — 25" workspace (635 mm)
