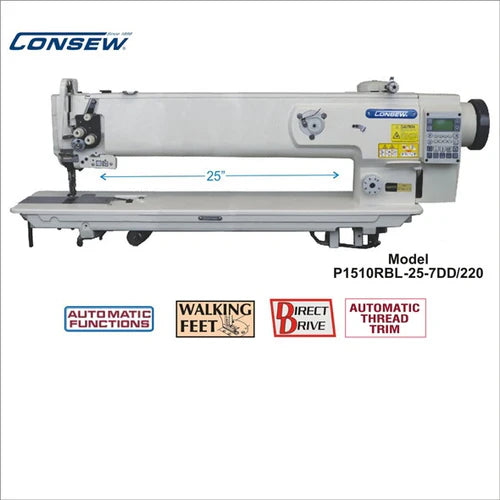

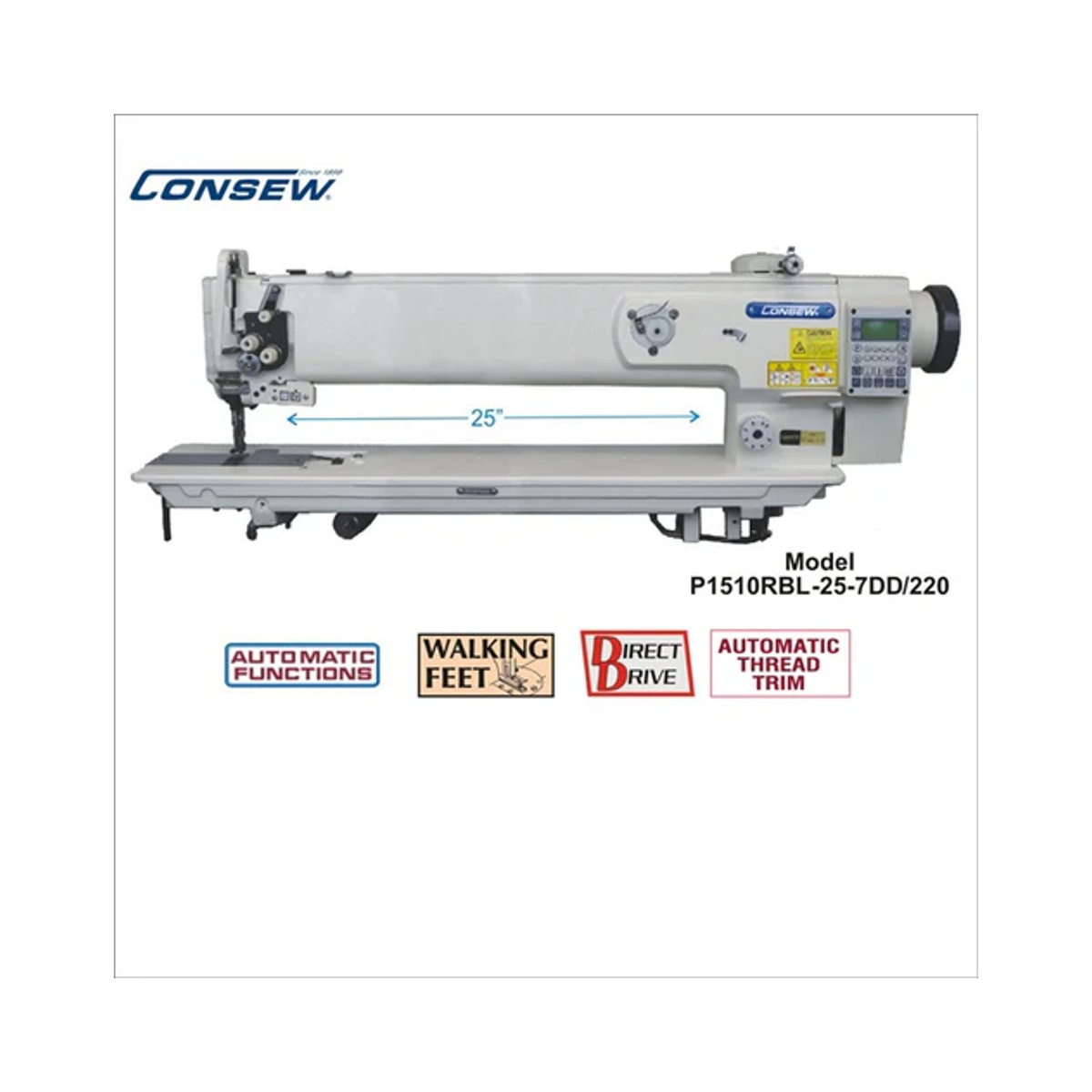

View store informationConsew P1510RBL-25-7DD/220 — Single Needle, Long Arm, Walking Foot, Lockstitch Machine
High Speed • 25" Long Arm • Full Automatic (-7DD)
The Consew P1510RBL-25-7DD/220 is the 25" long-arm edition of Consew’s advanced high-speed, heavy-duty lockstitch series. Built with a Direct Drive servo motor and full automatic functions (-7DD) — including thread trimming, foot lift, and reverse stitching — this model is designed for maximum precision, control, and productivity. Ideal for large-scale sewing applications such as automotive, marine, leather, and upholstery work, the P1510RBL-25-7DD delivers exceptional power and stitch consistency on a wide range of materials.
Key Features
- 25″ Long Arm: Extended 635 mm workspace for oversized panels, upholstery, and industrial materials.
- Direct Drive Servo Motor (220V): Integrated high-efficiency motor with smooth, quiet operation and precise control.

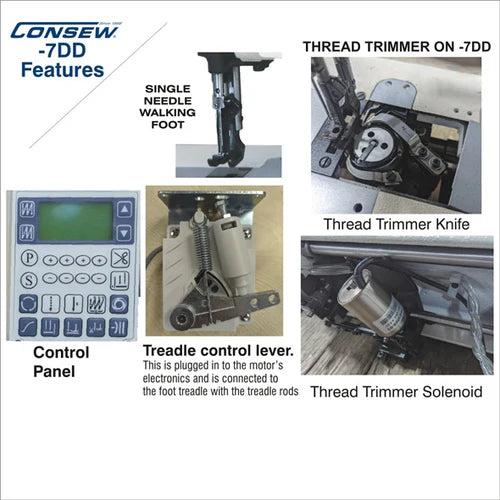

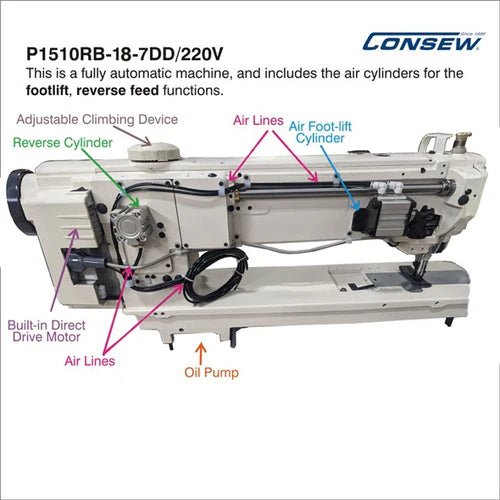

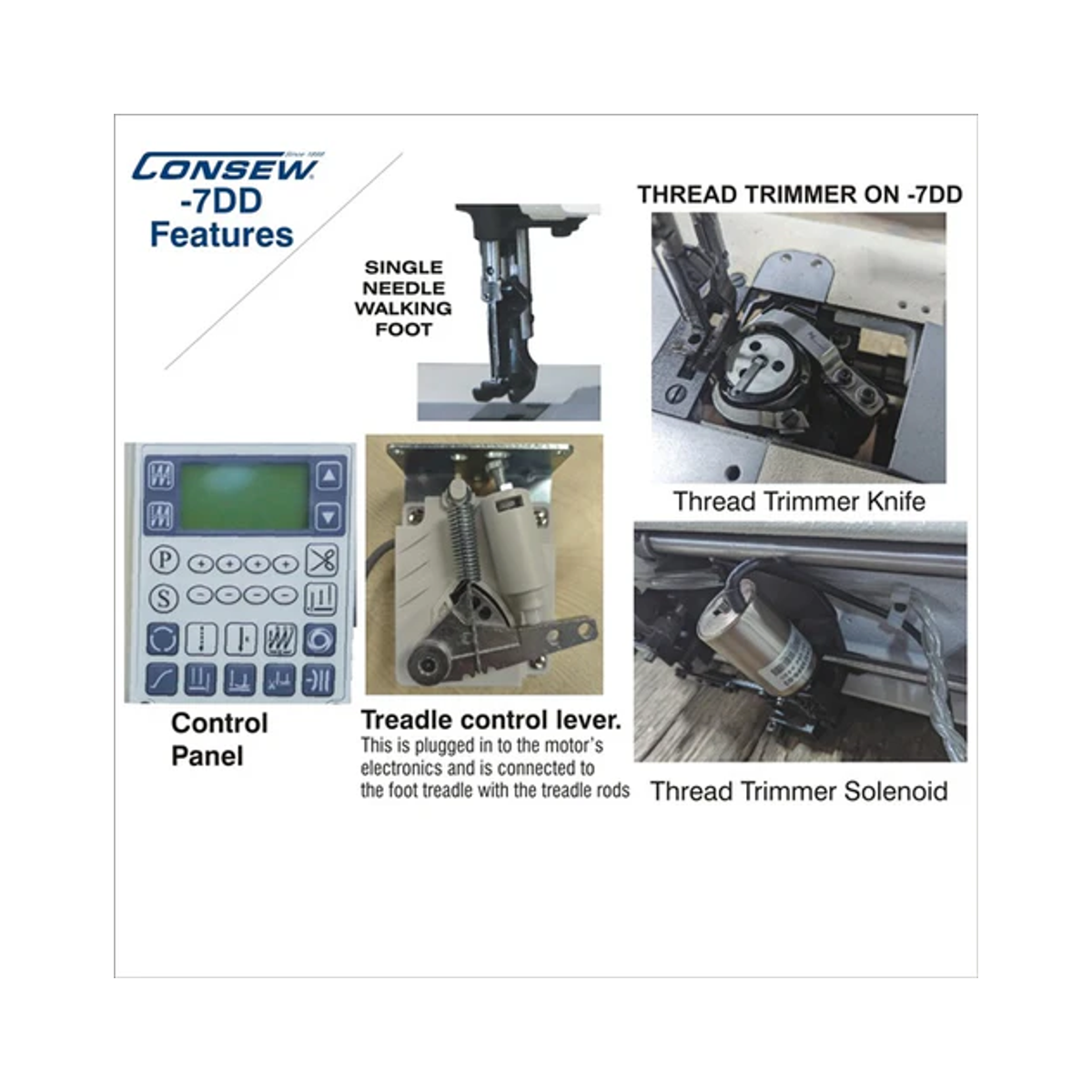

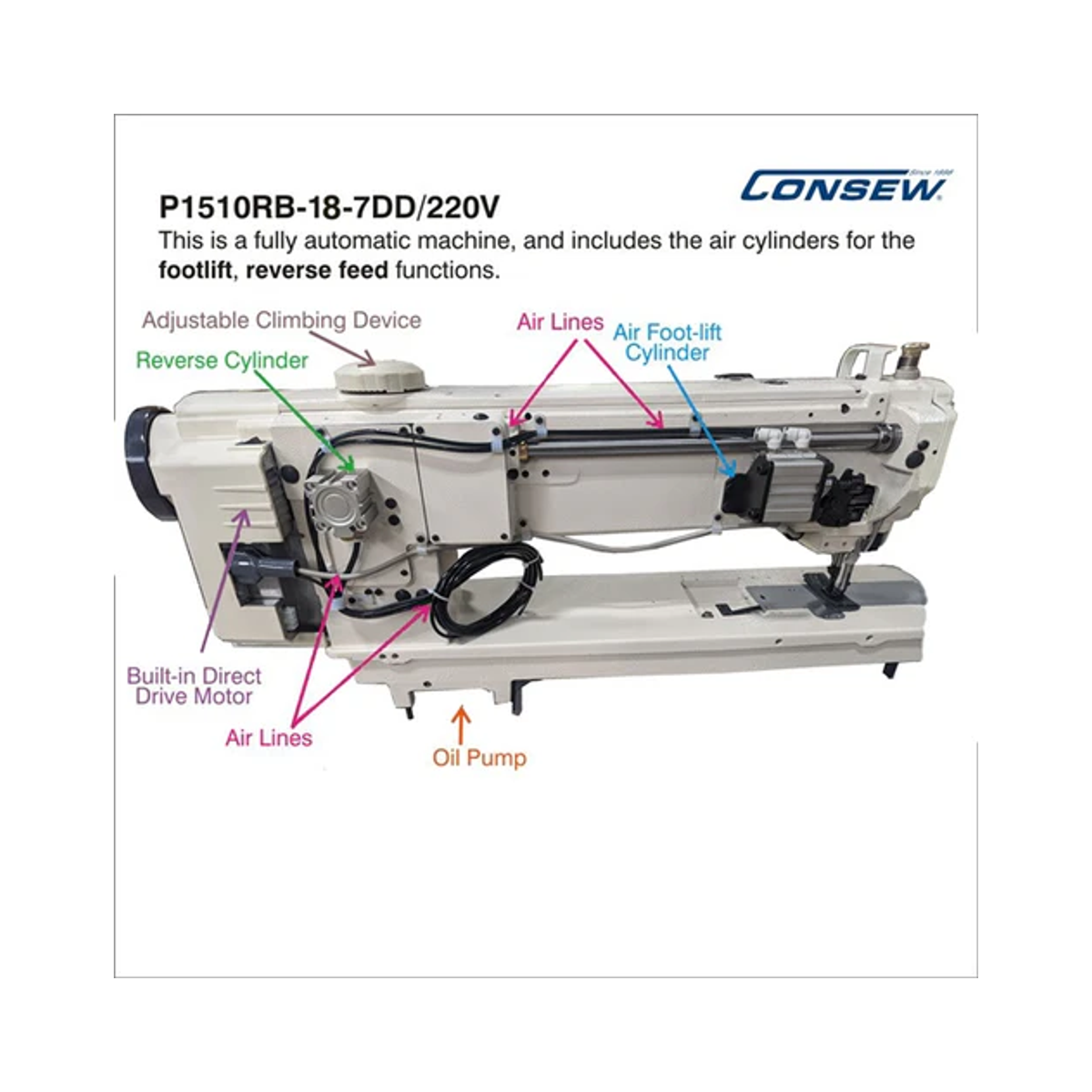

- Full Automatic (-7DD): Includes automatic thread trimming, reverse stitching, and presser foot lift for streamlined workflows.
- Walking Foot Compound Feed: Ensures synchronized feeding of needle, feed dog, and presser foot — perfect for heavy or multi-layered fabrics.
- Roll-In Thread Control: Automatically tucks the upper thread under fabric at startup to prevent thread nests.
- Climbing Device: Assists smooth feeding across thick seams and layered sections.
- Large Top-Load Bobbin & Built-in Winder: Quick and easy bobbin changes minimize downtime.
- Semi-Automatic Lubrication: Ensures consistent lubrication for extended machine life and reliable operation.
Applications
- Automotive, marine, and furniture upholstery
- Leatherwork, handbags, and travelware
- Canvas, vinyl, synthetics, and coated materials
- Tarpaulins, awnings, tents, and covers
- Footwear, outerwear, and orthopedic applications
Technical Specifications
| Model: | P1510RBL-25-7DD/220 |
| Needles: | 1 (Single) |
| Feeding Mechanism: | Walking Foot (Compound Feed) |
| Workspace (Throat): | 25" (635 mm) |
| Stitch Length (Max): | 9 mm (adjustable by dial) |
| Speed (Max): | 2,000–2,500 stitches per minute* |
| Presser Foot Lift: | Hand: 9 mm • Knee: 16 mm |
| Clearance Under Foot: | 9/16" (14 mm) |
| Needle System: | 135 × 17 (DPx17) |
| Bobbin Type: | U or S |
| Lubrication: | Semi-Automatic |
| Motor Type: | Direct Drive Internal Servo |
| Power: | 220 VAC |
Advantages
- Longest 25″ arm for handling large and bulky materials.
- Automatic trimming and foot lift for maximum productivity (-7DD).
- Powerful and quiet direct-drive system ensures consistent performance.
- Ideal for high-volume upholstery and leather applications.
- Energy-efficient and low-maintenance design built for industrial endurance.
The Consew P1510RBL-25-7DD/220 redefines industrial sewing capacity with its extended arm, automated features, and direct-drive precision — a top-tier solution for upholstery, leatherwork, and heavy textile manufacturing.
*Speed depends on thread, material, and operation.
