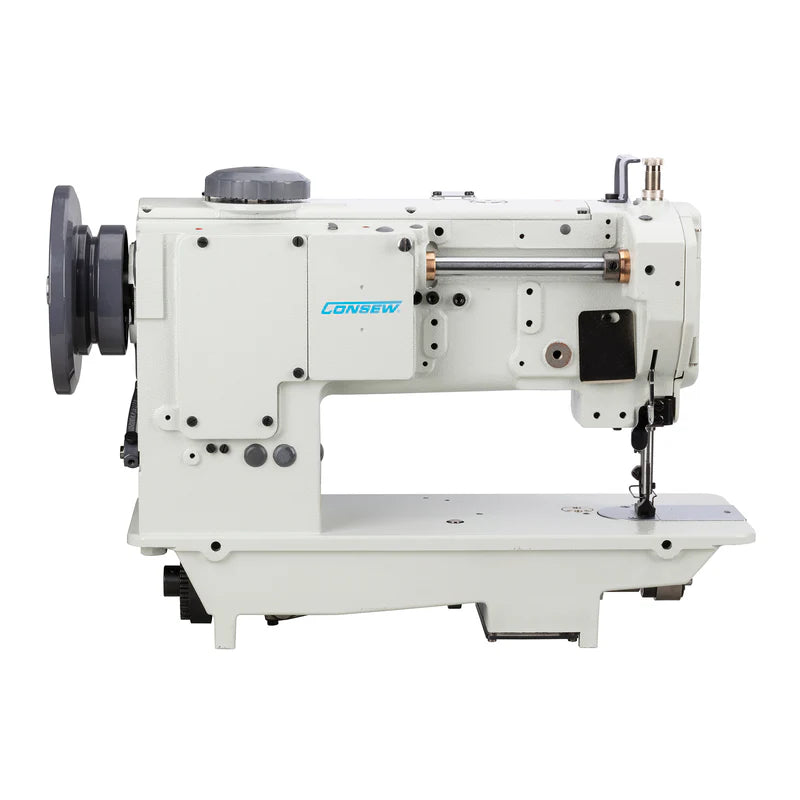

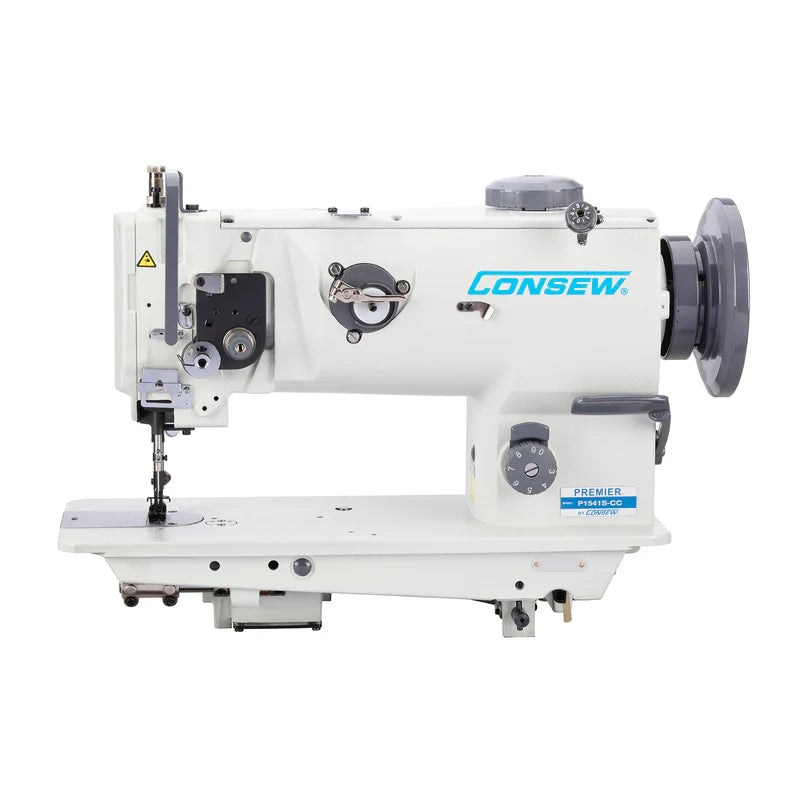

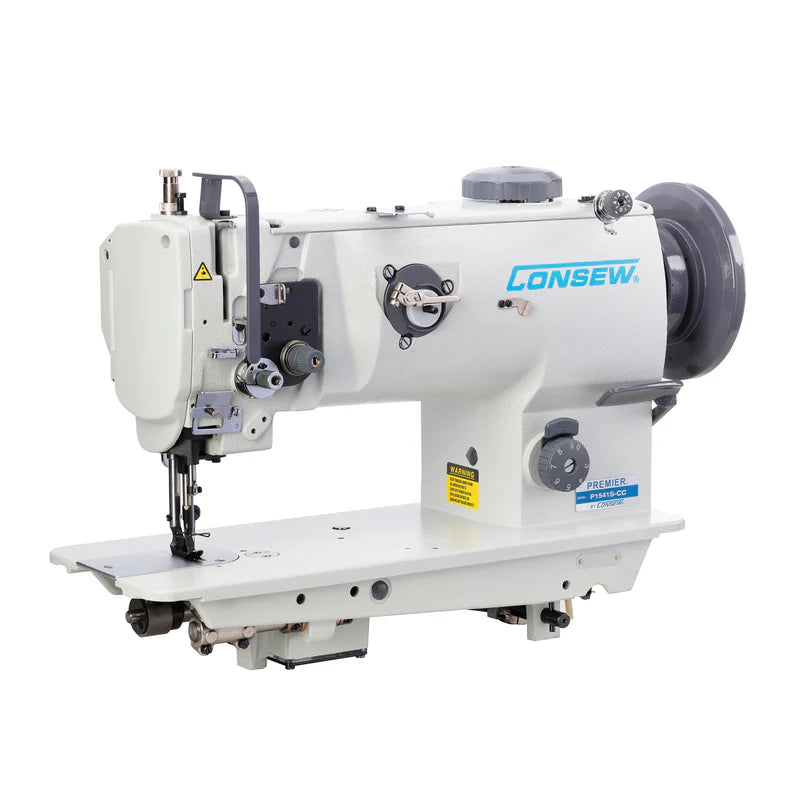

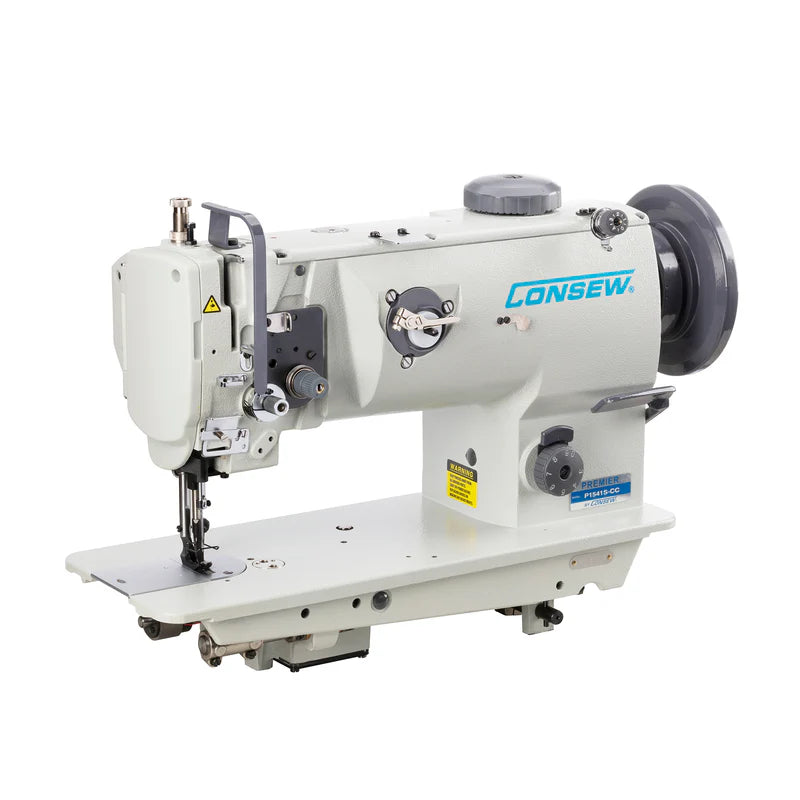

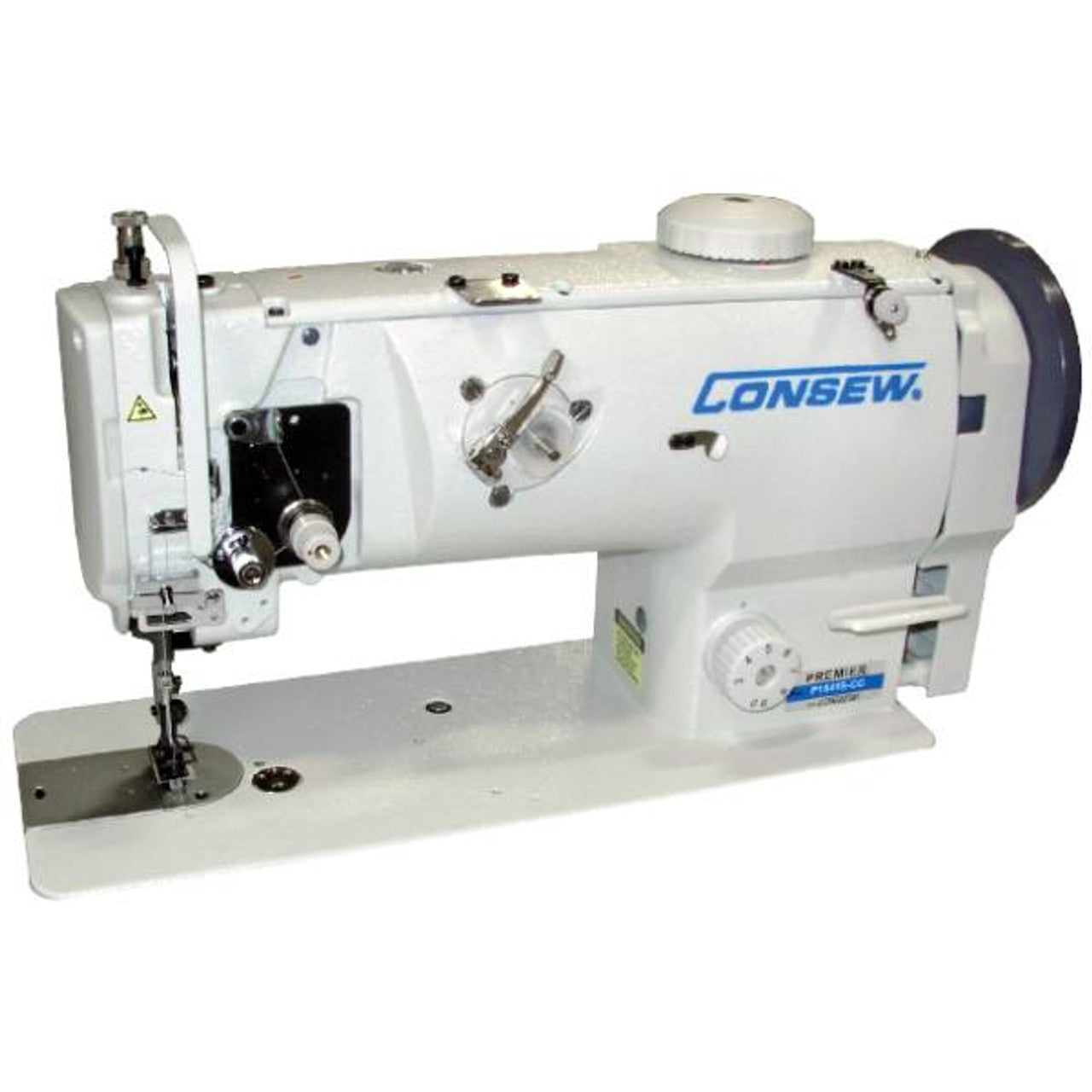

View store informationCONSEW P1541S-CC — Heavy-Duty Walking Foot Lockstitch Industrial Sewing Machine
Drop Feed • Needle Feed • Walking Foot • Automatic Lubrication System
Overview
The CONSEW P1541S-CC is part of Consew’s Premier Series — a professional-grade, heavy-duty industrial sewing machine designed for consistent power, precision, and control. Built for upholstery, leatherwork, canvas, and other thick materials, it features a walking foot, drop feed, and needle feed system that ensures smooth fabric movement and uniform stitches, even through multiple layers.
This model includes an automatic lubrication system, large horizontal hook, and safety clutch to protect the hook assembly. Its barrel-type slip bearing and needle frame stabilizer provide superior stitch accuracy, while the quick-release knee pedal and easy dial regulator allow rapid adjustments during operation.
Key Features

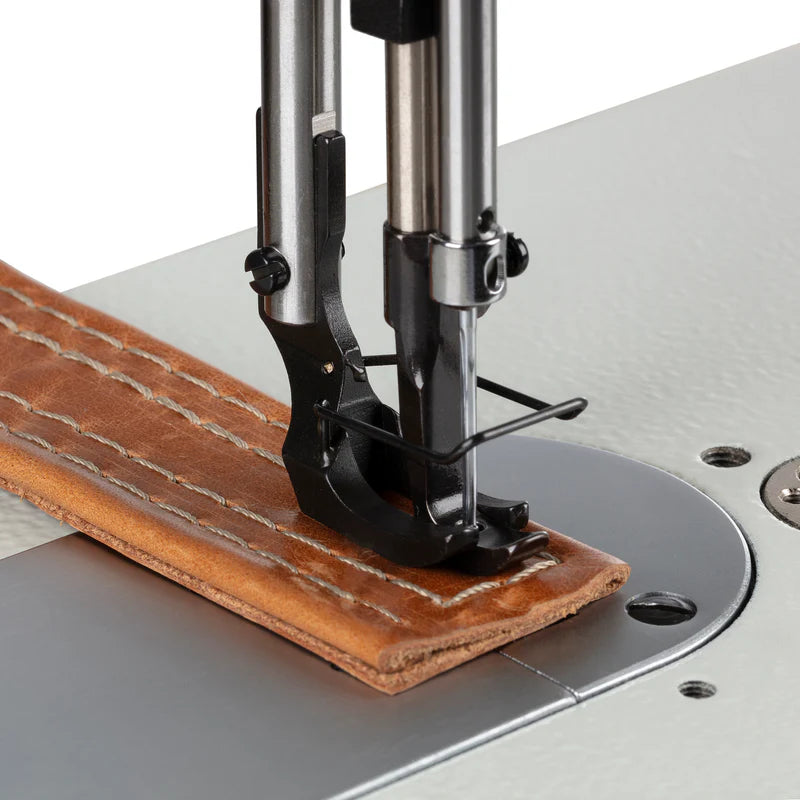

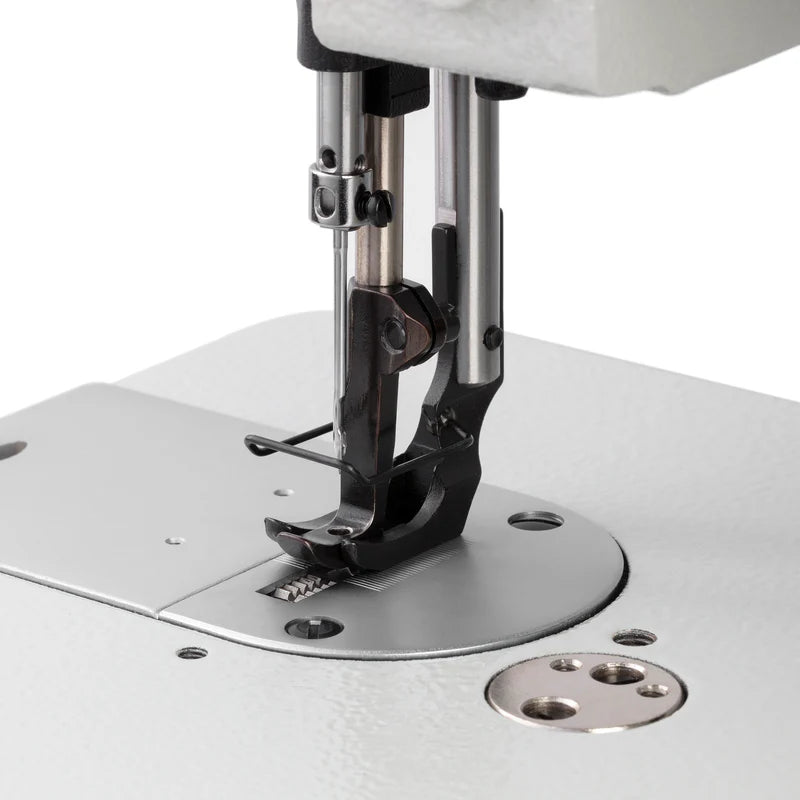

- Drop Feed, Needle Feed & Walking Foot system for superior material handling.

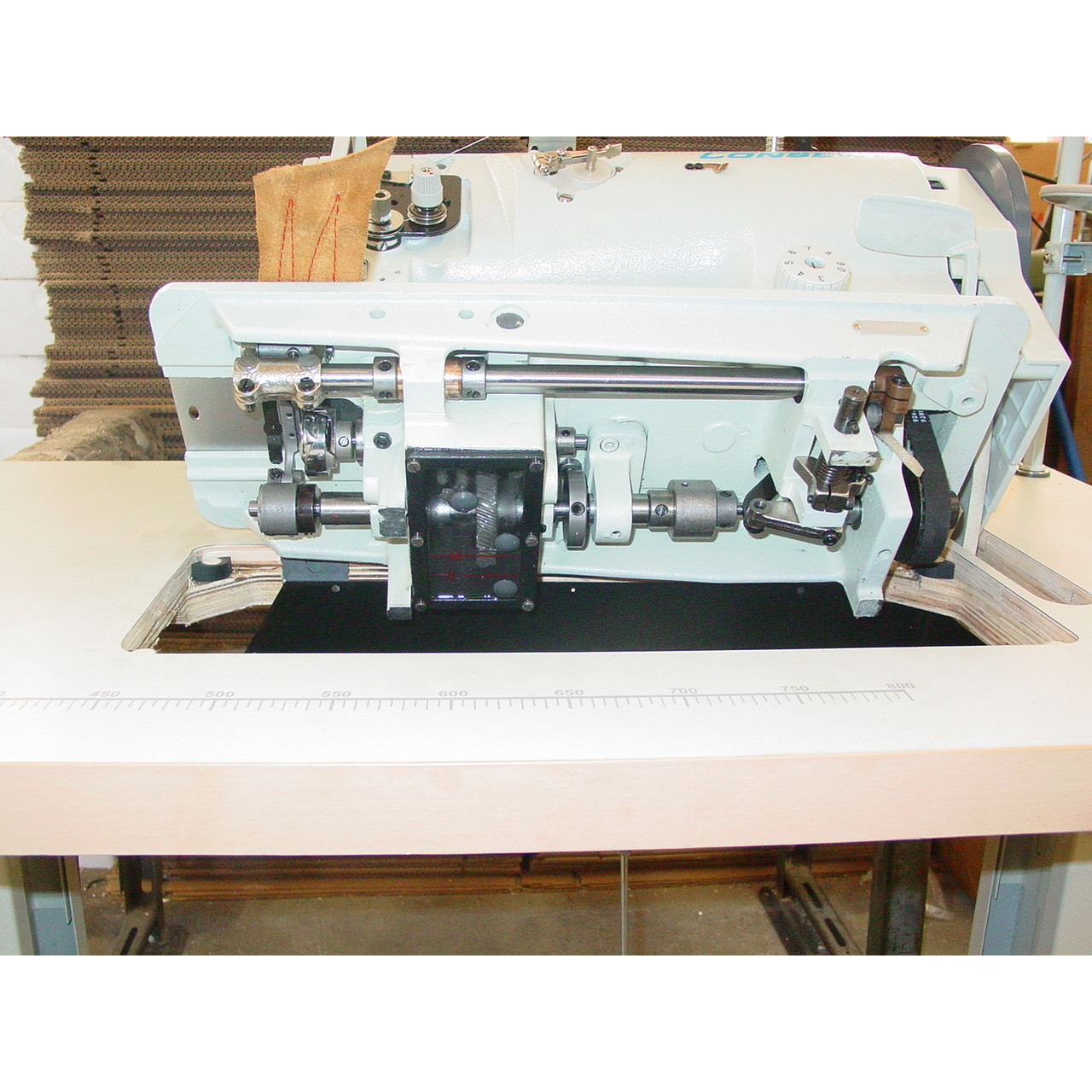

- Automatic Lubrication System for long-lasting performance and low maintenance.
- Large Horizontal Automatically Oiled Hook with increased bobbin capacity.

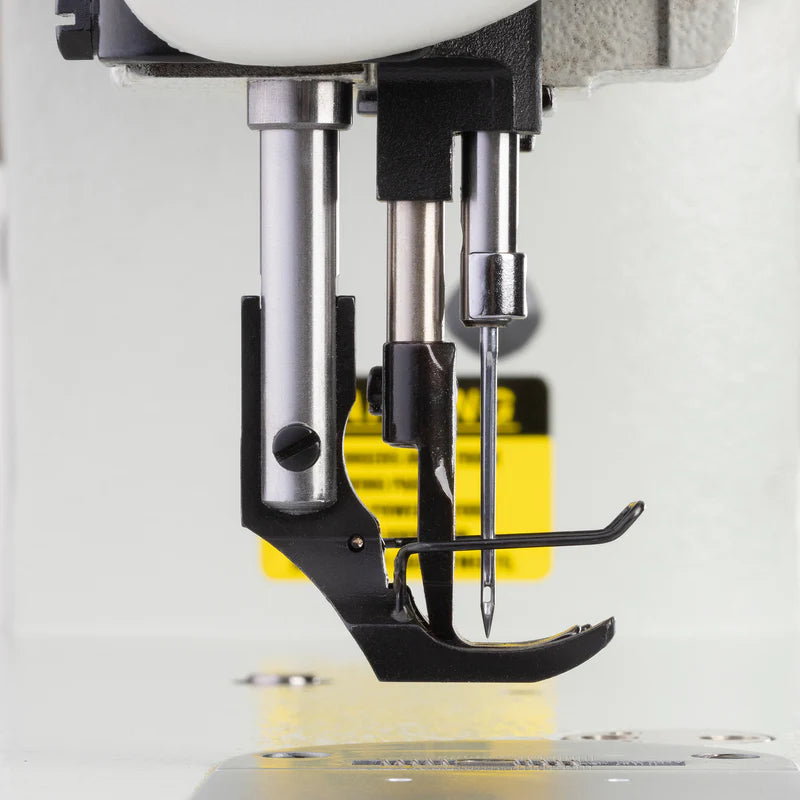

- Needle Frame Stabilizer for enhanced stitch precision and reduced deflection.
- Safety Clutch with quick reset to prevent hook damage.
- High Needle Bar Stroke for powerful needle penetration through thick fabrics.
- High Presser Foot Lift: up to 16mm by knee lever for easy handling of bulky materials.

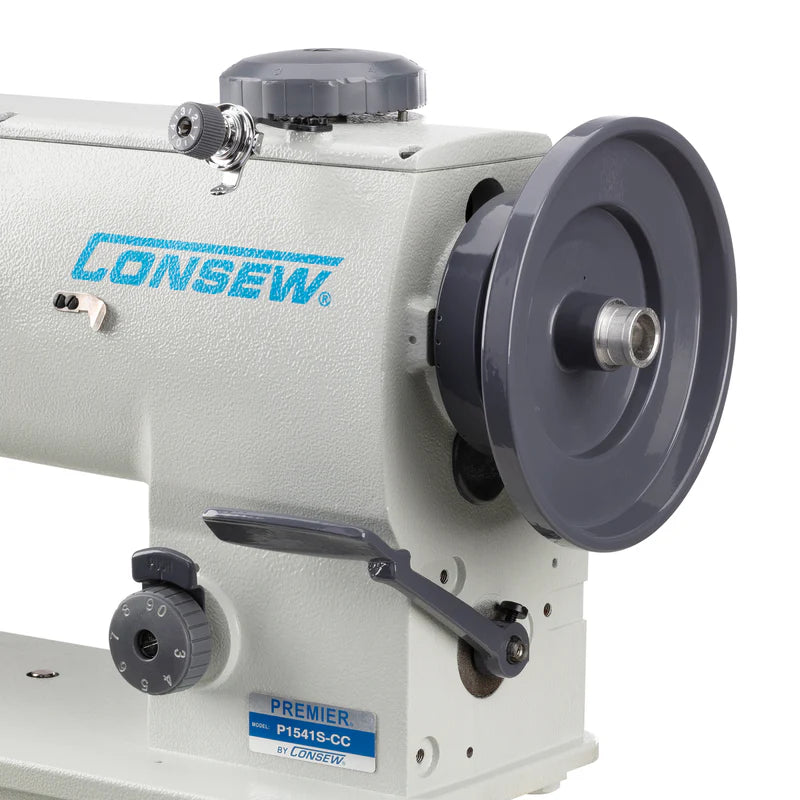

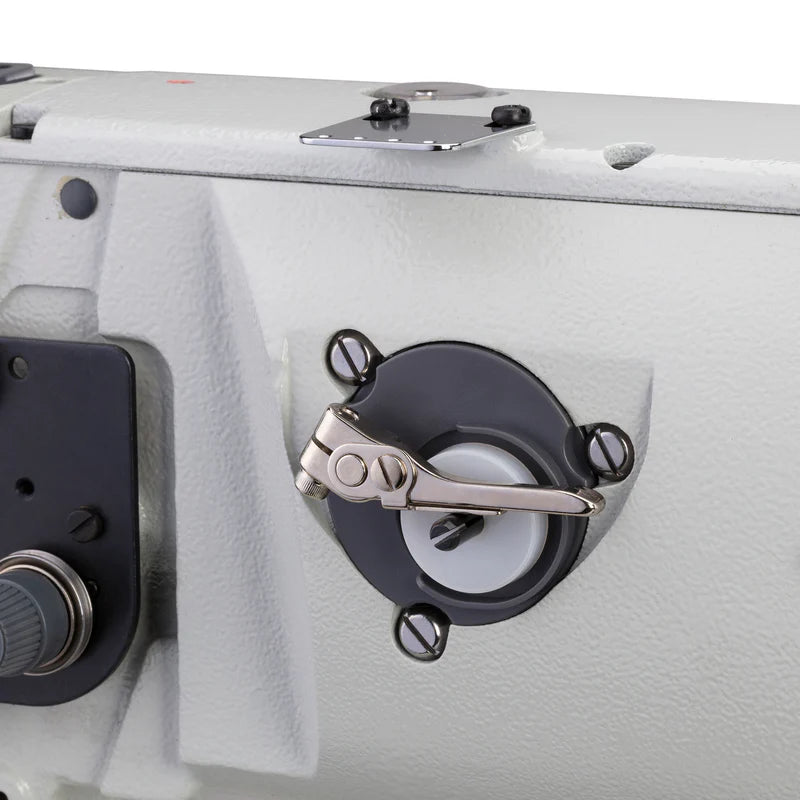

- Easy dial-adjustable stitch regulator for precise stitch length control.
- Built-in Bobbin Winder and Synchronizer Hub for smooth workflow integration.
- Hinged Face Plate for easy threading, cleaning, and maintenance.
- Improved Feeding Motion for all material thicknesses — no puckering or gathering.
- Adjustable Take-Up Guide and Climbing Device for perfect thread loop timing.
- Large Side-Loaded Bobbin for quick changes without disassembly.
- Reverse Stitch Lever for reinforced seams and backstitching.
Machine Specifications
| Model: | CONSEW P1541S-CC |
| Stitch Type: | Lockstitch |
| Feed Mechanism: | Drop Feed, Needle Feed, Walking Foot (Unison Feed) |
| Lubrication: | Automatic oiling system |
| Maximum Sewing Speed: | 2,800 stitches per minute |
| Presser Foot Lift: | 9mm (by hand) / 16mm (by knee) |
| Needle Bar Stroke: | 36mm (1-27/64") |
| Maximum Stitch Length: | 9mm (2.8 s.p.i.) |
| Work Space: | 10-1/4" x 3-15/16" (260 x 100mm) |
| Needle System: | 135 x 17 |
| Bobbin Type: | Pre-wound “M” type, side-loaded |
Advantages
- Heavy-Duty Durability: Built to handle leather, canvas, upholstery, and multilayer materials.
- Precision Feeding: Triple-feed system ensures even stitching and eliminates fabric shifting.
- Operator Comfort: Ergonomic quick-release knee lifter and smooth-running mechanism.
- Safety & Reliability: Equipped with safety clutch and automatic lubrication to extend machine life.
- Professional-Grade Control: Ideal for furniture upholstery, automotive interiors, bags, and industrial applications.
The CONSEW P1541S-CC is a powerhouse industrial sewing machine designed for professionals demanding strength, precision, and reliability. Its advanced feeding system, automatic lubrication, and ergonomic controls make it the perfect choice for high-quality production across heavy-duty materials.
