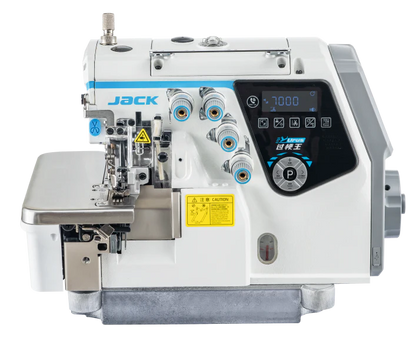

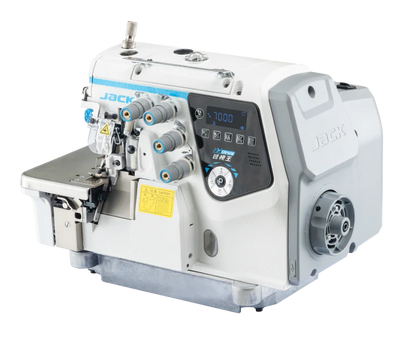

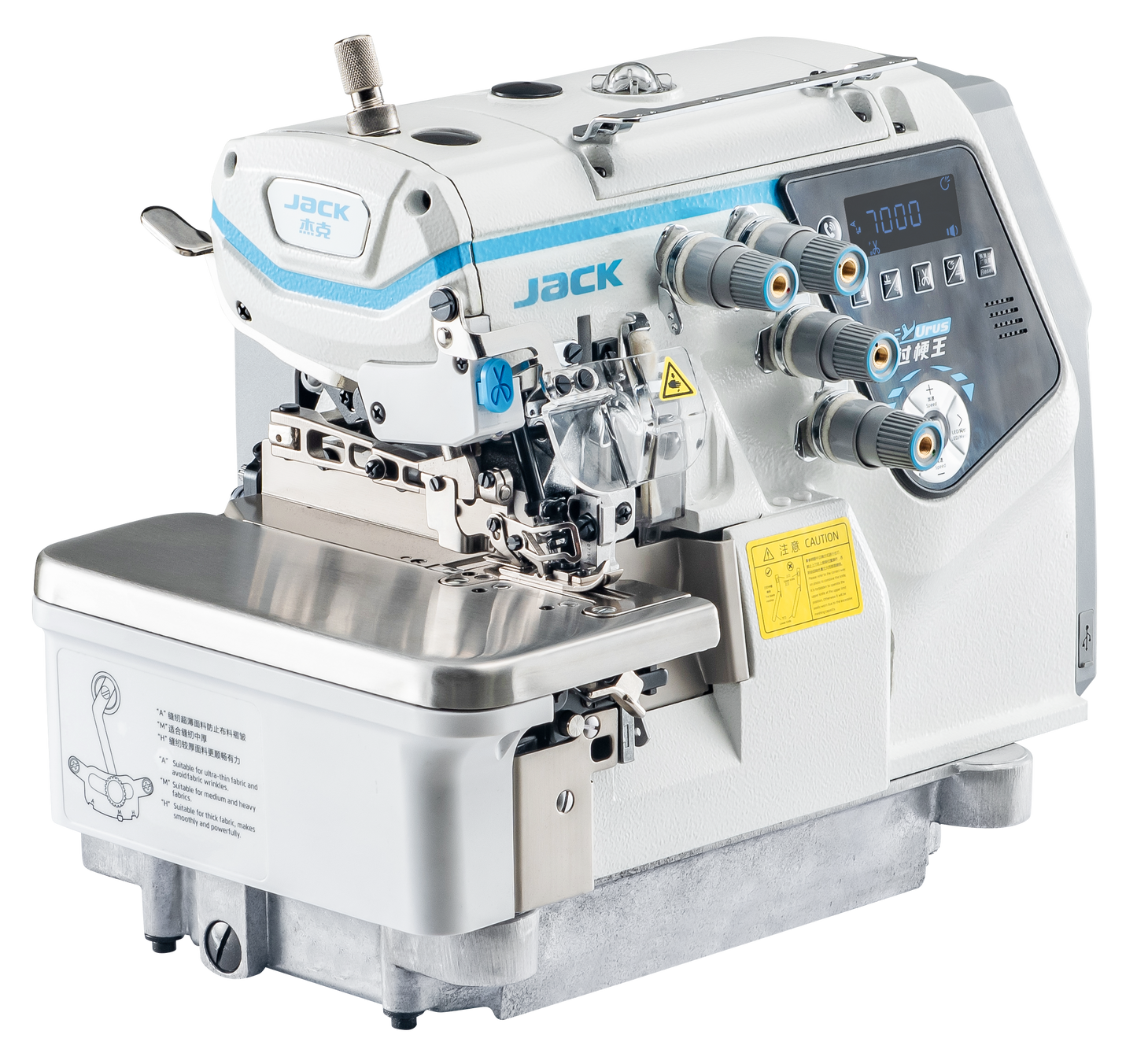

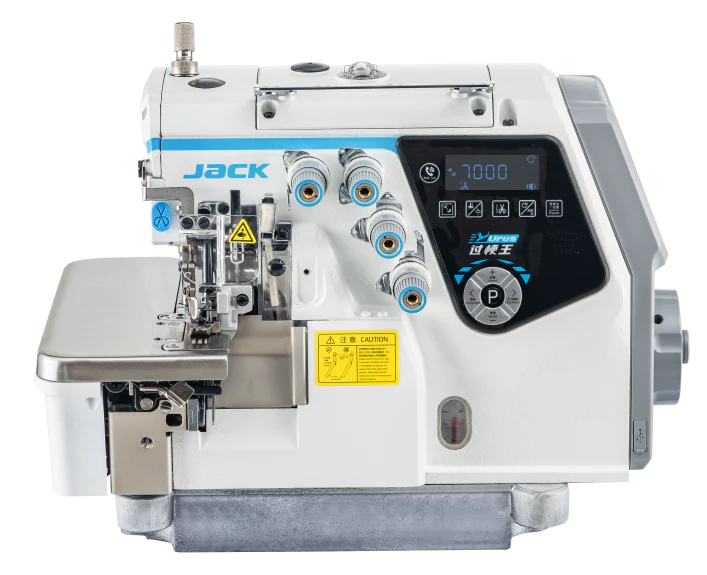

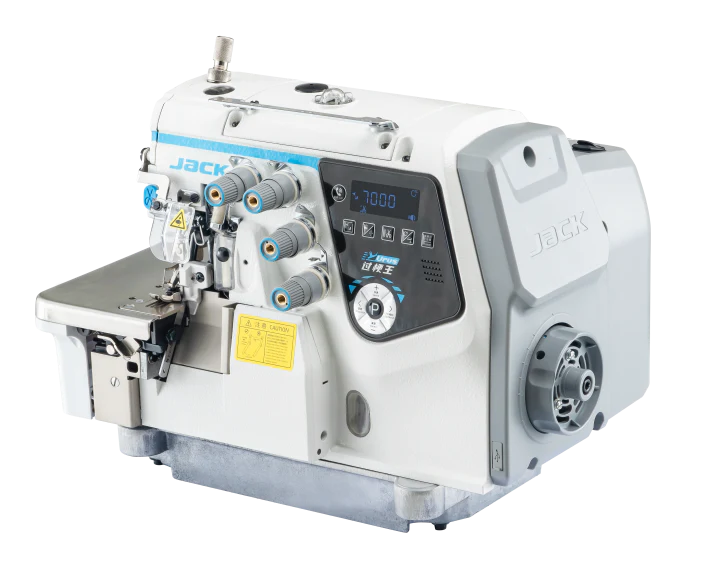

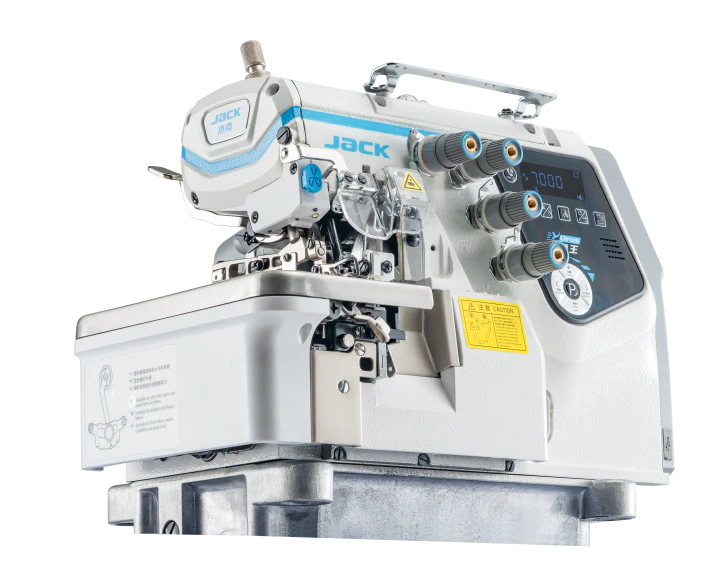

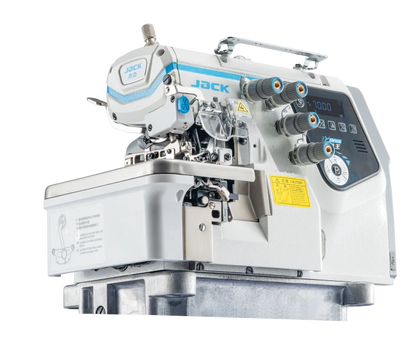

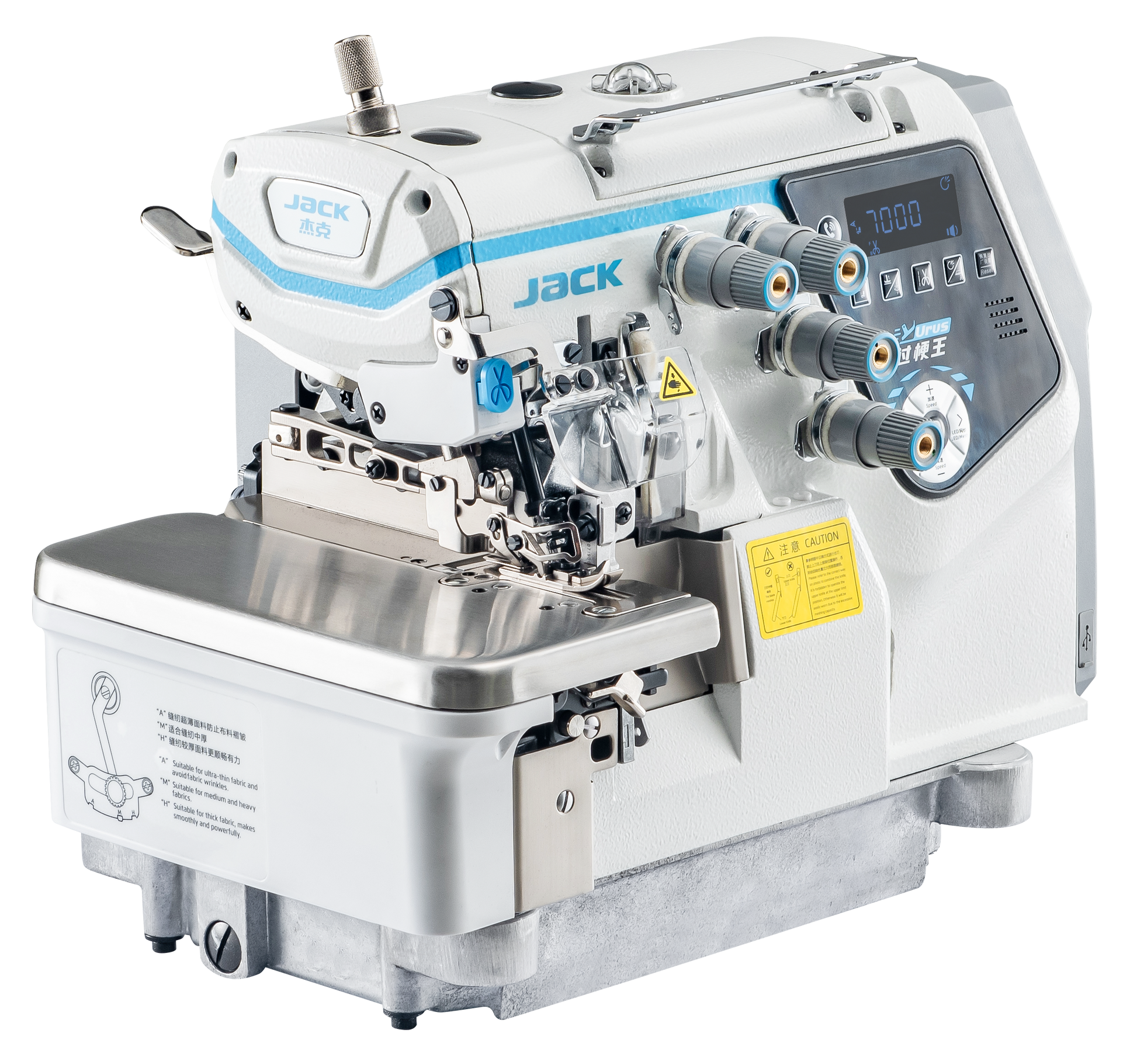

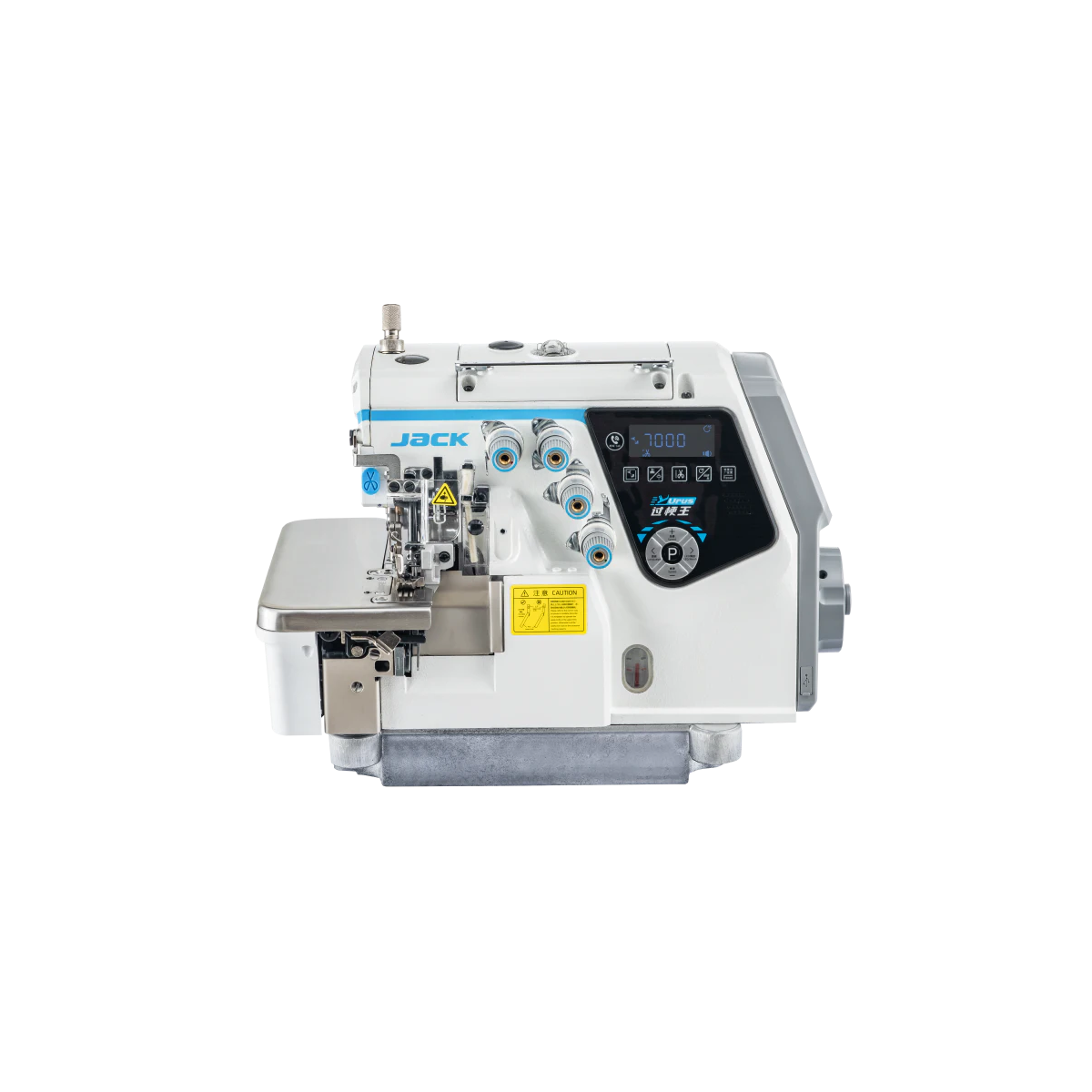

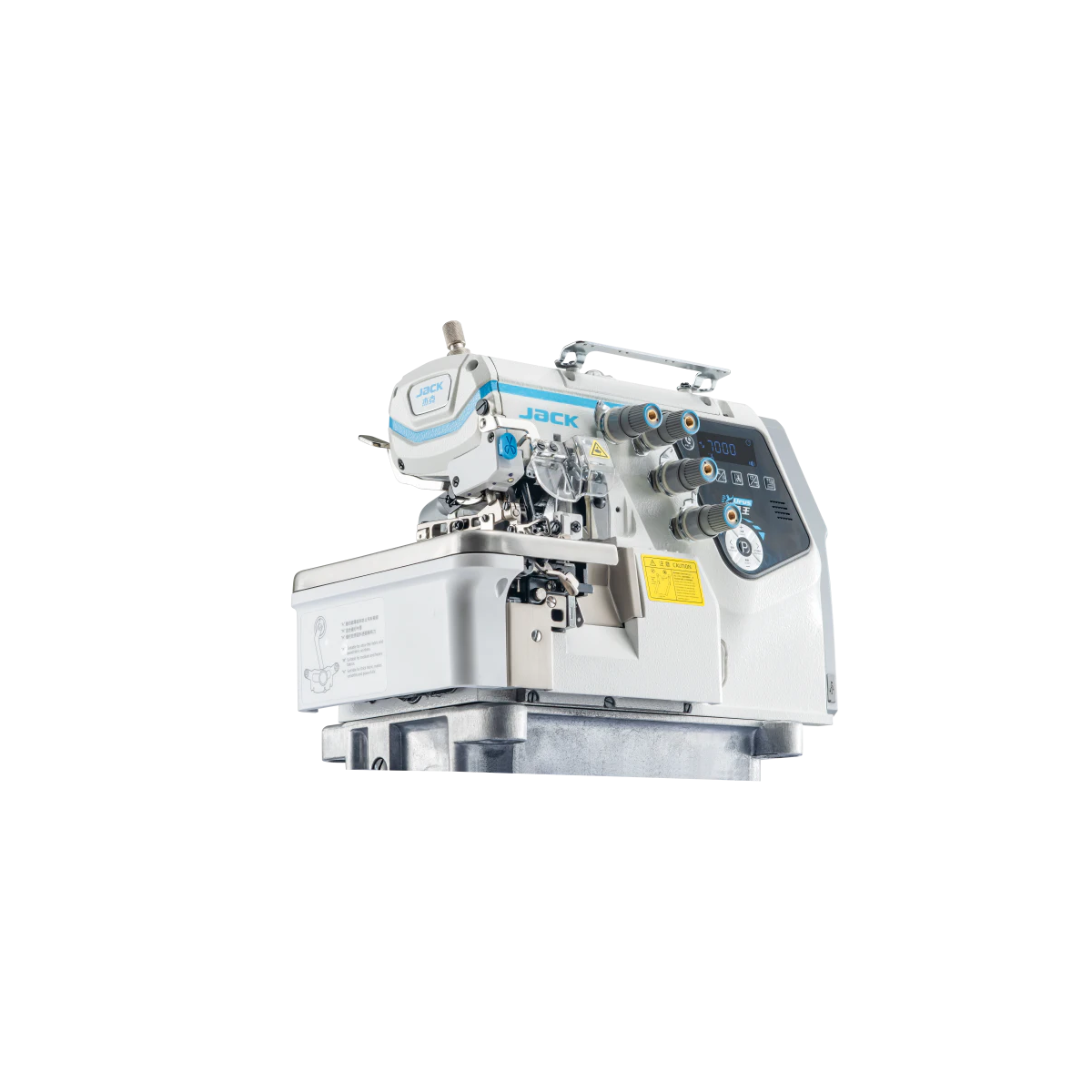

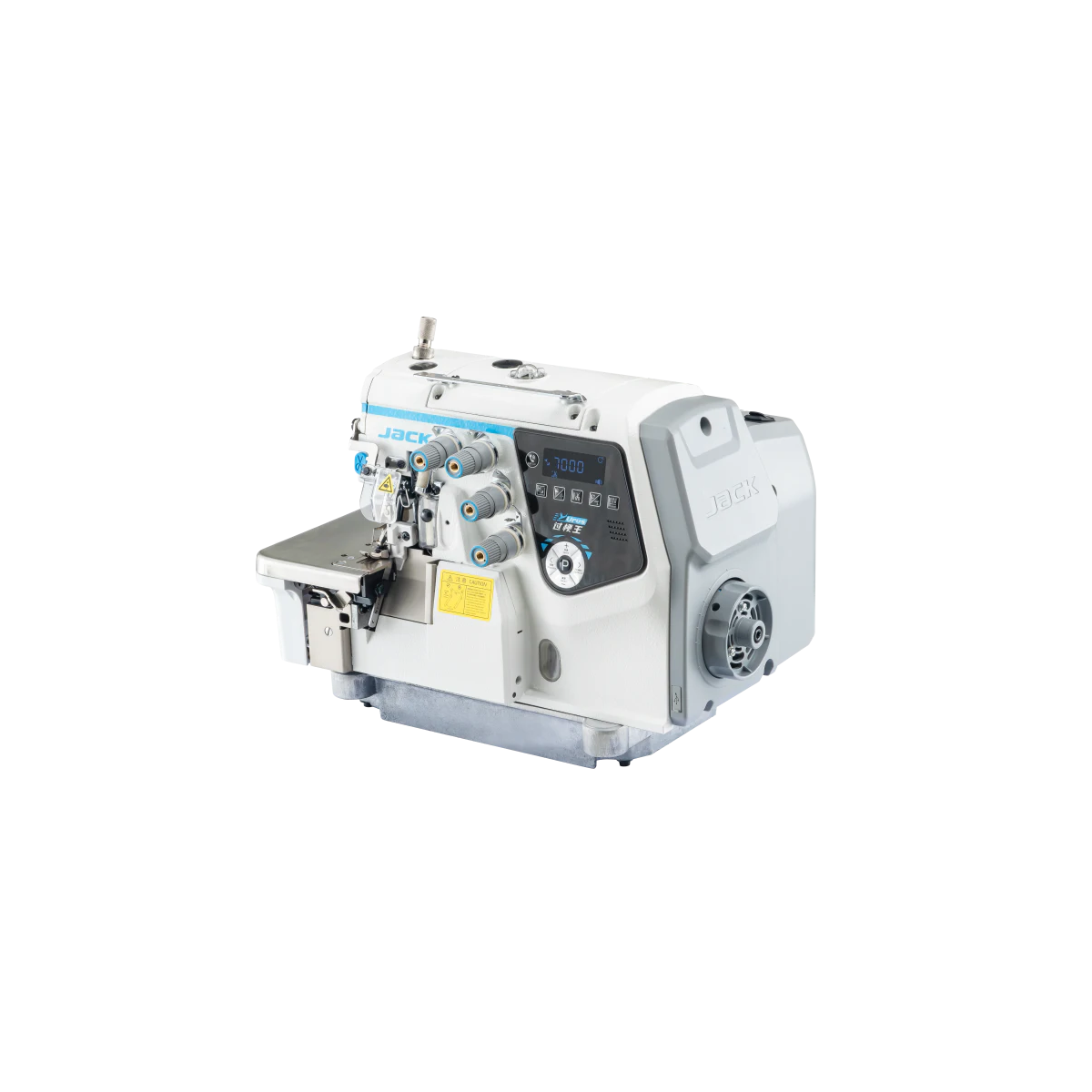

View store informationJack C7-5-M04/435 — 5-Thread Overlock Machine with AI-Powered Smart Material Adjustment (Assembled)
Artificial Intelligence • Precision • Productivity — The future of industrial overlock sewing.
Overview
The Jack C7-5-M04/435 is the first AI-powered 5-thread overlock machine engineered for speed, accuracy, and intelligent fabric adaptation. Equipped with adaptive material recognition and three user-selectable modes—manual, semi-automatic, and fully automatic—this model brings automation and precision to every stitch, ensuring flawless results on light, medium, and heavy materials alike.
Modes of Operation
- Manual Mode: Traditional pedal-controlled operation for full manual control.
- Semi-Automatic Mode: Uses photocell sensors for automatic thread trimming and presser foot lift, while the operator controls sewing with the pedal.
- Automatic Mode: Fully hands-free mode using photocells for fabric detection and autonomous sewing.
Key Features

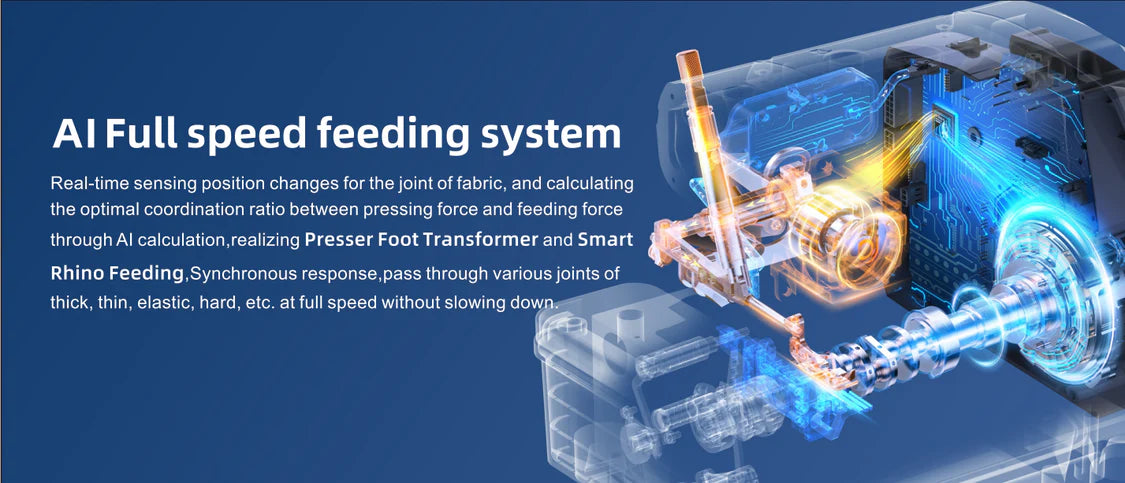

- Full-Speed Feeding System: Real-time sensing of fabric position optimizes pressing and feeding force, maintaining consistent performance across thick, thin, or elastic materials.
- Intelligent Presser Foot Transformer: Adjusts presser pressure dynamically, detecting fabric changes 32,000 times per second and reacting in just 0.00006 microseconds.
- Smart Rhino Feeding: Delivers high-torque precision feeding (9.2 Nm) with micro-level accuracy at each rotation angle, ensuring smooth fabric flow and perfect stitch formation.
- Adaptive AI Recognition: Automatically adjusts tension, feeding, and pressure based on fabric type for superior stitch consistency and reduced operator intervention.
- Performance Boost: Increases overall work efficiency by more than 10% compared to conventional overlockers.
Machine Specifications
| Model: | C7-5-M04/435 |
| Functions: | Plain Seam, Safety Stitch |
| Needle System: | DCx27 Size #14 |
| Number of Needles: | 2 |
| Number of Threads: | 5 |
| Needle Spacing: | 5 mm |
| Stitch Width: | 5 mm x 6 mm |
| Stitch Length: | 0.8 mm – 5 mm |
| Differential Ratio: | 0.8 mm – 1.5 mm |
| Presser Foot Lift: | 10 mm |
| Maximum Speed: | 6,000 stitches per minute (SPM) |
Advantages
- AI-driven automation reduces manual adjustment and improves accuracy.
- Energy-efficient design with optimized motor control.
- Exceptional seam consistency across multiple material types.
- Increased productivity through intelligent feeding and trimming systems.
The Jack C7-5-M04/435 AI Overlock brings cutting-edge automation and adaptability to industrial sewing. With real-time fabric recognition, automatic pressure adjustments, and flexible operation modes, this machine redefines efficiency and precision in modern garment production.
