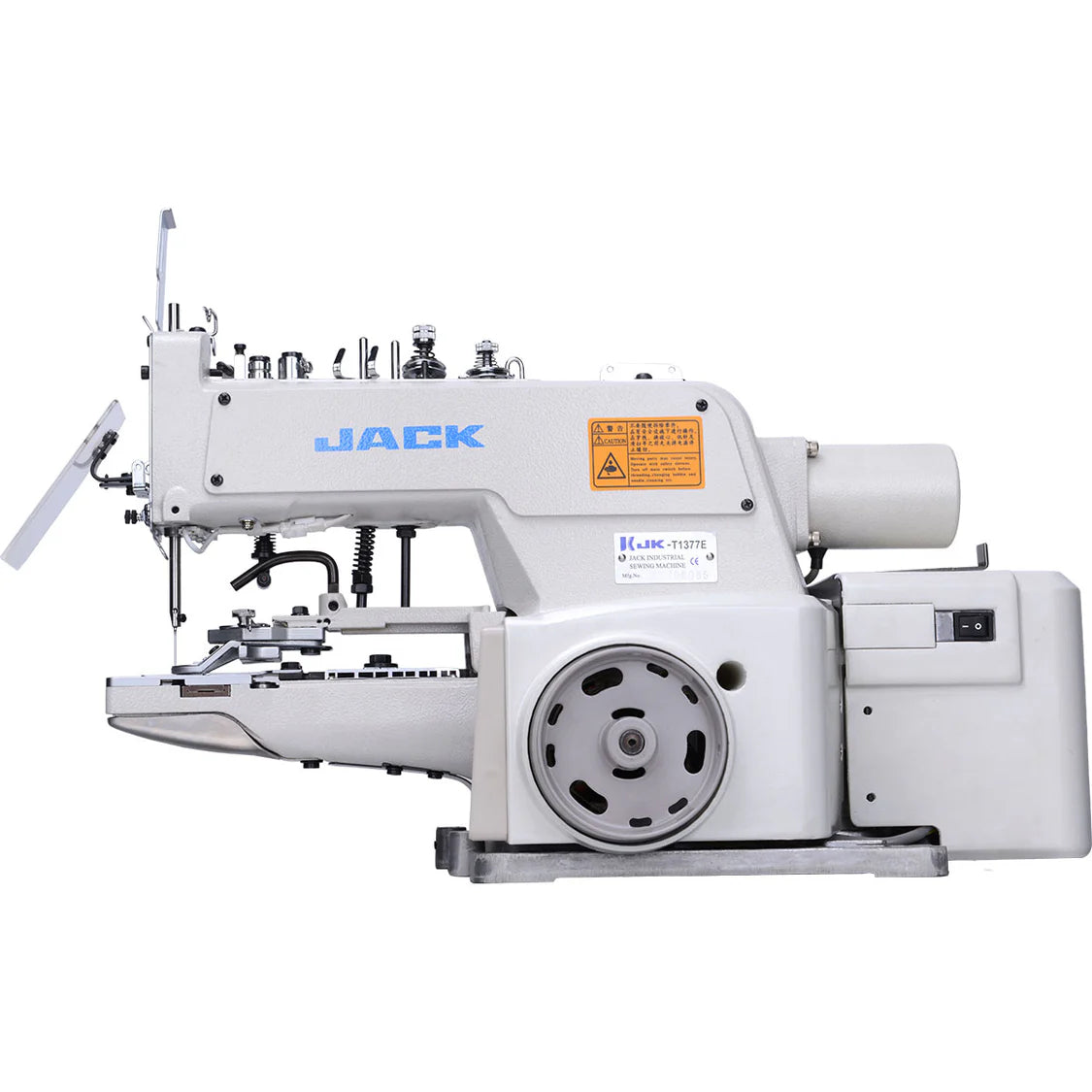

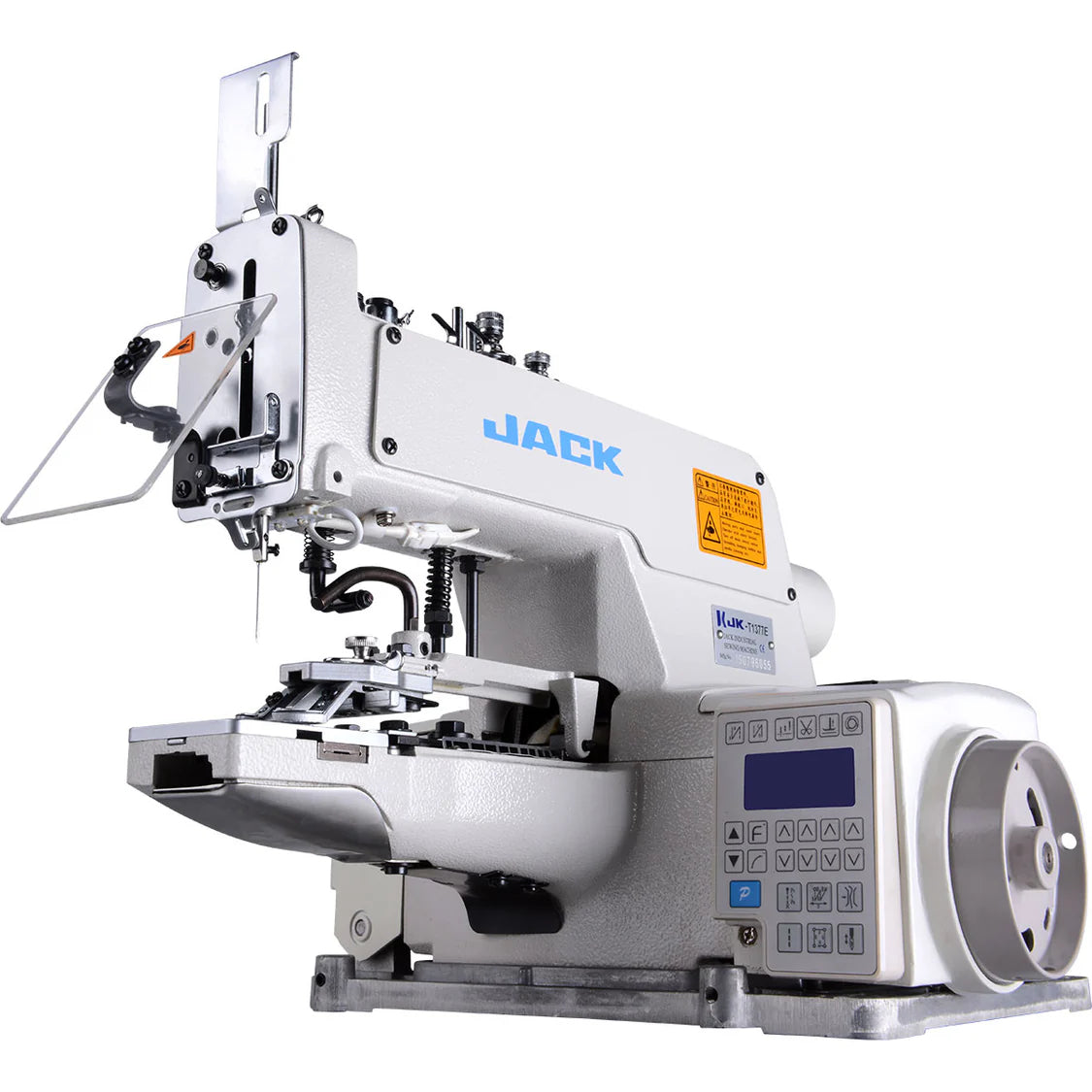

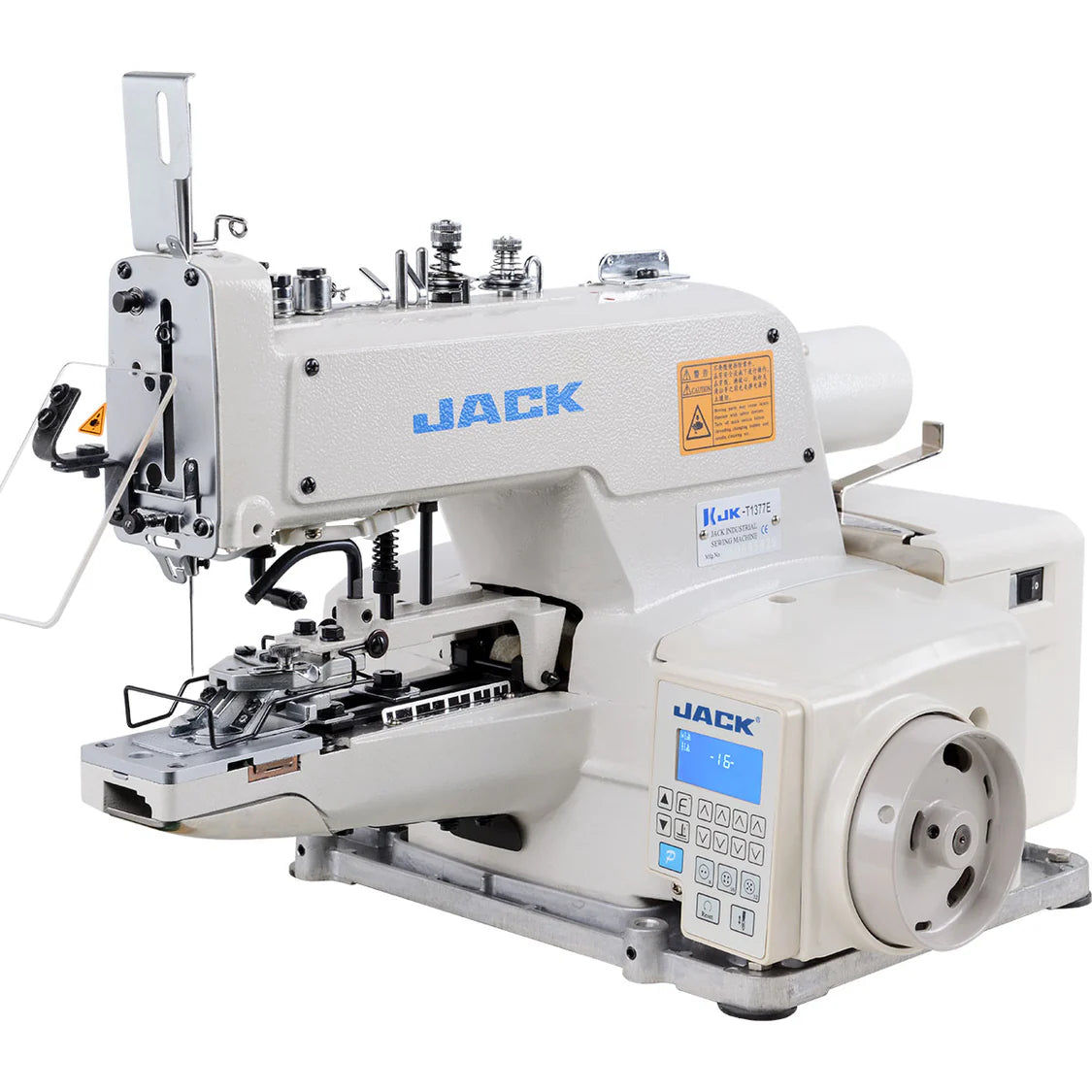

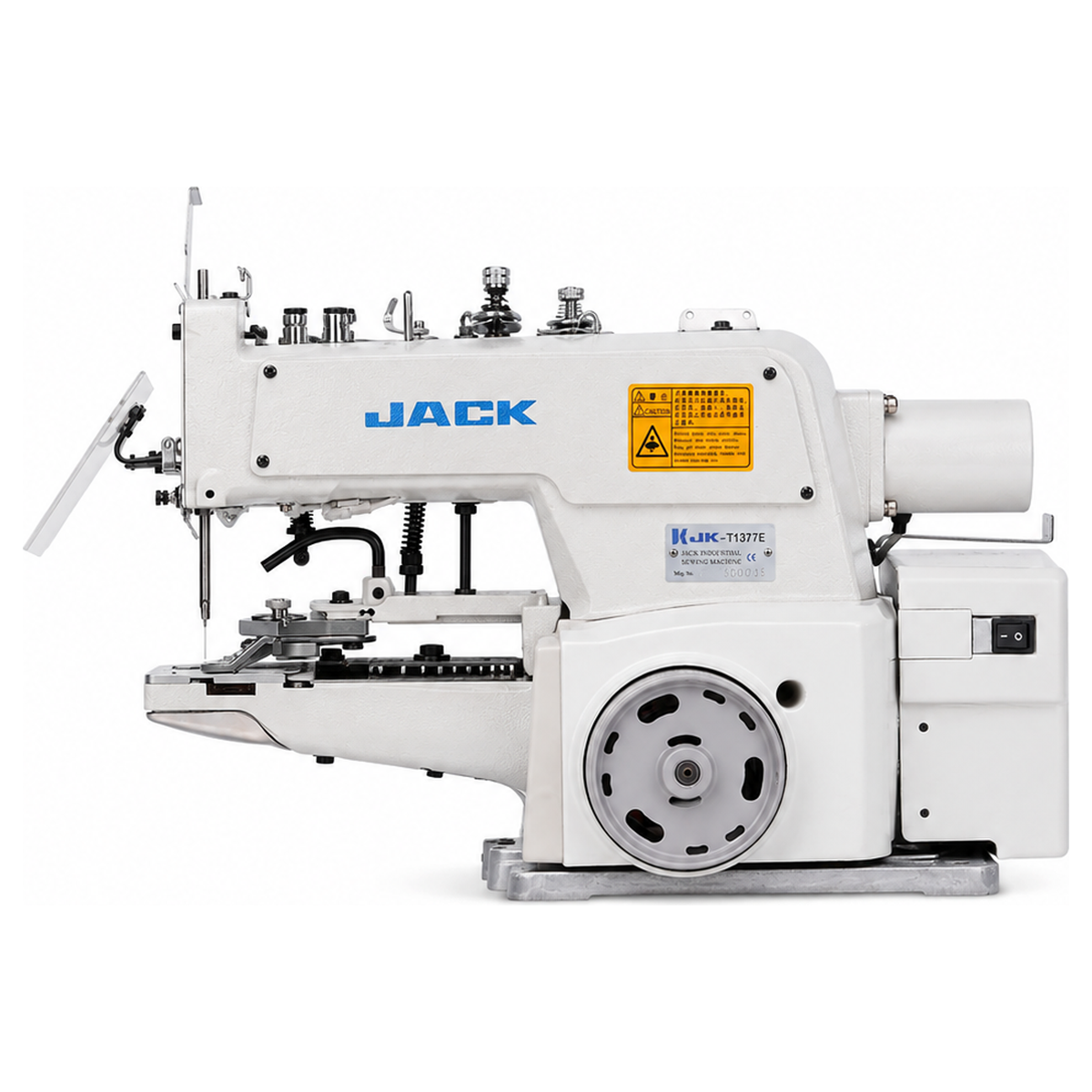

View store informationJACK T1377E-B — Single Thread Direct Drive Fully Automatic Chainstitch Button Sewing Machine (Assembled)
Precision • Efficiency • Smart Automation — Sew Cross (X) or Parallel (||) Buttons with Ease
Overview
The JACK T1377E-B is a fully automatic single-thread chainstitch button sewing machine equipped with a direct-drive eco motor for high efficiency and quiet operation. It performs both cross (X) and parallel (||) button stitching with precision, making it ideal for shirts, blouses, uniforms, and coats. With intelligent automation, magnetic controls, and a user-friendly LCD panel, this model is engineered for speed, consistency, and ease of operation in industrial environments.
Key Features

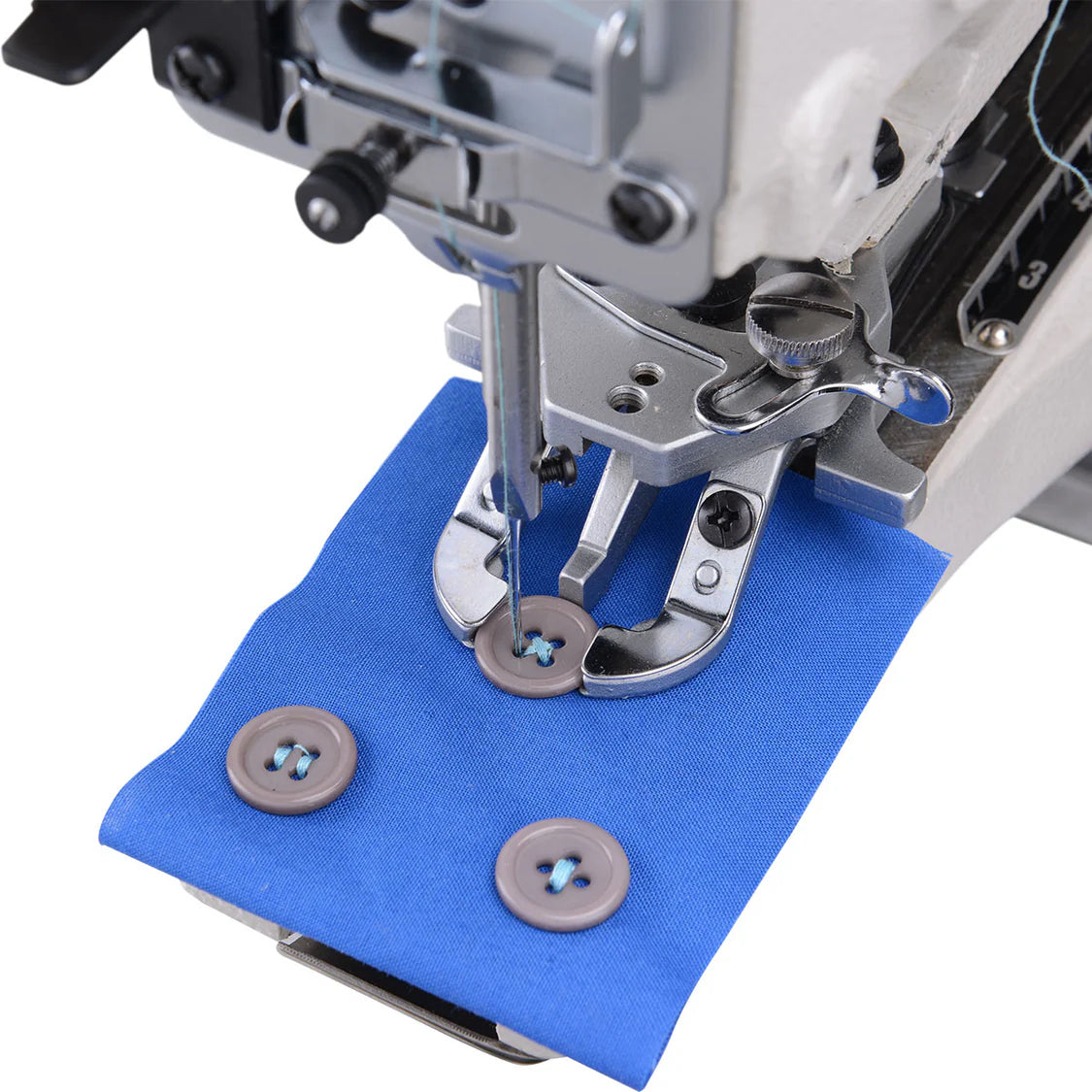

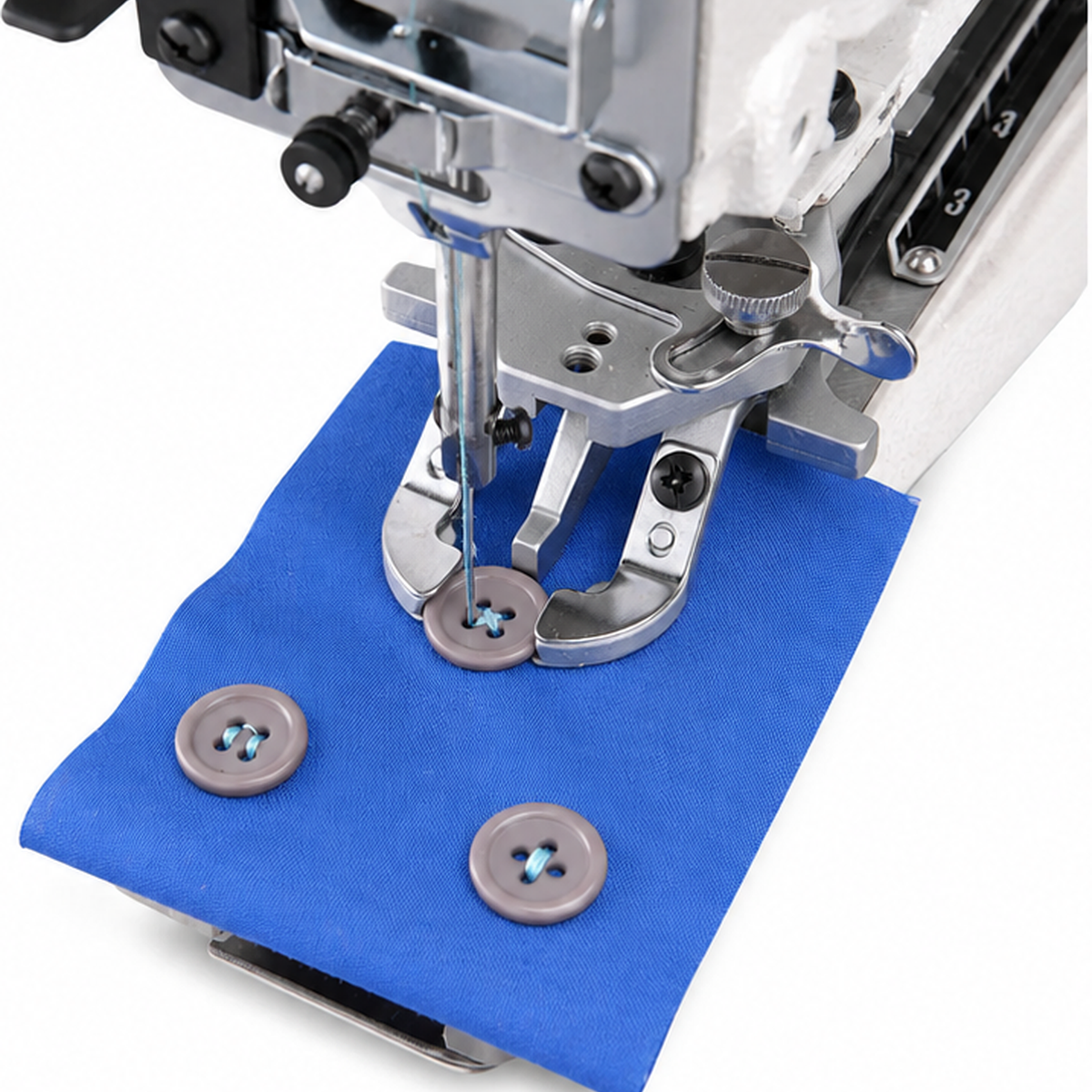

- Cross & Parallel Stitching: Easily switch between X and || button sewing patterns — or select the third preset mode — simply by turning the control knob.

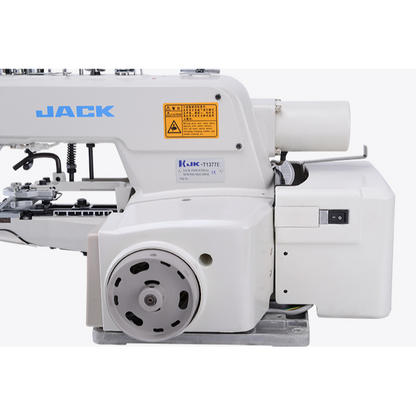

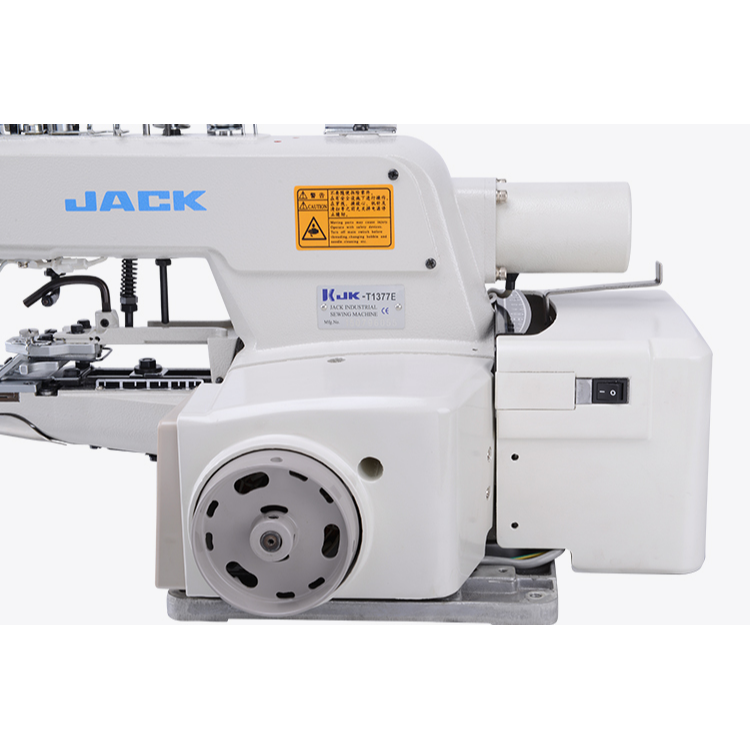

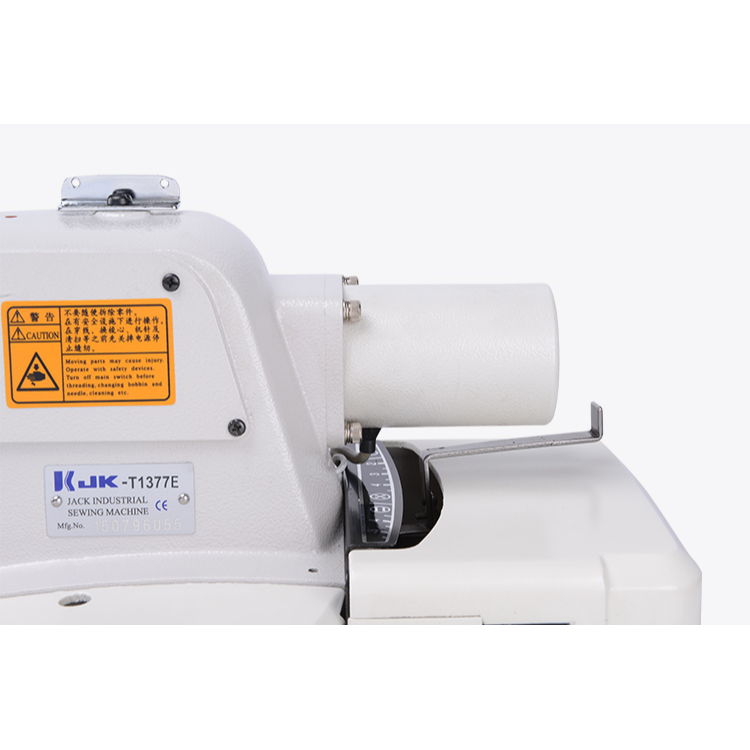

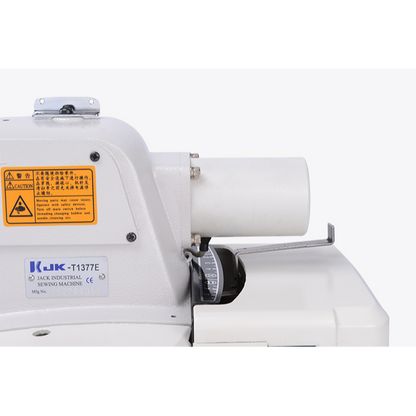

- Direct Drive Eco Motor: Integrated servo motor with built-in control box delivers smooth operation, reduced vibration, and up to 71% energy savings.
- Automatic Functions: Includes auto presser foot lift and automatic thread trimming powered by magnetic control for higher efficiency and less manual handling.

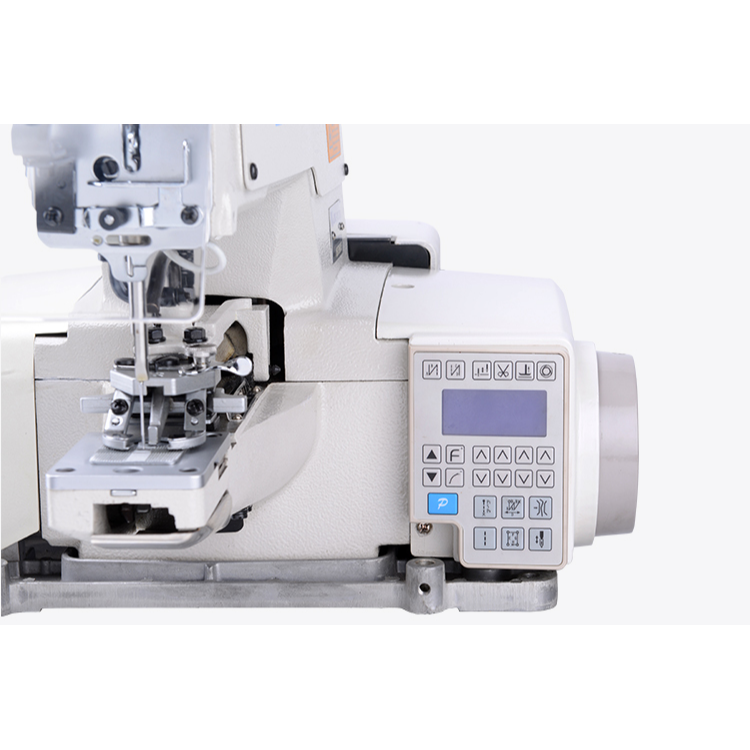

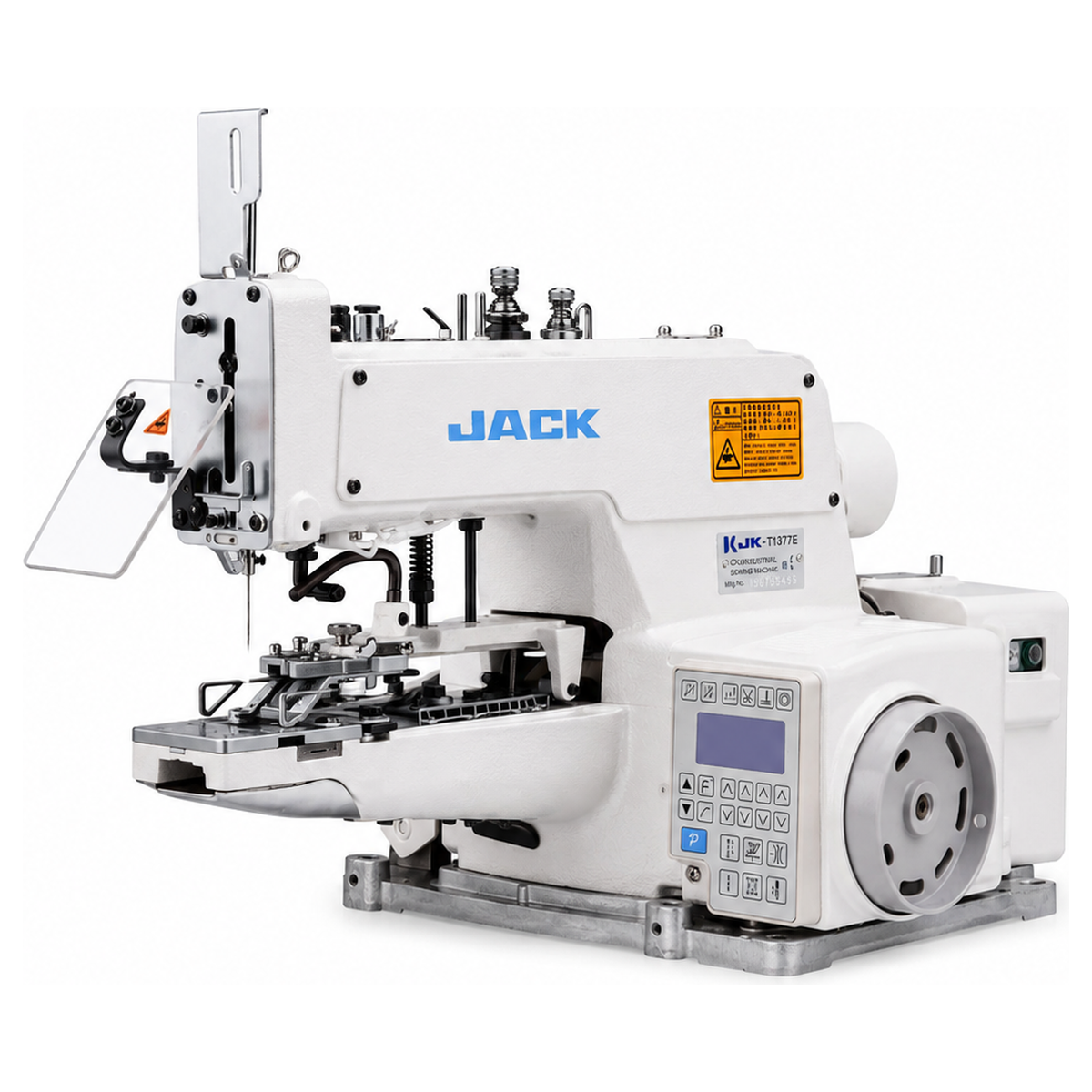

- Easy-to-Use LCD Display: Quickly set stitch count, presser foot pressure, and other parameters directly from the control panel.
- Speedy Button Sewing: Optimized stitch options — 8, 16, or 32 stitches per button — to match fabric and button requirements.
- Thread Fray Prevention System: Built-in on/off mechanism helps produce clean, durable seams with reduced fraying.
- Compatibility: Fully compatible with attachments from conventional button sewing machines.

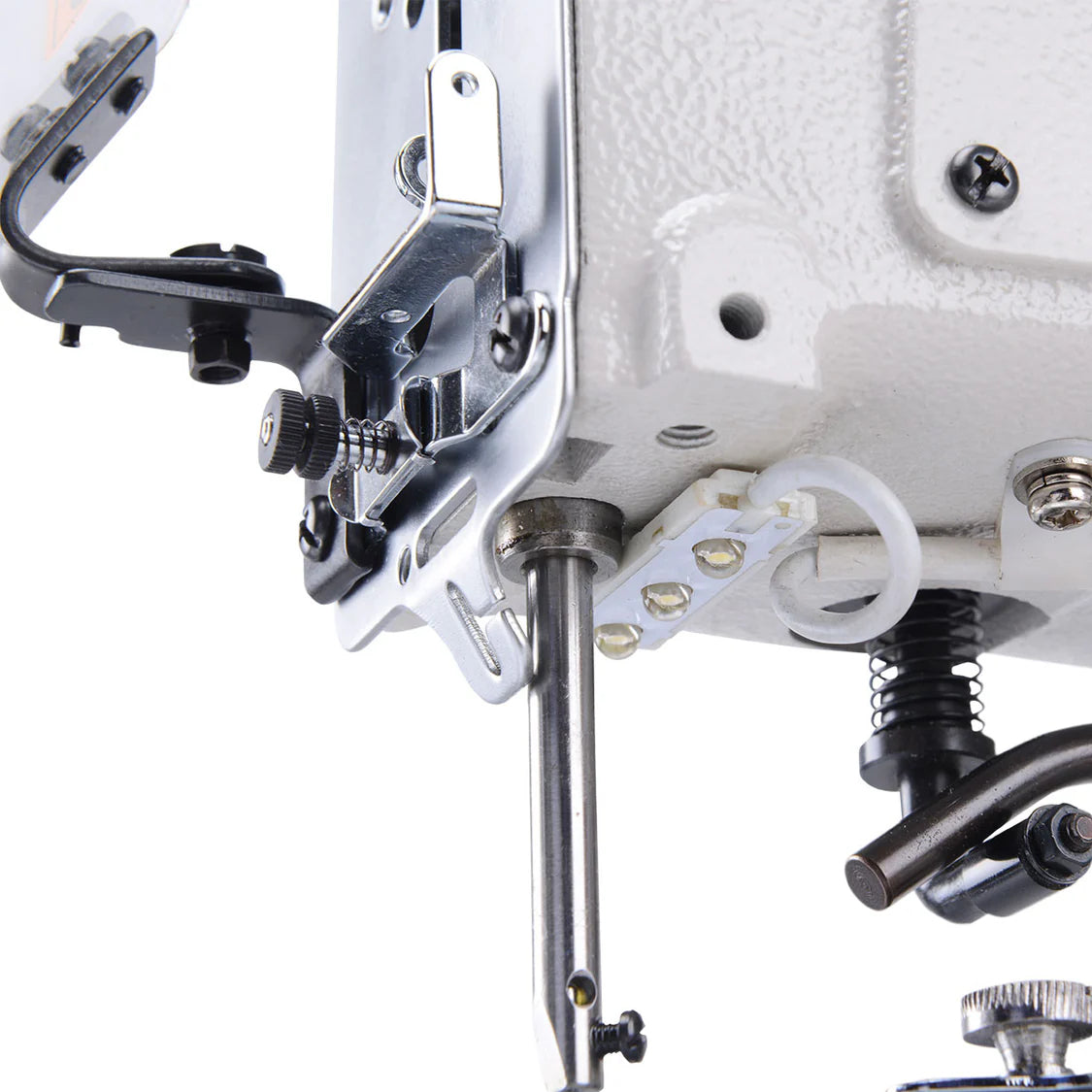

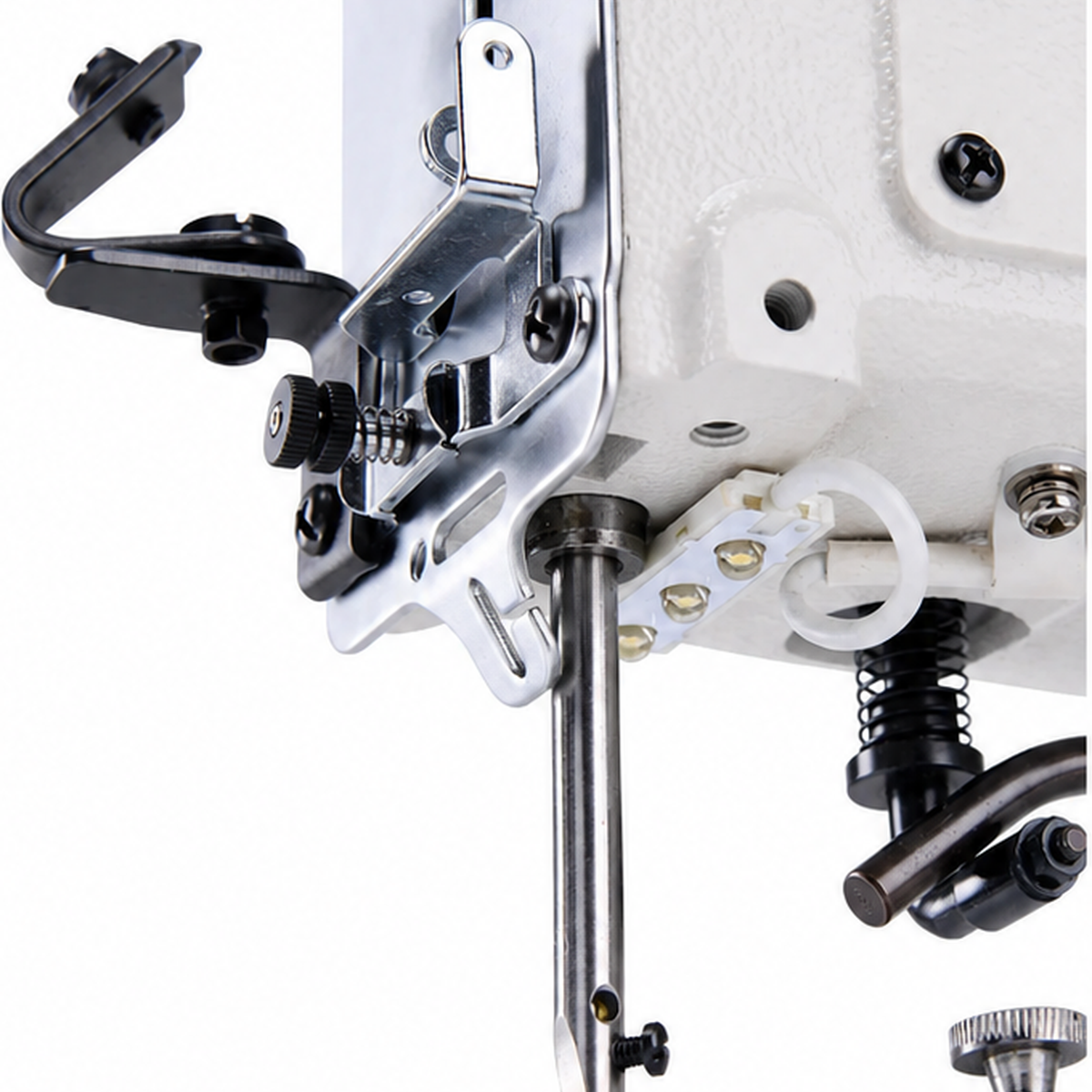

- LED Work Light: Bright illumination improves precision and reduces operator fatigue during long hours of sewing.
- Eccentric Gear Design: Minimizes vibration and extends machine lifespan for long-term durability.
Applications
- Men’s and women’s shirts
- Blouses and uniforms
- Workwear and outerwear
- Coats, jackets, and fashion garments
- General apparel production for light to medium-weight fabrics
Machine Specifications
| Model: | T1377E-B |
| Application: | Button sewing on light to medium-weight materials |
| Stitch Type: | Single-thread chainstitch |
| Max Sewing Speed: | 1,500 stitches per minute (SPM) |
| Button Stitch Patterns: | Cross (X) and Parallel (||) |
| Button Diameter Range: | 10 – 28 mm |
| Pattern Size: | X-axis & Y-axis: 2.5 – 6.5 mm |
| Presser Foot Lift: | 9 mm |
| Needle: | TQx1, Sizes #14 – #18 |
| Thread Size: | TEX 27 – TEX 60 |
| Motor Type: | Built-in Direct Drive Eco Motor (Energy Saving) |
Advantages
- Multi-pattern flexibility: Easily switch between sewing styles with one machine.
- Automatic thread trimming and foot lift reduce operator fatigue and speed up workflow.
- Precision LED lighting improves accuracy for detailed work.
- Low vibration design ensures stability and long machine life.
- Energy-efficient motor provides quiet operation and reduced power costs.
The Jack T1377E-B is a next-generation automatic chainstitch button sewing machine built for performance, precision, and durability. With intelligent automation, low maintenance, and superior stitch quality, it’s the perfect solution for modern garment production lines seeking speed, accuracy, and energy efficiency.
