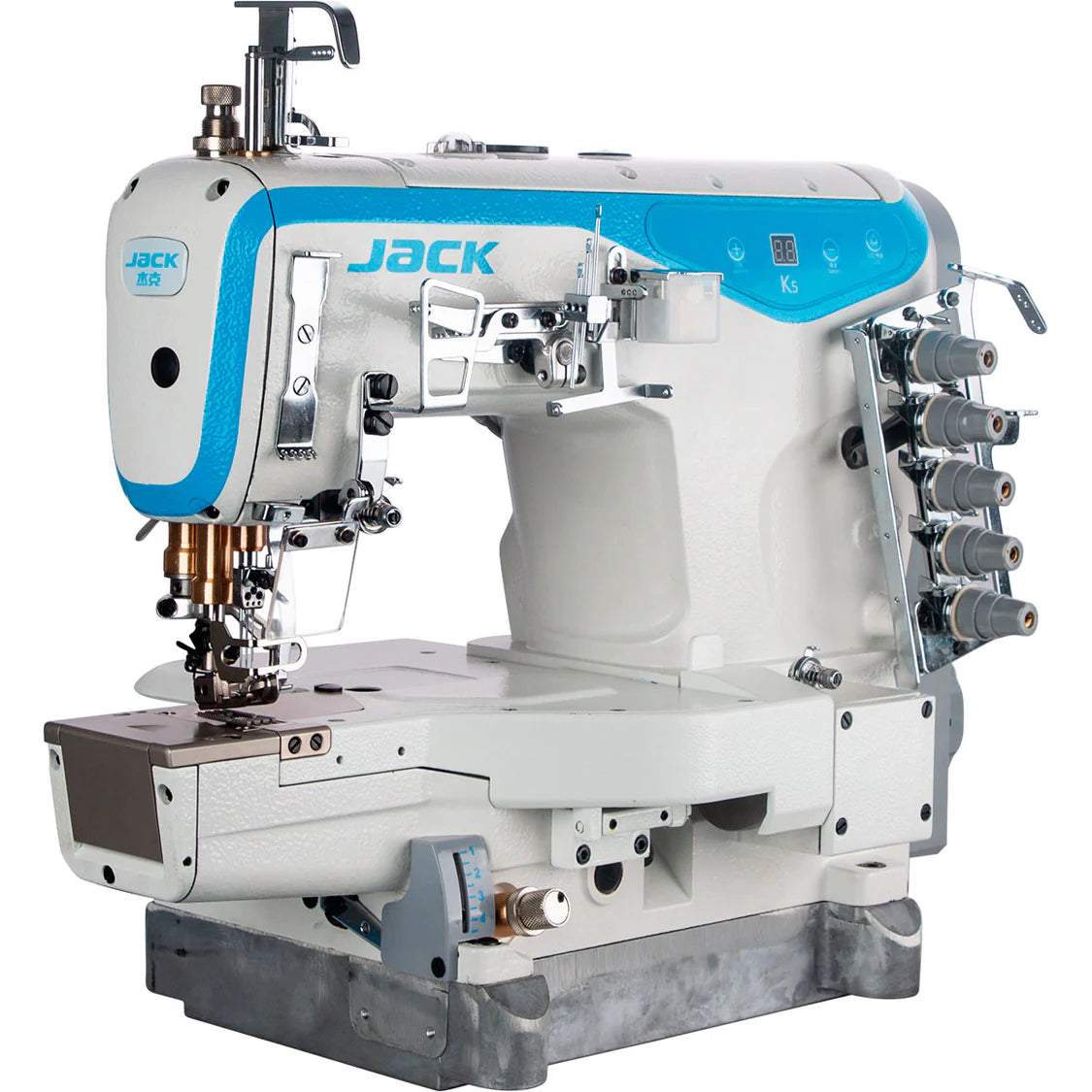

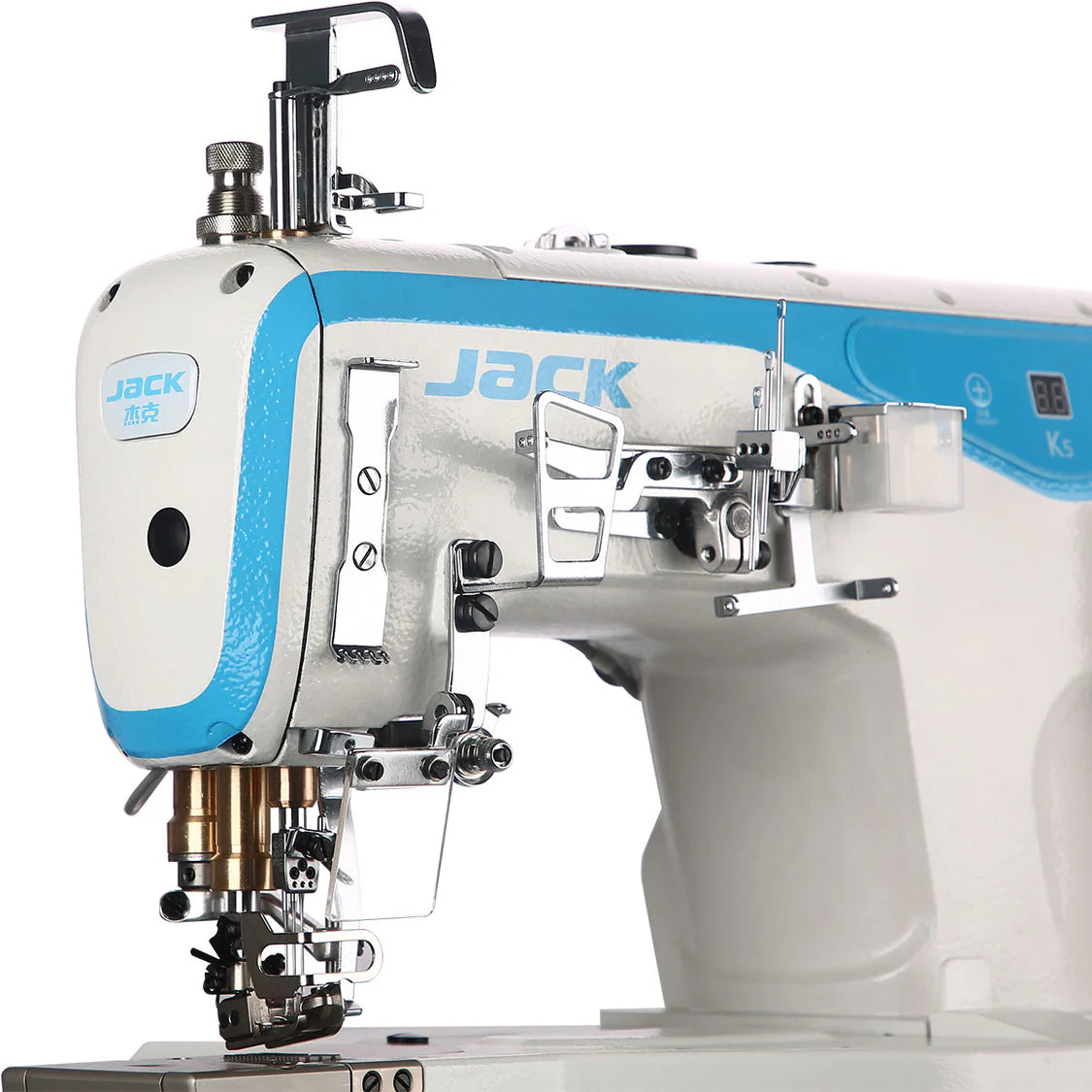

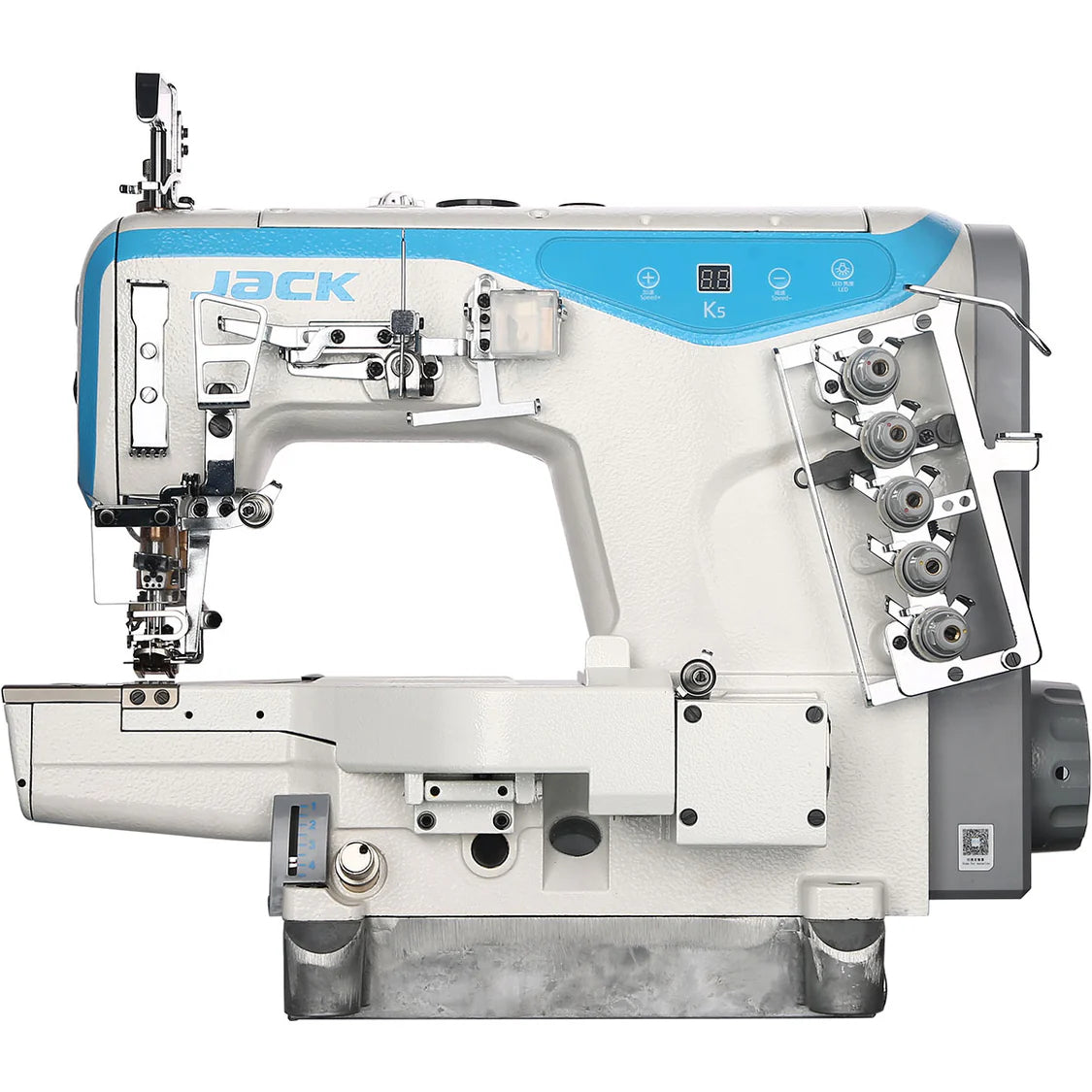

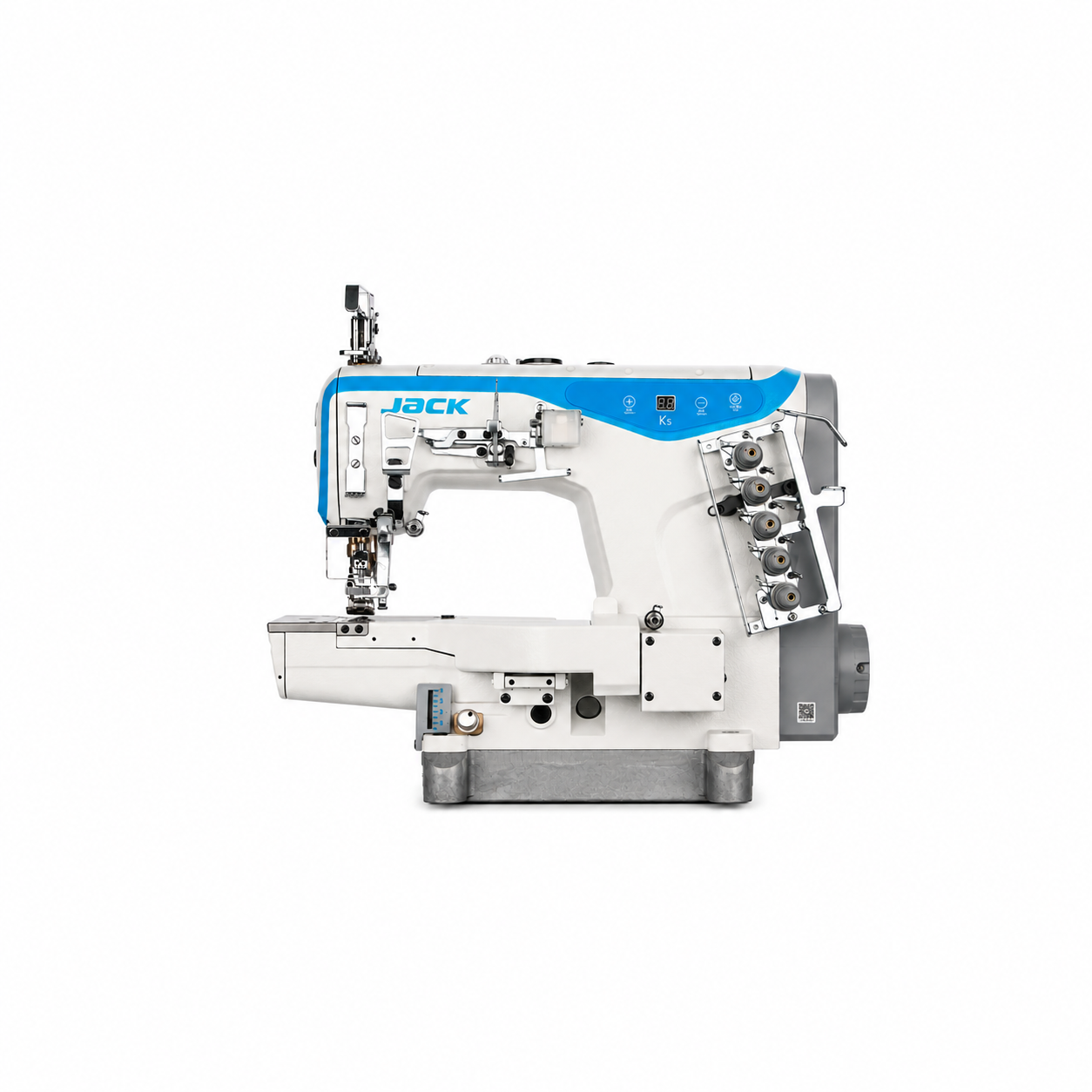

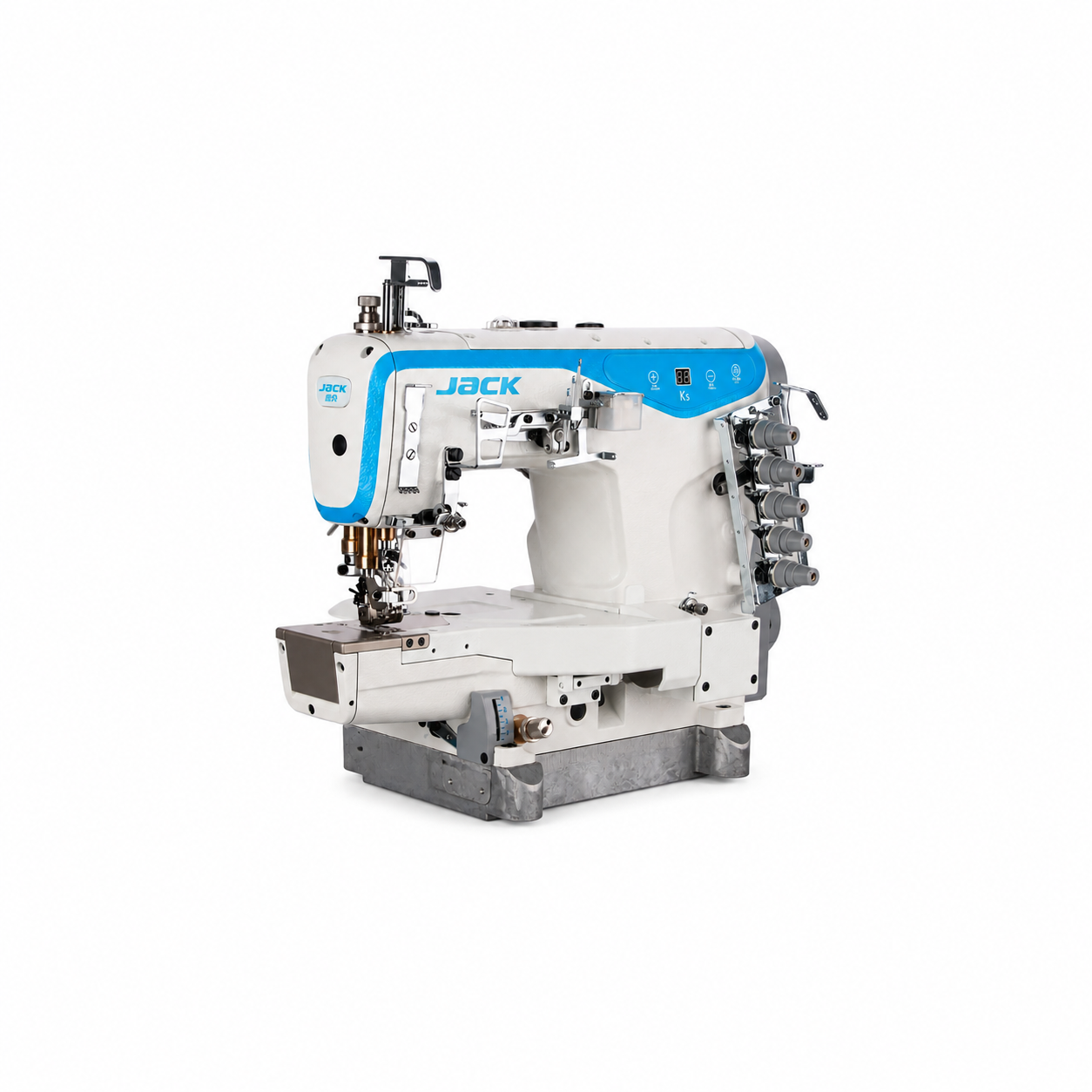

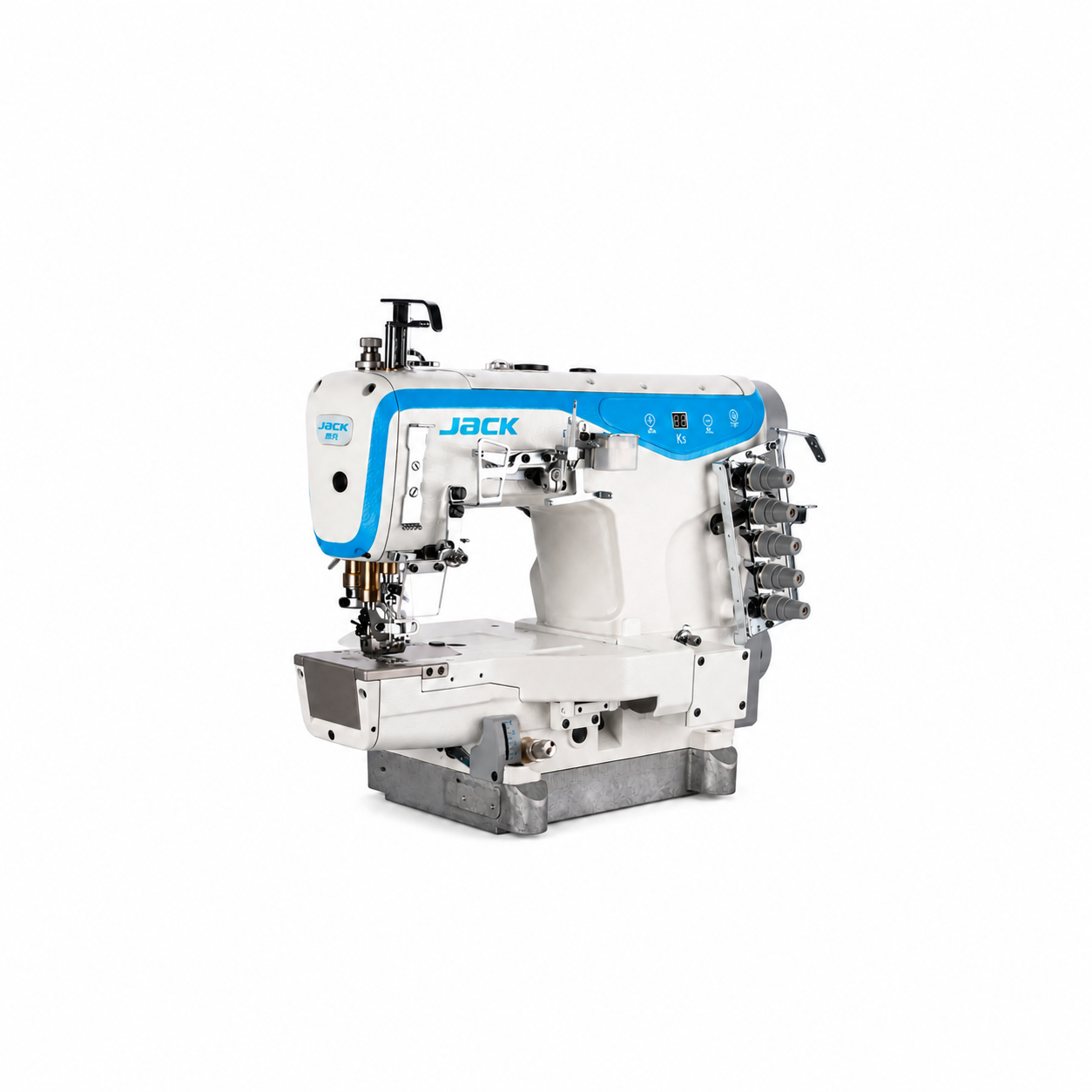

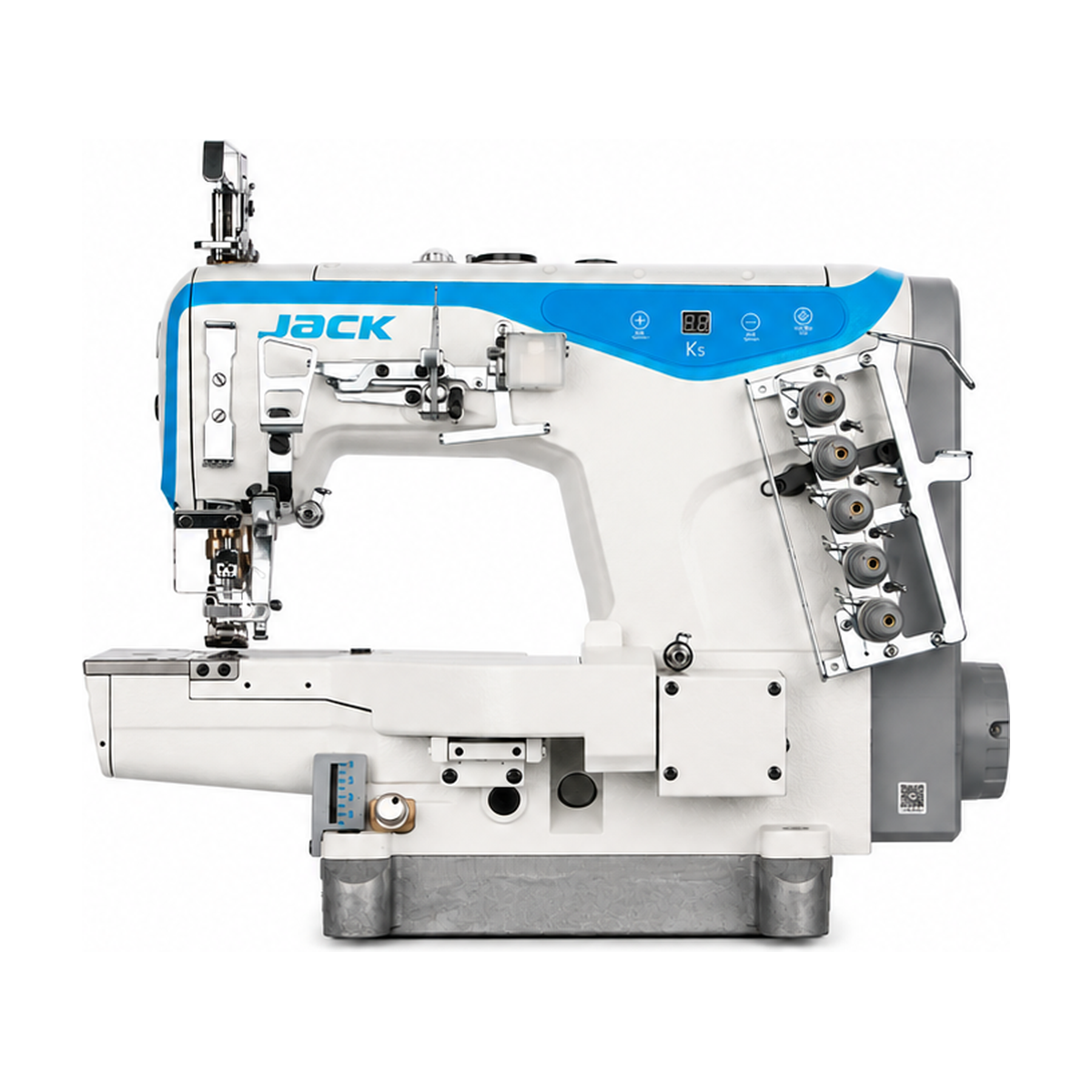

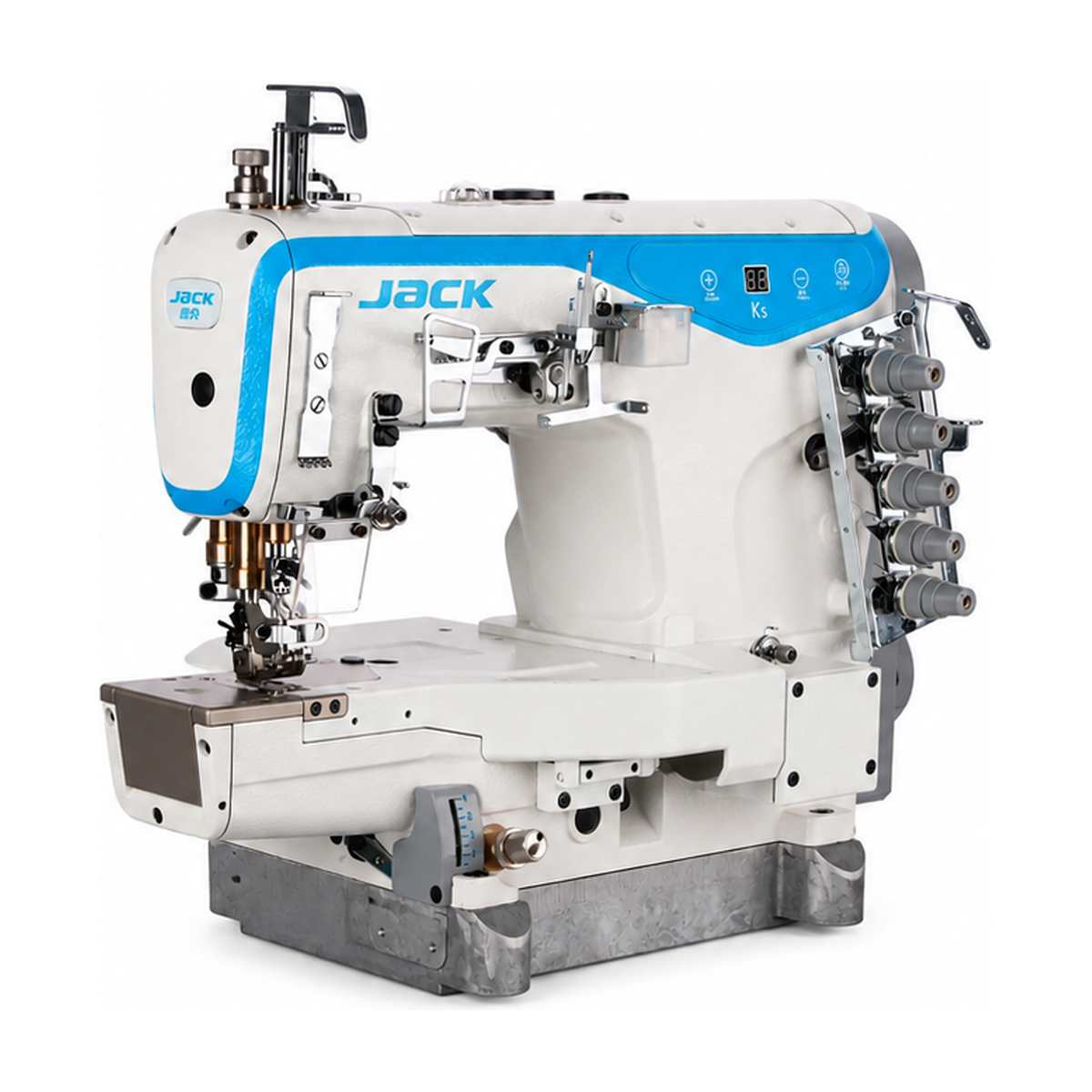

View store informationACK K5-D-01GB×364 — 3-Needle Cylinder Arm Coverstitch Industrial Sewing Machine (Assembled)
Efficient • Precise • Modern — Designed for High-Quality Industrial Stitching
Overview
The ACK K5-D-01GB×364 is a modern 3-needle cylinder-bed coverstitch machine built for professional garment production. Featuring an integrated Direct Drive energy-saving motor mounted on the machine head, it delivers smooth, quiet operation with significantly reduced power consumption. This model ensures excellent stitch formation across a wide range of materials — from lightweight knits to stretch fabrics like Lycra.
Key Features
- 3-Needle, 5-Thread Configuration: Ideal for hemming, decorative seams, and coverstitch applications.

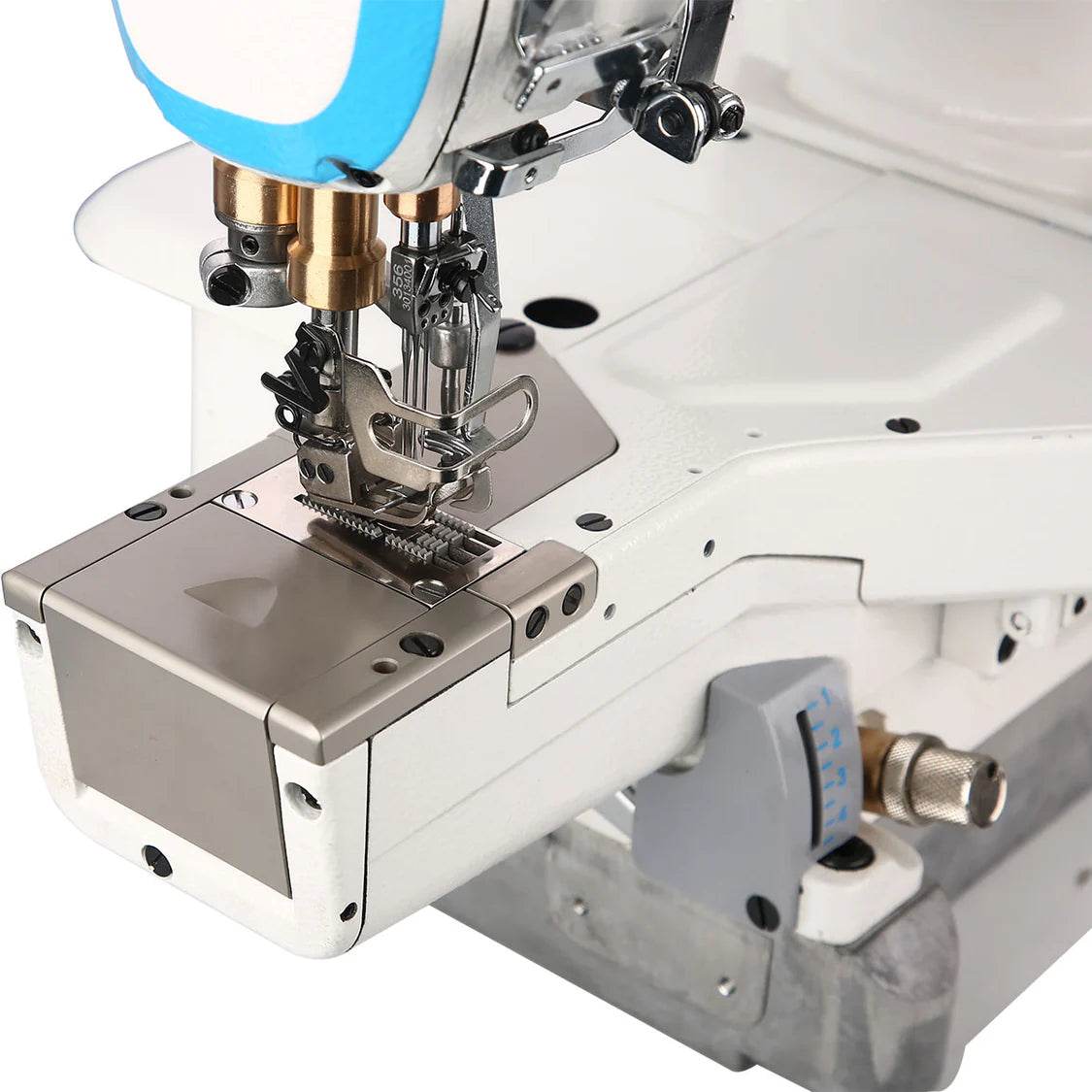

- Cylinder Arm Design: Allows easy access to tubular or curved sections such as sleeves, cuffs, and collars.
- Direct Drive Motor: Integrated, energy-efficient motor ensures quiet, stable performance and reduced vibration.
- Selectable Top Cover Stitch: Top cover thread can be switched off when not required for stitching flexibility.
- 6.4mm Needle Gauge: Provides professional-grade seam spacing for flat, durable coverstitching.
- High Stitch Quality: Differential lower feed system ensures smooth, balanced stitches even on elastic or Lycra fabrics.

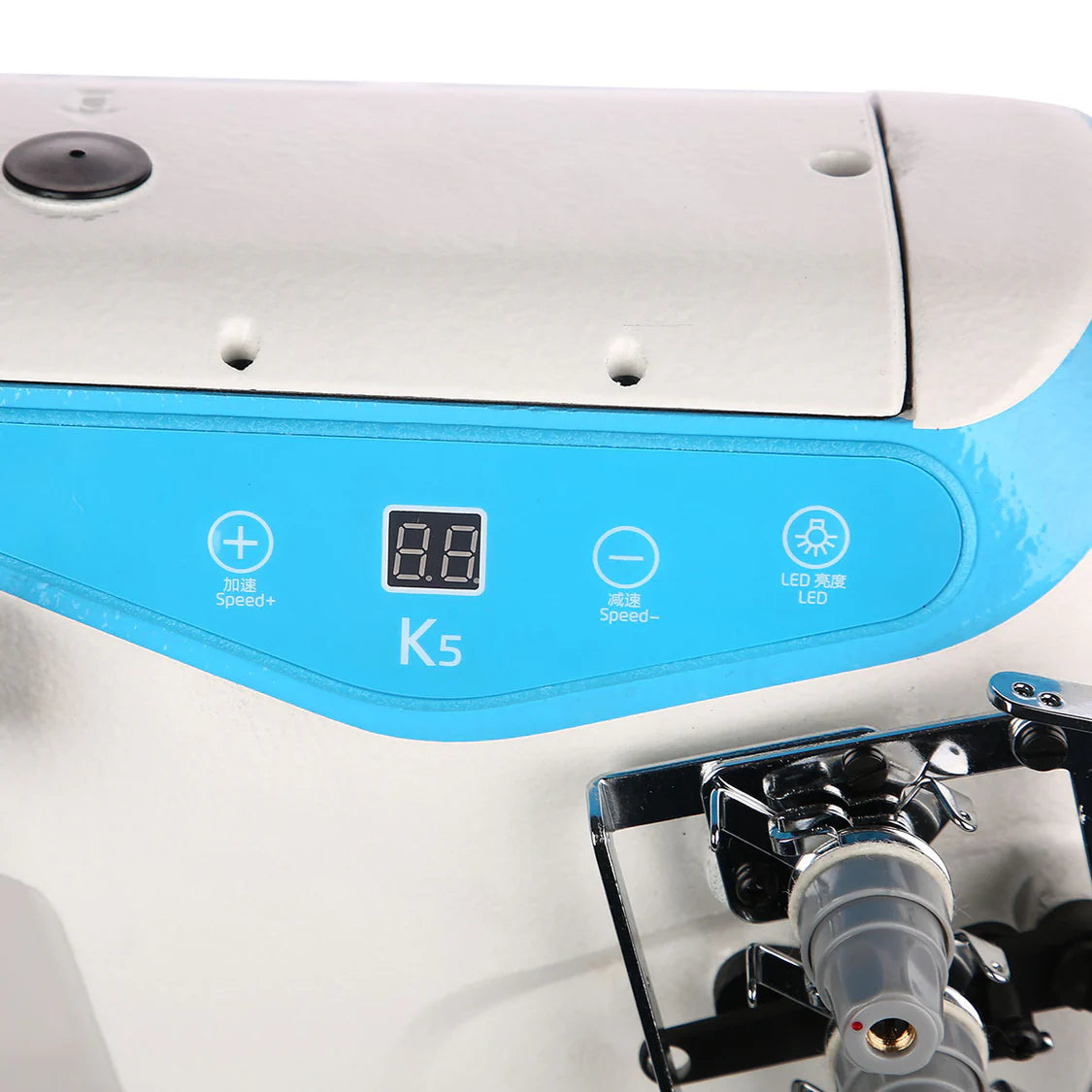

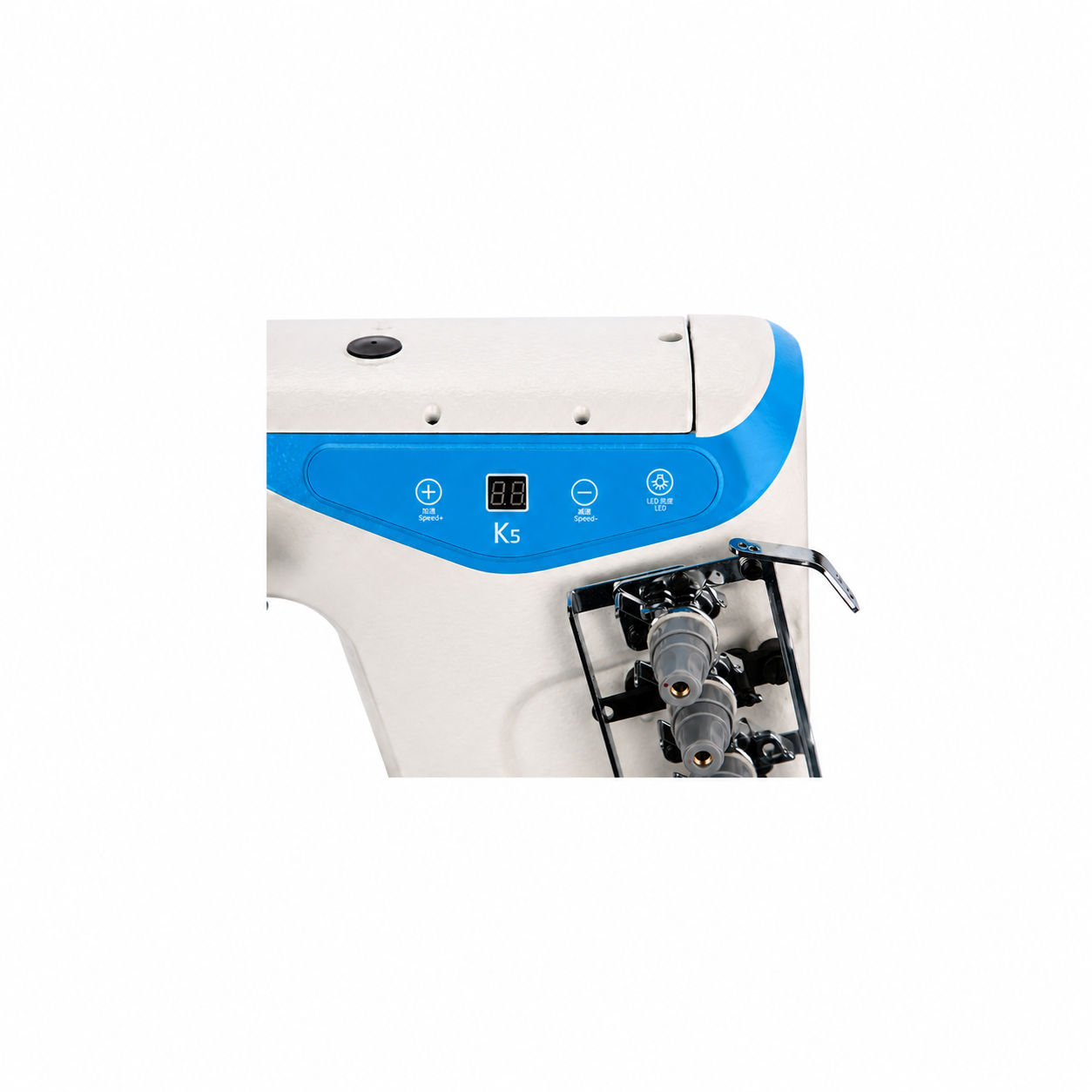

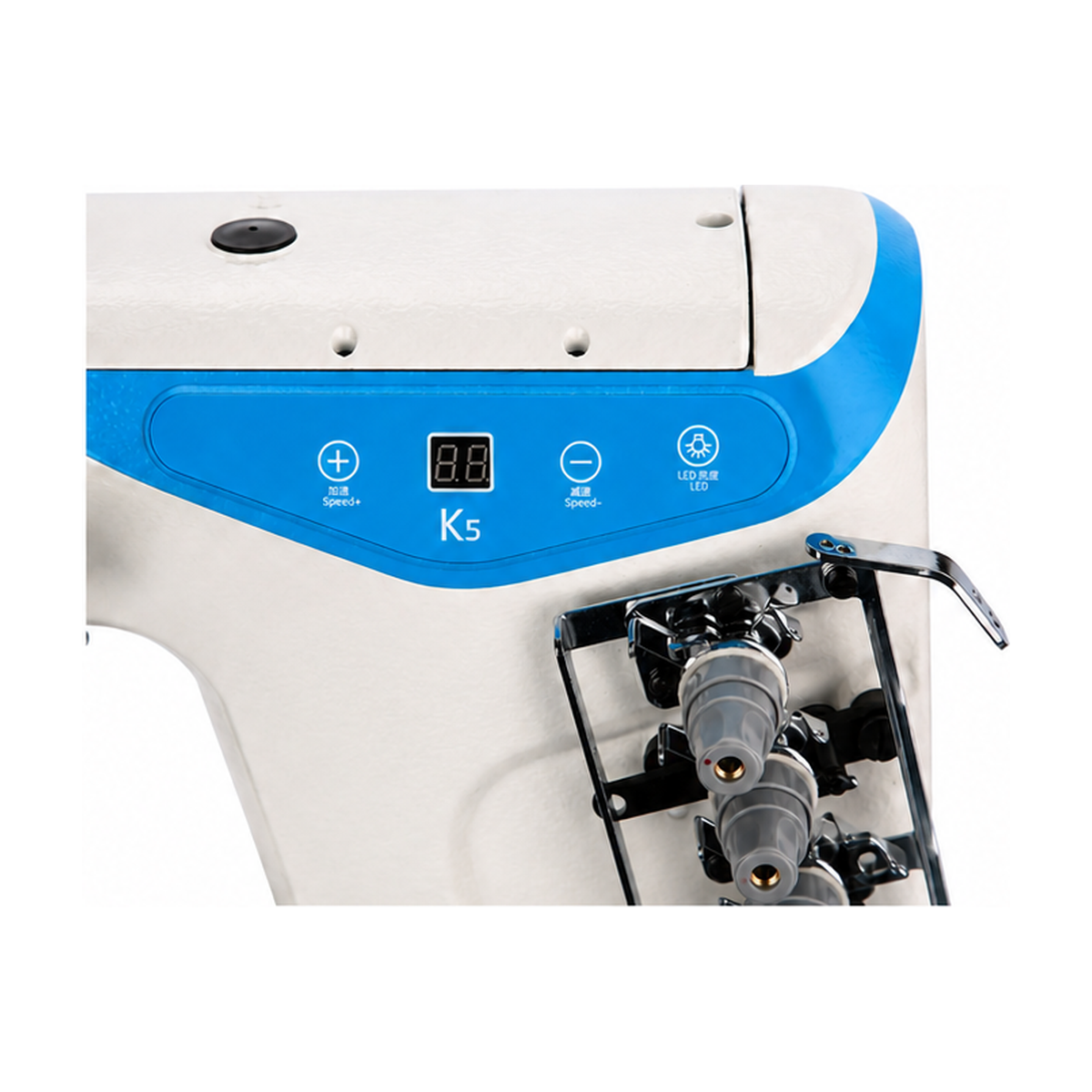

- LED Lighting System: Built-in LED light with adjustable 3-level brightness for better visibility during operation.
- Automatic Lubrication: Uses high-grade Juki Machine Oil No.18 (ISO VG18 equivalent) for smooth, long-lasting performance.
Machine Specifications
| Model: | ACK K5-D-01GB×364 |
| Stitch Type: | 3-Needle Coverstitch (Top and Bottom Cover) |
| Needle System: | UY128GAS #9S–#14S (standard #10S) |
| Needle Gauge: | 6.4 mm |
| Presser Foot Lift: | 5 mm (top & bottom cover), 8 mm (bottom cover only) |
| Lubrication: | Automatic — Juki Machine Oil No.18 (ISO VG18 equivalent) |
| Lighting: | Integrated LED with 3-level adjustable brightness |
| Motor Type: | Built-in Direct Drive energy-saving motor |
Applications
- Sportswear and activewear production
- T-shirts, underwear, and knit garments
- Hemming, binding, and decorative seams
- Elastic and stretch fabric sewing
- Small tubular sections — sleeves, cuffs, and neck openings
Advantages
- Energy-Efficient: Direct drive motor reduces power consumption and noise.
- Precision Stitching: Differential feed system ensures flawless results on stretch and knit fabrics.
- Compact & Functional: Cylinder-bed design offers maximum accessibility for small areas.
- Professional Lighting: Adjustable LED illumination improves accuracy and reduces eye strain.
- Durable Construction: Engineered for long-term performance in high-speed industrial environments.
The ACK K5-D-01GB×364 is built to meet the demands of modern garment production — combining speed, precision, and efficiency in one reliable, energy-saving coverstitch solution.
