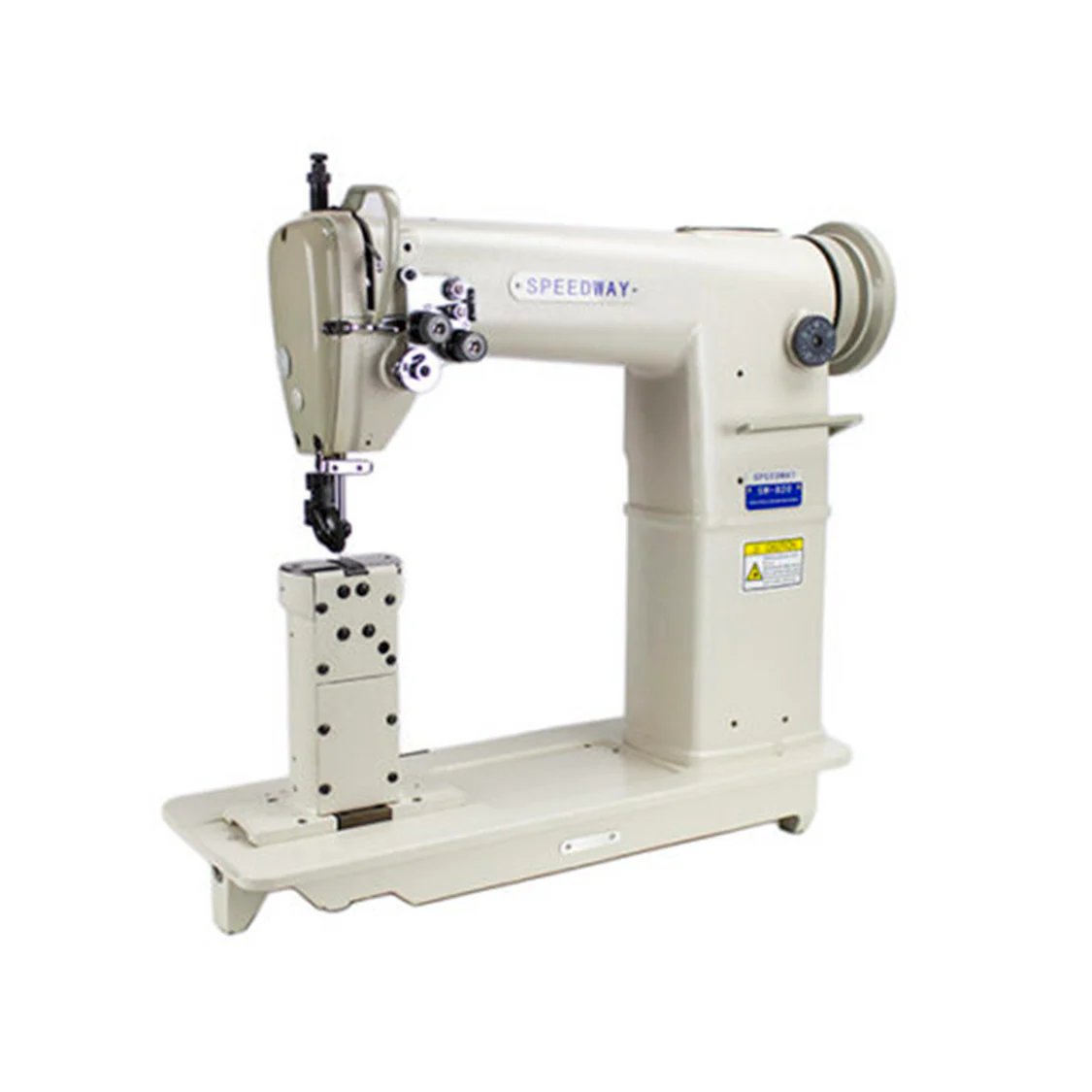

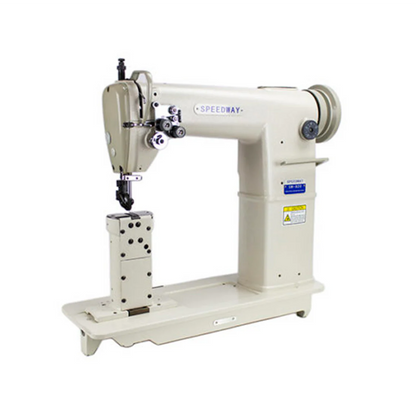

View store informationSPEEDWAY SW-820 — Double Needle Post-Bed Lockstitch Industrial Sewing Machine
Precision • Power • Leathercraft Excellence
The SPEEDWAY SW-820 is a double-needle, post-bed industrial lockstitch sewing machine built for professional applications in leather, footwear, fashion, and upholstery. Featuring a vertical-axis rotating hook, drop feed with roller presser foot, and a 7″ post height, it delivers powerful seam construction with exceptional maneuverability on curved or tubular projects. Designed for decorative stitching, reinforcement, and detailed finishing, this model comes fully assembled with a servo motor, industrial table, and stand.
Key Features
- Double-Needle Post-Bed Design: Enables parallel stitching lines for decorative and reinforced seams.
- Lockstitch with Drop Feed & Roller Foot: Smooth fabric handling and precise stitch formation on curved materials.
- Vertical-Axis Rotary Hook: Ensures consistent tension and high-quality stitches even at high speed.
- High-Speed Operation: Delivers up to 2,200 stitches per minute depending on setup.
- Flexible Needle Gauge Options: Standard 2.4 mm gauge; other spacing options available.
- Professional Setup: Includes servo motor, industrial table, and heavy-duty stand.
- Optional Automation: Presser foot lift can be configured for automatic operation.
Applications
- Footwear: vamps, decorative stitching, tipping, and reinforcement seams.
- Garments: corsets, brassieres, raincoats, and leather fashion wear.
- Leather Goods: handbags, belts, wallets, and accessories.
- Vinyl & Coated Fabrics: laminated textiles, synthetics, and canvas.
- Upholstery: cushions, panels, and precision decorative seams.
- Tubular & Curved Projects: narrow or pre-assembled components.
Technical Specifications
| Model: | SW-820 |
| Needles: | 2 (Double) |
| Stitch Type: | 301 Lockstitch |
| Feed Mechanism: | Drop Feed with Roller Presser Foot |

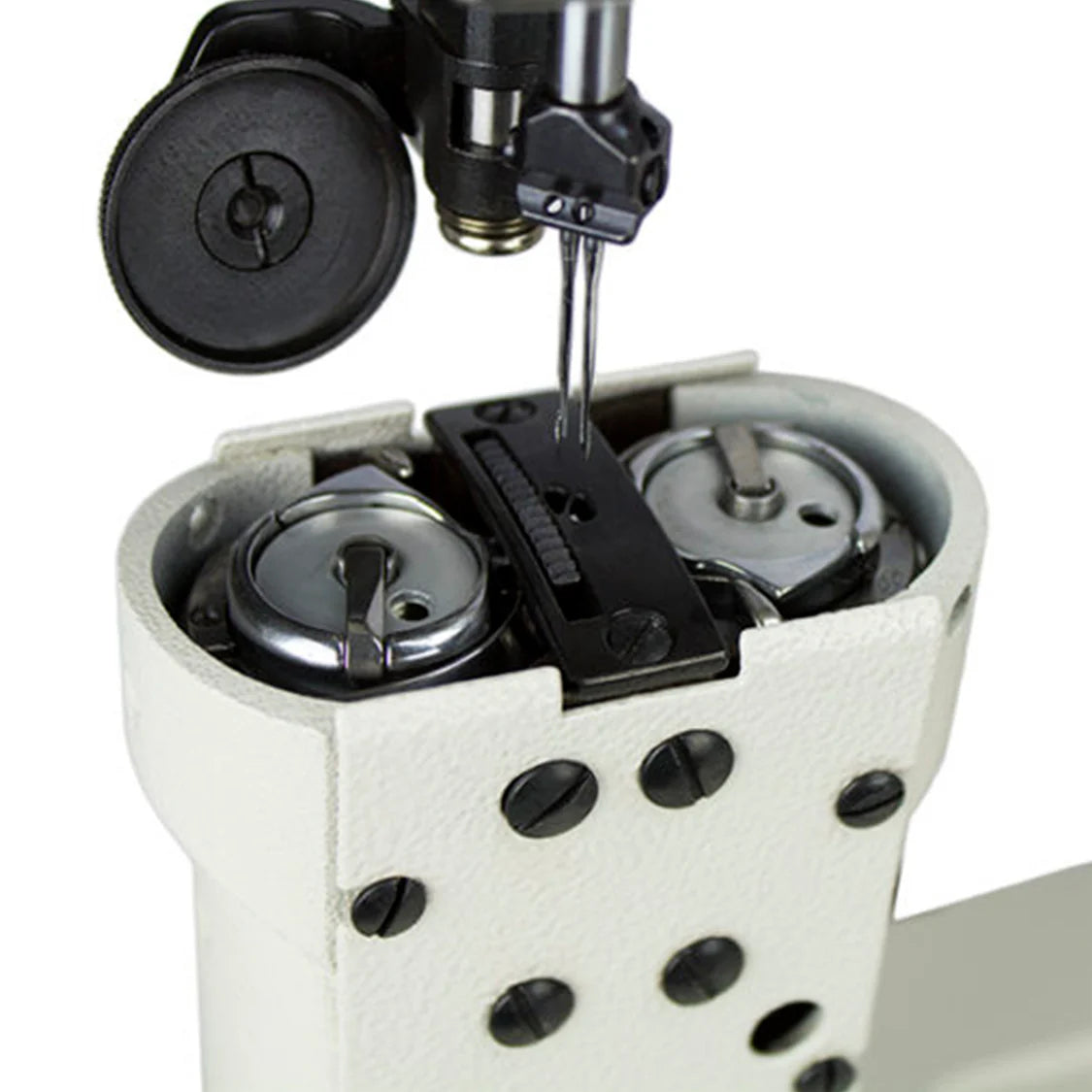

| Hook Type: | Vertical-Axis Rotary Hook |
| Max Speed: | 2,000–2,200 SPM |
| Needle Gauge: | 2.4 mm (optional gauges available) |
| Needle System: | DPx5 (#14–19) |
| Presser Foot Lift: | Manual / Optional Automatic |
| Post Height: | 7″ (178 mm) |
| Work Surface: | 48 × 75 mm (1 ⅞″ × 2″) |
| Power Supply: | 110 V, 50/60 Hz (Single Phase) |
| Motor Type: | Servo Motor (included) |
| Included: | Industrial Table, Stand, Servo Motor (Complete Set) |
Advantages
- Perfect for decorative or reinforced stitching on curved or tubular projects.
- Compact post-bed structure ideal for footwear and leather goods.
- Durable build for continuous industrial use.
- Includes everything needed for professional operation — ready to use out of the box.
The SPEEDWAY SW-820 combines precision engineering, ergonomic post-bed access, and high-speed dual-needle performance — making it a premier choice for footwear, leathercraft, and fashion manufacturing professionals.
